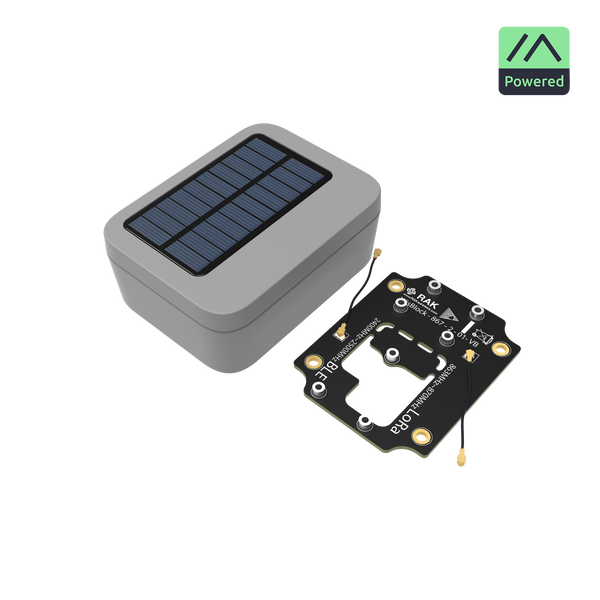

WisMesh Unify Enclosure
IP65 Enclosure for Meshtastic Device
Prefer another courier for your delivery? Contact us for special shipping arrangements.
What is WisMesh Unify Enclosure?
The WisMesh Unify Enclosure is an IP65-rated outdoor enclosure. It is designed for Meshtastic devices and IoT sensors.
It works with the WisBlock Meshtastic Starter Kit or DIY Meshtastic boards. A solar-powered option allows you to create off-grid solar nodes. Flexible mounting options make installation simple. It is ideal for outdoor IoT projects and LoRa mesh networks.
Why Choose WisMesh Unify Enclosures?
Whether you’re building LoRa mesh networks, deploying Meshtastic devices, or creating reliable outdoor sensor enclosures, the WisMesh Unify IP65 Enclosure series offers the perfect solution. With IP65-rated durability, solar-powered options, and compatibility with modular WisBlock systems, these Meshtastic enclosures meet the demands of both compact and advanced IoT applications.

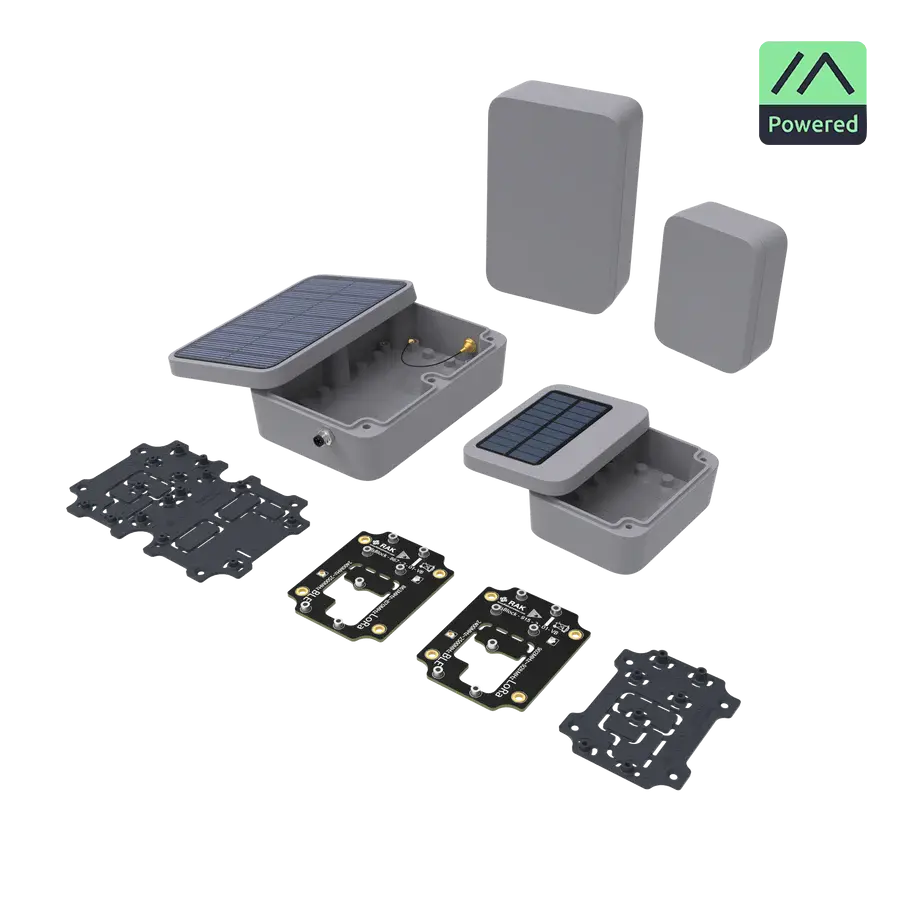

Enclosure with Variants (Size, Antenna Connector, Solar Option)
Choose from two sizes, with optional solar panels for powering Meshtastic Solar Nodes in off-grid networks:
|
Feature |
Small Enclosure |
Medium Enclosure |
|
Size |
100mmx75mmx38 mm |
150mmx100mmx45 mm |
|
Antenna |
Built-in LoRa and BLE antennas |
RP-SMA antenna connector |
|
Power Option |
Not solar-powered |

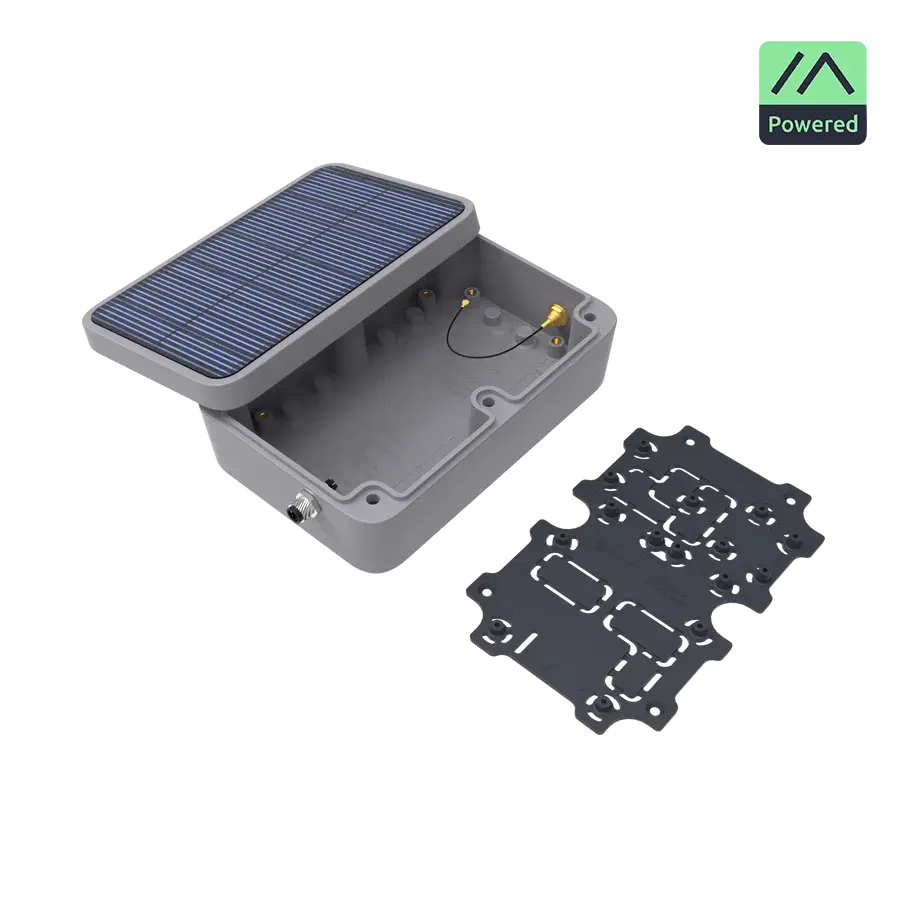

Integrated solar panel |
|
Peripheral Connector |
None |
5-pin IP65 connector |
|
Best for |
Compact deployments without external antennas |
Advanced setups with solar power |
Tailored for Meshtastic Applications
Select the right enclosure for your Meshtastic Starter Kit using our compatibility guide.
- Compact setups (e.g., Client Role): Small enclosure (100mmx75mmx38 mm)
- Advanced setups (e.g., Tracker with Solar Panel, Router Role): Medium enclosure (150mmx100mmx45mm)
WisMesh Device Compatibility Overview
|
Configuration |
100mmx75 mmx38mm |
150mmx100mmx45 mm |
|
✓ |
✓ |
|
|
X |
X |
|
|
✓ |
✓ |
|
|
X |
X |
|
|
X |
✓ (requires custom mounting plate) |
|
|
✓ |
✓ |
|
|
X |
X |
|
|
✓ |
✓ |
|
|
X |
X |
|
|
X |
✓ |
|
|
X |
X |
|
|
X |
✓ |
|
|
X |
X |
|
|
X |
✓ |
Key Features
- Weatherproof Design: This durable IP65 enclosure ensures reliable protection.

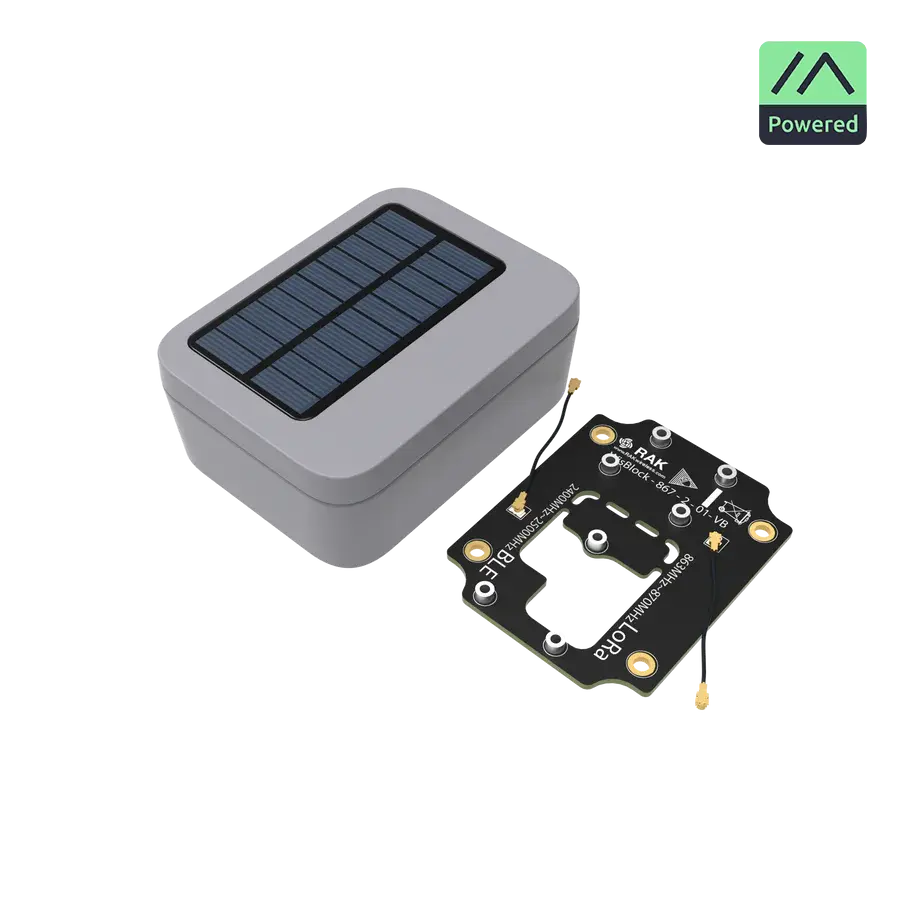

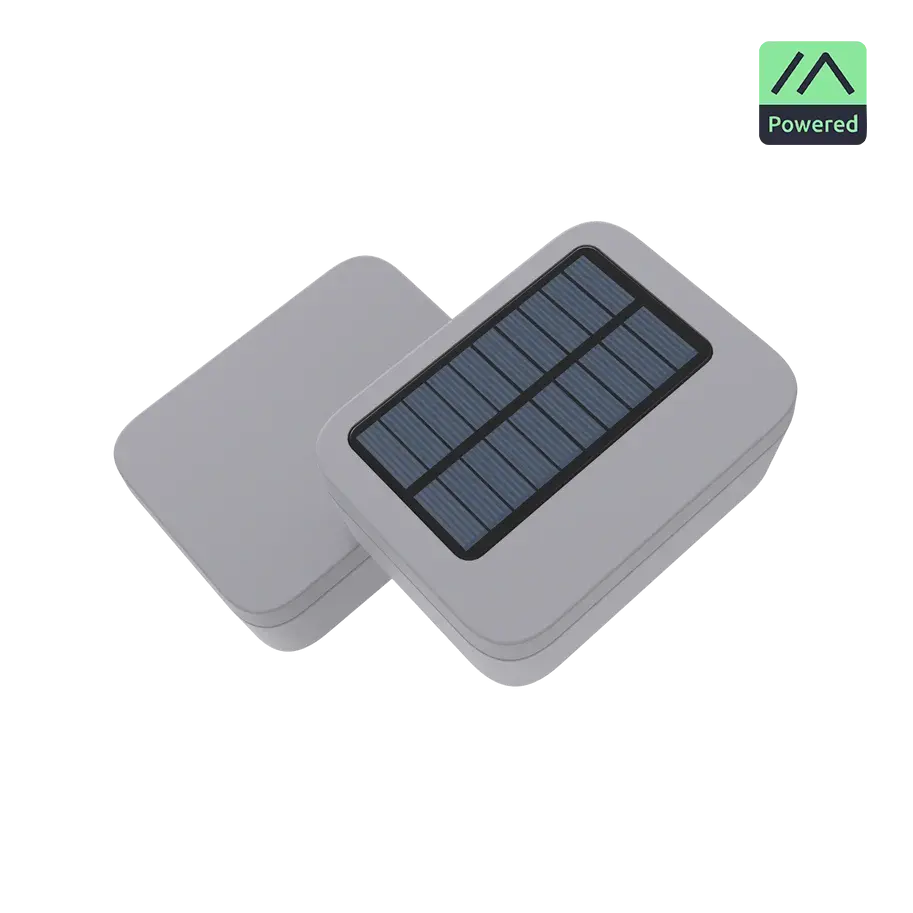

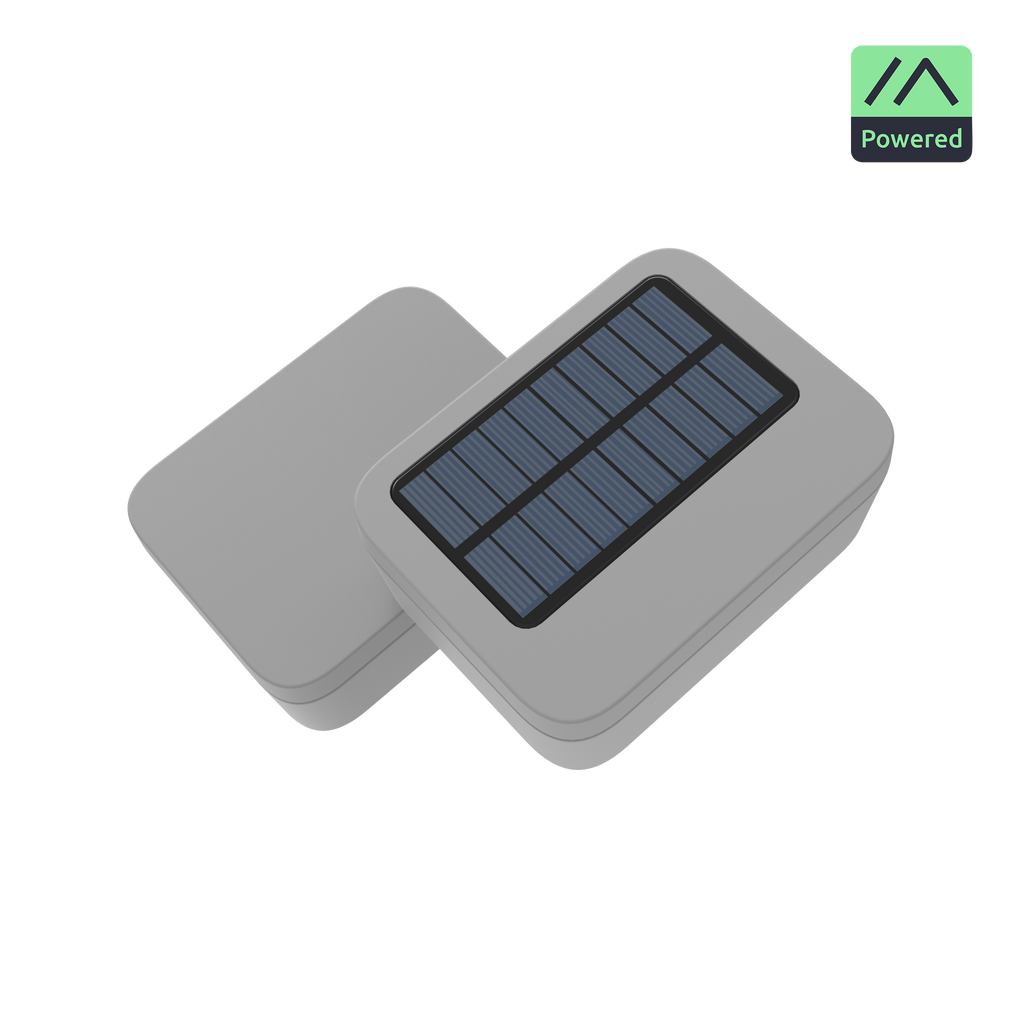

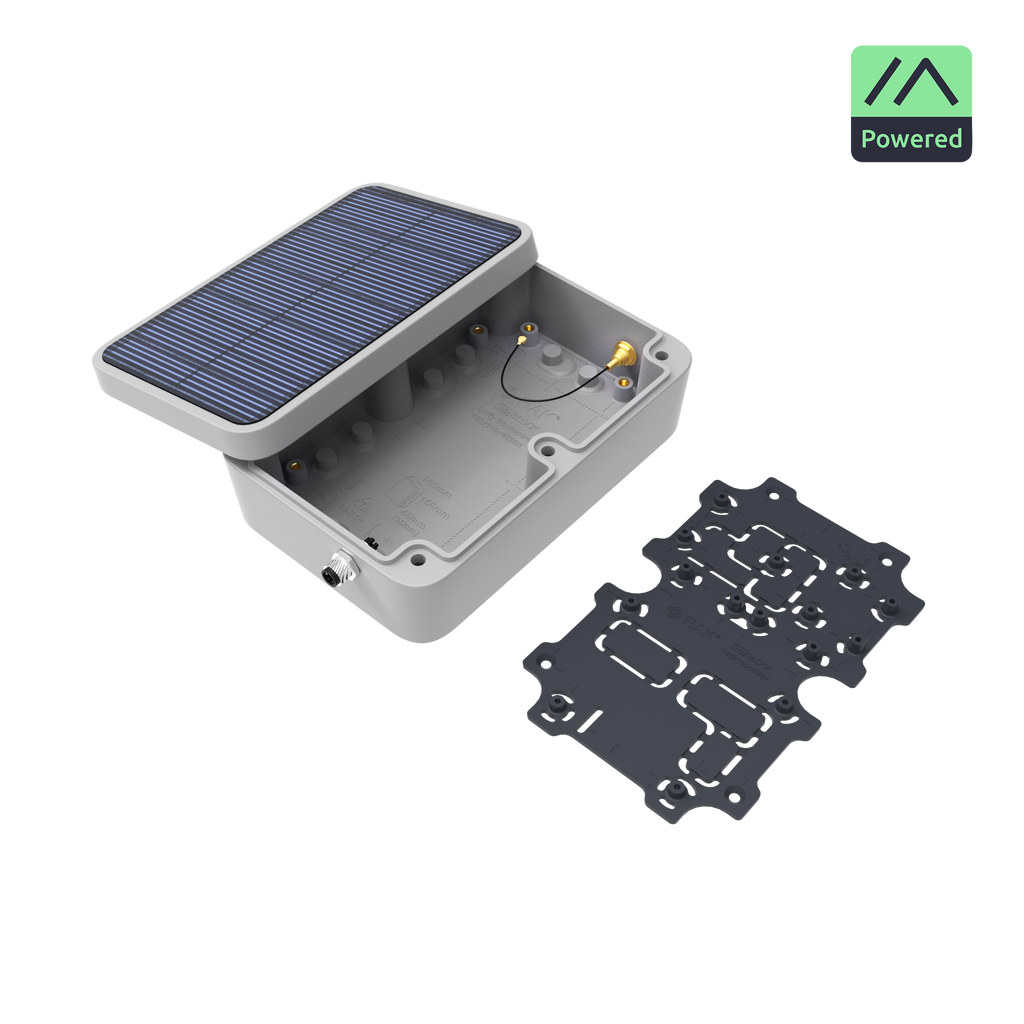

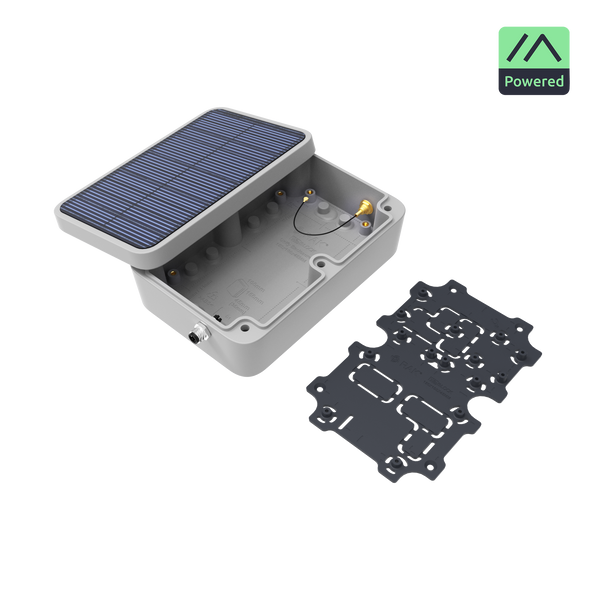

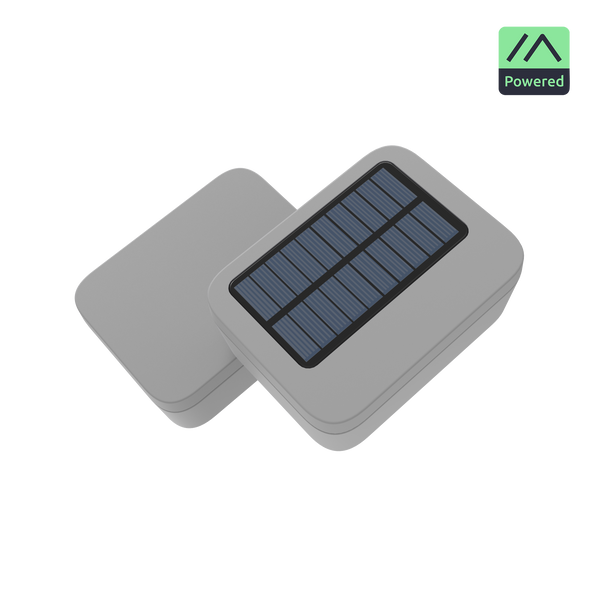

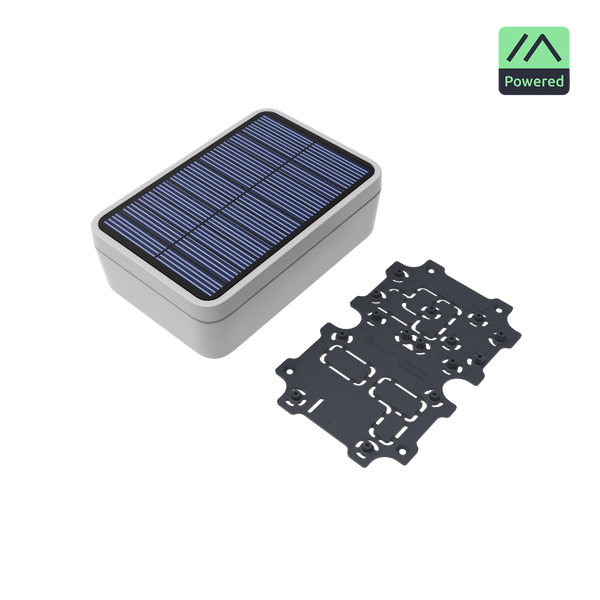

- Solar Power Options: Integrated solar panels are available.
- Modular Mounting Kits: The device supports multiple mounting options. It is compatible with wall, pole, belt, and other mounts.

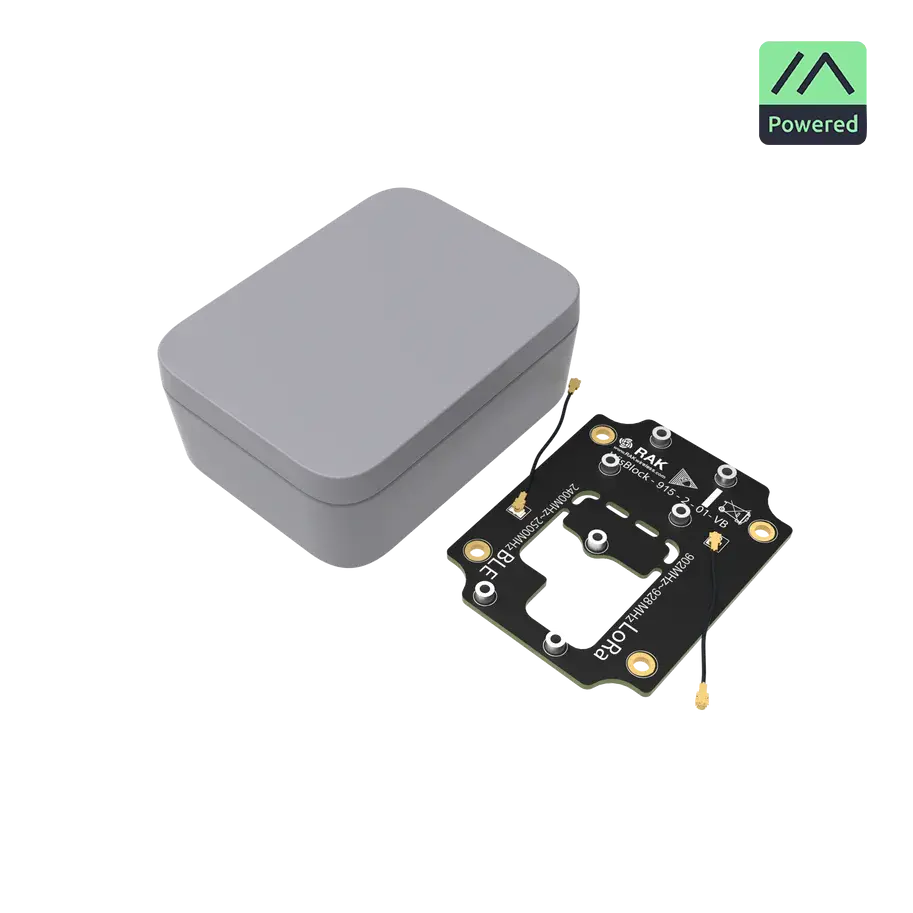

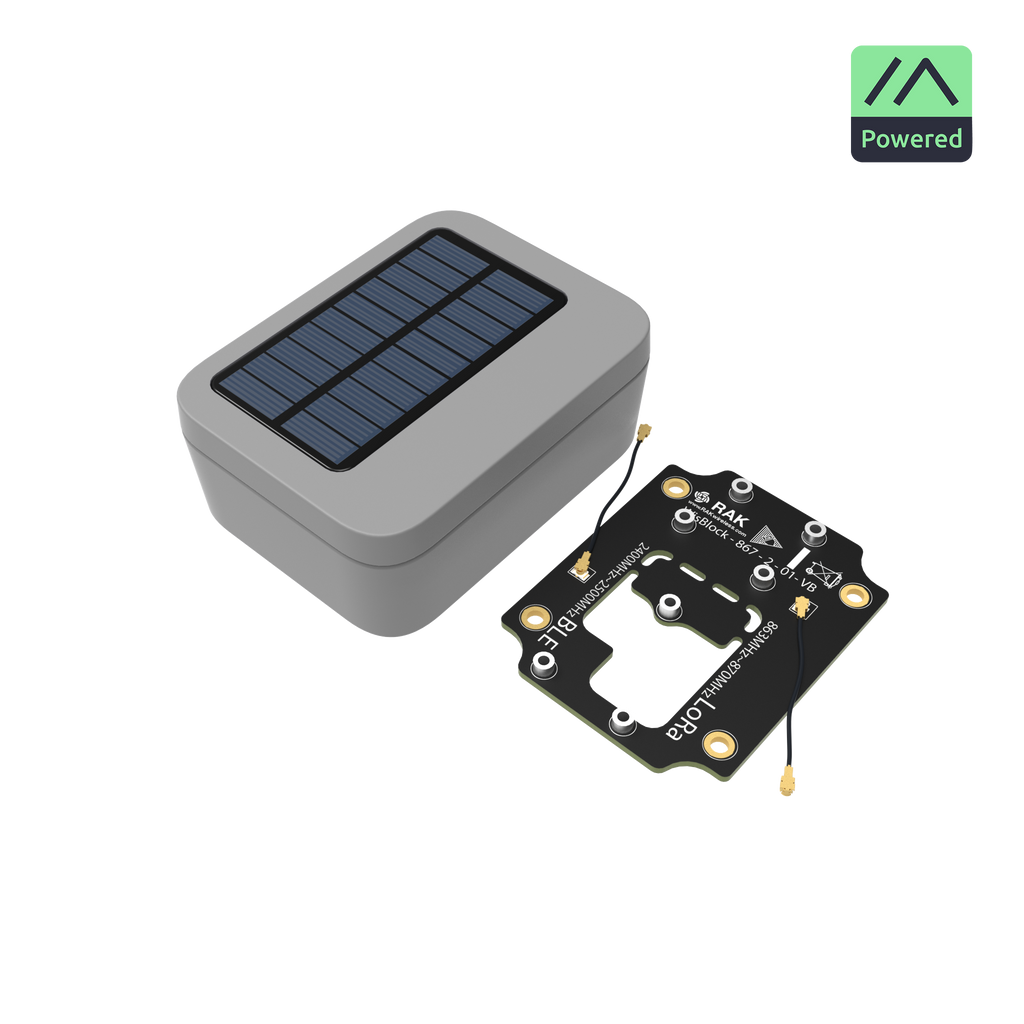

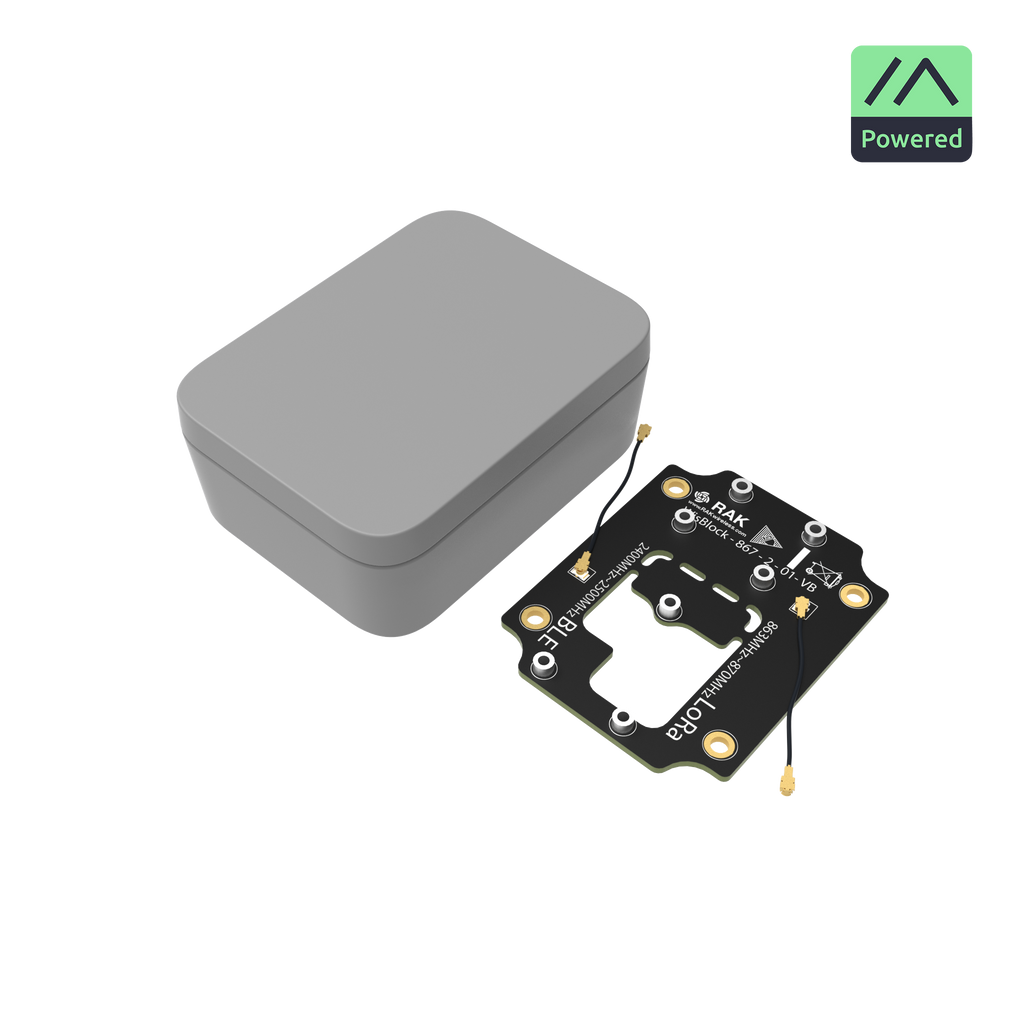

- Integrated Antennas: Built-in LoRa and BLE antennas ensure optimized connectivity.
- Flexible Sizes: Choose from two enclosure sizes. The small size measures 100mmx75mmx38 mm, and the medium size measures 150mmx100mmx45mm.
Package Inclusions
- 1x WisMesh Unify Enclosure (solar or non-solar option)

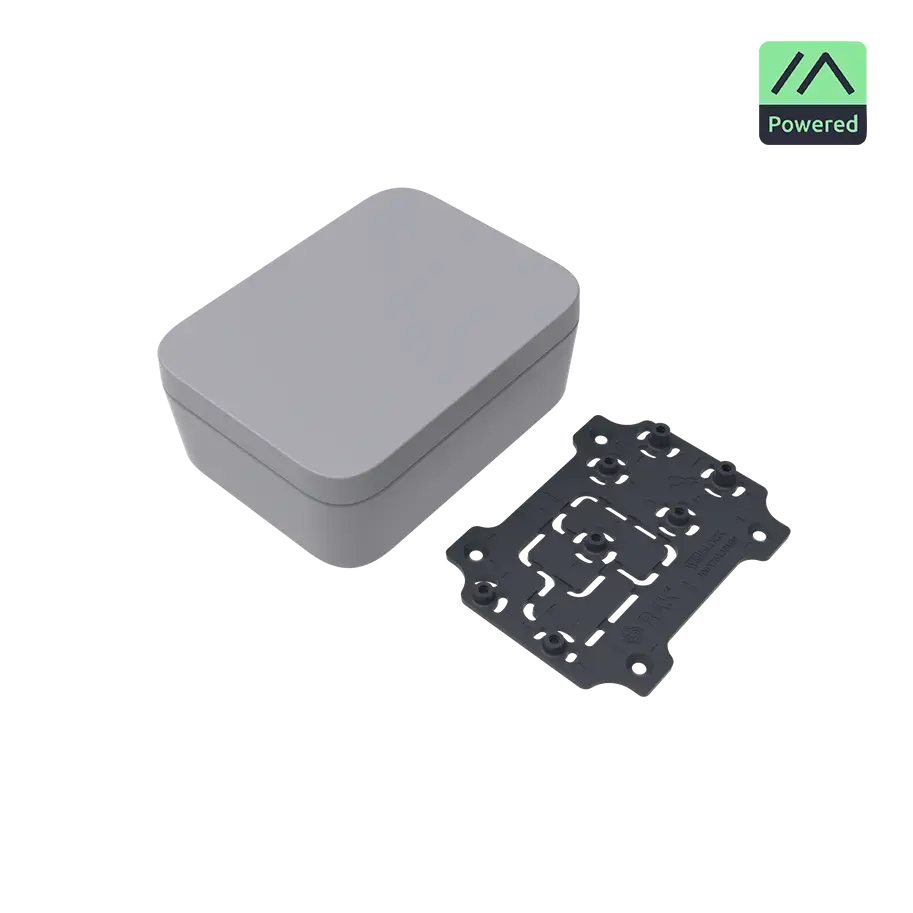

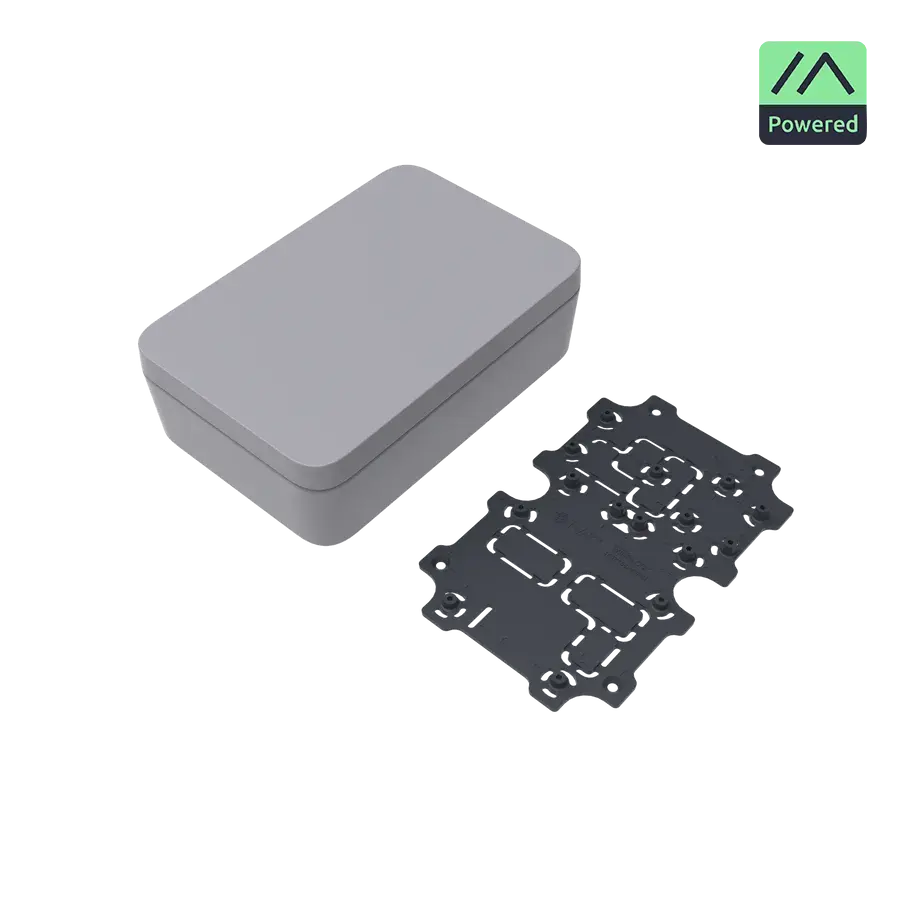

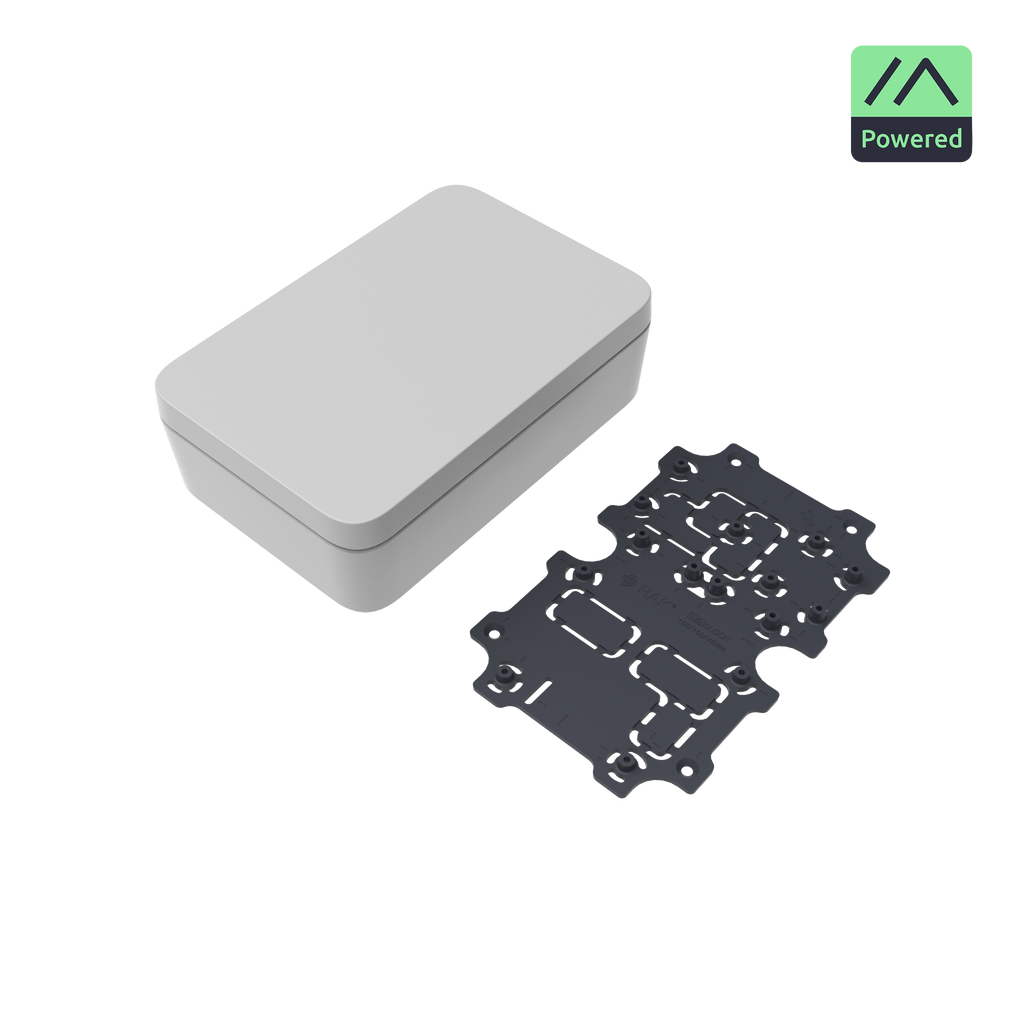

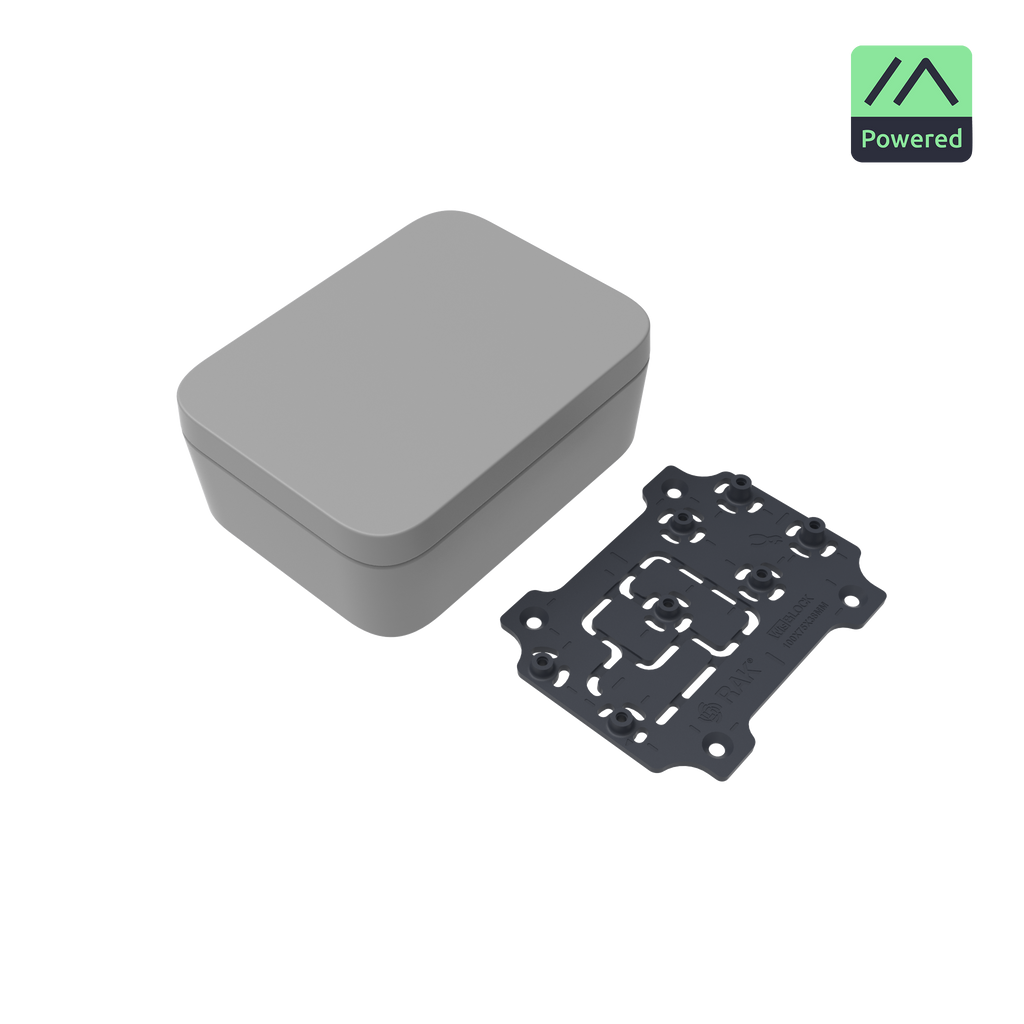

- 1x Mounting Plate (specific to selected size)
- 1x Screw Set
- 1x M8 Cable (for medium enclosure)

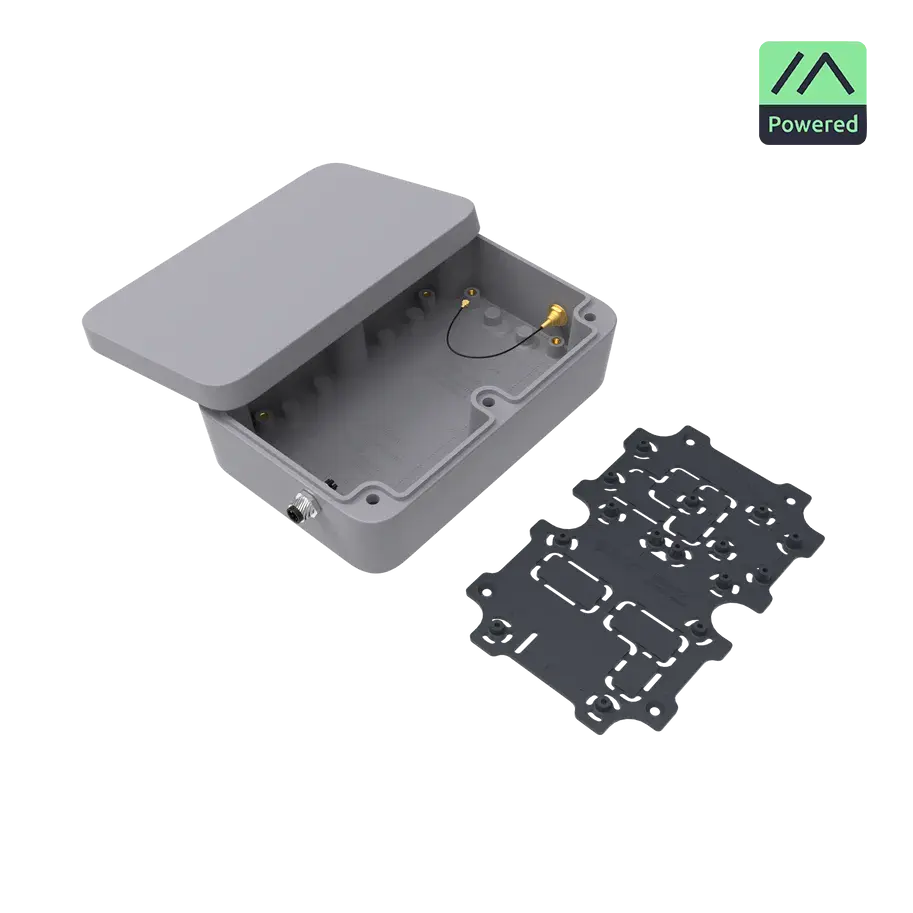

- 1x IPEX to RP-SMA Cable (for medium enclosure)
Supported Accessories and Documentation
Enhance your outdoor sensor enclosures with thesemounting options：
-
WisMesh Unify Enclosure 100x75x38mm
- Supported mounting accessories
- Documentation
-

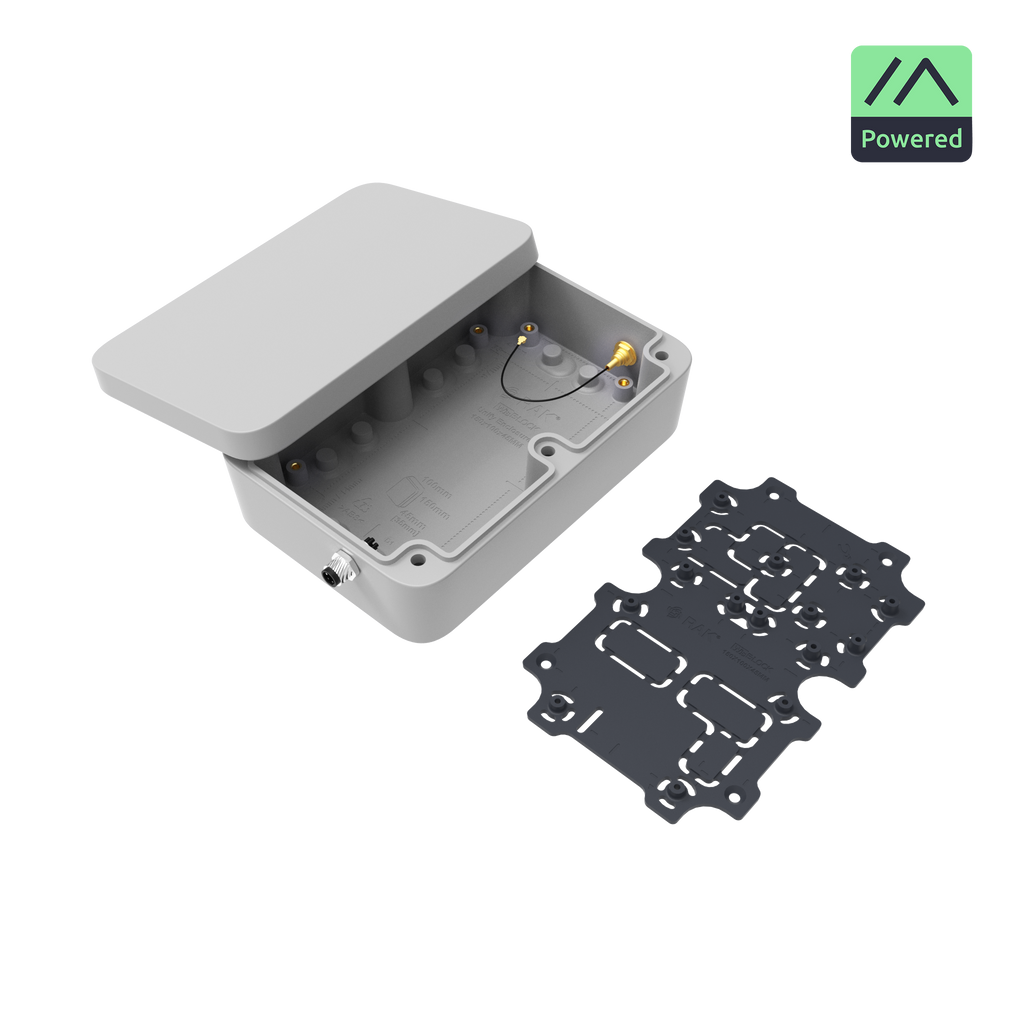

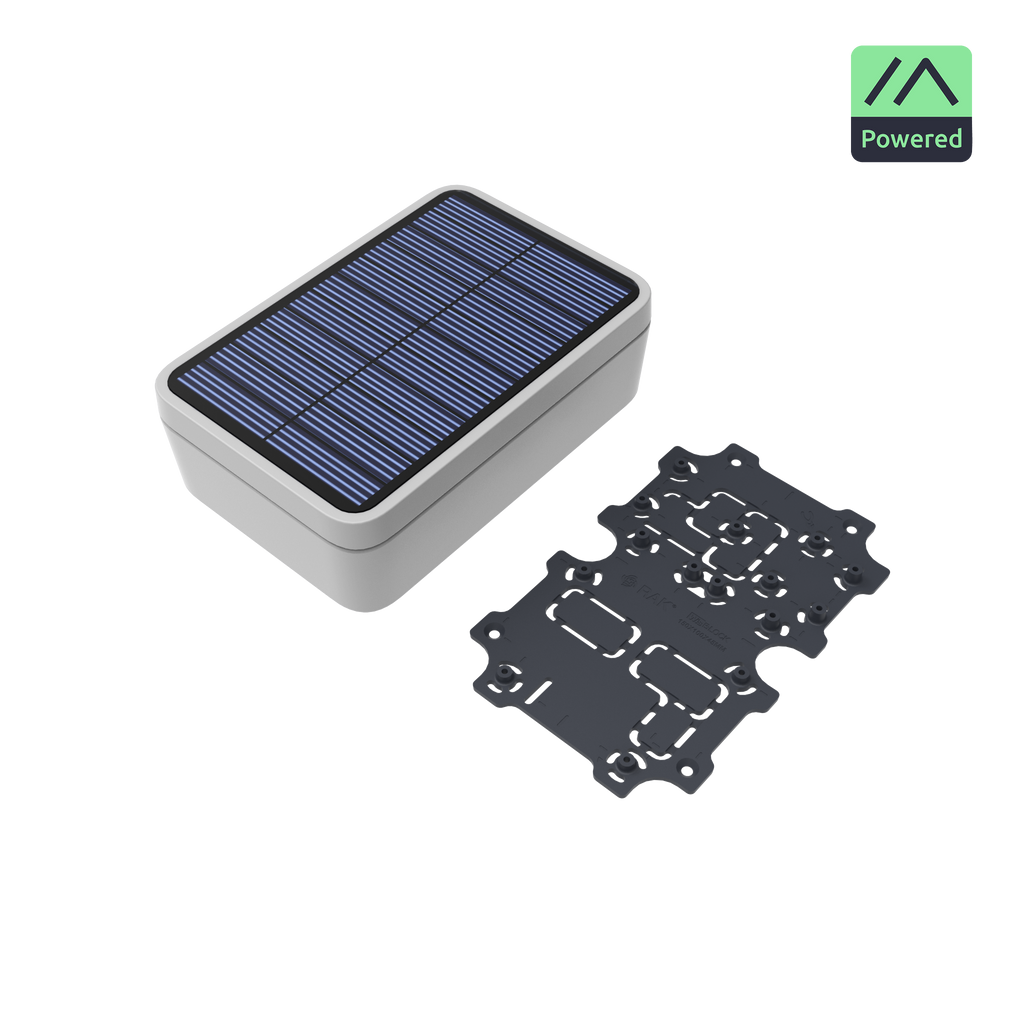

WisMesh Unify Enclosure 150x100x45mm
-
Supported mounting accessories
- Unify Pole Mounting Vertical Kit (Type A)
- Unify Pole Mounting Horizontal Kit (Type C)
- Unify Wall Mounting Kit (Type D)
- Unify Belt Clip Kit (Type E)
- Unify DIN Rail Mounting Kit (Type F)
- Unify Magnet Mounting Kit (Type G)
- Unify Belt Loop Kit (Type H)
- Unify Label Kit (Type I)
- Unify Hook Loop Kit (Type J)
- Documentation
-
Supported mounting accessories
Questions and Answers
Have a Question?
Be the first to ask a question about this.
Product Reviews
Related Products
- Material: ABS UL94V-0 for durability and safety.
- Waterproofing: Silicone seal with a square profile to prevent twisting during installation.
- Internal Dimensions:
- Small Enclosure: Approx. 86 mm x 61 mm x 29 mm usable space
- Medium Enclosure: Approx. 138 mm x 88 mm x 35 mm usable space
- Threading: Brass threaded inserts throughout for secure assembly.
