WisGate Edge Prime

RAK7240V2/RAK7240CV2

SKU:719074
Regular price $322.00 $0.00
Variant prices start at $322.00 to $465.00.
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.



10 pcs minimum order quantity is required for this product.

Check out our RAK7289V2
Note: This product does not include the LoRa antenna/s out of the box. Please select them below. 8ch version requires one LoRa antenna, 16ch version requires two LoRa antennas.

Please read the Custom Logo Requirement Document before uploading your logo.

Product Description

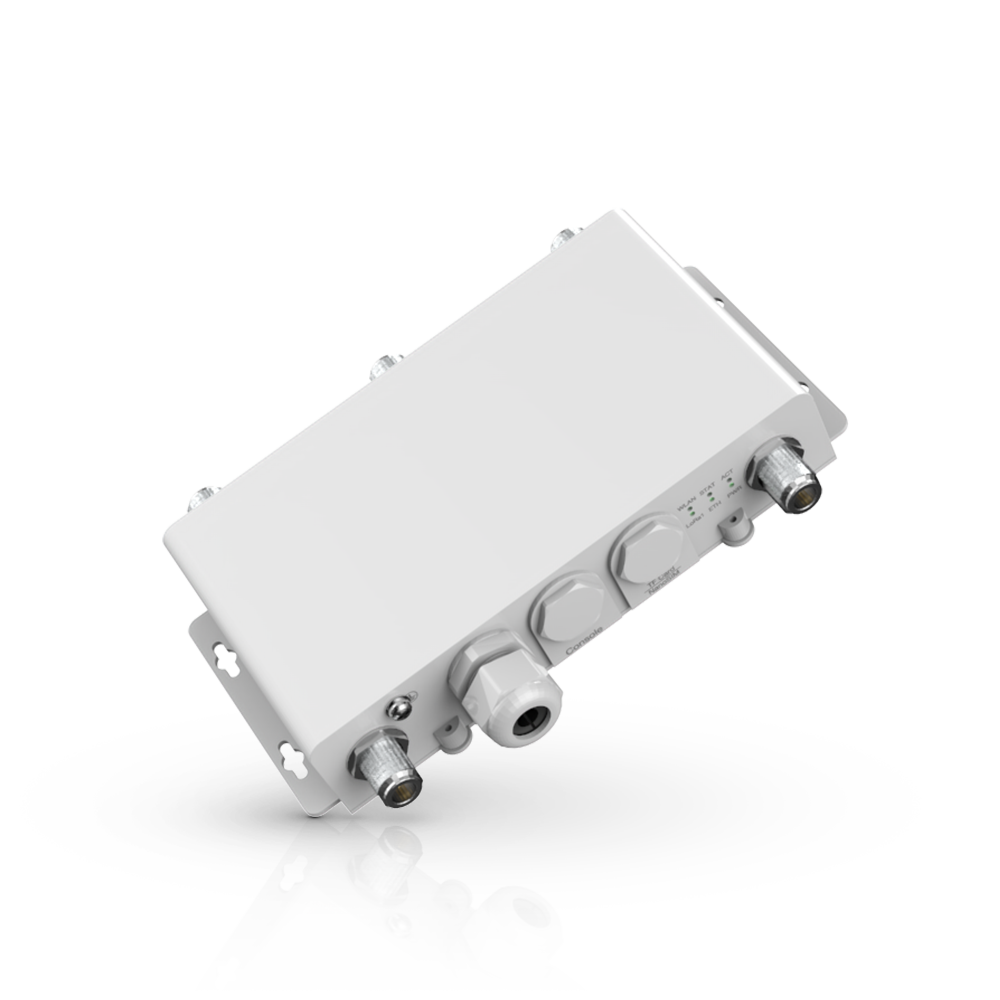

WisGate Edge Prime version 2 (RAK7240V2/RAK7240CV2) is the RAK’s newest outdoor LoRaWAN gateway.

It is based on the latest SX1303 LoRa core, providing better sensitivity and improved performance.

The Gateway is available in 8 or 16-channel versions to help you utilize the maximum of the used LoRaWAN channels in your region.

The gateway supports multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options.

The gateway can be remotely managed with the WisDM platform.

It comes with the newest WisGateOS 2 which provides all the existing features but adds a new design, many options, and tooltips. It comes with extension add-ons – an option to add and manage additional features catering to your need.

The RAK7289V2/RAK7289CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.

The flat surface of the full metal enclosure allows your logo to be added for brand customization and recognition.

Read about the WisGateOS 2.

Supported LoRaWAN Network Servers:

Chirp Stack v3, TTN/TTS, AWS IoT Core for LoRaWAN, AWS IoT core integration, Actility LNS with Basics Station

 Note: The cellular version is only available for the 8ch LoRa gateway.

Product Features

  • Hardware
    • IP65 industrial-grade enclosure with cable glands
    • PoE (802.3af) + Surge Protection
    • Dual LoRa Concentrators for up to 16 channels
    • Backhaul: Wi-Fi, LTE(for 8ch version) and Ethernet
    • GPS
    • Supports DC 12V
    • External antennas for Wi-Fi, GPS, and LTE, External antenna for LoRa
    • Dying gasp
  • Software
    • WisGateOS 2
    • Extension add-ons
    • Built-in Network Server
    • LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
    • Basics Station and Packet forwarder
    • LoRaFrame filtering (node whitelisting)
    • MQTT v3.1 Bridging with TLS encryption (compatible with Chirp Stack LNS)
    • Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
    • Fine timestamping (optional)

Package Inclusions

WisGate Edge Prime V2 RAK7240V2

  • 1x RAK7240V2 gateway 8 or 16ch based on the selection
  • 1x GPS Antenna
  • 1x Wi-Fi Antenna
  • 1x PoE Injector
  • 1x Mounting kit

WisGate Edge Prime V2 RAK7240CV2

  • 1x RAK7240CV2 gateway 8ch
  • 1x GPS Antenna
  • 1x Wi-Fi Antenna
  • 2x LTE Antenna
  • 1x PoE Injector 1x Mounting kit

Documentation

Note: The LoRa antennas are not included. They need to be bought separately one for the 8-channel gateway and two for the 16-channel one.


Questions and Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

Product Reviews


Related Products

Hardware



Computing

  • RAK636 SoM,

  • MT7628, DDR2 RAM 128MB, 32MB Flash

LoRa®

  • 8/16 channels support (based on the selected model),

  • SX1303-based LoRa concentrator/s,

  • RX sensitivity: – 139 dBm (min)

  • TX Power: 27 dBm(max),

  • Listen Before Talk

  • N-type female connector/s for the LoRa® antennas

Supported LoRaWAN® Bands

EU868/US915/AS923/AS923-1/AS923-2/AS923-3/AS923-4/AU915/IN865/KR920/ EU433/CN470 (depends on the selected model)

Wi-Fi

  • Frequency: 2.4 GHz (802.11b/g/n)

  • RX Sensitivity: -95 dBm (Min)

  • TX Power: 20 dBm (Max)

  • Operation channels: 2.4 GHz: 1-13

  • External antennas

Cellular (available with RAK7240CV2 with 8 LoRa® ch)

Quectel EG95-E/EG95-NA (IoT/M2M -optimized LTE Cat 4 Module)

EG95-E for EMEA Region (Europe, Middle East and Africa)

  • LTE FDD: B1/B3/B7/B8/B20/B28A

  • WCDMA: B1/B8

  • GSM/EDGE: B3/B8

EG95-NA for North America Region

  • LTE FDD: B2/B4/B5/B12/B13

  • WCDMA: B2/B4/B5

EC25-J for Japan

  • LTE-FDD: B1/B3/B8/B18/B19/B26

  • LTE-TDD: B41

  • WCDMA: B1/B6/B8/B19

EC25-AU for Brazil

  • LTE-FDD: B1/B22/B3/B4/B5/B7/B8/B28;

  • LTE-TDD: B40;

  • WCDMA: B1/B2/B5/B8;

  • GSM: B2/B3/B5/B8

  • External antennas

GPS

External GPS antenna for time synchronization and precise time-based operations

Ethernet

  • RJ45 Ethernet port with 10/100M support

Power Supply

  • PoE(Power over Ethernet): (IEEE 802.3af) - 37~57 VDC

  • Dedicated DC power supply port – 9-24V DC(model dependent)

  • Battery Plus support with solar and battery monitoring in the WebUI and WisDM

Enclosure

  • IP65 rated Outdoor enclosure

  • Material: Aluminum

Environmental Characteristics

  • Operating temperature: -30˚ C to +55˚ C

  • Operating humidity: 0-95% RH non-condensing

  • Storage temperature: - 40˚ C to +85˚ C

  • Storage humidity: 0-95% RH non-condensing

Notification LEDs

  • LED 1 (PWR)

  • LED 2 (ETH)

  • LED 3 (LoRa 1)

  • LED 4 (WLAN)

  • LED 5 (LTE for RAK7240CV2 model)

Additional

  • Dying gasp

  • Type C port for debugging

  • Reset/Factory restore button.



Software



WisGateOS2 Firmware

  • UDP Packet forwarder

  • Basics Station Forwarder

  • Built-In Network Server

  • MQTT and HTTP integration support for the Built-In NS

  • MQTT Bridge

  • ChirpStack V3/V4 MQTT Bridge support

  • WebUI

  • SSH

  • WisGateOS2 Extensions – OpenVPN, Battery Plus status, Wire Guard, Custom UI Logo, etc

  • WisGateOS2 Extensions SDK

  • Wi-Fi Client and AP modes

  • MultiWAN interface watchdog



Note: The LoRa antennas are not included. They need to be bought separately one for the 8-channel gateway and two for the 16-channel one.
