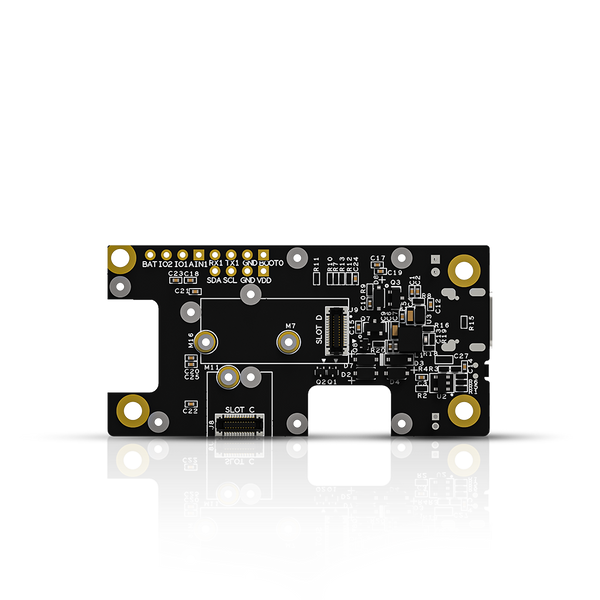

WisBlock Base Board 2nd Gen
RAK19007
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Attention: If using the Unify Enclosure 100 x 75 x 38 mm, only RAK19007 Base Board can be used.
Check our WisBlock Documentation
Product Description
The RAK19007 is the second generation of our standard WisBlock Base Board RAK5005-O. It has several improvements: - USB type C connector - GNSS modules can be used without blocking another sensor slot - improved voltage regulator REMARK: We will continue to sell RAK5005-O until stock is used up. In the meantime we offer both modules (RAK5005-O has a minimal price difference).
Features
- Supports both 5 V USB and 3.7 V rechargeable battery as power supply
- 5 V solar panel connector to recharge the battery in a remote solution
- Power consumption control
- RAK19007 has an electronic load switch to power the WisBlock modules. The power supply for the WisBlock modules boards can be controlled by the WisBlock Core modules application.
- RAK19007 has a size of only 30 x 60 mm, which lets you create solutions that fit into the smallest housings.
Package Inclusion
- 1 pc RAK19007
- 1 pc USB Cable
- 15 pc M1.2*3 Screw
- 8 pc M2.5*4 Screw
Documentation
- RAK19007 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- RAK19007 3D Model
- 24-Pin Female Connector 3D File (Sensor Slot)
- 40-Pin Female Connector 3D File (Core Slot)
Tutorials
- WisBlock Starter Kit and RAK Edge Gateway Complete LoRaWAN Guide
- Installation of Board Support Package in Arduino IDE
- The Icing on the Cake: A Template to Innovate Custom IoT Applications with RAKwireless and Datacake
- How to Create Custom WisBlock Sensor or WisBlock IO Module
Check Hackster Projects
Articles
- Choosing Between WisBlock Modules For Your Next IoT Project? Take A Quiz!
- Why We Make WisBlock: The Story Behind RAK’s Modular IoT Platform
- Build your IoT Breakthroughs Fast with the WisBlock System!
- RAKwireless Announces Partnership with One Planet Education Network (OPEN) to Launch STEM IoT Sensor Kits for Schools Worldwide
- RAKwireless Launches New Modular Product Series - WisBlock
- New WisBlock Modules in RAK Autumn Launch
WisBlock Success Stories
