E-Paper Module Solomon Systech Limited SSD1680
RAK14000
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Product Description

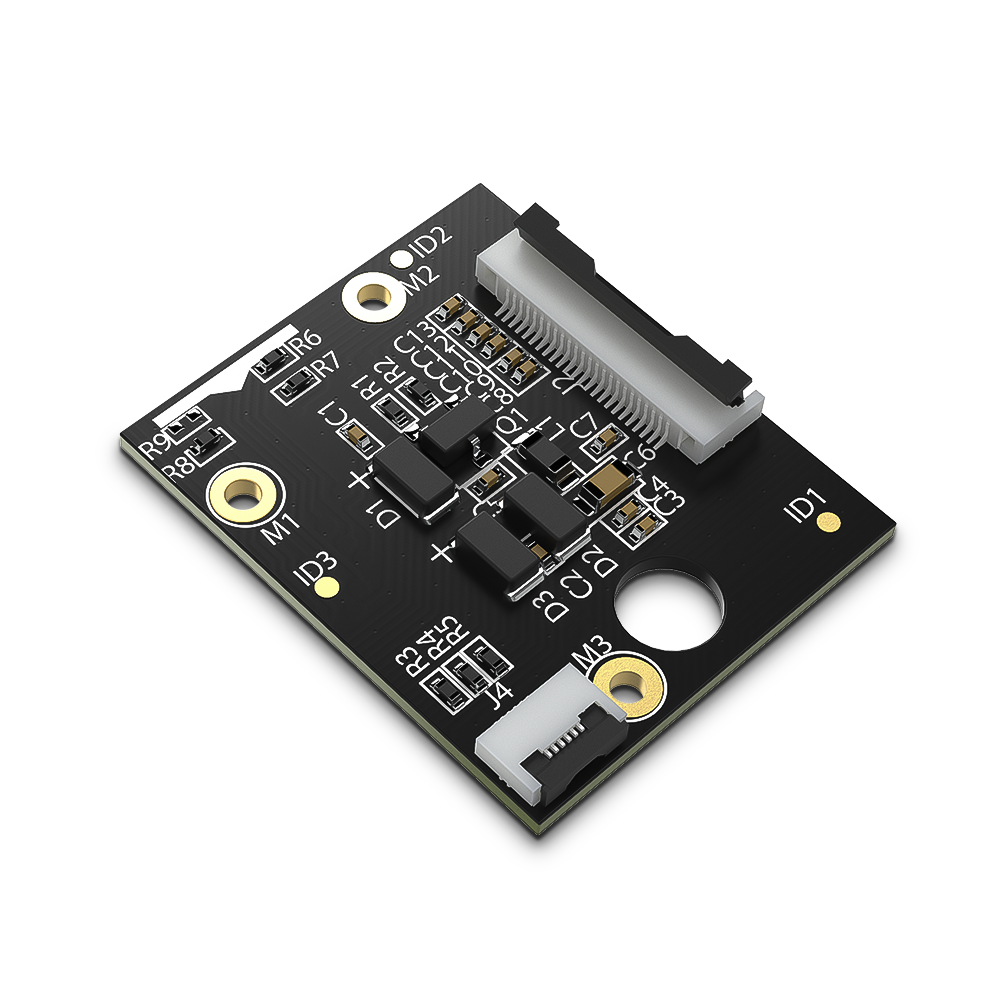

RAK14000 is a WisBlock E-paper module, specifically an Active Matrix Electrophoretic Display (AM EPD) which based on SSD1680 LCD Controller. The White-Black version is a 2.13inch display with a resolution of 212x104 pixel, the White-Black-Red version is a 2.13inch display with a resolution of 250×122 pixels.
Key Features
-
White-Black display
- 2.13 inch
- two colors (black and white)
- 212x104 pixel
-
White-Black-Red display
- 2.13 inch
- three colors (black, red and white)
- 250×122 pixel
- Ultra-wide viewing angle Ultra-low power consumption
- Pure reflective mode
- Bi-stable display
- Commercial temperature range
- Ultra-Low current deep sleep mode
- On-chip display RAM
- On-chip oscillator

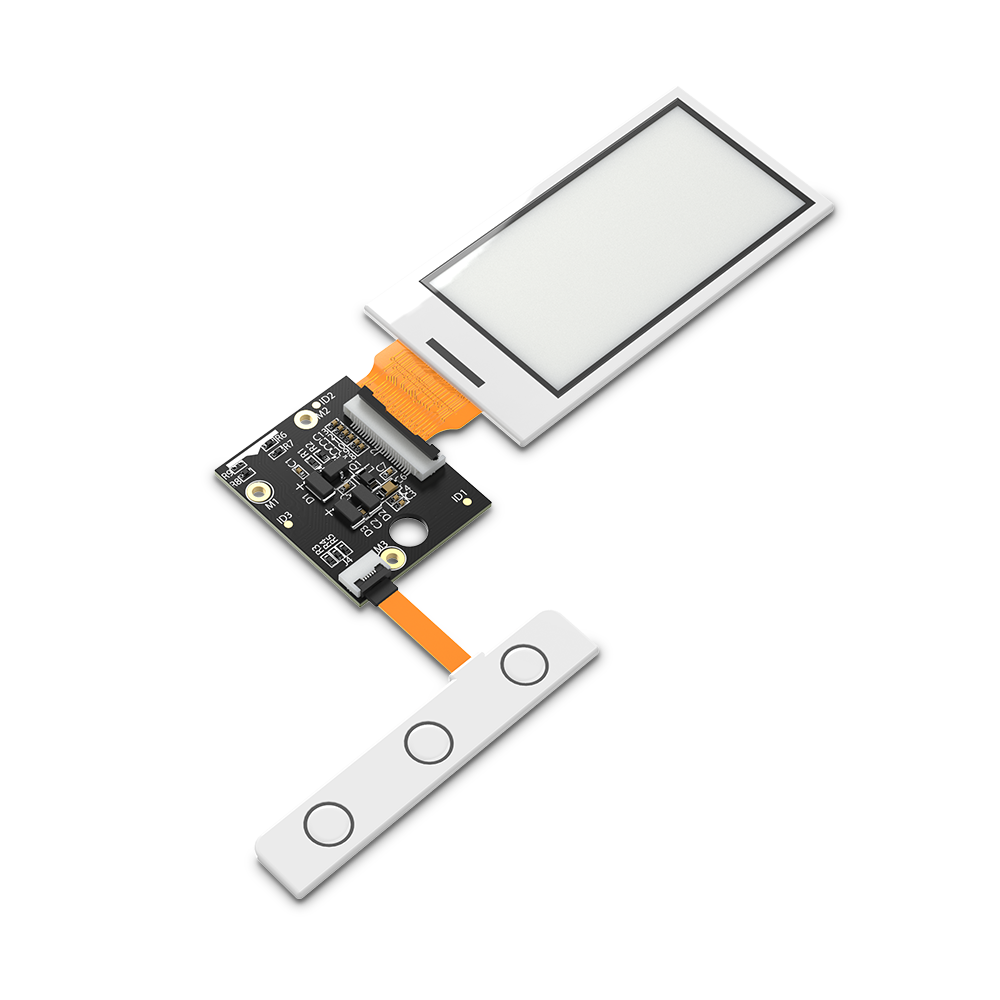

Product Inclusion
- 1pc RAK14000
- 1pc E-ink Display panel
- 1pc 3 button PCB
