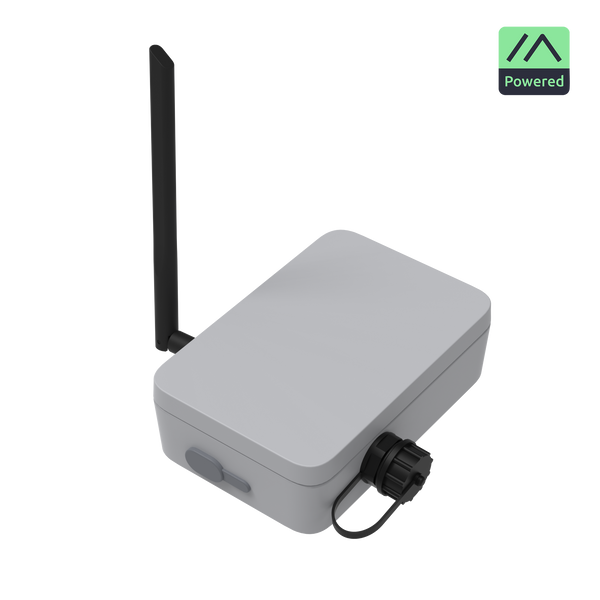

WisMesh Ethernet Gateway
Prefer another courier for your delivery? Contact us for special shipping arrangements.
The WisMesh MQTT Ethernet Gateway is the solution to connect your Meshtastic devices with the Cloud. It provides an interface from your Meshtastic nodes to either the Meshtastic MQTT Broker or to your own MQTT Broker. Whether you want to send sensor data, location information, or even text messages to the Cloud, this device is the one you need.

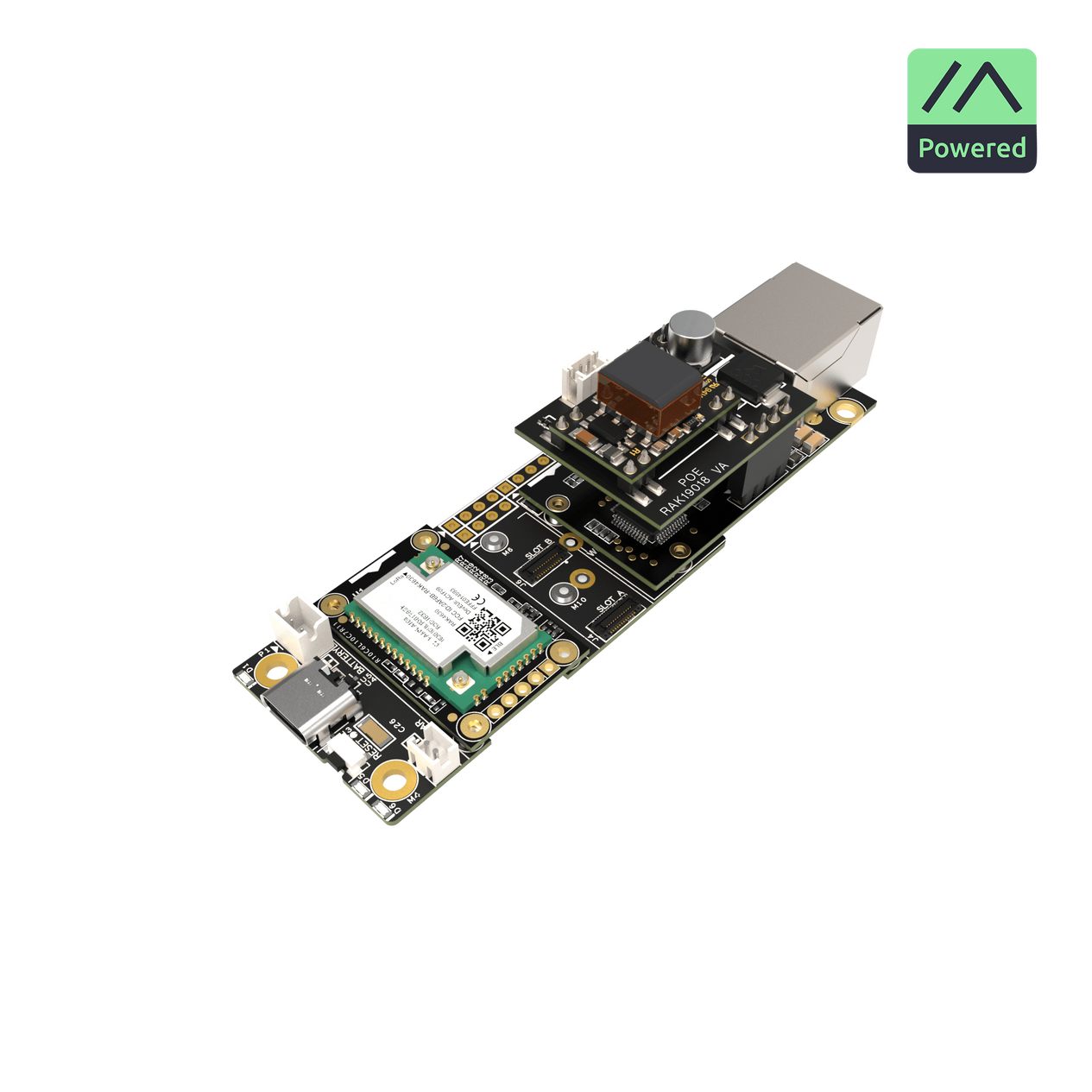

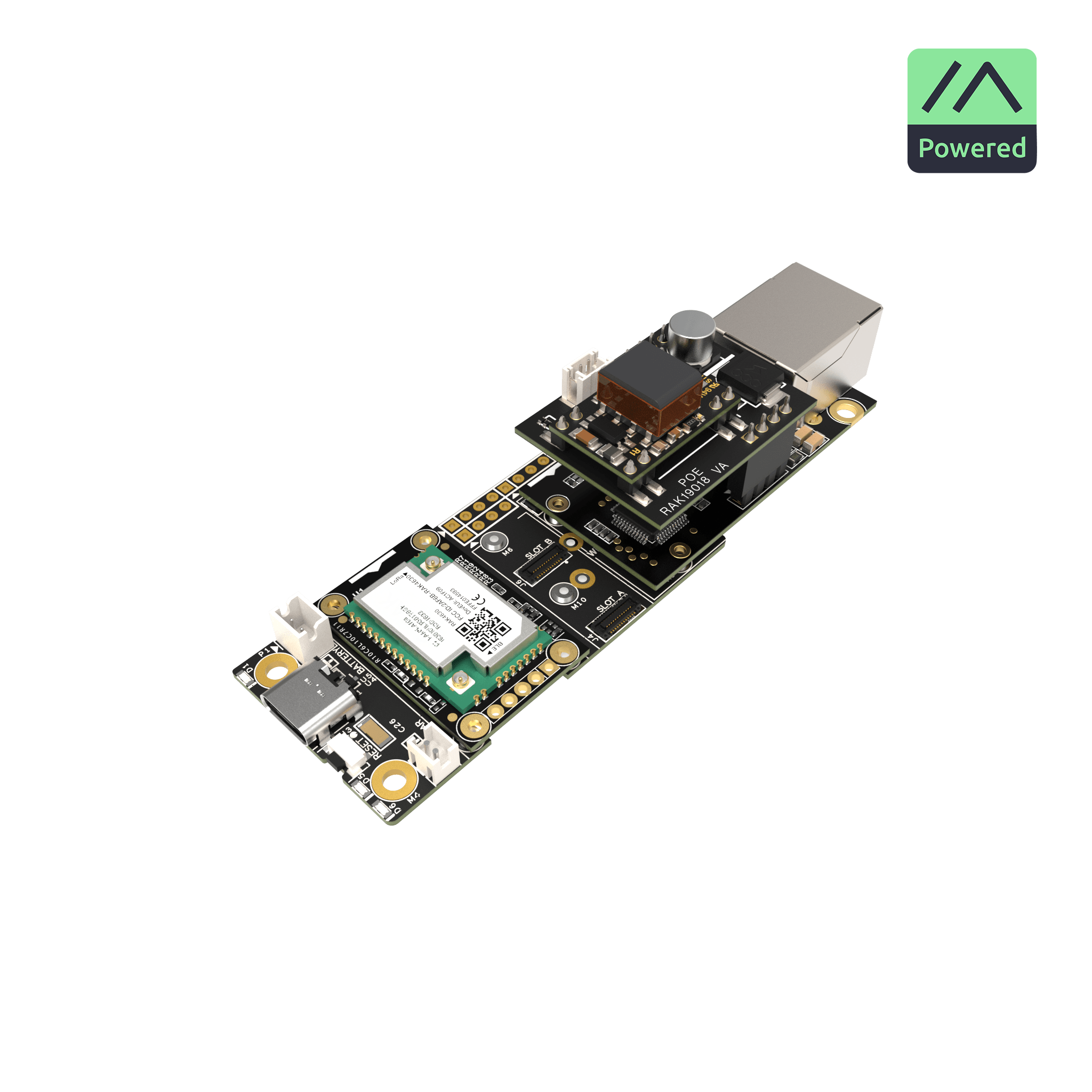

The WisMesh MQTT Ethernet Gateway uses our WisBlock RAK4631 Core module, which is pre-flashed with Meshtastic firmware. Besides the LoRa connectivity, it uses our RAK13800 Ethernet module to connect to the internet and is placed on our RAK19007 Base Board.
The RAK19018 PoE module is an optional accessory that allows the gateway to be powered through the Ethernet cable.

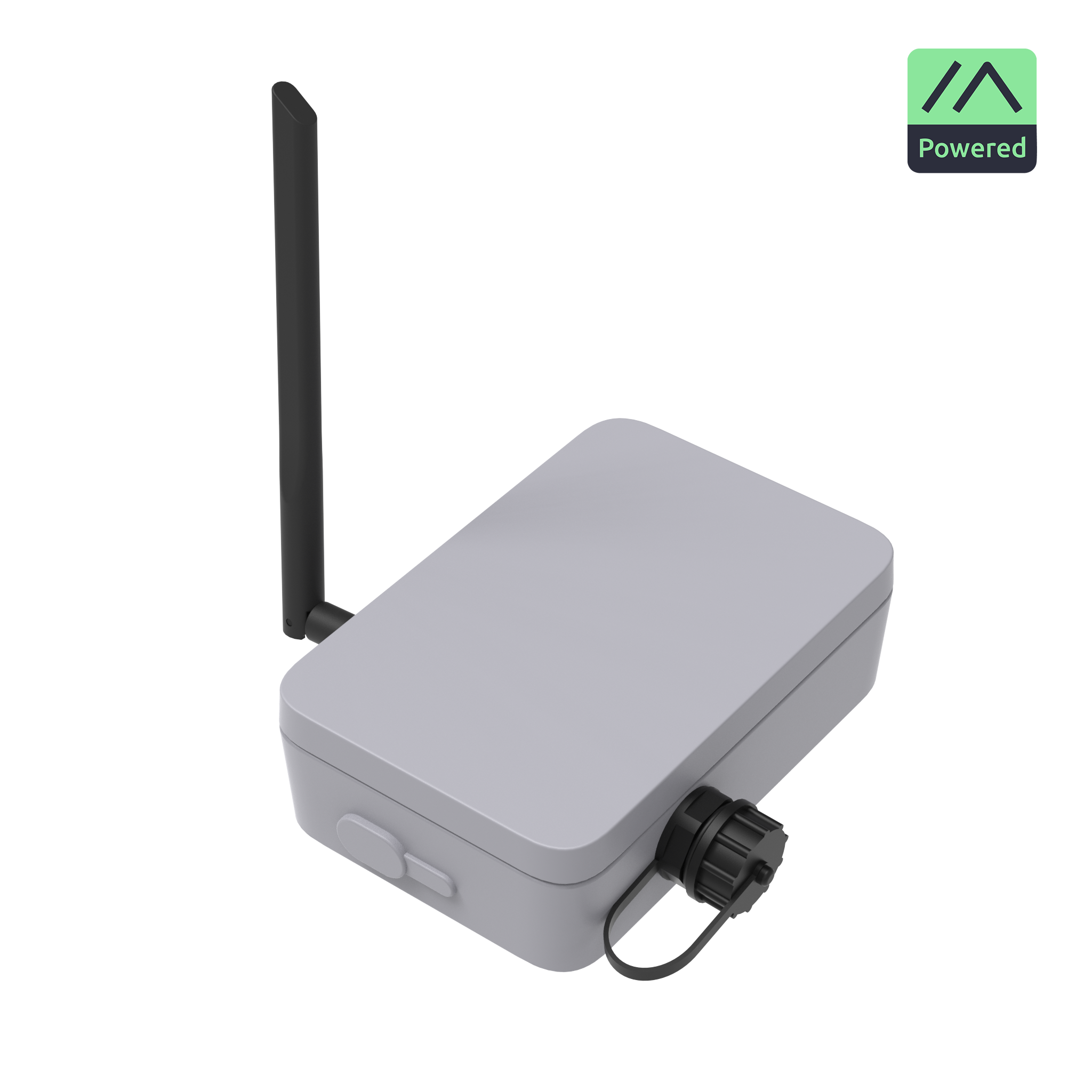

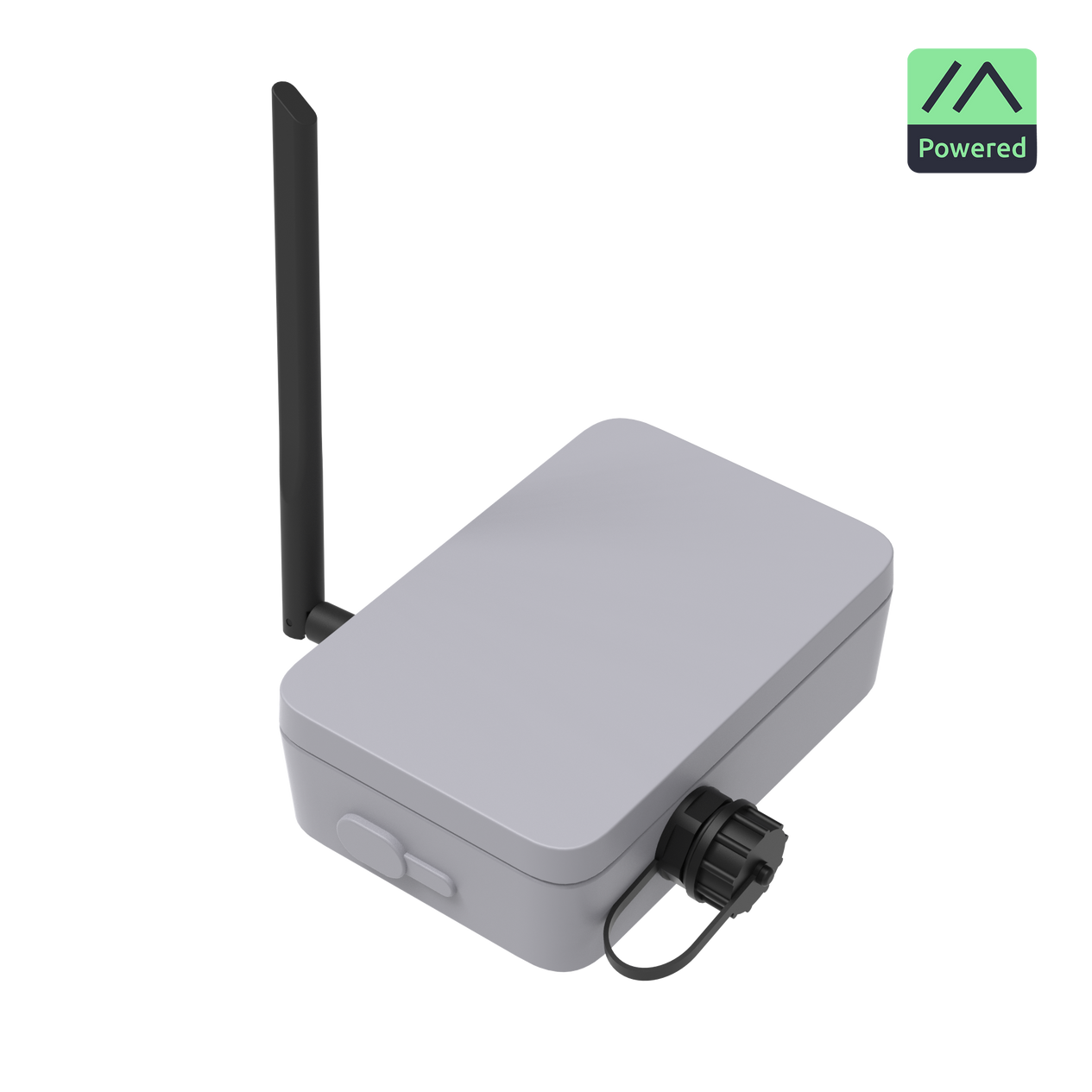

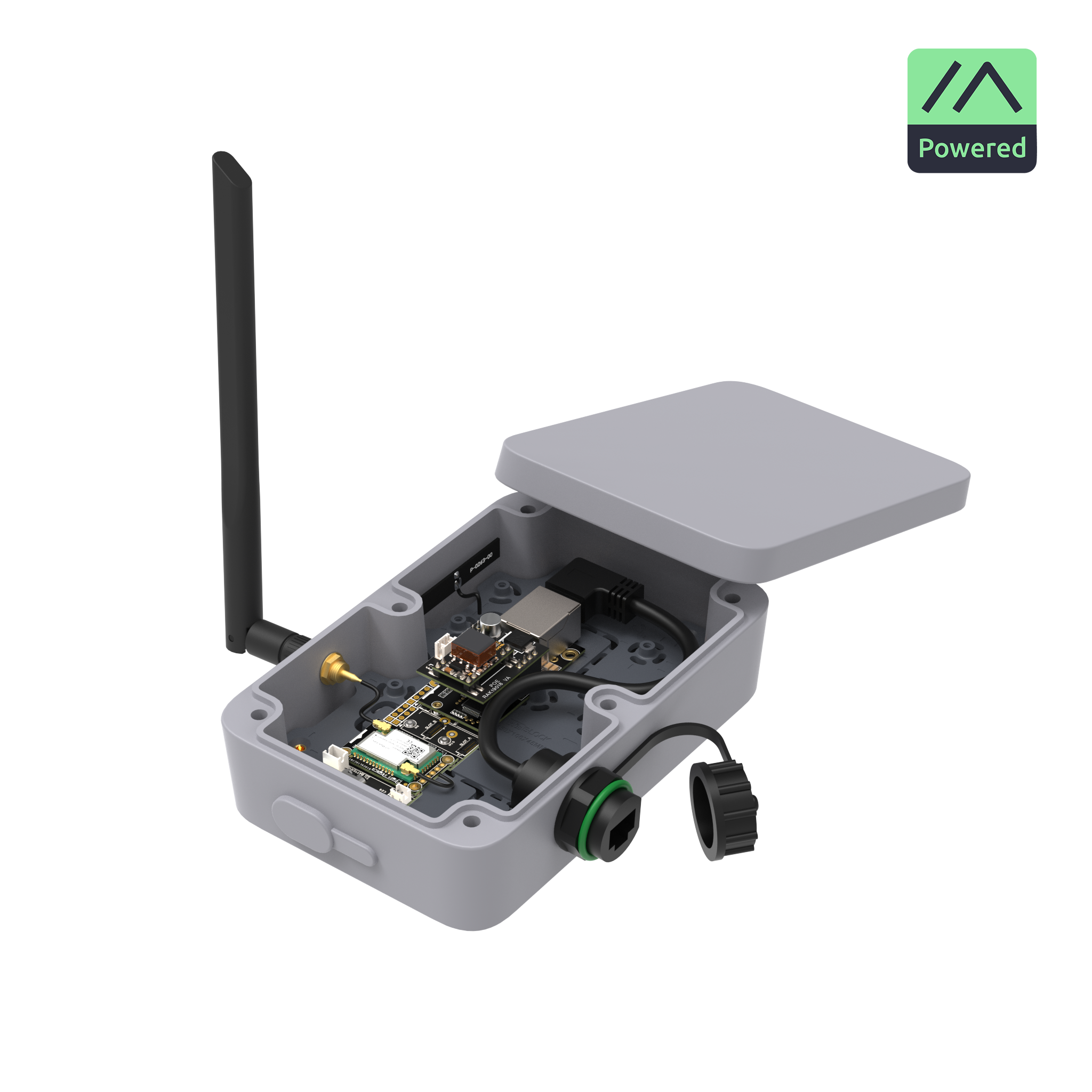

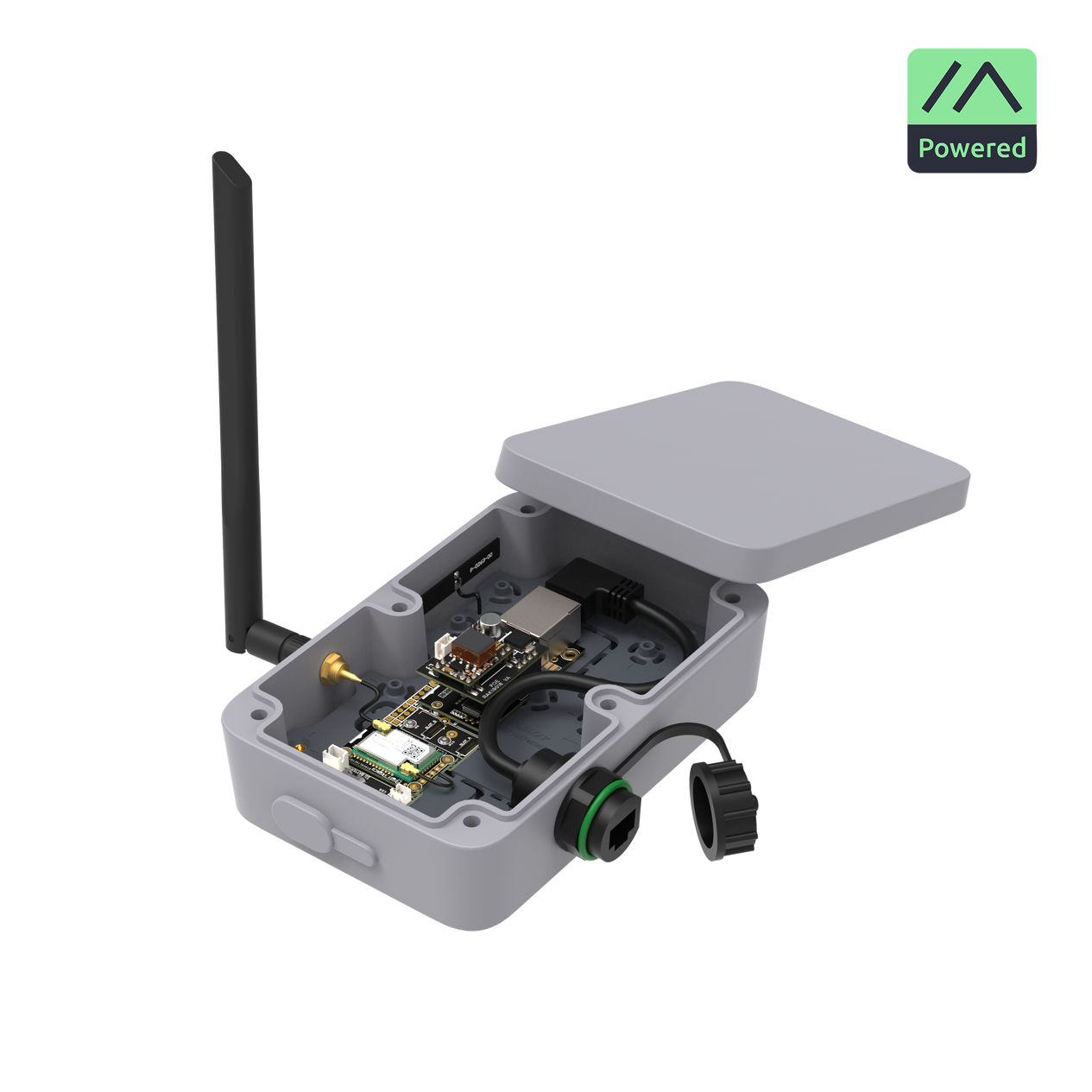

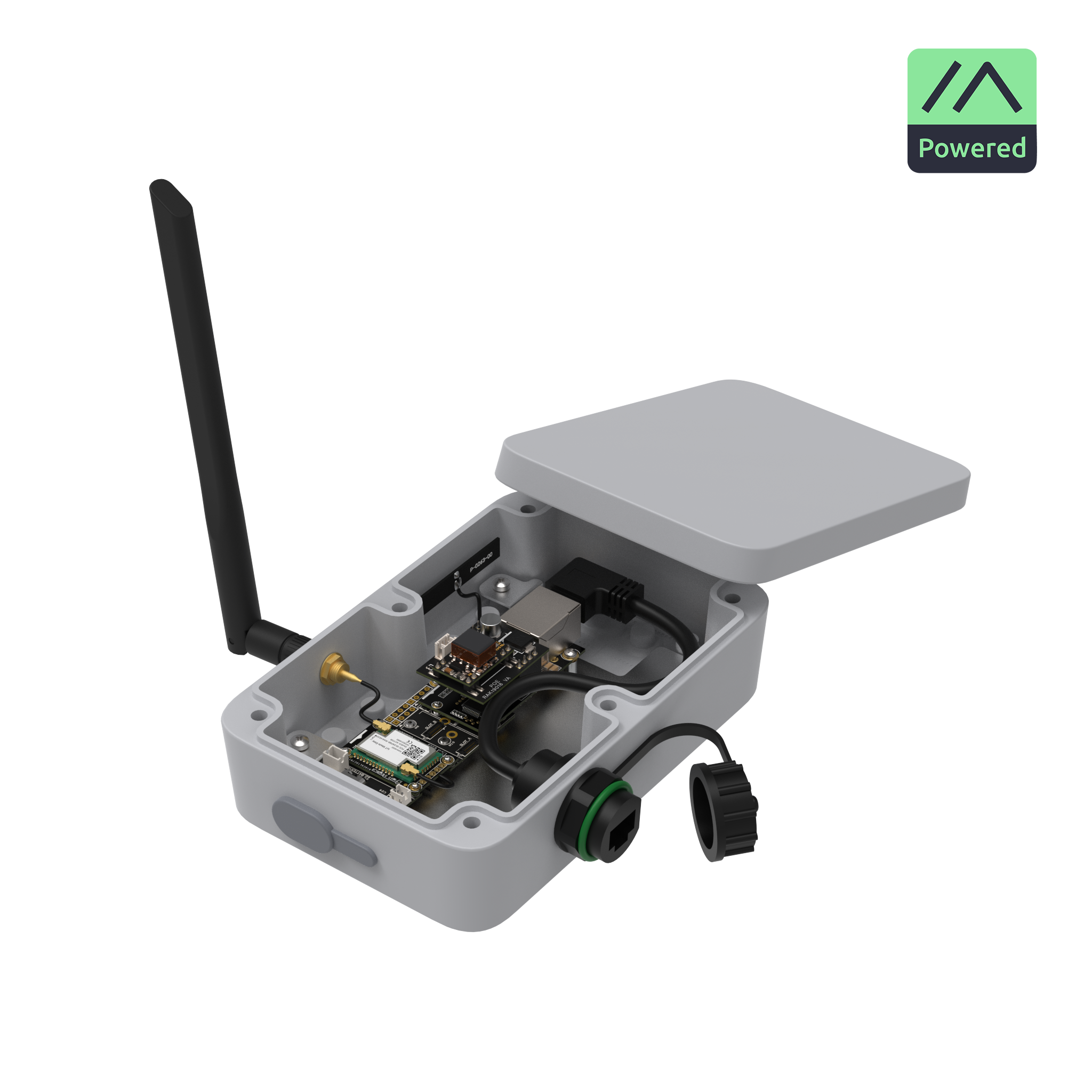

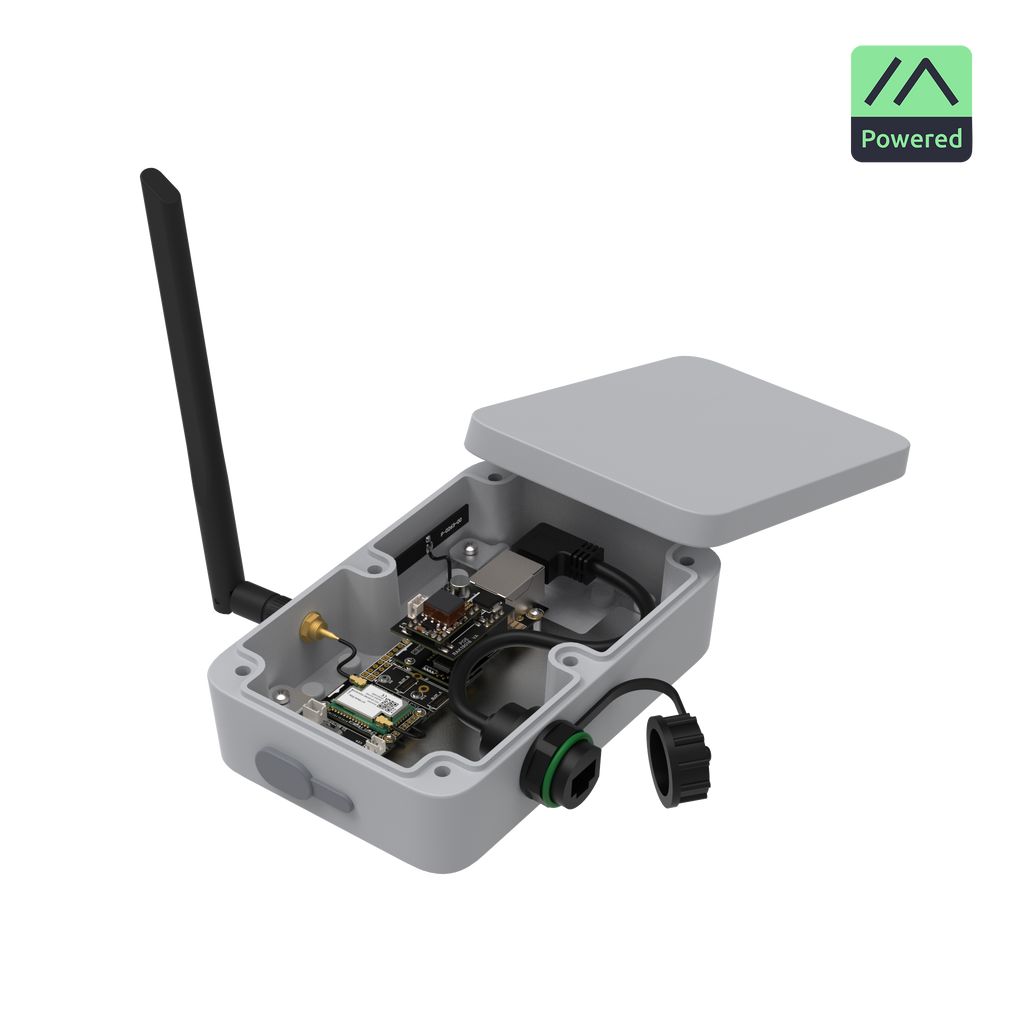

Due to its length, this WisBlock assembly does not fit into our small Unify Enclosure, but you can use it with a custom mounting plate with the Unify Enclosure 150x100x45mm.
The WisMesh MQTT Ethernet Gateway comes pre-assembled and pre-flashed with the original Meshtastic firmware-RAK4631_eth_gw, which supports JSON over MQTT
Everything required to start is to set up the WisMesh MQTT Ethernet Gateway with the Meshtastic app for mobile through BLE.
Product Features
- WisBlock RAK4631 Core Module
- Nordic nRF52850 WisBlock Core module, pre-flashed with the Meshtastic firmware
- Bluetooth Low Energy 5.0 protocol stack
- Nordic nRF52840:
- Ultra-low-power MCU
- 32-bit ARM® Cortex-M4F CPU
- 64MHz CPU clock
- 1 MB Flash, 256 KB RAM
- Semtech SX1262:
- Low power high range
- LoRa® transceiver
- WisBlock RAK19007 Base Board, 30x35mm with four Sensor Slots and two IO slots
- USB Type C debug port
- 1 slot for WisBlock Core MCU2 slots for modules with 24pin WisBlock Sensor Modules
- WisBlock RAK13800 Ethernet Module
- Based on WIZnet W5100S-L chip
- Support four independent SOCKETs simultaneously
- Support SOCKET-less command
- WisBlock RAK19018 PoE module (optional)
- Based on Silvertel Ag9905MT
- IEEE802.3af compliant
- Input voltage range: 36V to 57V
- WisMesh Blade Antenna
- Black high-performance LoRa antenna
- High efficiency
- Omnidirectional
- Vertically polarized
- 9xx MHz variant
- Frequency Range: 902~928 MHz
- VSWR: ≤ 1.5
- 8xx MHz variant
- Frequency Range: 863~870 MHz
- VSWR: ≤ 1.3
