WisGate Edge Lite 2

Product Description

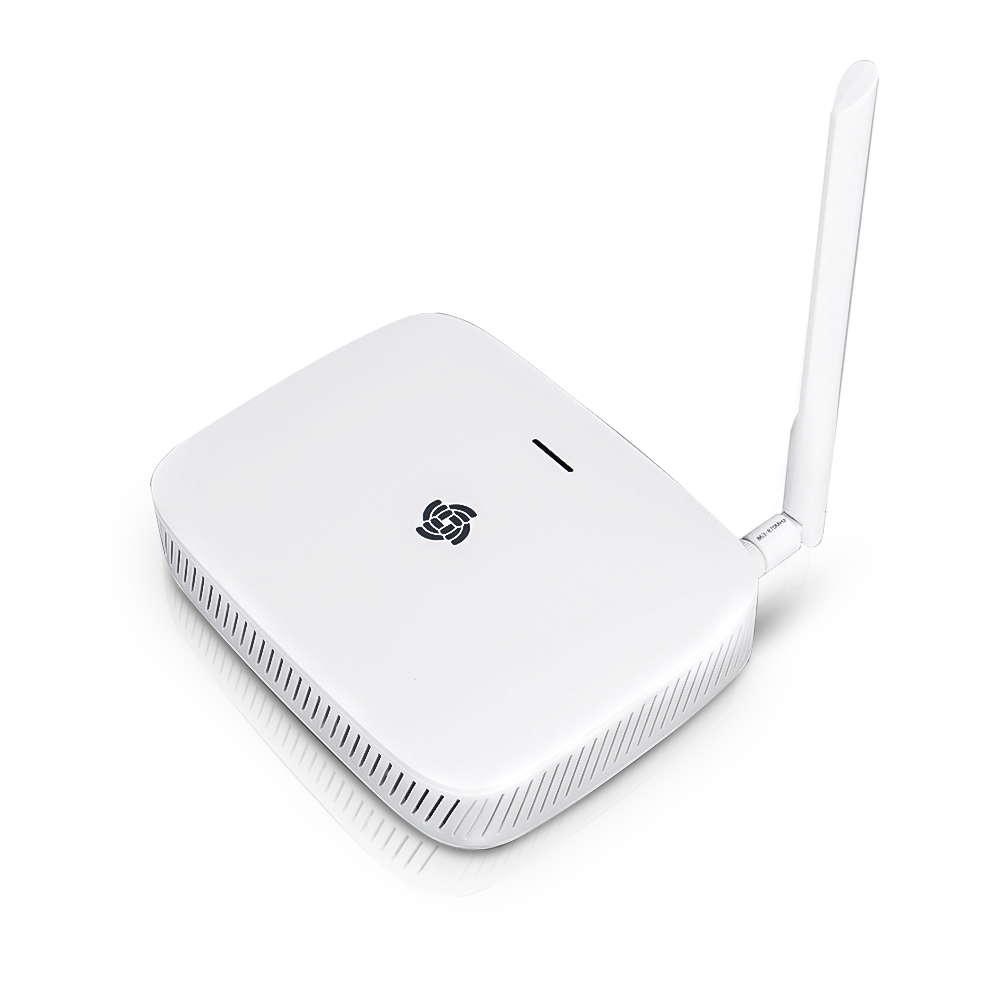

RAK7268 is an indoor gateway based on low power LoRaWAN protocol. It supports PoE power supply and can connect the standard LoRaWAN terminals and carry out bidirectional communication. Gateway can connect the NS (network server) via standard Ethernet, and support network and firewall functions. RAK7268 also supports 2.4G WiFi and LTE (optional) uplink communication connections. RAK7268 built-in OpenWRT operating system, users can flexibly configure network parameters and LoRaWAN protocol parameters through the Web management platform. RAK7268 supports MQTT Bridge function, can use the MQTT integrated to third-party platforms. RAK7268 can connect the standard NS (network server) and the local NS. And it also supports the built-in NS (By default, a license that supports 128 terminals and 5 external gateways is embedded. If your demand exceeds the above limit, please contact the sales department for a new license). It does not need users to deploy NS in the cloud and locally. It is especially suitable for small and mediumsized scenarios in industry applications, saves the cost for server and R&D investment, and has the advantages of high execution efficiency and shorter delay. RAK7268 integrates the RAK2287 LoRa concentrator module, which not only supports eight uplink channels and one downlink transmission channel LoRa but also GPS function. For the heating problem of SX1302 centralized operation, RAK2287 uses the graphene, silicone grease to optimize the heat dissipation performance of chips and modules and ensure the stability of transmission.

Product Features

Supports 8RX /1TX channels LoRa and GPS
Supports 2.4G WiFi
100Mbase-T Ethernet with POE
Multi uplink backup with Ethernet, WiFi
OpenWRT software supports LoRaWAN gateway and network configuration
Heat sink to dissipate heat
Can integrate with both private and public(TTN) Network Servers
Supports TF card for storage
Indoor operation temperature
Supports optional for LTE Cat 4 network
