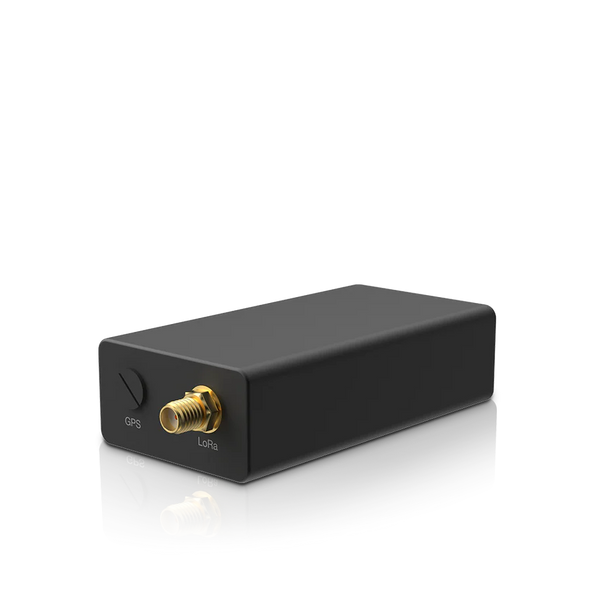

WisGate Developer Base

RAK7271 / RAK7371

SKU:719043
$99.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.



Product Description

The RAK Developer Base is a device designed for integration with desktop/mobile/embedded systems that converts the RAK2287/RAK5146 mPCIe LoRa concentrator modules into USB Type C pluggable (via the include Type C to A cable).
This new approach allows for it to be easily integrated into existing hardware like routers, industrial PC, etc., adding LoRaWAN gateway capabilities (for example turning a laptop into a testbed LoRaWAN gateway by simply plugging it in and running the software stack)

As it features fully functioning concentrator modules it is capable of working with 8 uplink and 1 downlink channel at SF7-12 (RAK2287) / SF5-12 (RAK5146).

The RAK Developer Base is an ideal solution for LPWAN deployments where integration with existing hardware is crucial, or scenarios when on-the-go deployment is required, for drive testing or coverage evaluation in mobile scenarios.

This device is a complete and cost-efficient LoRa gateway solution offering up to 10 programmable parallel demodulation paths.

Product Features

  • Compatible with RAK2287(SX1302) / RAK5146(SX1303) concentrator modules with 8 uplink channels and 1 downlink channel.
  • 2 x SX125x Tx/Rx front-ends.
  • Tx power up to 27 dBm, Rx sensitivity down to -139 dBm @ SF12, BW 125 kHz.
  • Supports global license-free frequency band (EU433, CN470, IN865, EU868, US915, AU915, KR920, AS923)

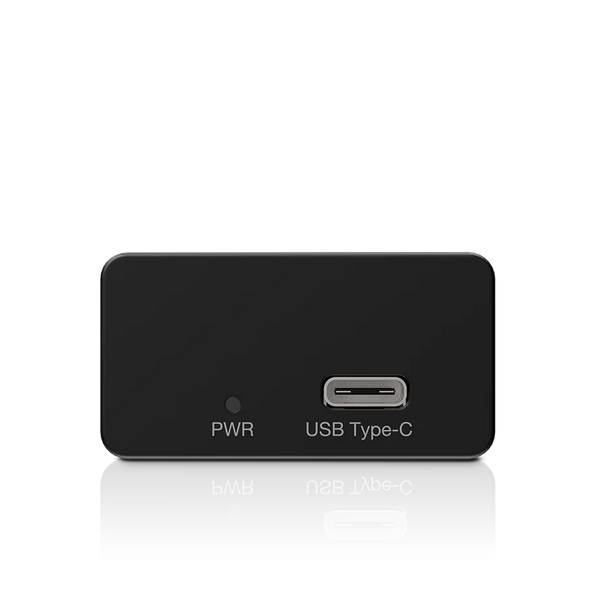

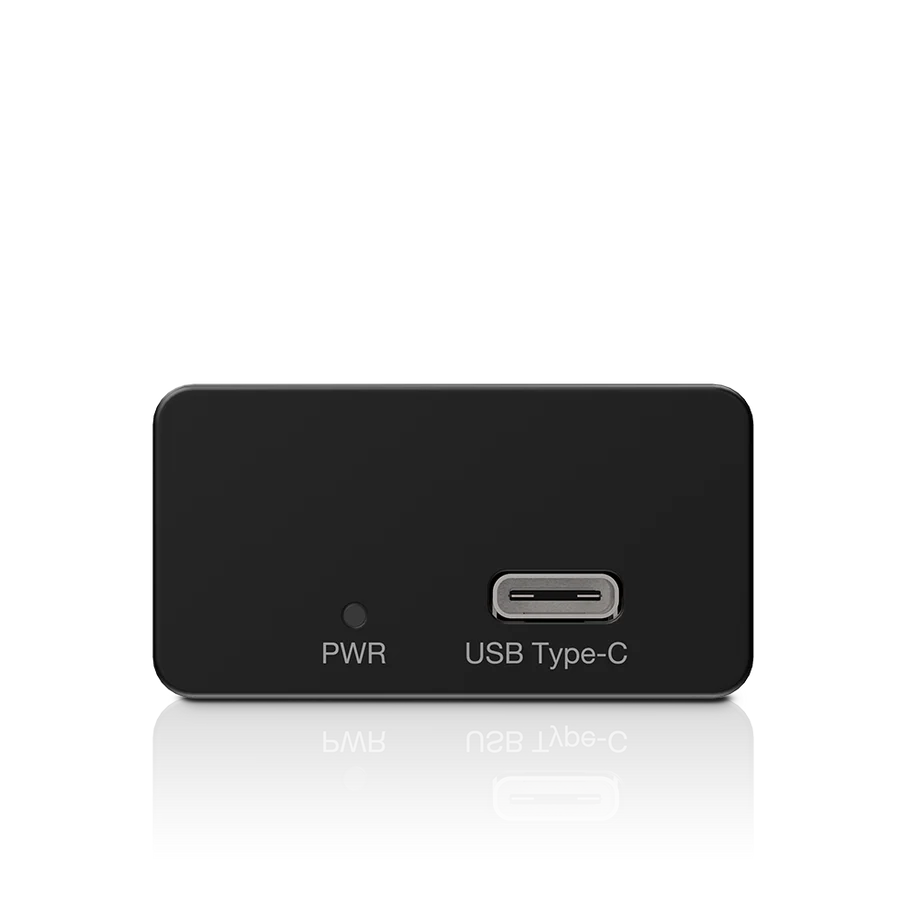

  • USB Type C interface port (USB 2.0)

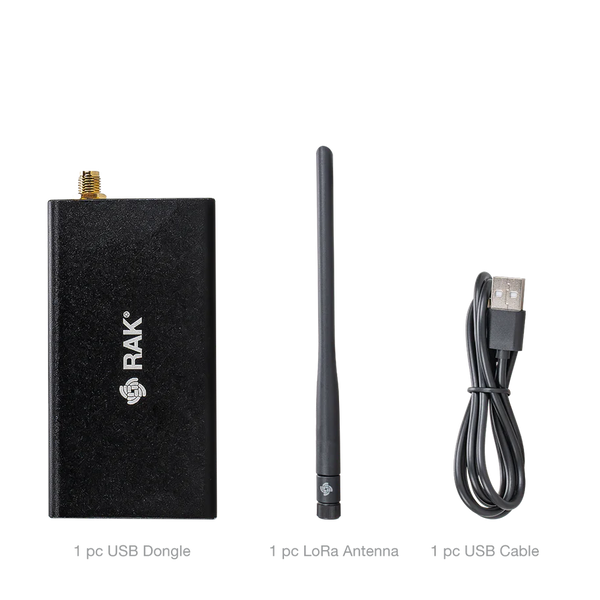

Package Inclusion

  • 1pc WisGate Developer Base
  • 1pc USB Type C to A Cable
  • 1pc LoRa Antenna (2.3 dBi)
