Electrically Erasable and Programmable Read-Only Memory (EEPROM) Module
Electrically Erasable and Programmable Read-Only Memory (EEPROM) Module
Electrically Erasable and Programmable Read-Only Memory (EEPROM) Module
EEPROM Module, EEPROM Development Board Expansion, EEPROM Programing Arduino
EEPROM Module, EEPROM Development Board Expansion, EEPROM Programing Arduino
EEPROM Module, EEPROM Development Board Expansion, EEPROM Programing Arduino
EEPROM Module Microchip AT24CM02
EEPROM Module Microchip AT24CM02
EEPROM Module Microchip AT24CM02

EEPROM Module Microchip AT24CM02

RAK15000

SKU:100017
$12.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Product Description

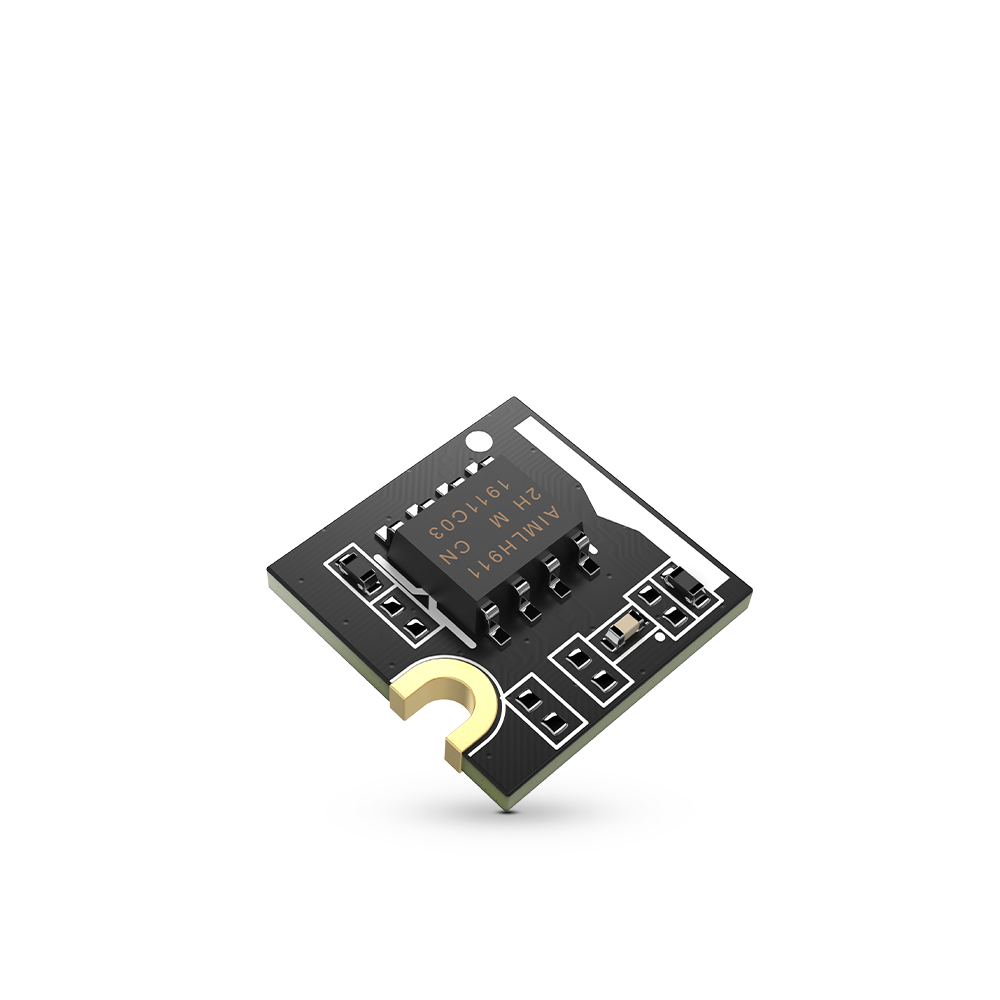

RAK15000 is a WisBlock EEPROM module based on Microchip AT24CM02 which has an I2C interface. Designed to work at low power mode, the standby average consumption is lower than 3 µA ( VCC = 5.5 V ). The RAK15000 uses Microchip AT24CM02 that provides 2,097,152 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM), organized as 262,144 words of 8 bits each.

Key Features

  • 3.3 V input voltage: on/off control by the WisBlock Core module
  • Temperature range: -40 °C to +85 °C
  • Internally organized as 262,144 x 8 bit (2 Mbit)
  • I2C-Compatible (2-wire) Serial Interface
    • 100 kHz Standard mode
    • 400 kHz Fast Mode
  • High Reliability
    • Endurance: 1,000,000 write cycles
    • Data retention: 100 years
  • Built-in error detection and correction
  • 256-byte Page Write Mode
  • Random and Sequential Read Modes
  • Standby current: less than 3 µA
  • Module size: 10 x 10 mm
