Unify Wall Mounting Kit (Type D)

Product Description

The Unify Wall Mounting (Type D) Kit consists of the key accessories to enable you to mount your Unify Enclosure to a flat rigid and stable surface such as a wall or other such surface. The Wall Mount accessory enables you to use regular fixing screws to secure your product in place.

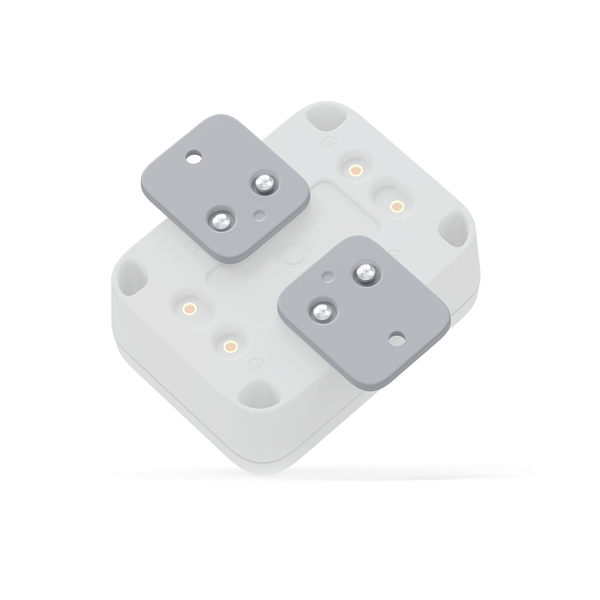

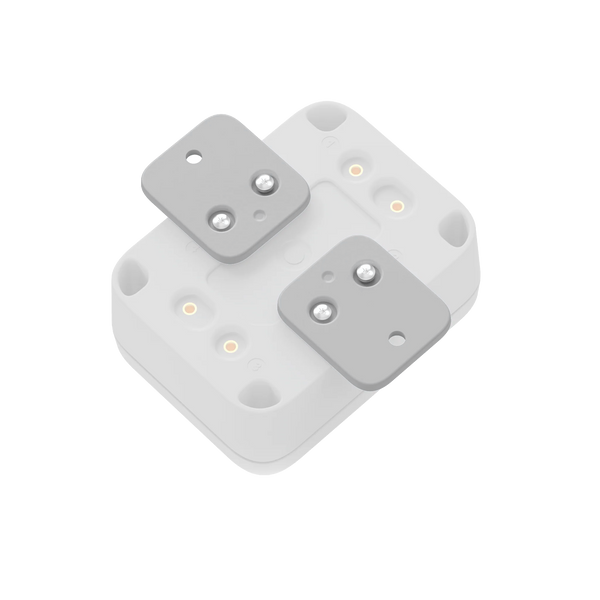

The Unify accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.

The Unify Wall Mount (Type D) accessory is compatible with all Unify Enclosures.

Unify Wall Mount (Type D) Specifications:

• Material: ABS UL94V-0
• General Wall Thickness: 4.0mm
• Compatible with Unify Enclosure 100x75x38mm
• Compatible with Unify Enclosure 150x100x45mm
• Compatible with Unify Enclosure 180x130x60mm
• Compatible with fixing screw of maximum diameter 5mm

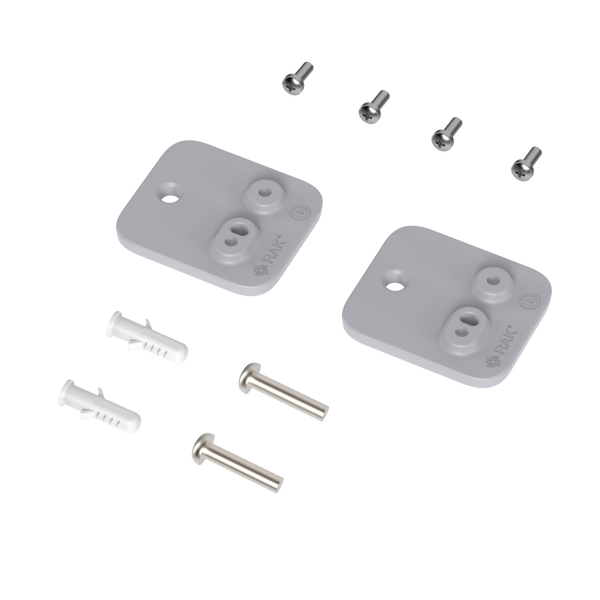

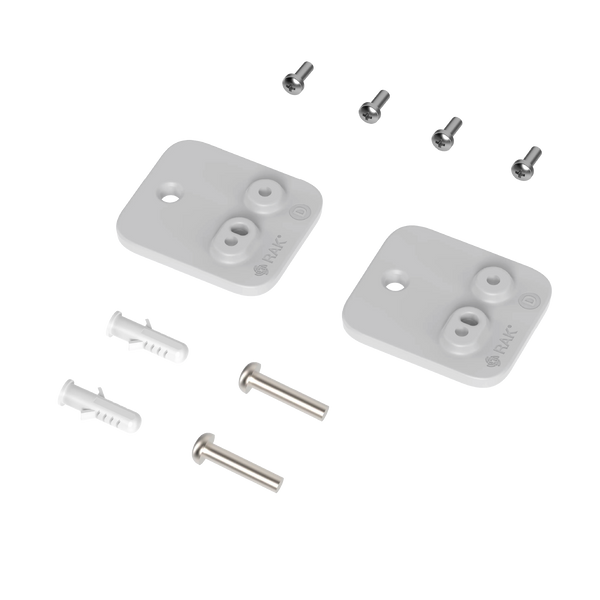

Included in the Kit:

• 2pc Unify Wall Mount (Type D) accessories
• 4pc M3x8mm Stainless Steel Screw (to mount Accessory to the enclosure)
• 2pc 3.5x25mm Self-Tapping Screw (for wall fixing)
• 2pc Wall plug for Self-tapping screw (requires 5mm drill hole in typical wall materials).
