Unify Enclosure Mounting Plate

Optional with integrated LoRa and Bluetooth antenna

SKU:910310
Regular price $4.90 $0.00
Variant prices start at $4.90 to $8.00.
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Description

The Unify Enclosures are modular IP67 rated outdoor enclosures that include tailored features to support WisBlock Base Boards and WisBlock Modules, but are highly adaptable to any application with spacious internals and thoughtfully designed universal mounting options.

There is also space for a flat profile LiPo battery to be hosted under the mounting plate.

There are three types of mounting plates to serve multiple requirements:

Mounting plate with integrated antennas for LoRa and BLE.

This mounting plate eliminates the need to add antennas inside or outside the enclosure. The antennas are optimized for 868 to 870 MHz or 902 to 928 MHz. In addition these mounting plates include dedicated screw bosses tailored for a range of WisBlock Baseboards.

Mounting plate with Screw Bosses for WisBlock

These mounting plates include dedicated screw bosses tailored for a range of WisBlock Baseboards.

Blank mounting plate

These blank mounting plates allow to use any electronic board or other devices inside the Unify enclosures. Mounting bosses matching with your electronics can be placed anywhere on the mounting plate.

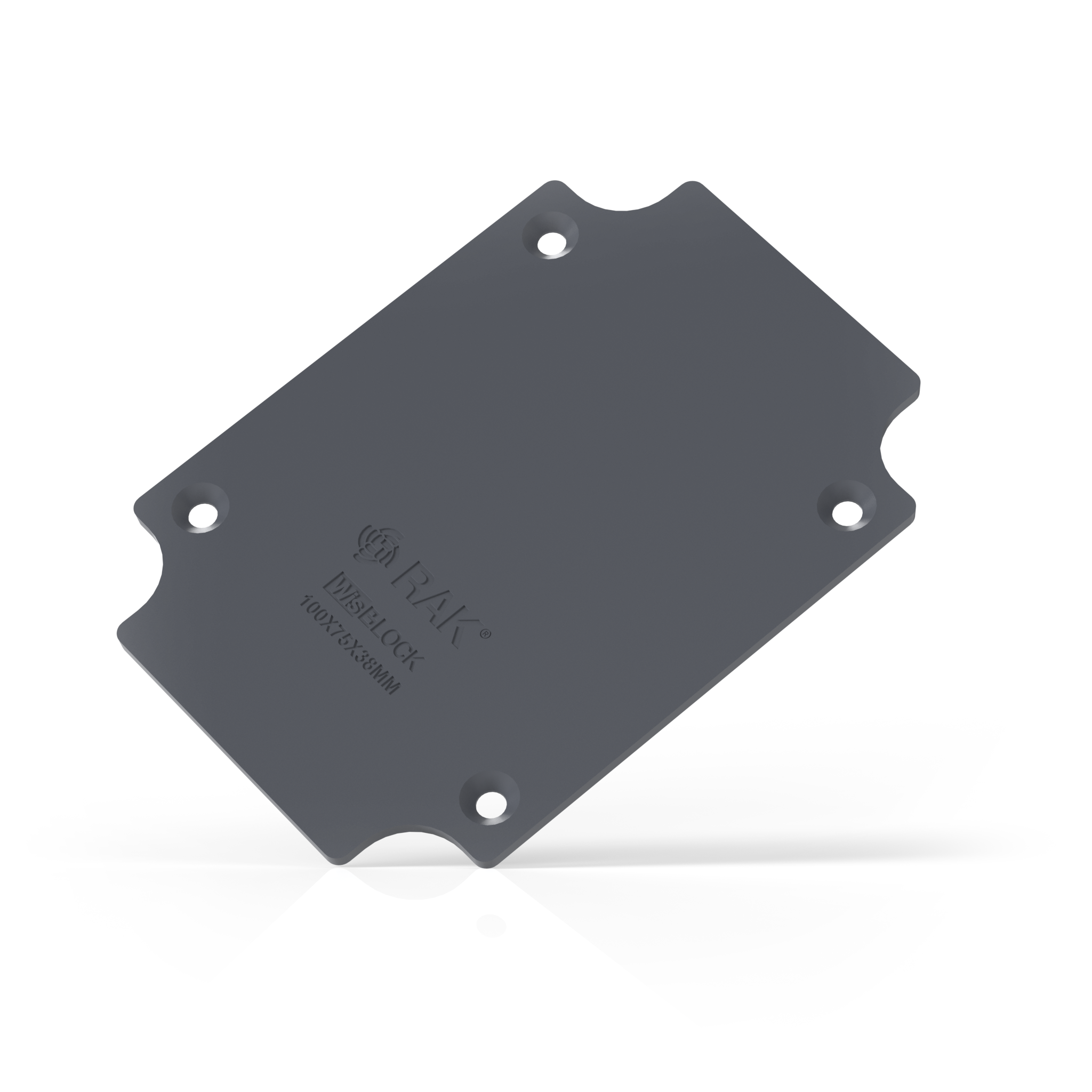

1Unify Enclosure Internal Mounting Plate Blank - 100x75x38mm Enclosure

This mounting plate is highly adaptable to your own needs. It is completely flat in design and is intended to support your IoT hardware in any way you want, such as with stand-offs.

There is also space for a flat profile LiPo battery to be hosted under the mounting plate. The space available below a mounting plate in standard configuration is approximately 55x34x6mm excluding narrow sections where there are enclosure features.

Mounting Plate Specifications:

  • Material: ABS UL94V-0
  • Size: 88x63x2mm
  • Thickness: 2mm
  • Colour: Medium Gray
  • Compatible only with Unify Enclosure IP67 100x75x38mm

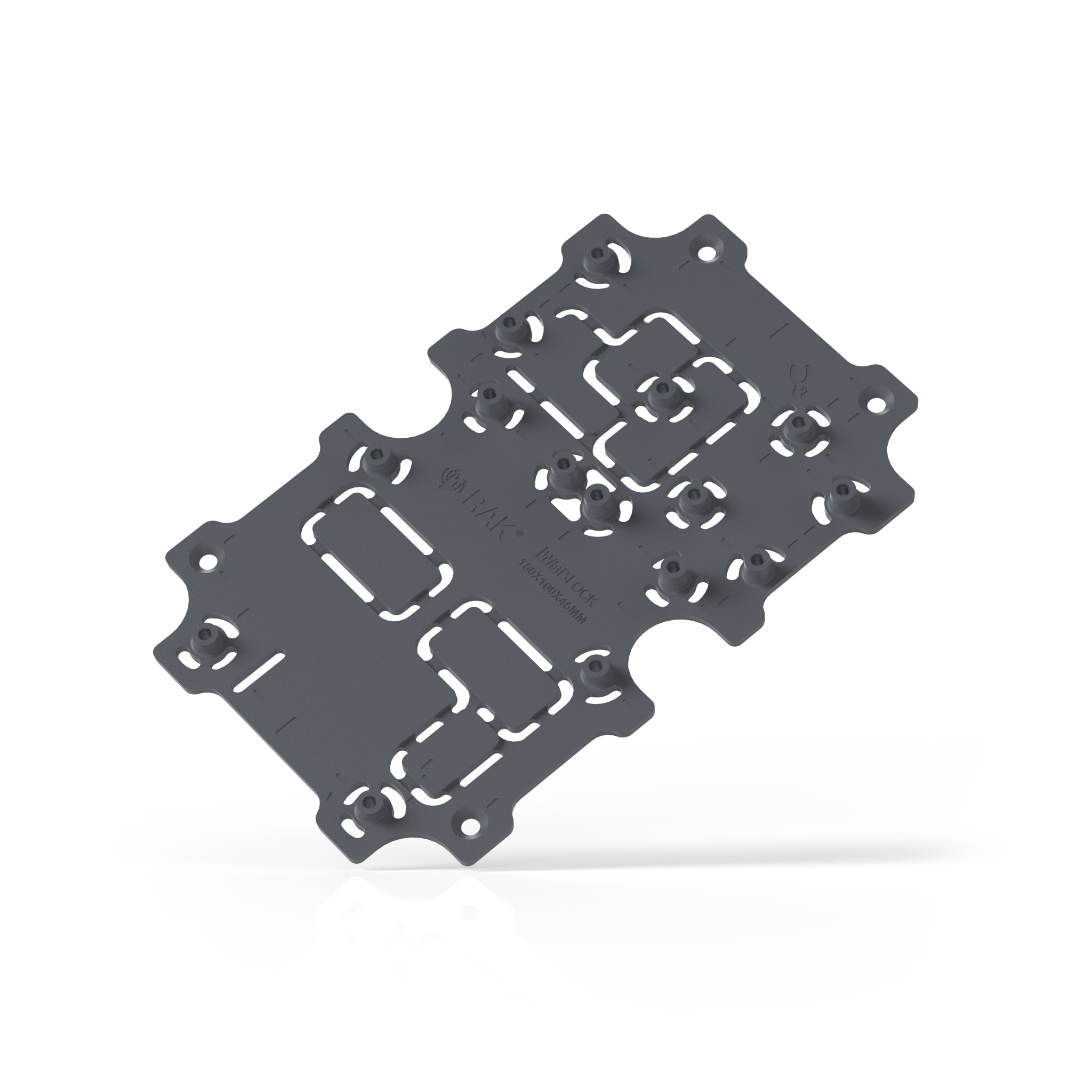

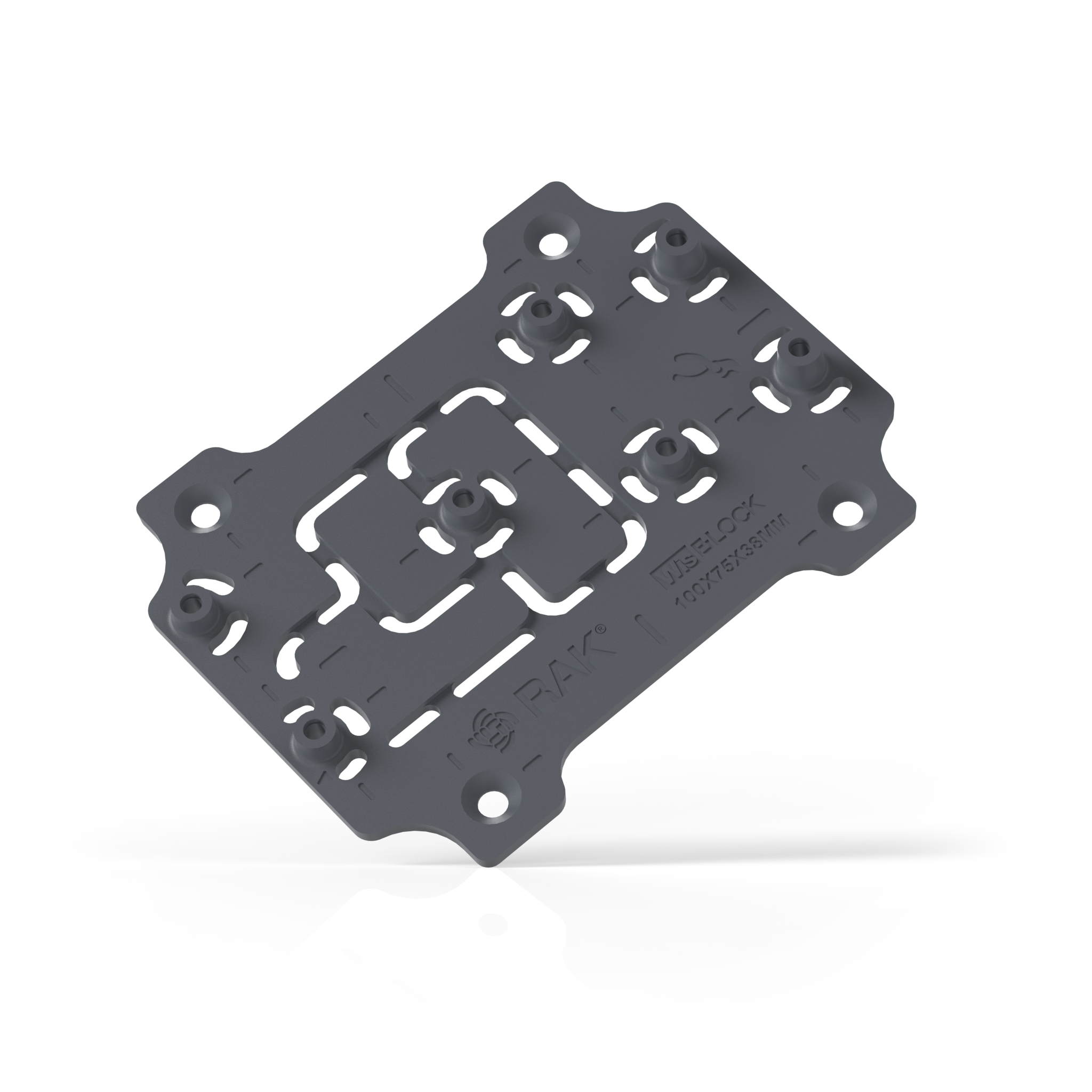

2Unify Enclosure Internal Mounting Plate with Screw Bosses for WisBlock - 100x75x38mm Enclosure

Deployment of your IoT solution is easy thanks to this dedicated mounting plate that can host a range of WisBlock baseboards.

WisBlock installation is made easy as the mounting plate includes dedicated screw bosses tailored for a range of baseboards, however the exact screws bosses required varies between baseboards and use-case, but adapting the mounting plate to the exact requirements is easy as unwanted screw bosses can be easily removed with the use of ordinary side-cutters.

The 100x75x38mm enclosure has enough internal space to support the following WisBlock Base Boards - RAK19003, RAK19007, RAK5005.

There is also space for a flat profile LiPo battery to be hosted under the mounting plate. The space available below a mounting plate in standard configuration is approximately 55x34x6mm excluding narrow sections where there are enclosure features.

WisBlock Baseboards Supported:

  • RAK5005
  • RAK19007
  • RAK19003

Mounting Plate Specifications:

  • Material: ABS UL94V-0
  • Size: 80x63x6.8mm* (*To tallest screw boss)
  • General Thickness: 2mm
  • WisBlock Base Board PCB bottom surface offset from plate top surface: 3mm
  • Colour: Medium Gray
  • Compatible only with Unify Enclosure IP67 100x75x38mm
  • Includes self-tapping screws to mount the WisBlock Base Board to the mounting plate

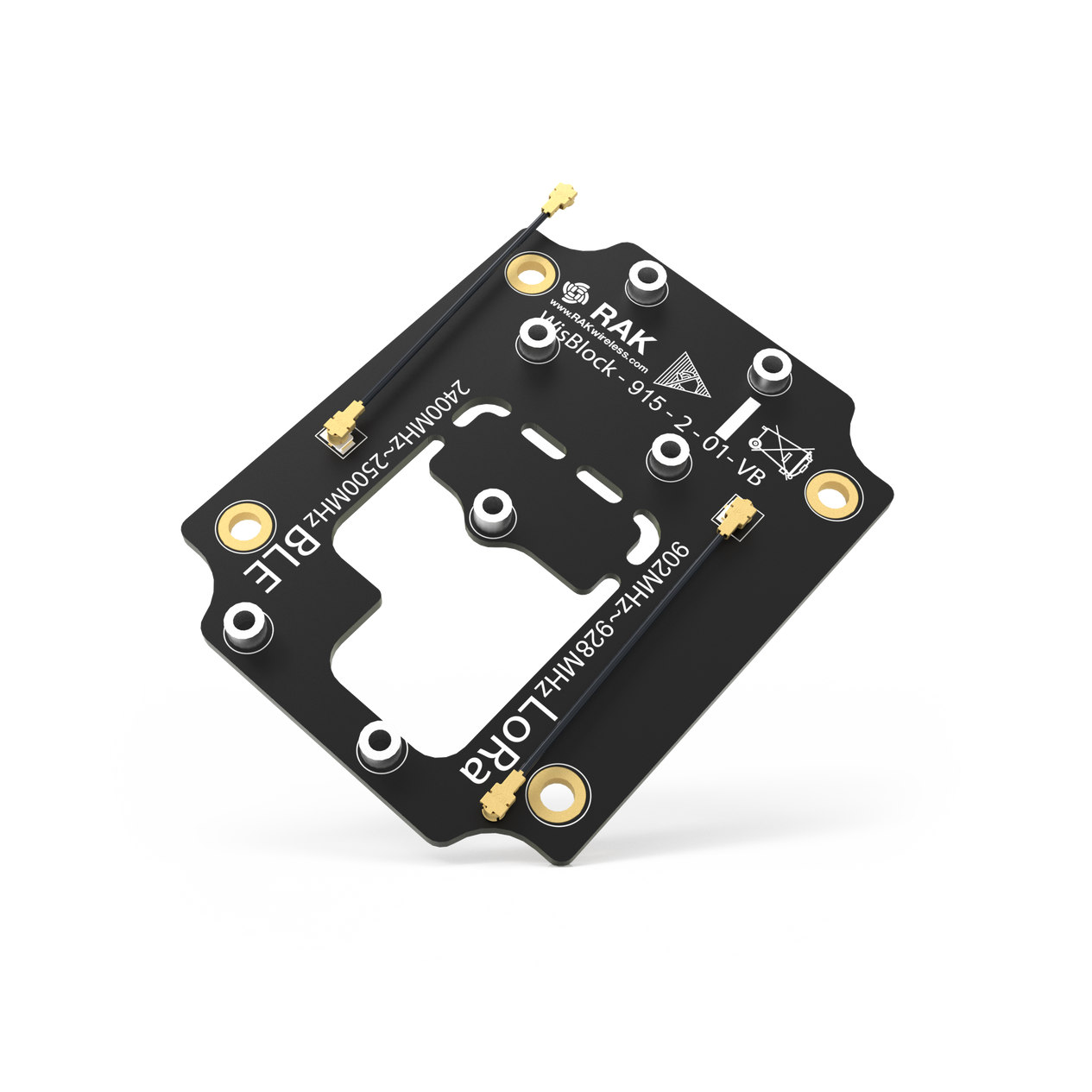

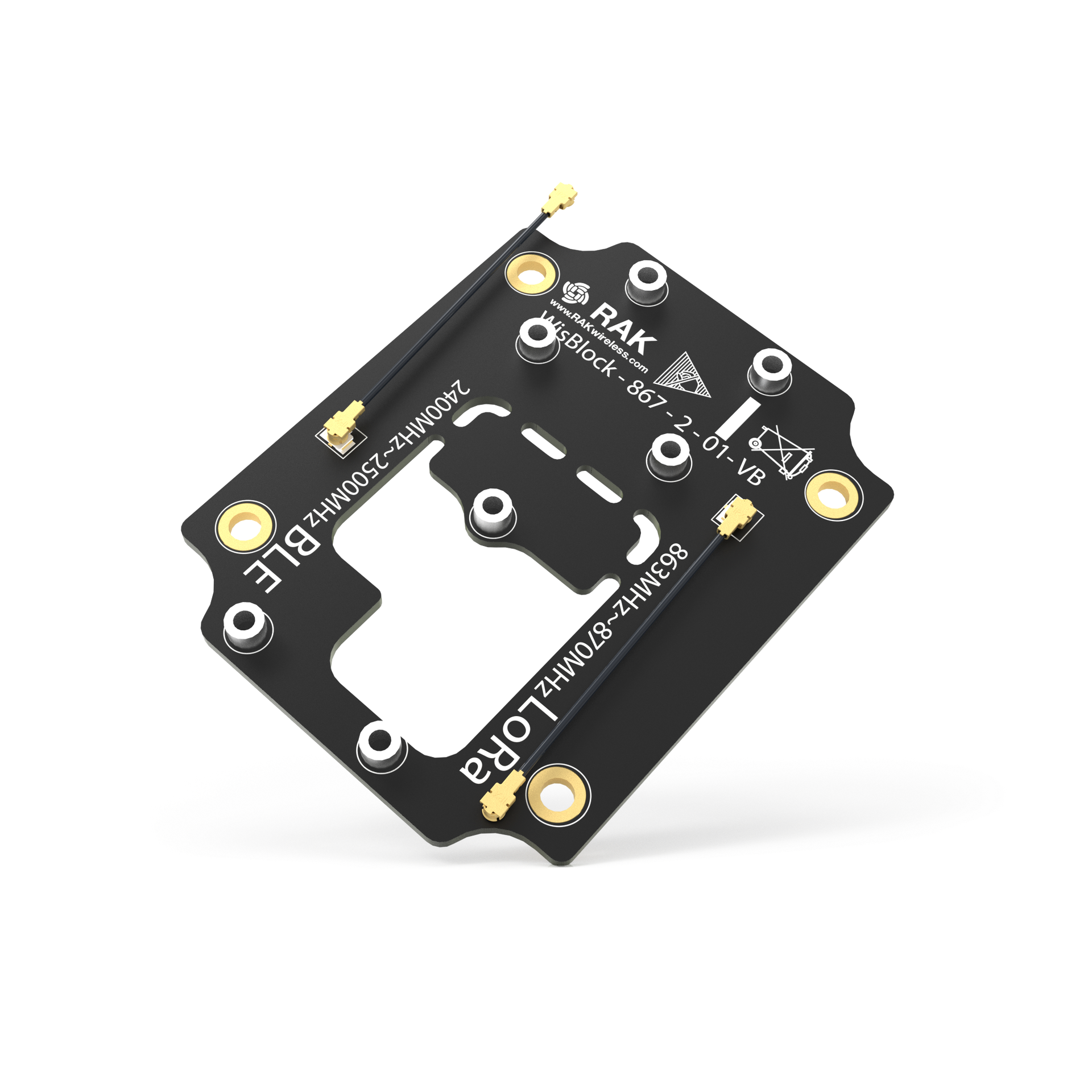

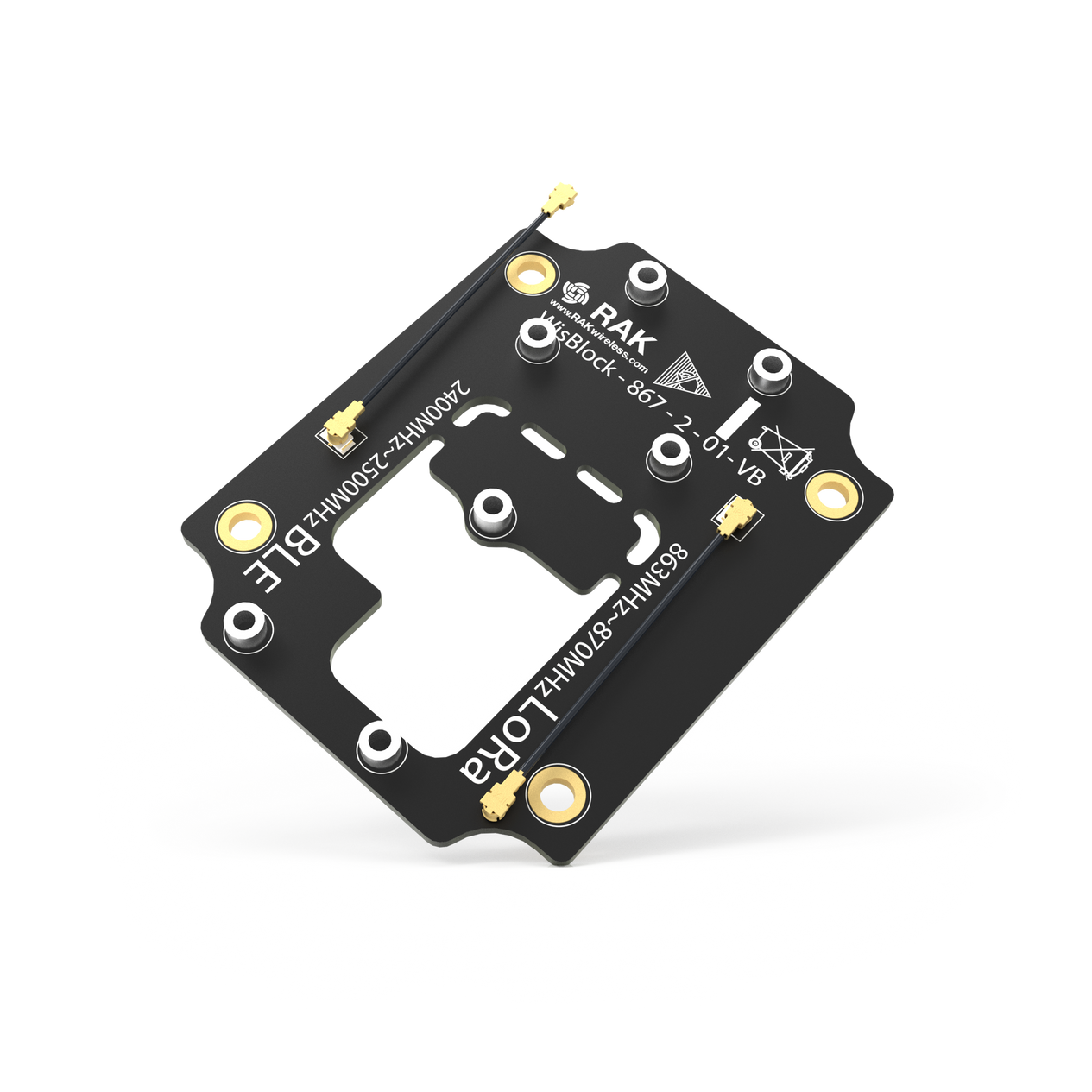

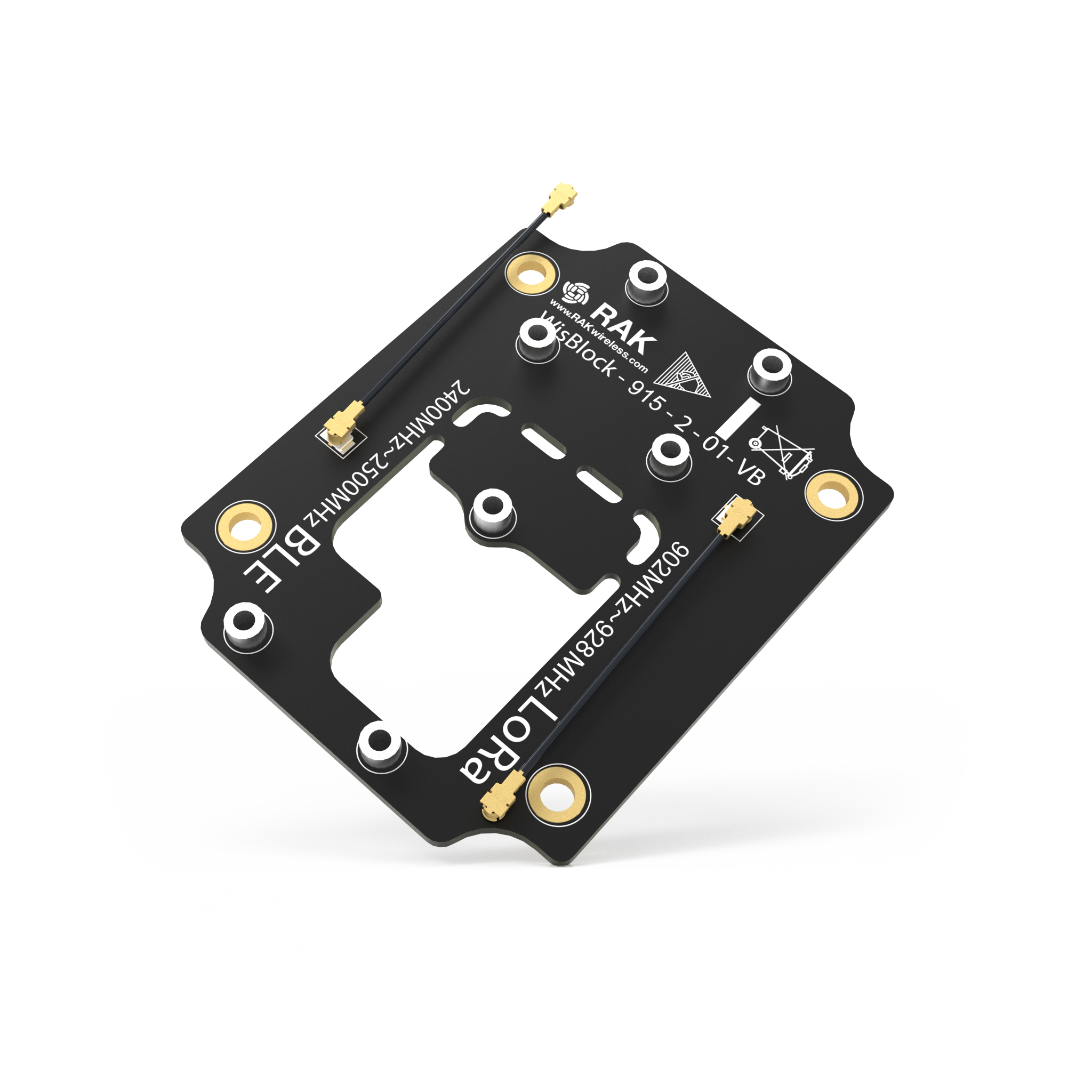

3. Unify Enclosure Internal Mounting Plate with integrated Antenna and Screw Bosses for WisBlock - 100x75x38mm Enclosure

Deployment of your IoT solution is easy thanks to this dedicated mounting plate that can host a range of WisBlock baseboards.

WisBlock installation is made easy as the mounting plate includes dedicated screw bosses tailored for a range of baseboards, however the exact screws bosses required varies between baseboards and use-case, but adapting the mounting plate to the exact requirements is easy as unwanted screw bosses can be easily removed with the use of ordinary side-cutters.

The 100x75x38mm enclosure has enough internal space to support the following WisBlock Base Boards - RAK19003, RAK19007, RAK5005.

This version of the internal mounting plate has integrated optimized antennas for LoRa/LoRaWAN and BLE. This helps for an easier assembly, improves the range of the LoRa/LoRaWAN communication and reduces the number of cables required inside the enclosure.

It is available for two frequency ranges, please choose the correct version for your LoRaWAN region:



868 to 870 MHz

RU864

IN865

EU868



902 to 928 MHz

US915

AU915

KR920

AS923


There is also space for a flat profile LiPo battery to be hosted under the mounting plate. The space available below a mounting plate in standard configuration is approximately 55x34x6mm excluding narrow sections where there are enclosure features.

WisBlock Baseboards Supported:

  • RAK5005
  • RAK19007
  • RAK19003

Mounting Plate Specifications:

  • Material: FR4
  • Size: 80x63x6.8mm* (*To tallest screw boss)
  • General Thickness: 1.2mm
  • WisBlock Base Board PCB bottom surface offset from plate top surface: 3mm
  • Colour: Medium Gray
  • Compatible only with Unify Enclosure IP67 100x75x38mm
  • Includes screws to mount the WisBlock Base Board to the mounting plate Edited

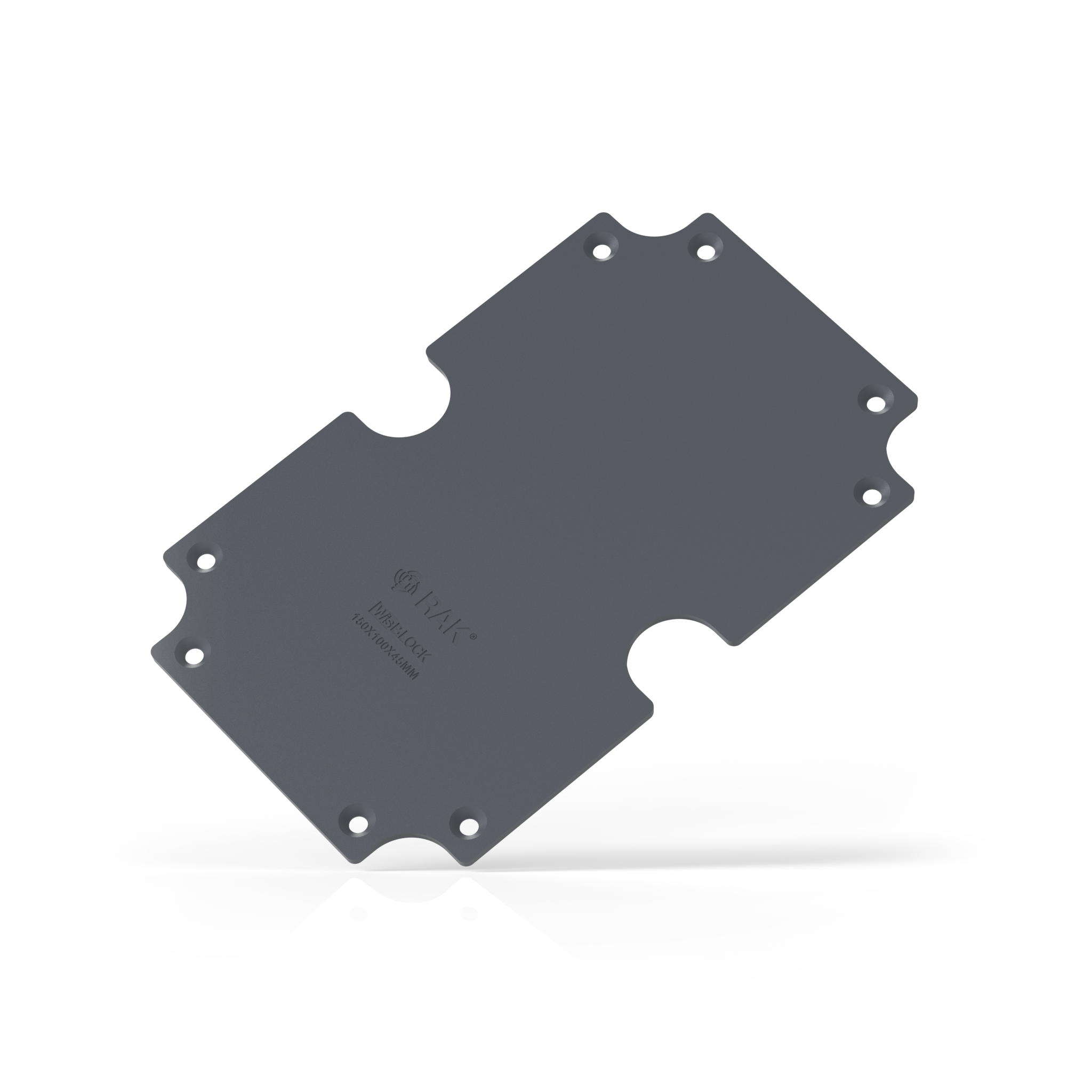

4、Unify Enclosure Internal Mounting Plate Blank - 150x100x45mm Enclosure

This mounting plate is highly adaptable to your own needs. It is completely flat in design and is intended to support your IoT hardware in any way you want, such as with stand-offs.

There is also space for a flat profile LiPo battery to be hosted under an internal mounting plate. The space available below a mounting plate in standard configuration is approximately 107x57x6mm excluding narrow sections where there are enclosure features.

Mounting Plate Specifications:

  • Material: ABS UL94V-0
  • Size: 137x87x6.8mm (To tallest screw boss)
  • General Thickness: 2mm
  • Colour: Medium Gray
  • Compatible only with Unify Enclosure IP67 150x100x45mm

5Unify Enclosure Internal Mounting Plate with Screw Bosses for WisBlock - 150x100x45mm Enclosure

Deployment of your IoT solution is easy thanks to this dedicated mounting plate that can host a range of WisBlock baseboards.

WisBlock installation is made easy as the mounting plate includes dedicated screw bosses tailored for a range of baseboards, however the exact screws bosses required varies between baseboards and use-case, but adapting the mounting plate to the exact requirements is easy as unwanted screw bosses can be easily removed with the use of ordinary side-cutters.

The 150x100x45mm enclosure has enough internal space to support the following WisBlock Base Boards - RAK19001 and simultaneously a RAK19003, RAK19007, RAK5005.

There is also space for a flat profile LiPo battery to be hosted under an internal mounting plate. The space available below a mounting plate in standard configuration is approximately 107x57x6mm excluding narrow sections where there are enclosure features.

WisBlock Baseboards Supported:

  • RAK19001 and simultaneously one of the following
  • RAK5005
  • RAK19007
  • RAK19003

Mounting Plate Specifications:

  • Material: ABS UL94V-0
  • Size: 137x87x6.8mm* (*To tallest screw boss)
  • General Thickness: 2mm
  • WisBlock Base Board PCB bottom surface offset from plate top surface: 3mm
  • Colour: Medium Gray
  • Compatible only with Unify Enclosure IP67 150x100x45mm
  • Includes self-tapping screws to mount the WisBlock Base Board to the mounting plate

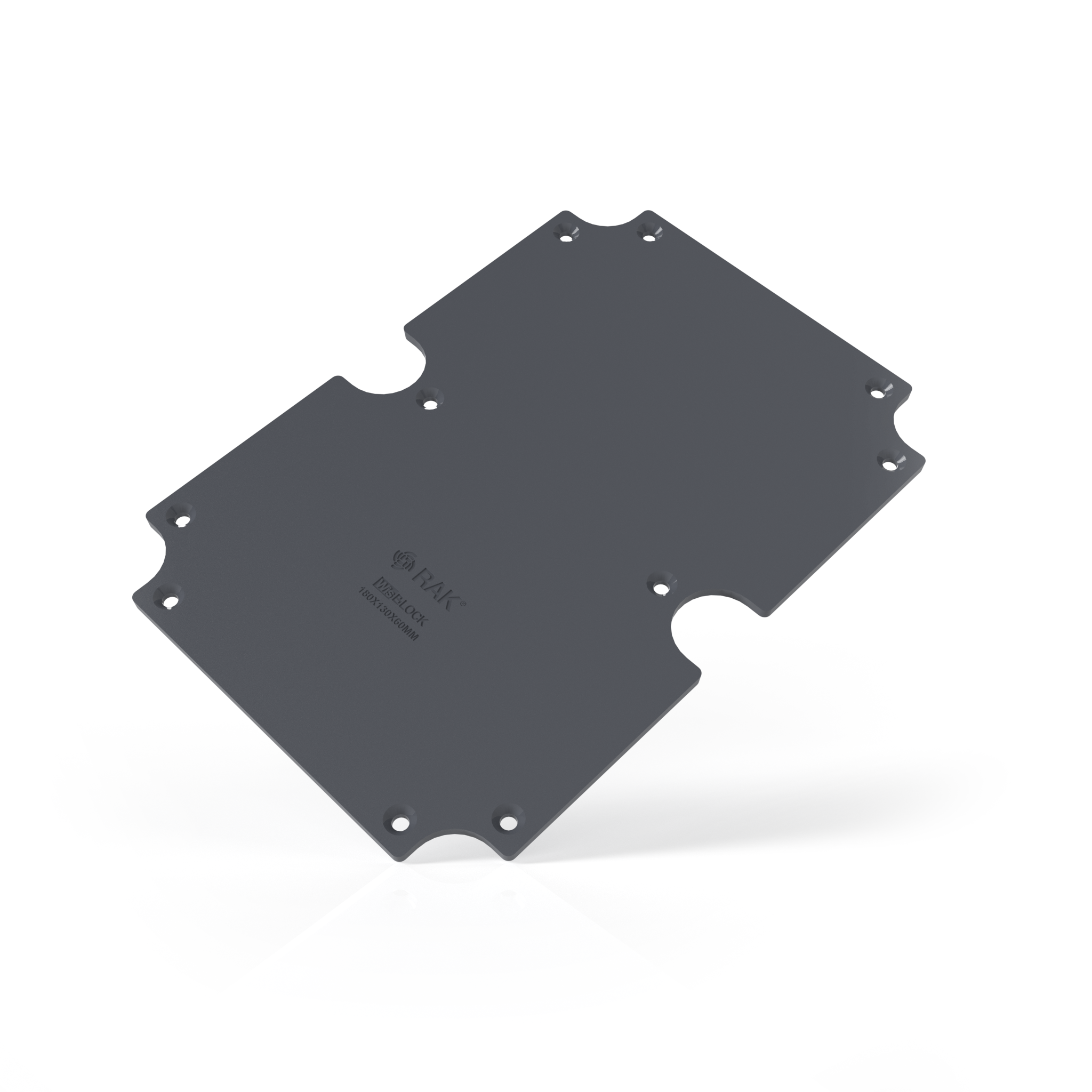

6、Unify Enclosure Internal Mounting Plate Blank - 180x130x60mm Enclosure

This mounting plate is highly adaptable to your own needs. It is completely flat in design and is intended to support your IoT hardware in any way you want, such as with stand-offs.

There is also space for a flat profile LiPo battery to be hosted under an internal mounting plate. The space available below a mounting plate in standard configuration is approximately 165x115x6mm excluding narrow sections where there are enclosure features. There is also sufficient space above the mounting plate to mount a battery, depending on the space utilised for other items.

Mounting Plate Specifications:

  • Material: ABS UL94V-0
  • Size: 165x115x2mm
  • Thickness: 2mm
  • Colour: Medium Gray
  • Compatible only with Unify Enclosure IP67 180x130x60mm

Included in the package:

  • 1x Unify Mounting Plate
  • 1x Screw Kit
  • 2x Antenna Cable (only versions with integrated antenna)
