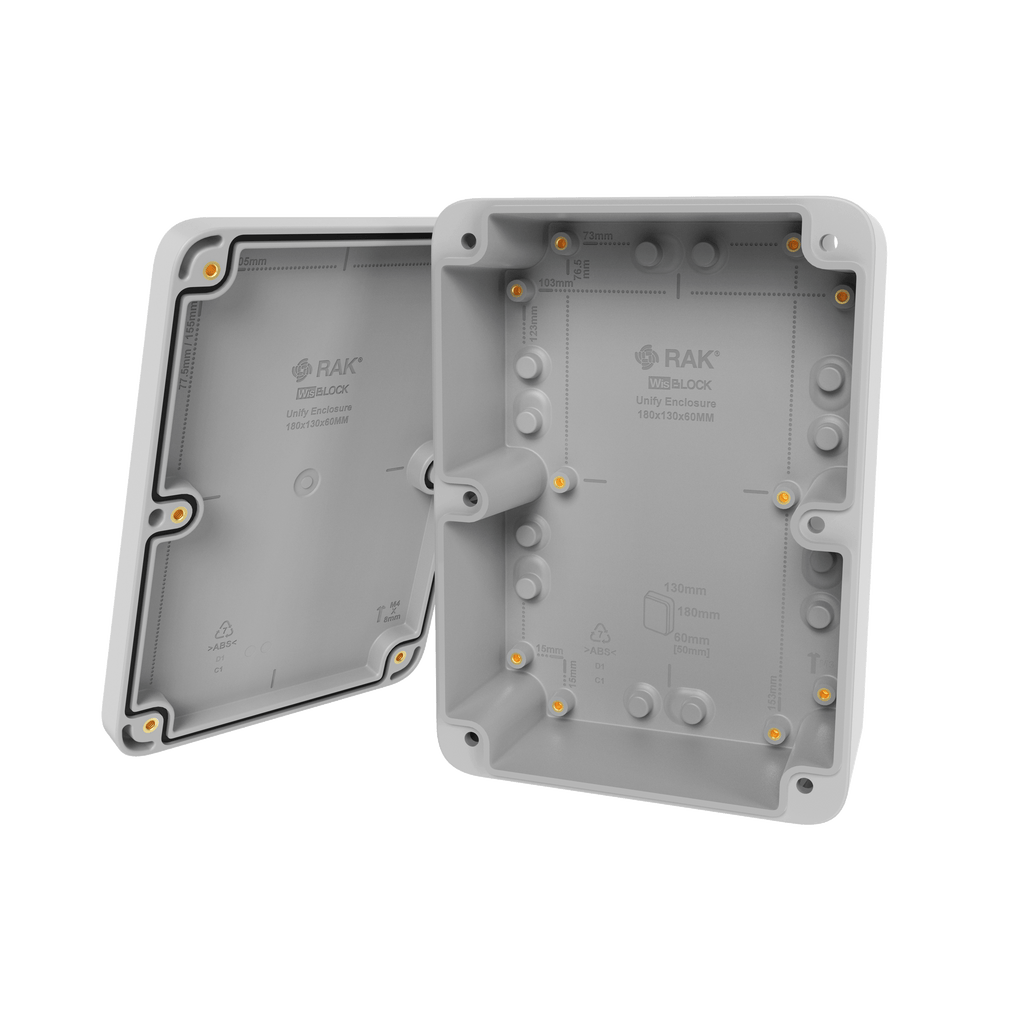

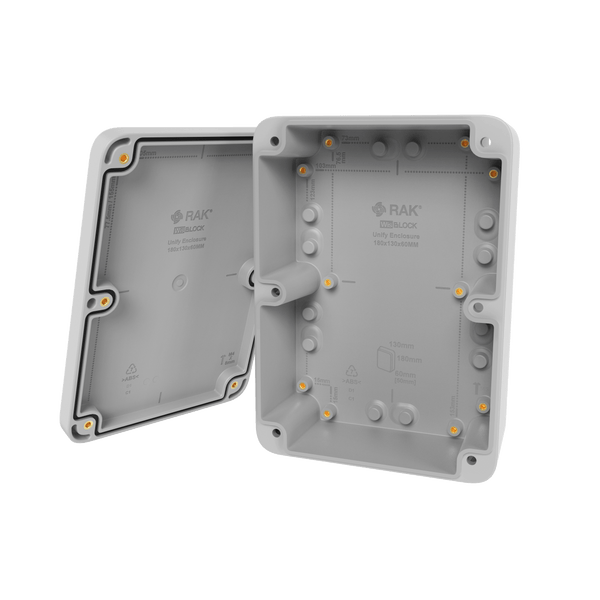

Unify Enclosure IP67 180x130x60mm

The Unify Enclosures are modular IP67 rated outdoor enclosures that include tailored features to support WisBlock Base Boards and WisBlock Modules but are highly adaptable to any application with spacious internals and thoughtfully designed universal mounting options.

Deployment of your IoT solution is easy thanks to a range of swappable mounting accessories that enable you to install your IoT solution in any setting. These accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.

The included 180x130x60mm enclosure has enough internal space to support the following WisBlock Base Boards - RAK19001, RAK19003, and RAK19007.

There is also space for a flat profile LiPo battery to be hosted under an internal mounting plate. The space available below a mounting plate in standard configuration is approximately 165x115x6mm excluding narrow sections where there are enclosure features. There is also sufficient space above the mounting plate to mount a battery, depending on the space utilized for other items.

Unify Enclosure Range

• Unify Enclosure IP67 180x130x60mm (This enclosure)
• Unify Enclosure IP67 100x75x38mm
• Unify Enclosure Solar IP65 100x75x38mm (with solar)
• Unify Enclosure IP67 150x100x45mm
• Unify Enclosure IP67 150x100x45mm (with Pre-Mounted M8 5-pin Connectors and RP-SMA Antenna)

Accessories Supported

• Unify Mounting Plate Blank 180x130x60mm allows you to create your own custom internal mounting solution for any hardware.
• Unify Pole Mounting Vertical Kit (Type A)
• Unify Pole Mounting Horizontal Kit (Type B)
• Unify Pole Mounting Horizontal Kit (Type C)
• Unify Wall Mounting Kit (Type D)
• Unify Belt Clip Kit (Type E)
• Unify DIN Rail Mounting Kit (Type F)
• Unify Magnet Mounting Kit (Type G)
• Unify Belt Loop Kit (Type H)
• Unify Label Kit (Type I)
• Unify Hook Loop Kit (Type J)

Enclosure Specifications

• Material: ABS UL94V-0 (flame-retardant)
• External Dimensions: 180x130x60mm (including lid)
• Internal Space: Approximately 165x115x50mm at the widest point (Usable space may vary due to internal features; narrowest internal width: 85mm)
• Wall Thickness: 4.5mm
• Seal: Silicone waterproof seal with a square profile to prevent twisting during installation
• Threaded Inserts: Brass, blind type throughout

Unify Mounting Plate Blank for 180x130x60mm Enclosure

This mounting plate fits perfectly into the Unify Enclosure 180x130x60mm, enabling you to implement your custom mounting solution.

Mounting Plate Blank Specifications:

• Compatible only with Unify Enclosure IP67 180x130x60mm
• Thickness: 2mm
• Includes M3 countersink screws to mount to the enclosure

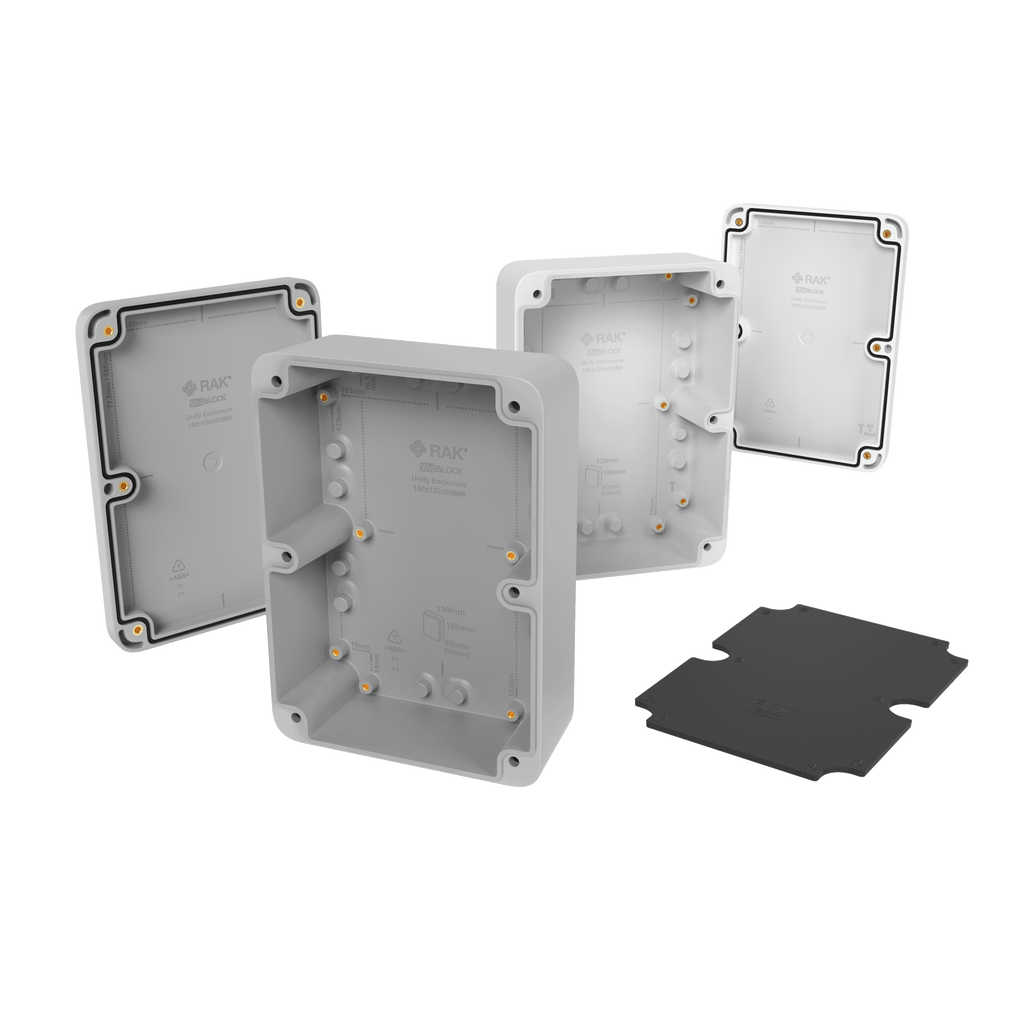

Package Inclusion

• 1 pc Unify Enclosure 180x130x60mm
• 1 pc Blank Mounting Plate
• 1 Screw set

Documentation

• Unify Enclosure IP67 180x130x60mm
• Unify Enclosure 180x130x60mm - 3D and 2D Model Downloads
