Unify DIN Rail Mounting Kit (Type F)
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Description
The Unify DIN Rail Mounting Kit (Type F) consists of the key accessories to enable you to mount your Unify Enclosure to a DIN Rail (IEC/EN 60715 35 x 7.5 and IEC/EN 60715 35 x 15 ‘Top-hat section’ style*)

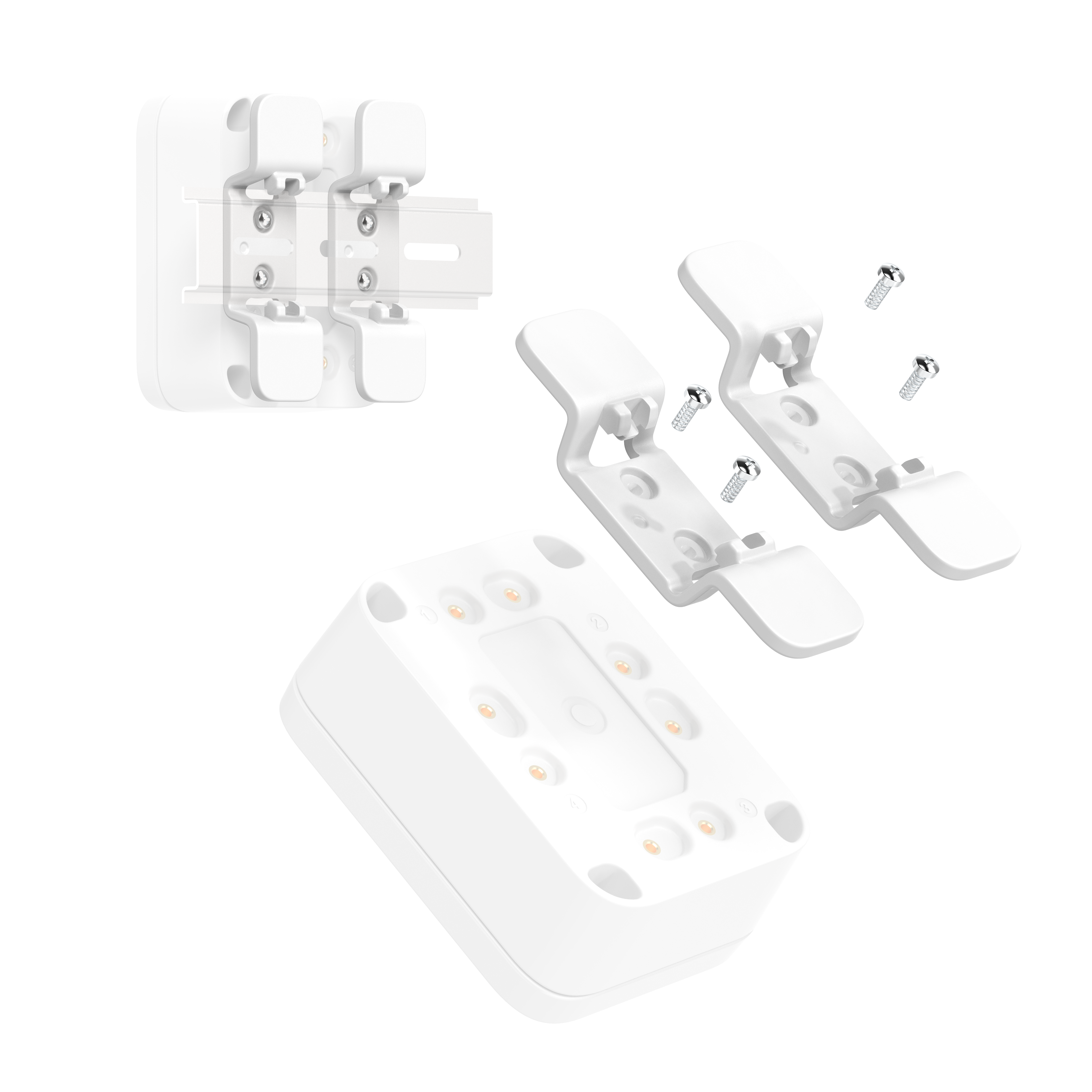

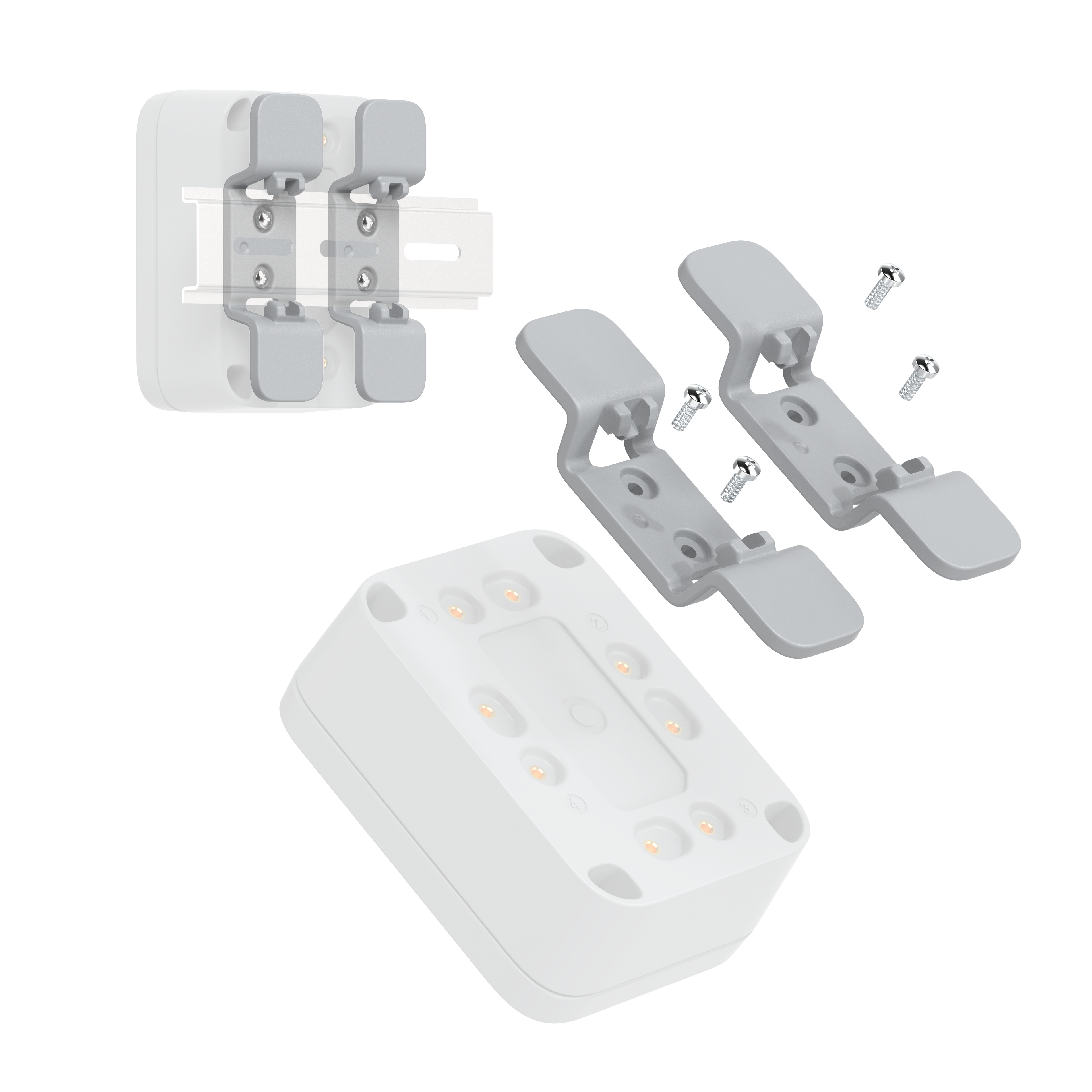

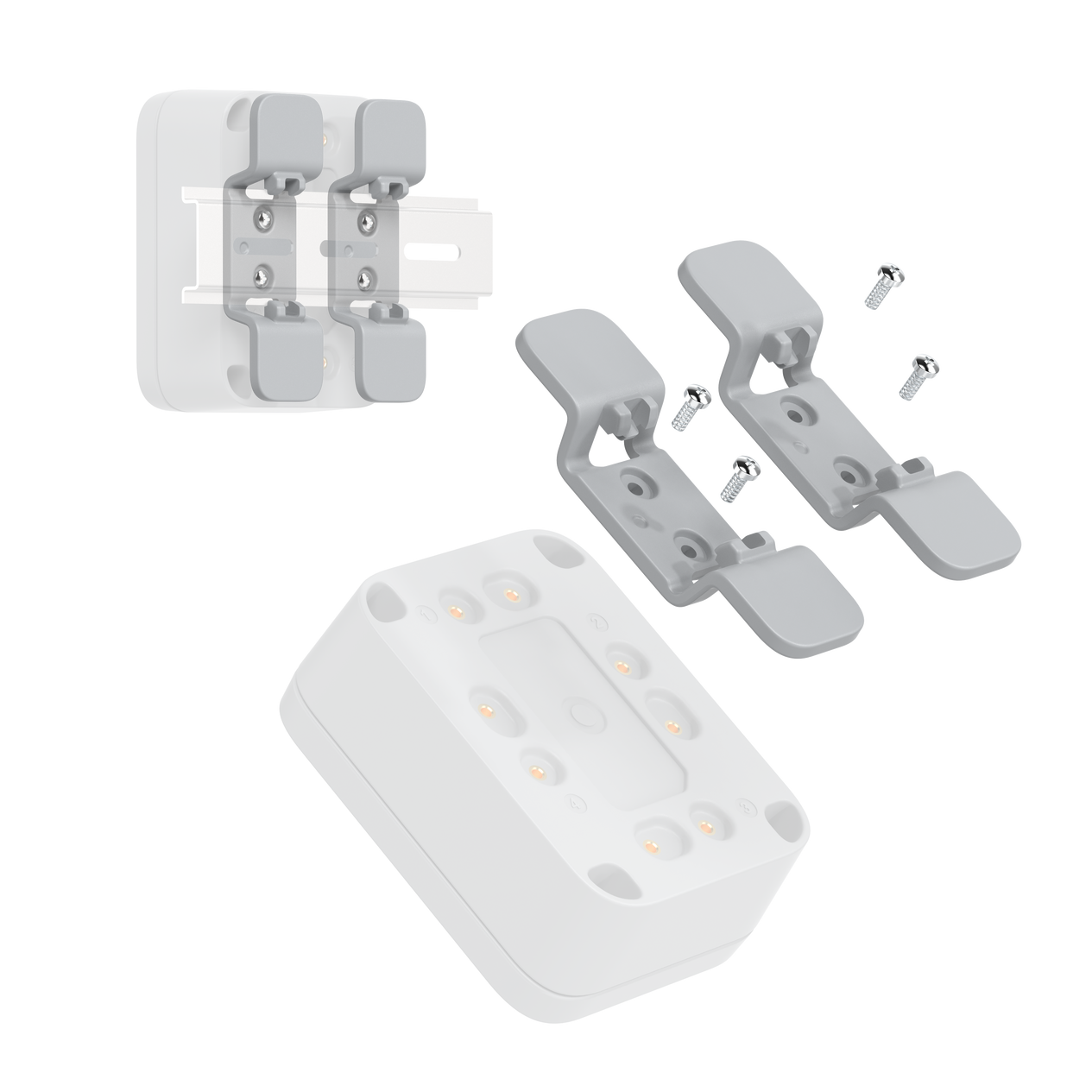

The Unify accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.
The Unify DIN Rail Mounting Kit (Type F) accessory is compatible with all Unify Enclosures.
Unify DIN Rail Mount (Type F) Specifications
- Material: PP UL94V-0
- General Wall Thickness: 4.0mm
- DIN Rail Supported: IEC/EN 60715 35 x 7.5
- DIN Rail Supported: IEC/EN 60715 35 x 15
- Compatible with Unify Enclosure 100x75x38mm
- Compatible with Unify Enclosure 150x100x45mm
- Compatible with Unify Enclosure 180x130x60mm
*Compatible DIN rail may have different names / references in different countries
DIN Rail Equivalents** are:
- TH35
- Type O
- Type Ω
- TS35
**Please test to validate compatibility with your exact DIN rail

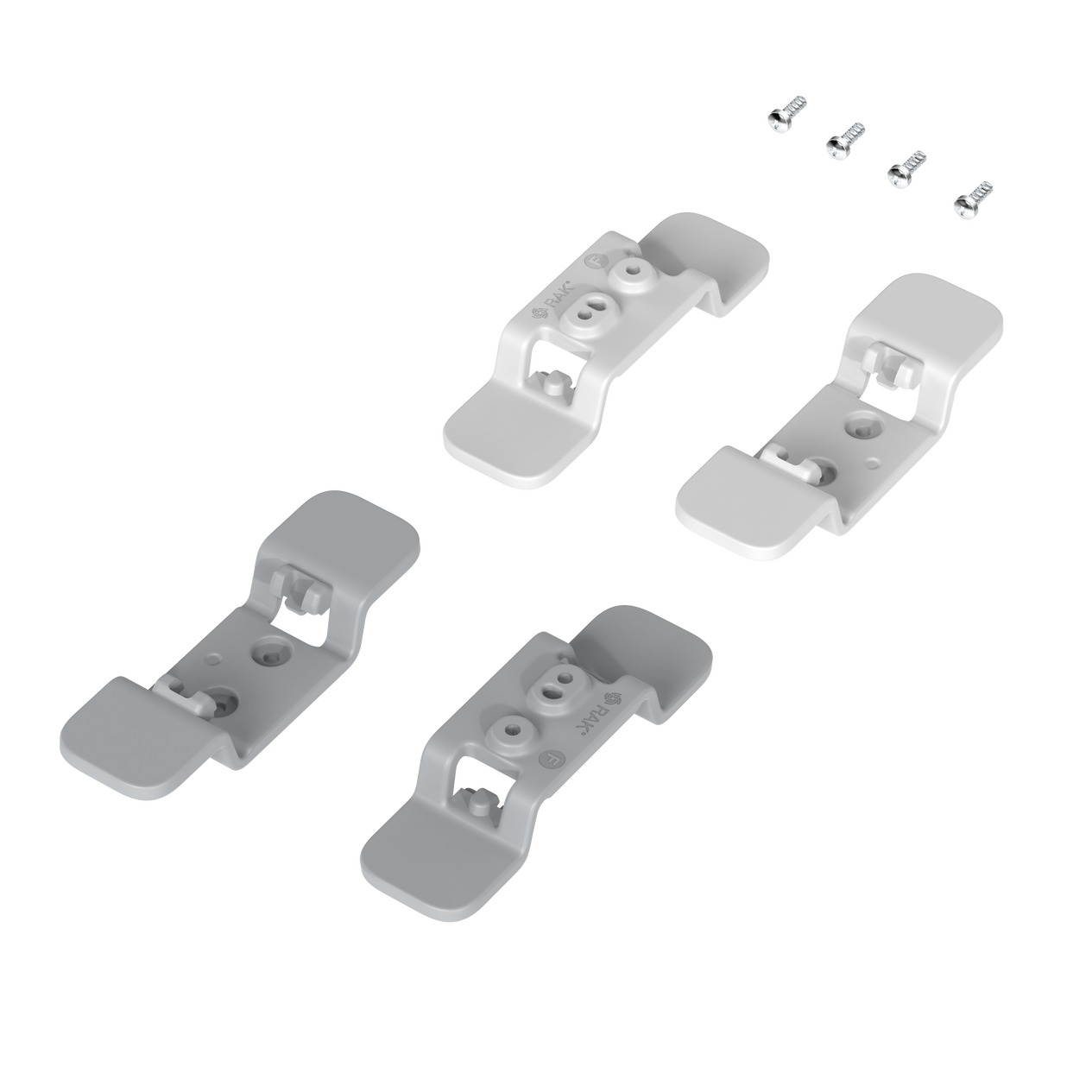

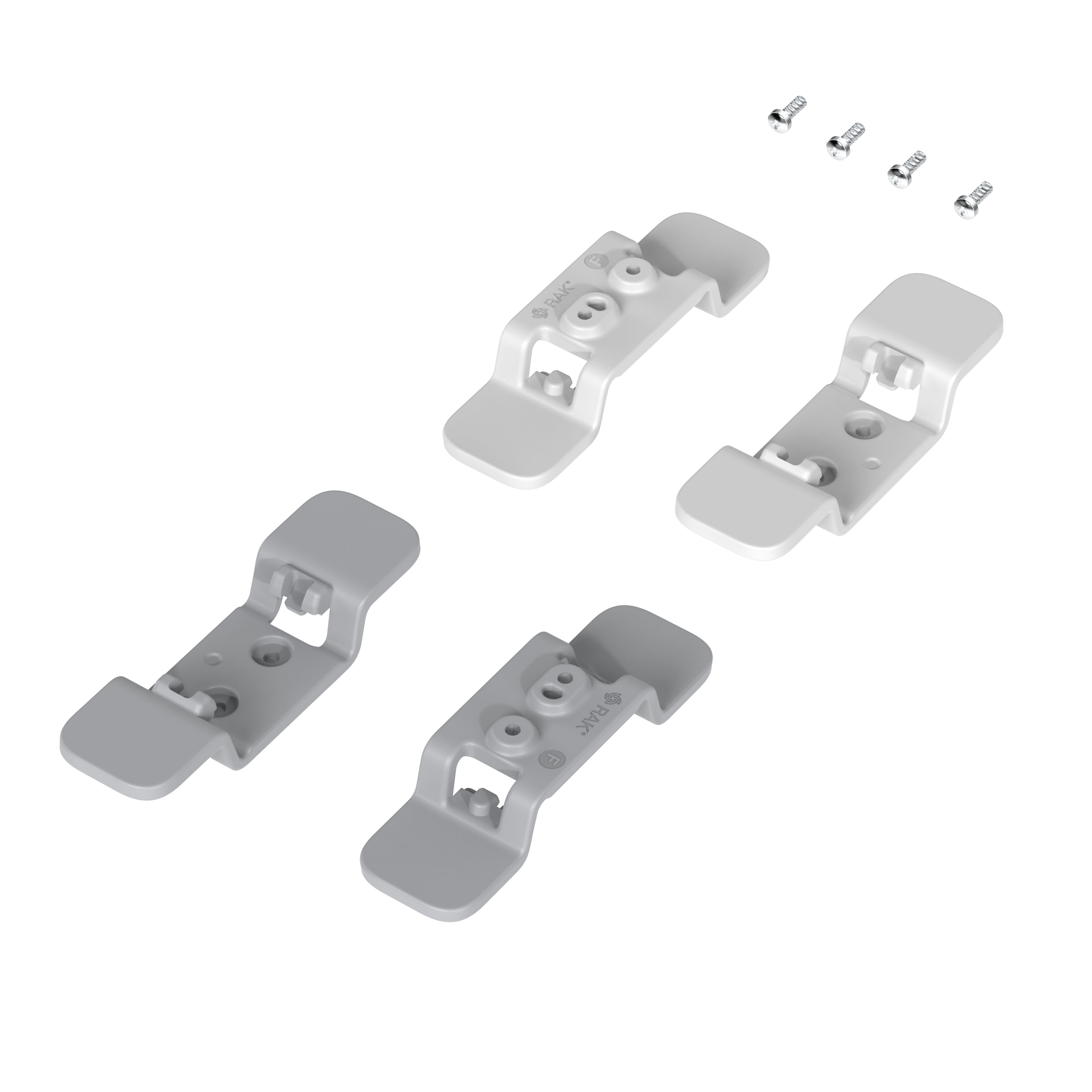

Package Inclusion
- 2 pc Unify DIN Rail Mounting (Type F) accessories
- 4 pc M3x8mm Stainless Steel Screw (to mount the accessory to the enclosure)
