Magnetic Base Monopole Antenna
Magnetic Base Monopole Antenna
Magnetic Base Monopole Antenna
Magnetic Base Monopole Antenna

Magnetic Base Monopole Antenna

SKU:921006
$6.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.


Choose Your Product Options:
Recommended
Fence Screen Height *
Standard 3′ ft. Fence Screen Colors *
Black FenceScreen Size *
Beige FenceScreen Size *
Grey FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 8′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 4′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 5′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 6′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *

Product Description

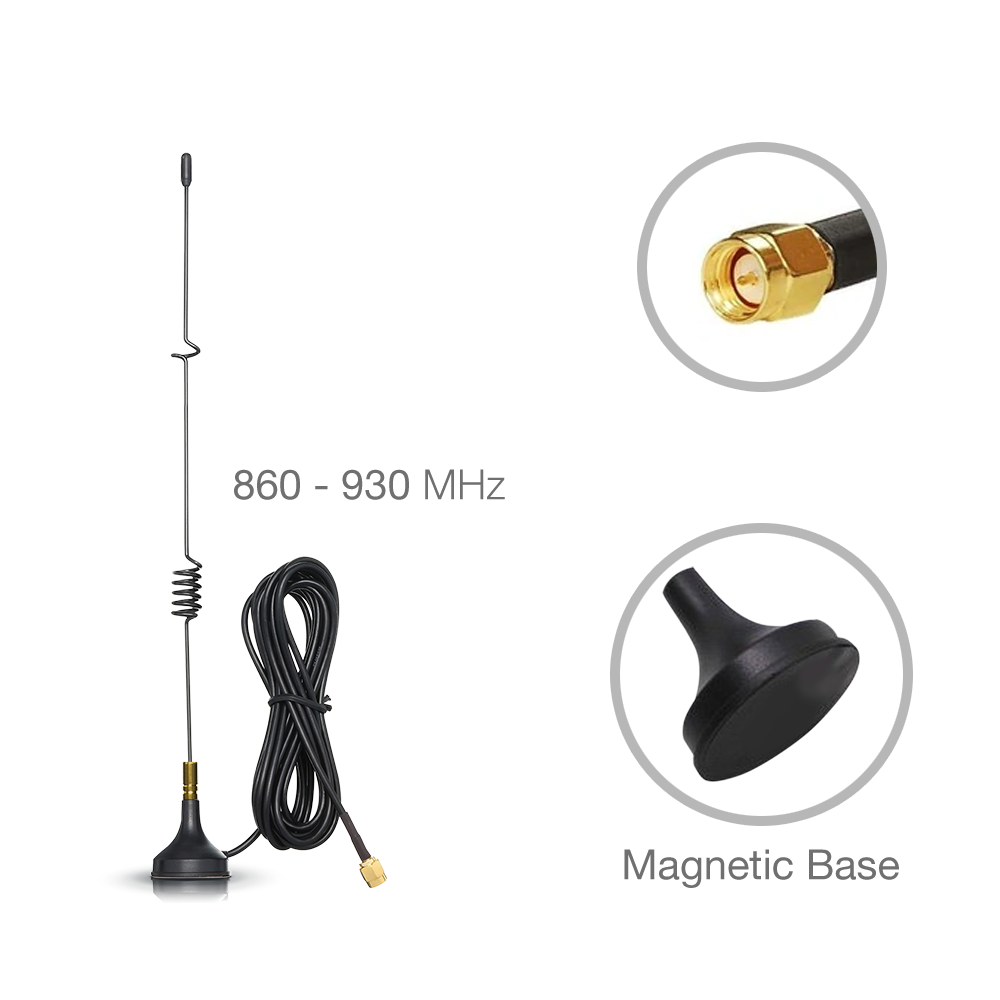

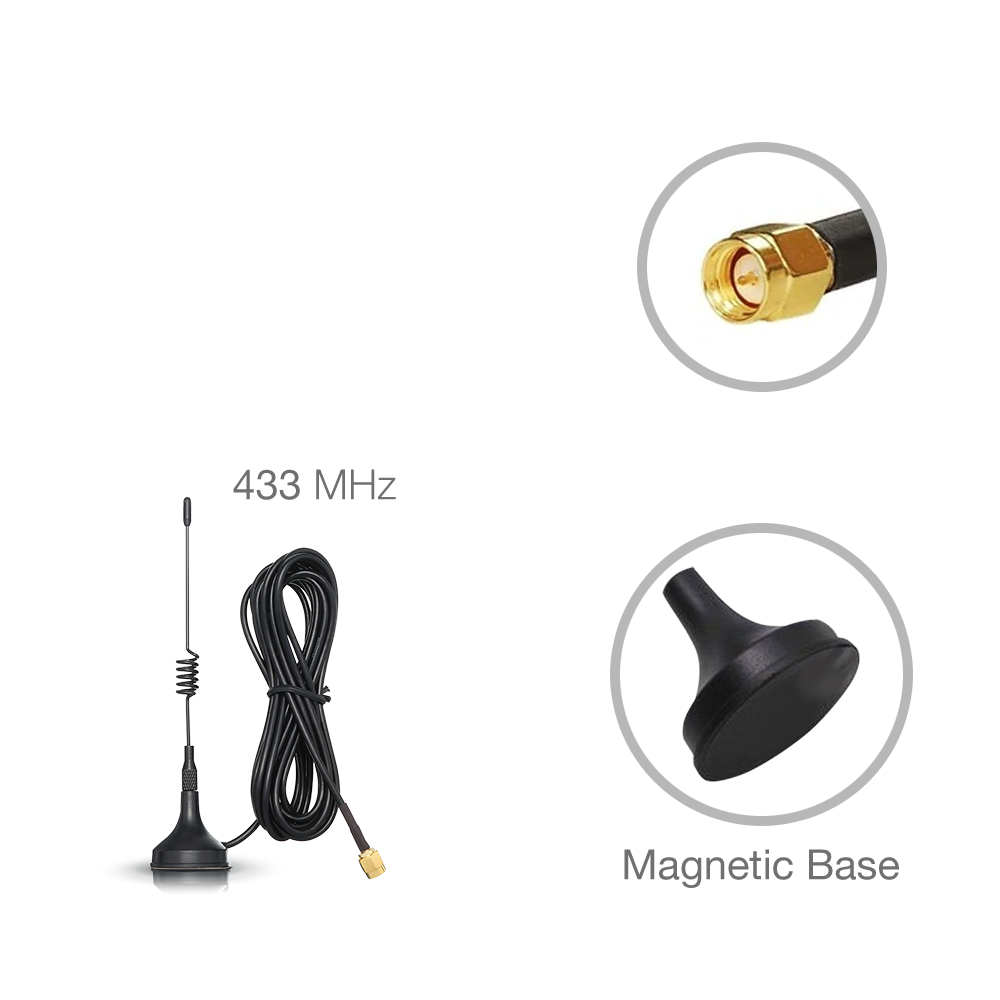

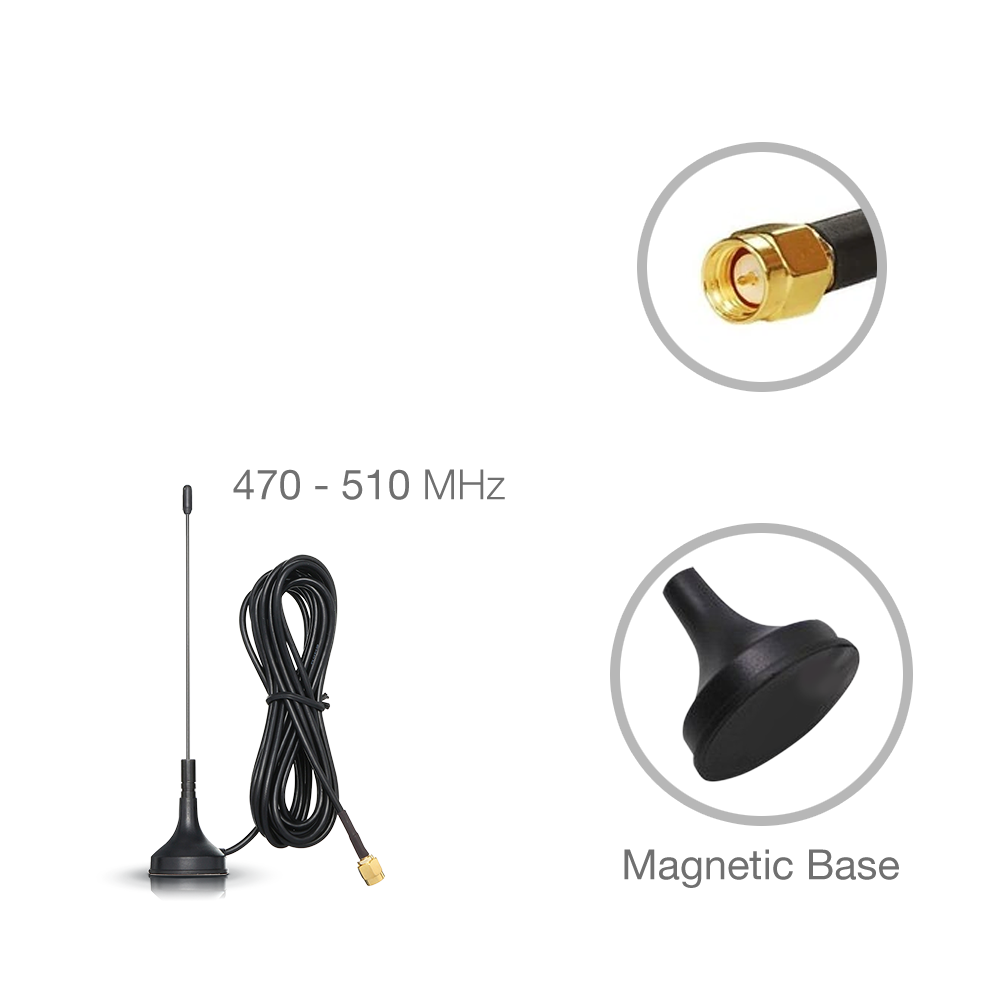

This is a magnetic base omnidirectional antenna tuned for operation in the license-free spectrum band of 433 MHz, 470 - 510 MHz, and 860 - 930 MHz. It is lightweight and can be easily mounted on a metallic surface thanks to its strong magnetic base. We designed this antenna to be a perfect match for RAK7258, with stable performance and good VSWR. The coaxial cable attached to the magnetic base has a length of 1.5 meters.

Key Features

Frequency 433 MHz 470 - 510 MHz 860 - 930 MHz
Gain -9.5 dBi -9.5 dBi 1.27 dBi
VSWR ‰¤ 2.5 ‰¤ 3.0 ‰¤ 2.0
Efficiency Max 12% 22% 53%
Impedance 50 Ω 50 Ω 50 Ω
Polarization Linear polarization - Vertical Linear polarization - Vertical Linear polarization - Vertical
Radiation pattern Omni-directional Omni-directional Omni-directional
Connector RP-SMA-J RP-SMA-J RP-SMA-J
Length 142 ± 3 mm 147 ± 3 mm 278 ± 3 mm
Operation Temperature -30„ƒ ~ 65„ƒ -30„ƒ ~ 65„ƒ -20„ƒ ~ 65„ƒ
Storage Temperature -30„ƒ ~ 75„ƒ -30„ƒ ~ 75„ƒ -30„ƒ ~ 75„ƒ
