RAKDAP1
Debug and Flash Tool
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

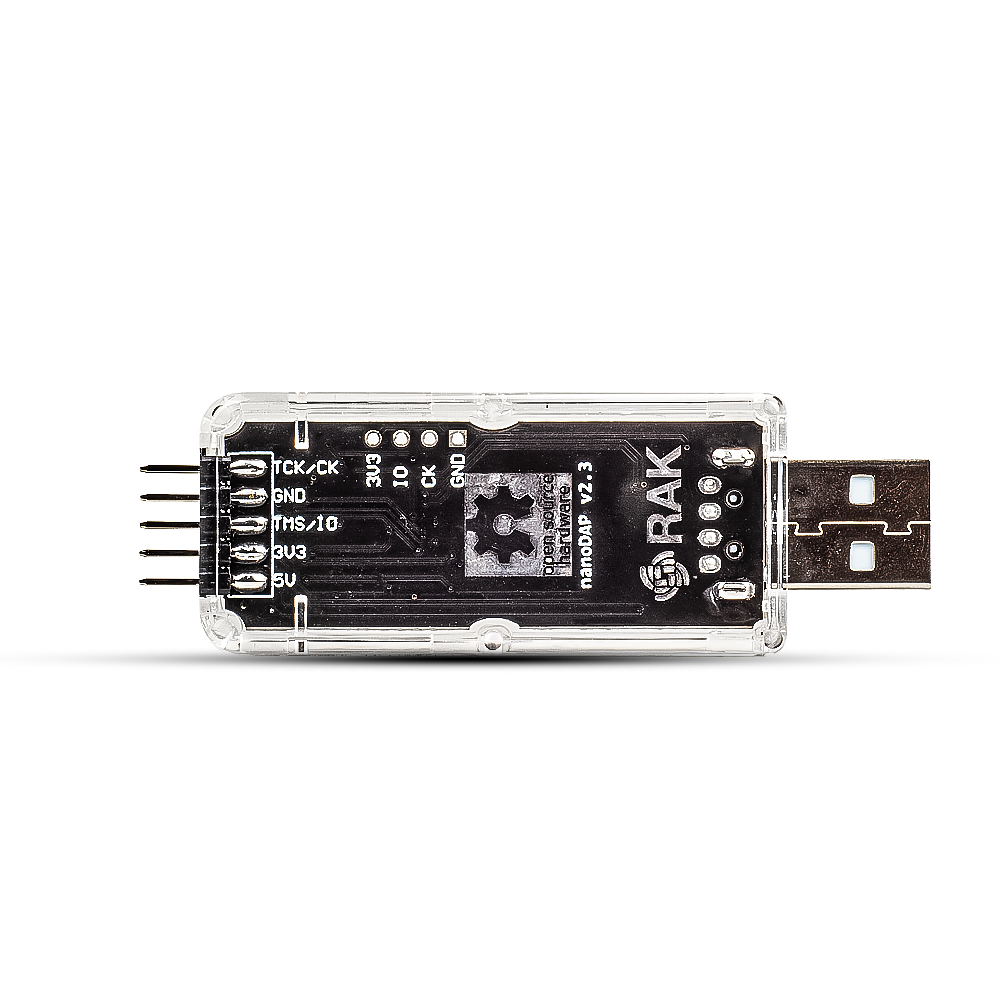

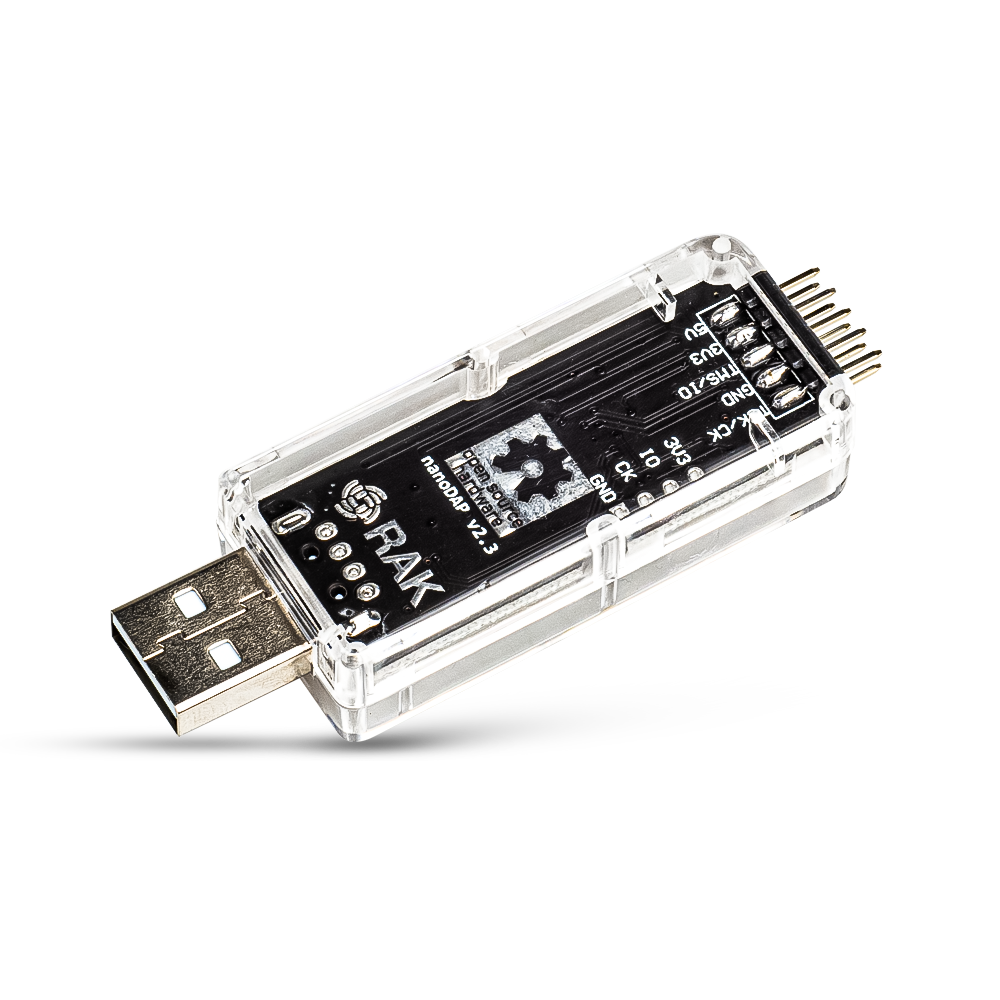

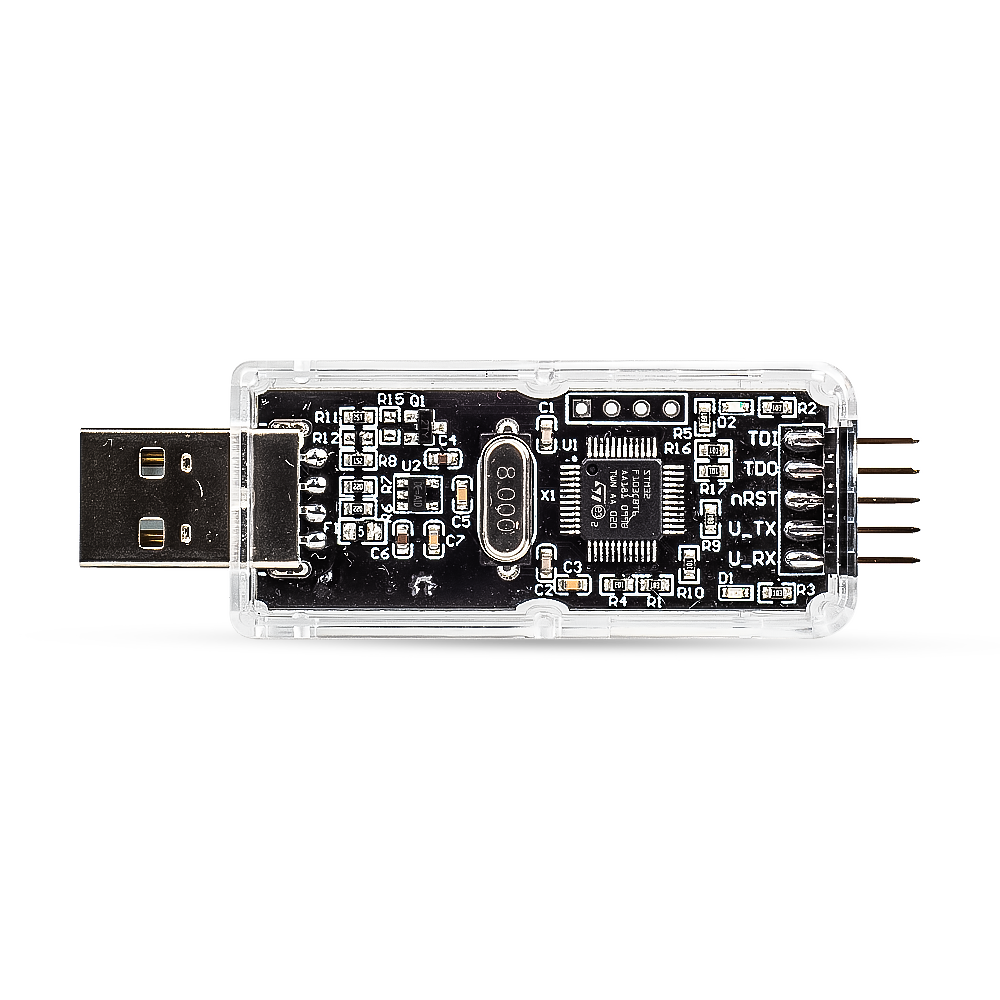

RAKDAP1 is an affordable debug and flash tool to connect your PC to the SWD port. Many RAKwireless products have an SWD port to flash bootloader and application SW. The SWD port is as well used for debugging. RAKDAP1 has an MCU that is programmed with DAPLink.
Product Features
- Debug Tool
- USB interface to the computer
- MSC - drag-n-drop programming flash memory
- CDC - virtual com port for log, trace, and terminal emulation
- HID - CMSIS-DAP compliant debug channel
- WEBUSB HID - CMSIS-DAP compliant debug channel SEO
Product Details
- Product Dimension: 78mm x 23mm x 16mm (LxWxH)
- Product Weight: 14.4g
Package Inclusions
- 1pc RAKDAP1
