RAKBox-B2 Enclosure with solar panel
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

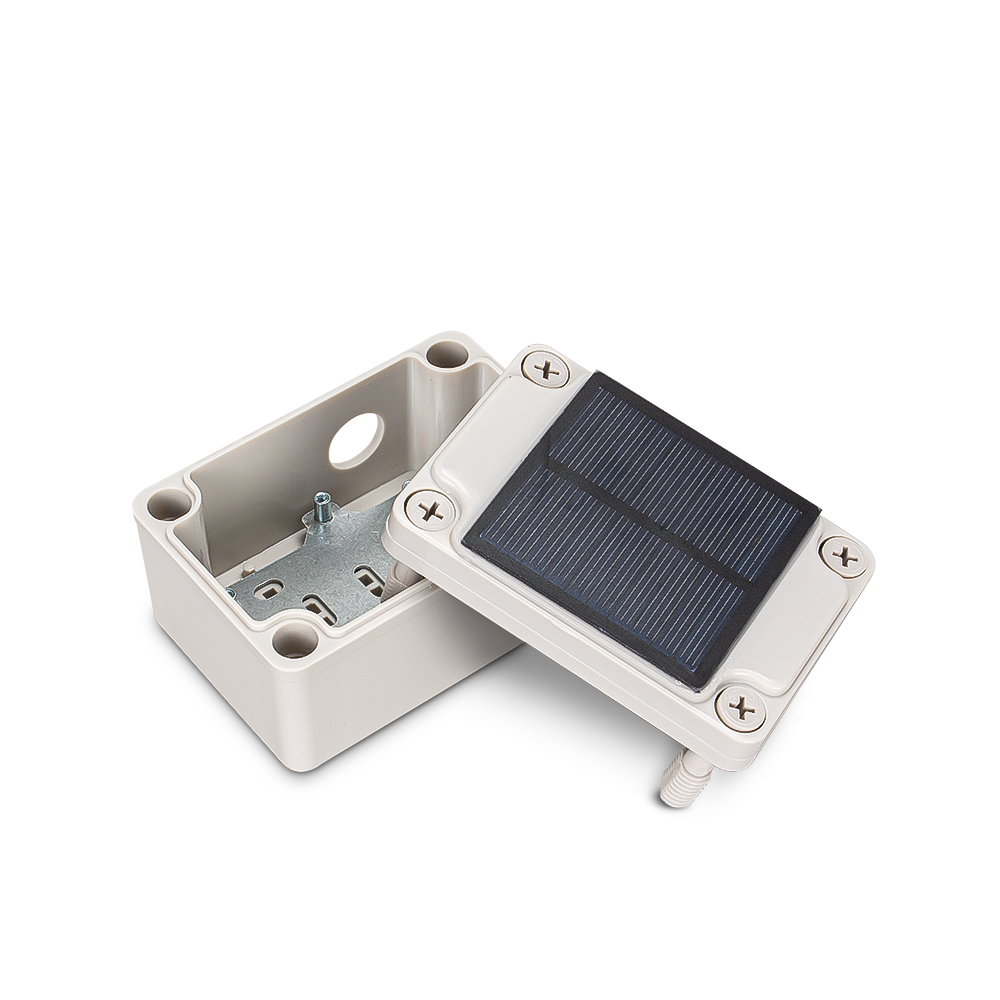

RAKBox-B2 Enclosure with Solar Panel is rated IP67 for outdoor Industrial IoT Application matching WisBlock form factor board.
Mechanical Characteristics
- Dimensions W x L x H: 95mm x 65mm x 58mm
- Weight: approximately 7.45oz (211.2g)
- Material thickness: 3mm
- Pole and wall-mounting: 60~75mm pole diameter
- Logo customization possibility
- Support opening as required.
Board Support

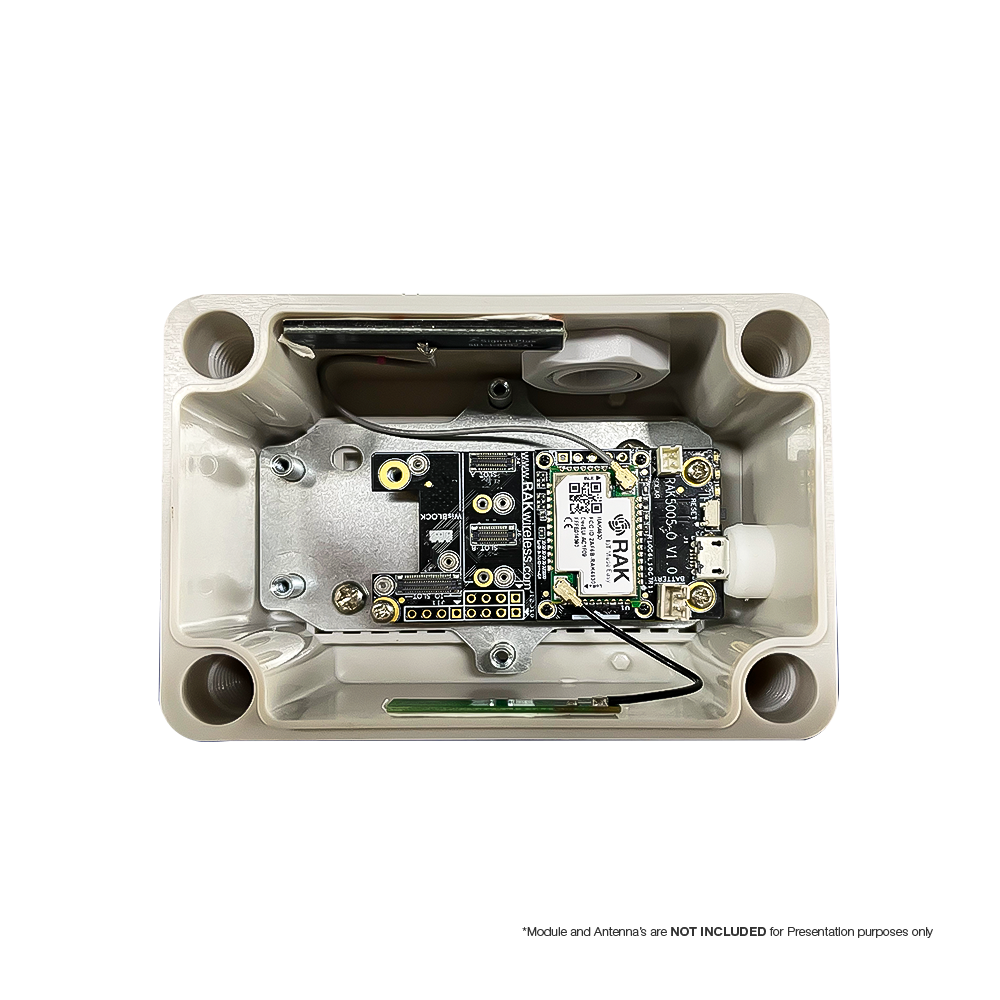

Support the WisBlock form factor board, the detailed matched WisBlock modules include the following:
- WisBlock Base RAK19007
- WisBlock Core RAK4631
- WisBlock Wireless RAK2305
- WisBlock Wireless RAK5860
- WisBlock Sensor RAK1901
- WisBlock Sensor RAK1902
- WisBlock Sensor RAK1904
- WisBlock Sensor RAK1906
- WisBlock Sensor RAK1910
- WisBlock Interface RAK5801
- WisBlock Interface RAK5802
- WisBlock Interface RAK5811
- WisBlock Interface RAK5804
Package Inclusion
- Enclosure
- Solar Panel

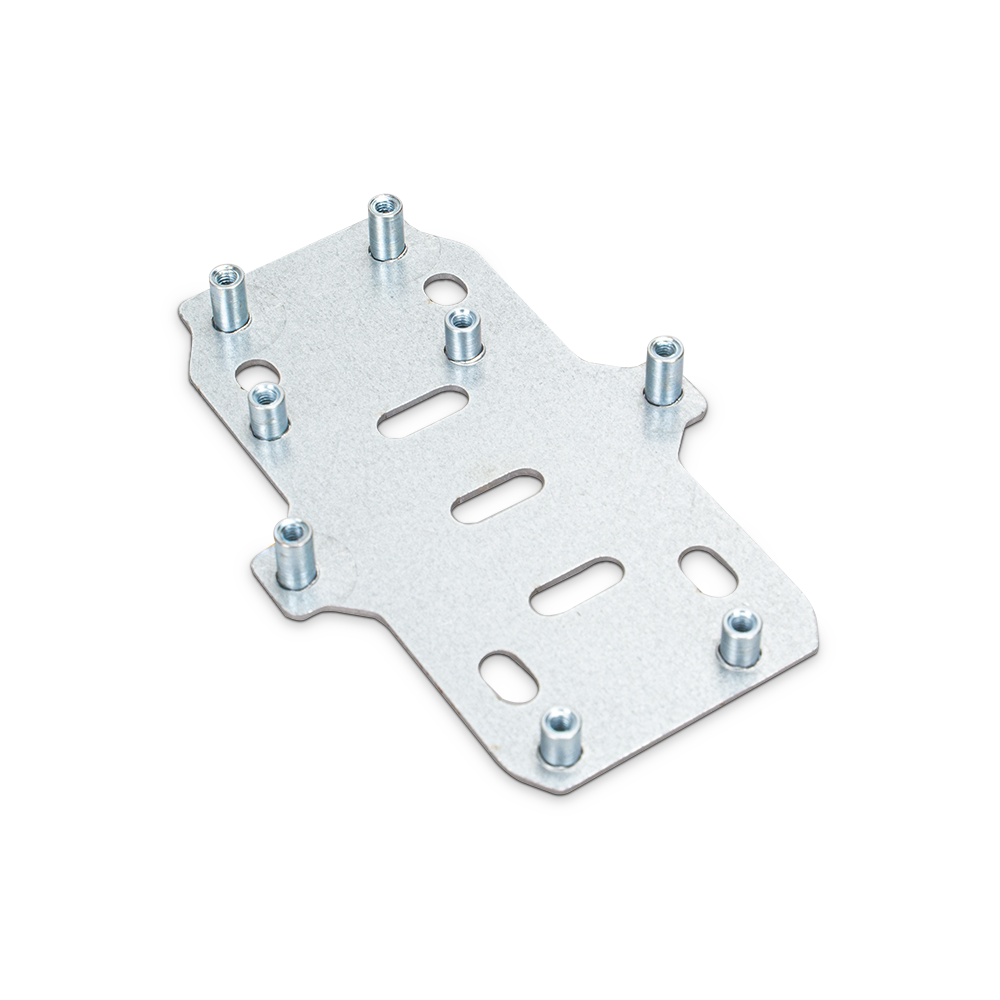

- Internal mounting plates
- Wall mount bracket
- Pole mount accessory
- 2 x Plugs
- Assembly screws and standoffs
- Mounting screws
