WisTrio iTracker
RAK8212-M
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

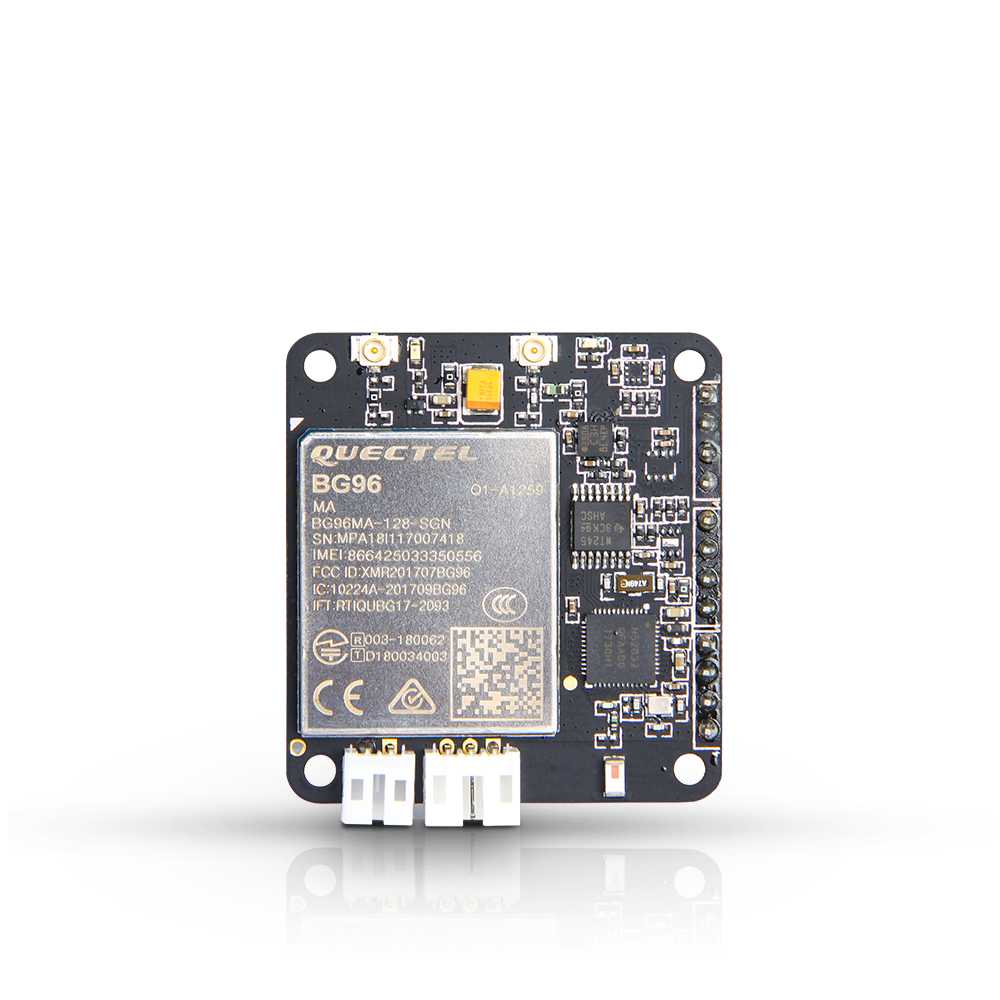

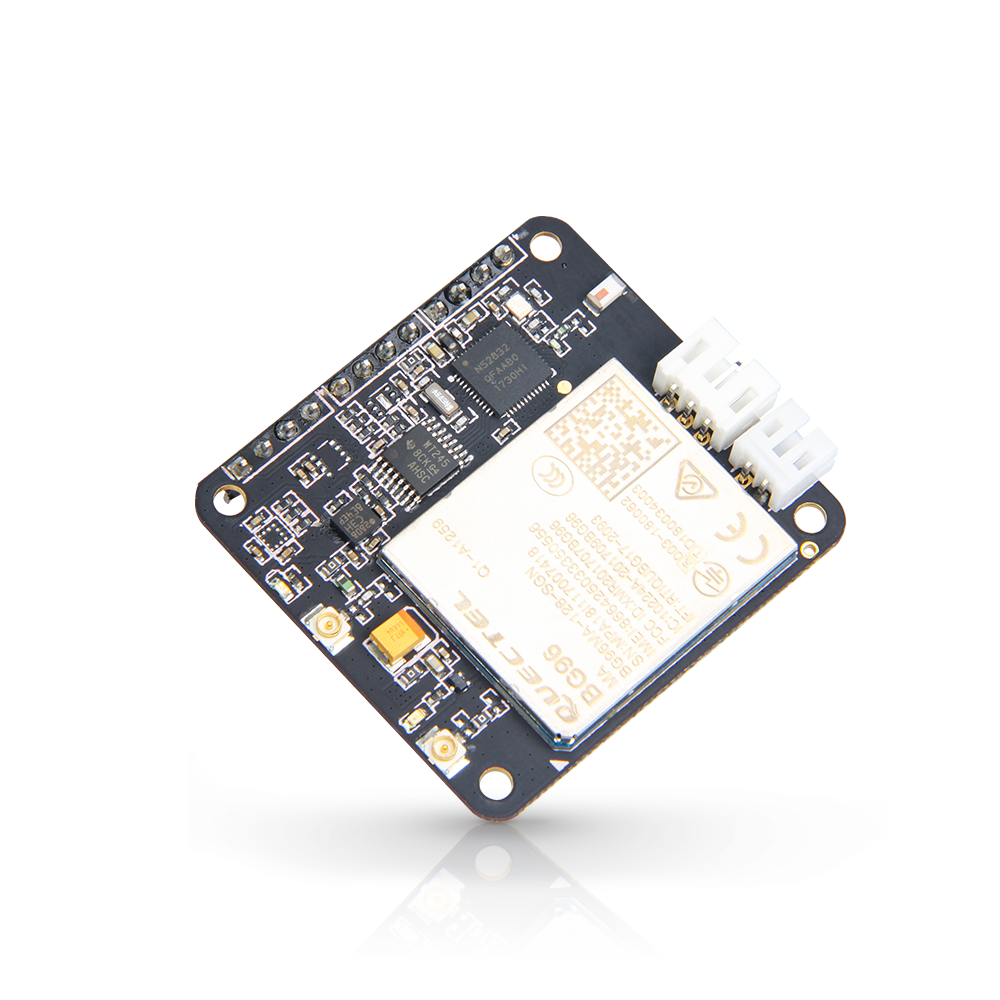

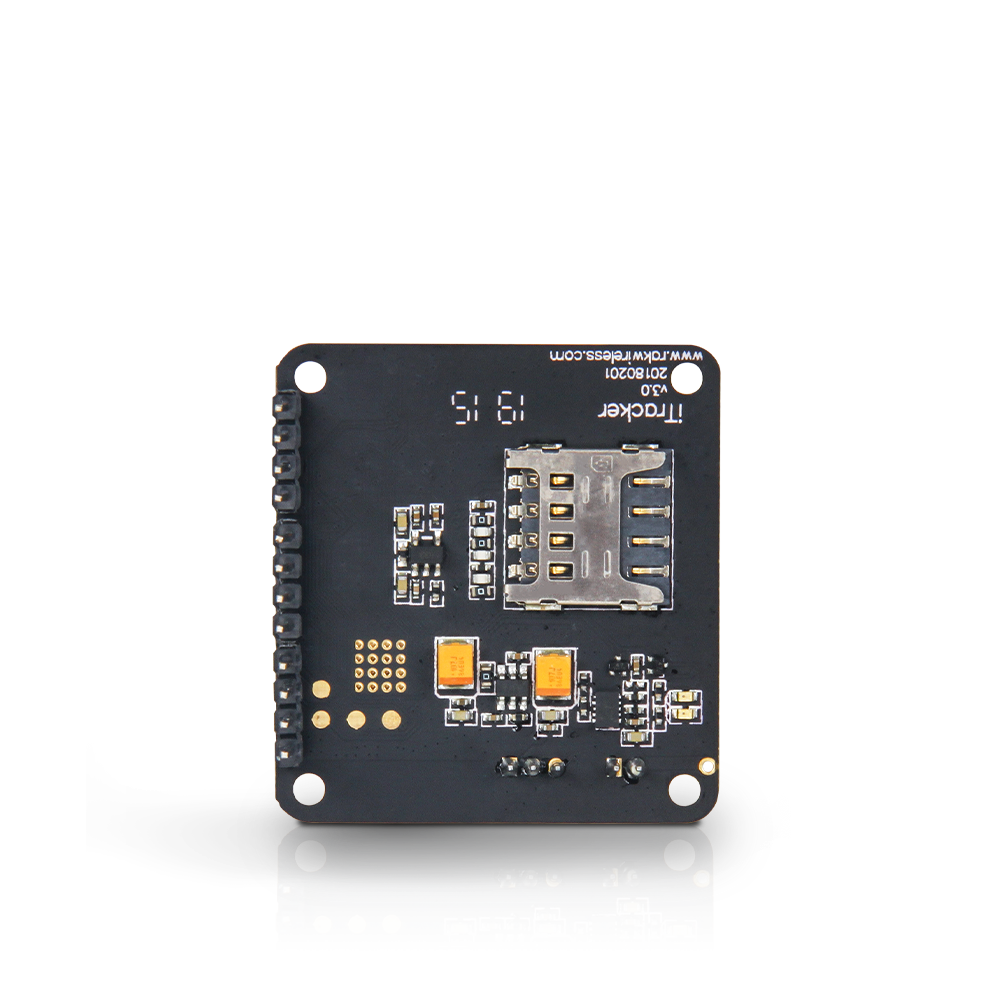

WisTrio iTracker (RAK8212-M) has NB-IoT, BLE 5.0, and GPS radios, together with and accelerometer sensor. This iTracker module is Arduino-friendly and can be programmed usingthe Arduino IDE. The board also provides SWD interface for programming the nRF52832 core.
Combination of BLE 5.0 and NB-IoT allows for development of a myriad of low-power consumption applications as for example telemetry and ranging, geo-fencing, etc.
Complete documentation of this product can be found on our website documentation page.
To properly use this product, make sure to purchase a compatible Emulator Kit. We recommend that you directly buy from SEGGER Microcontroller's site to ensure that you get a genuine product.
Key Features
Interface: Digital I/O, Analog input
Band: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B26 / B28 / B39
EGPRS: 850 / 900 / 1800 / 1900MHz
GNSS: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
Sensors: Built-in accelerometer
Antenna Type: External antenna
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Power Supply: 3.5V to 18V
Packaging
- Product Dimensions: 43mm x 38mm x 18mm

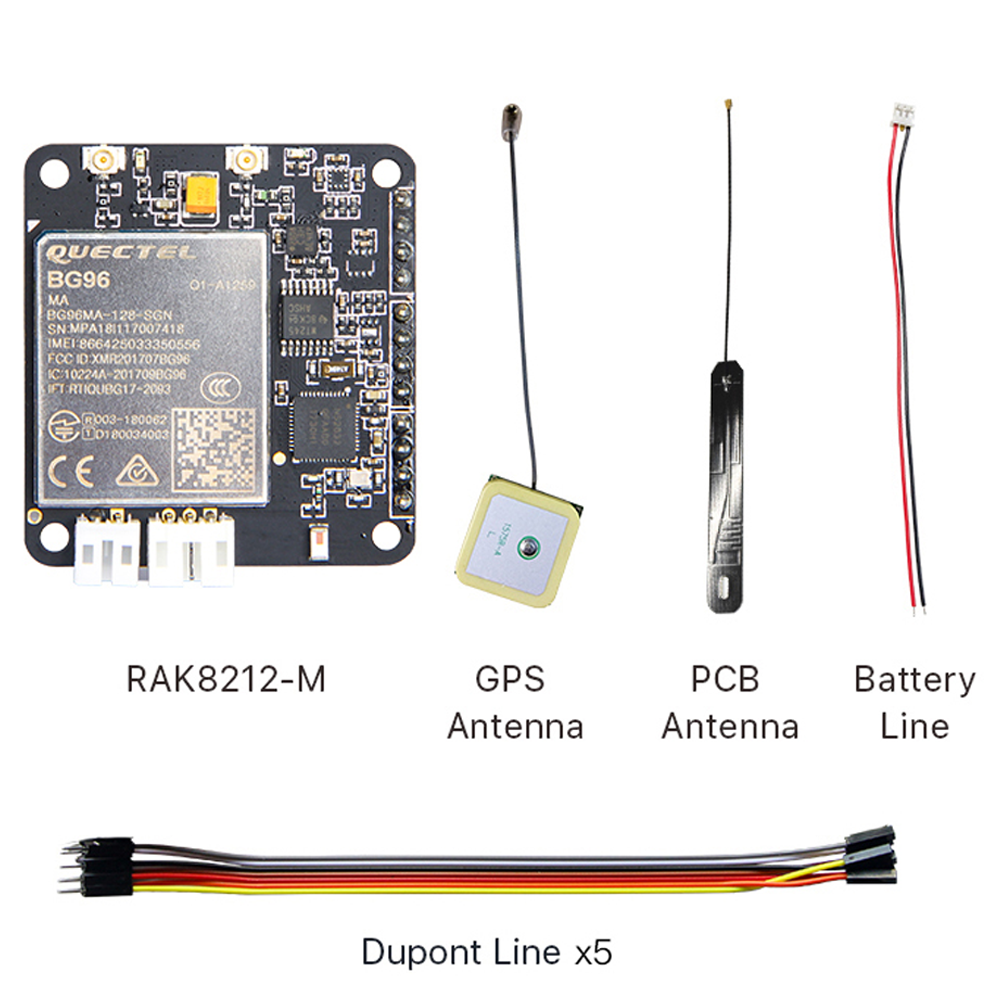

- Product Inclusions:
- 1pc RAK8212-M developer board
- 1pc GPS Antenna
- 1pc PCB Antenna
- 1pc Battery Line
- 5pcs Dupont Line
