RAK811

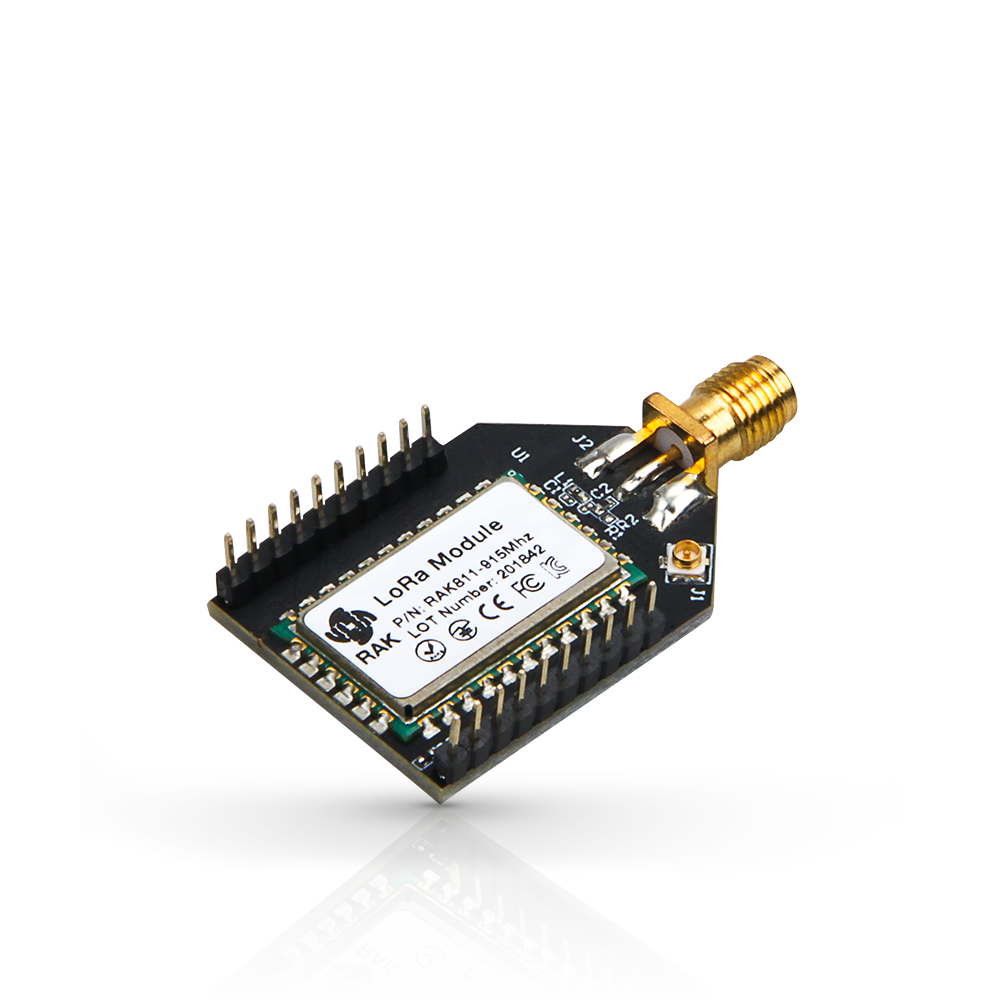

RAK811 LPWAN Breakout Module is a combination of the RAK811 chipset and the RAK811 Breakout Board. It is a barebone LoRa® Node solution which is a balance between small size and access to GPIOs via a header.

With Semtech SX1276 at its core, the RAK811 LPWAN Breakout Module takes advantage of all LoRa® features. Long-range, low power consumption is at its core.

The setup is easy and straightforward. The firmware fully supports the LoRaWAN® 1.0.2 stack. The node can work in a number of modes, with different data rates and read data from the attached sensors. This is all configurable via AT commands.

Key Features

• Based on Semtech SX1276
• Full LoRaWAN® 1.0.2 stack support
• Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920 and AS923)
• Output power: 5－20dBm adjustable
• Max sensitivity: -130dBm@0.3kps
• Open source firmware with built-in AT command functionality for easy setup
• Theoretical max range of 2km in Urban and 15km in open areas
• Integrates both SMA and iPEX antenna connectors
• Operating temperature: -40°C ~ 85°C (industrial grade)
• Storage temperature: -40°C ~ 85°C (non-condensing)

Package Details

• Breakout Board Dimensions: 42mm x 25mm
• Product Weight: 0.02kg

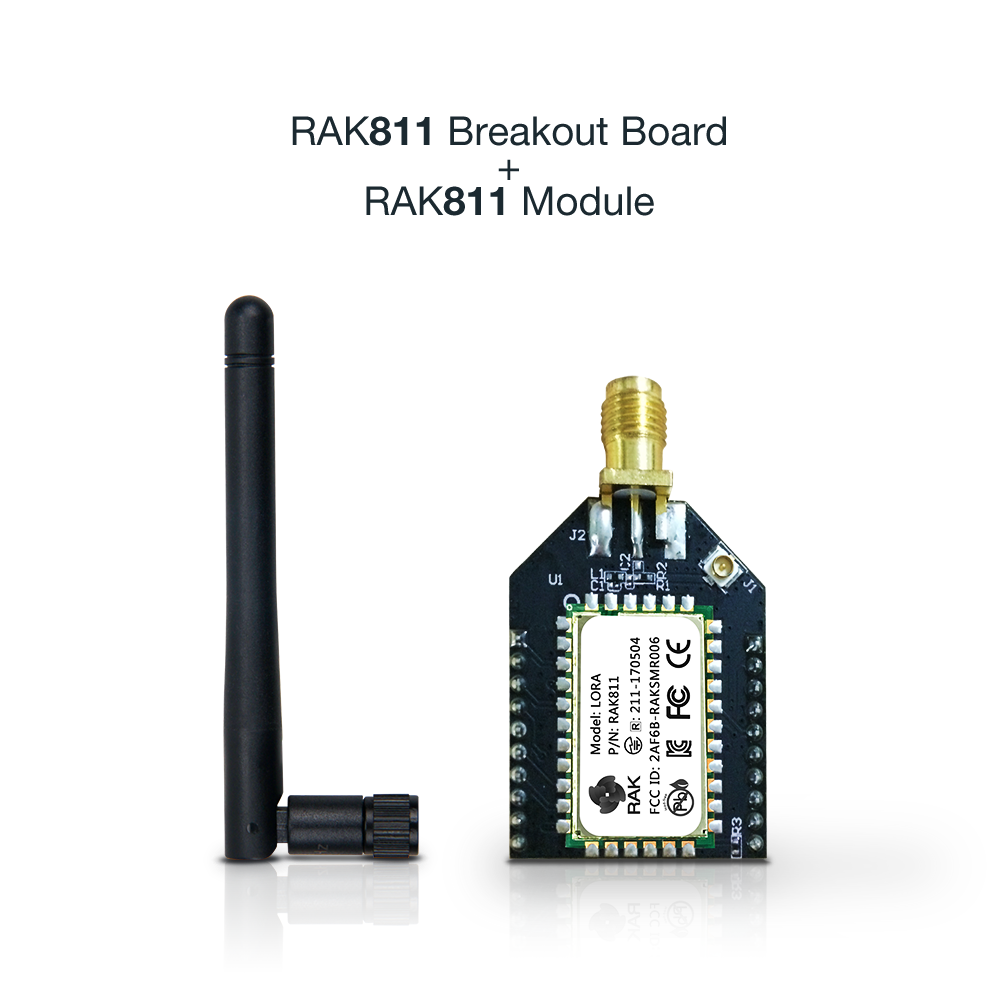

• Inclusions:
• 1pc RAK811 LPWAN Module (chipset pre-soldered on the board)
• 1pc SubG Antenna

Documentation

• RAK811 Breakout Module Quick Start Guide
• RAK811 Breakout Module Datasheet
