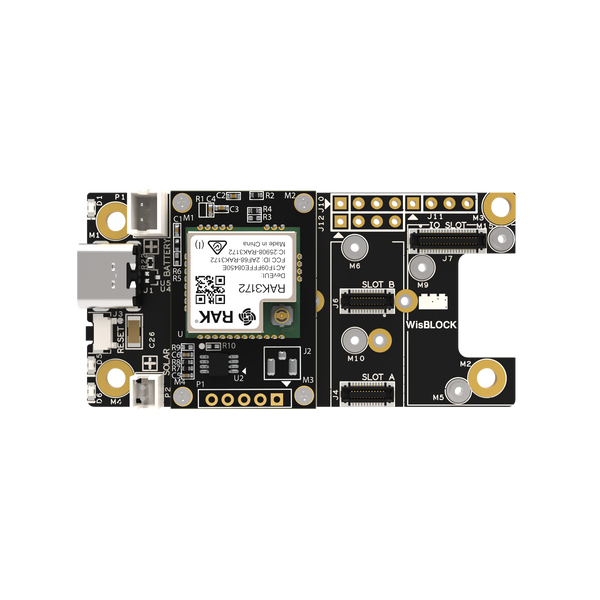

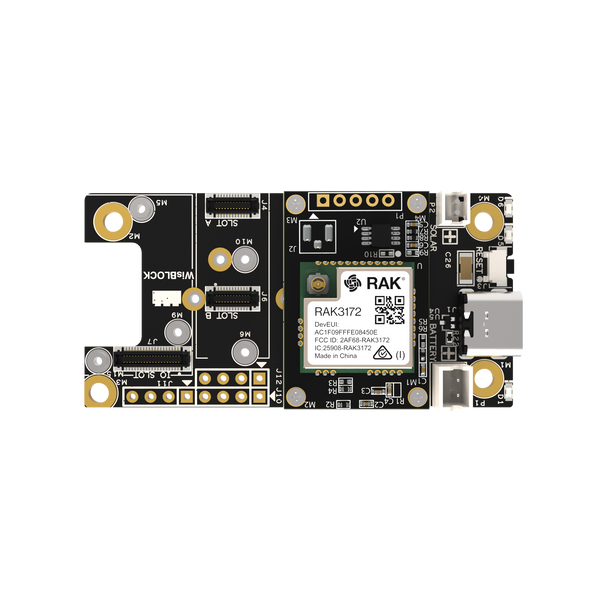

RAK3172 Evaluation Board
Prefer another courier for your delivery? Contact us for special shipping arrangements.

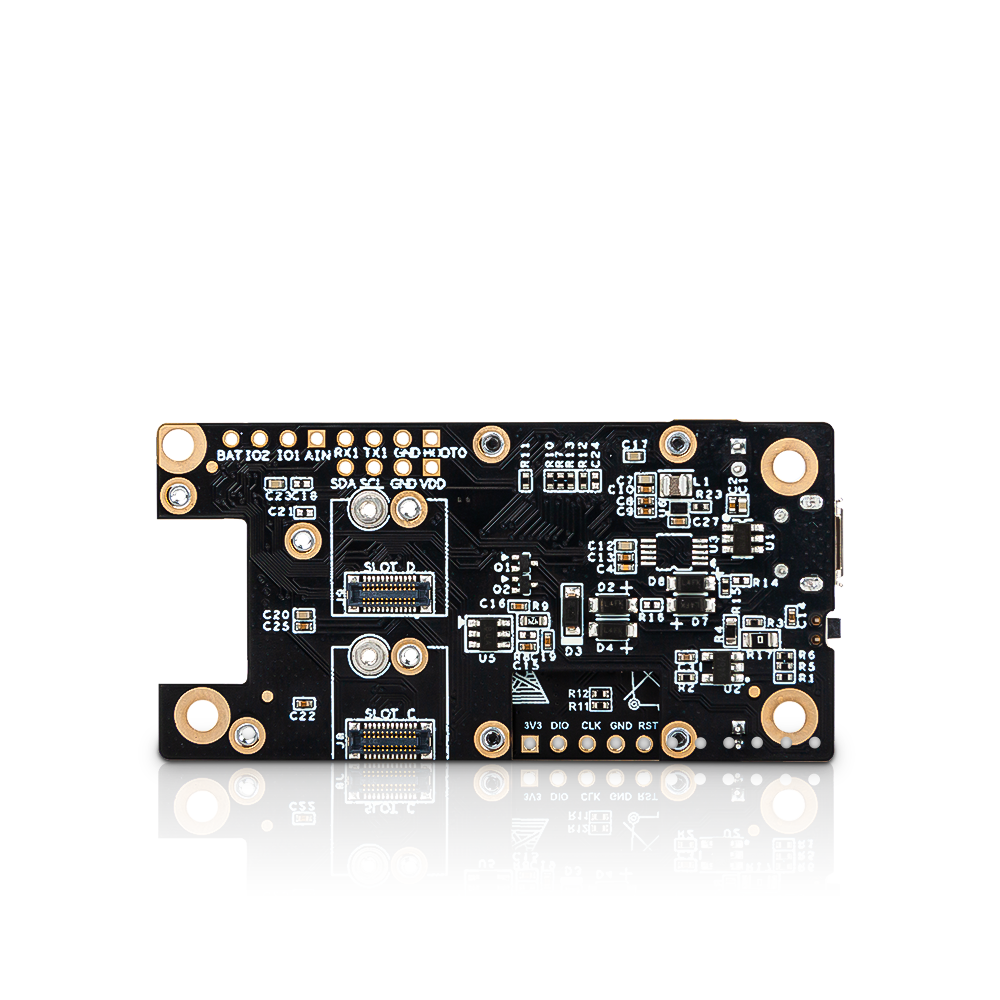

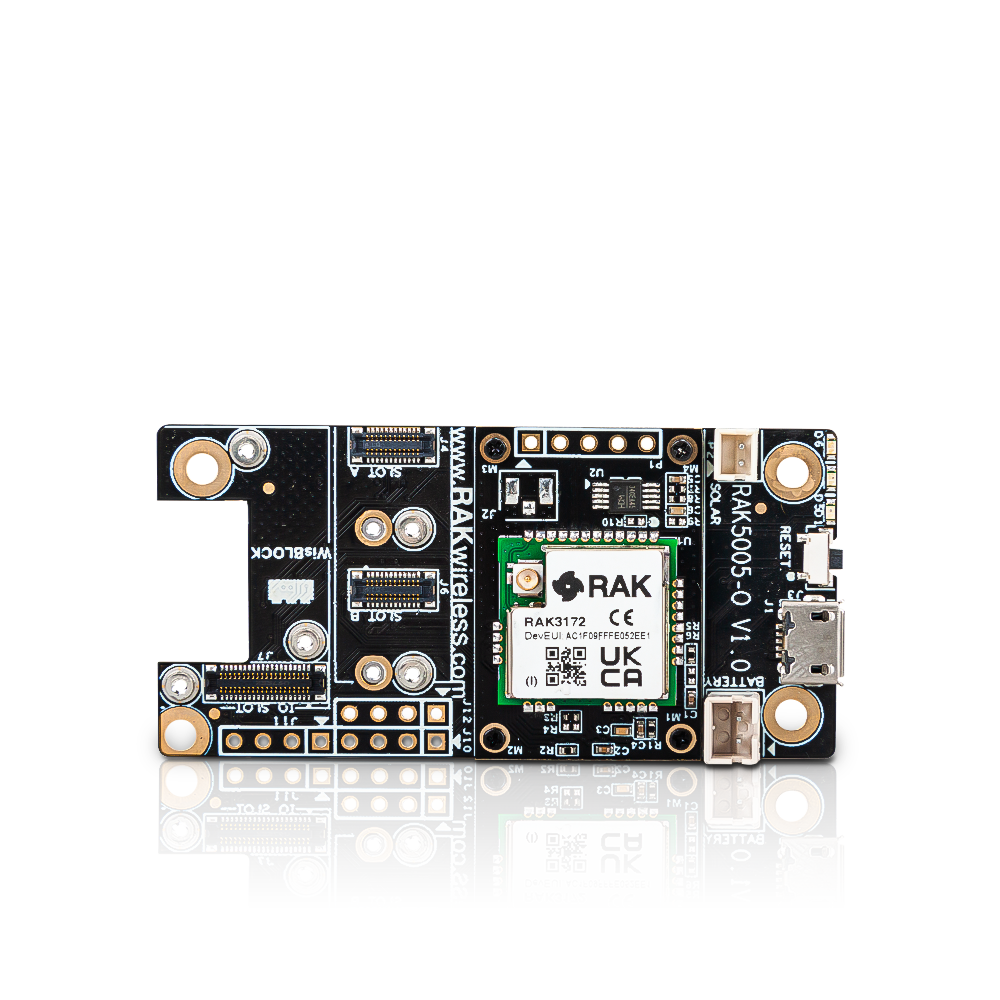

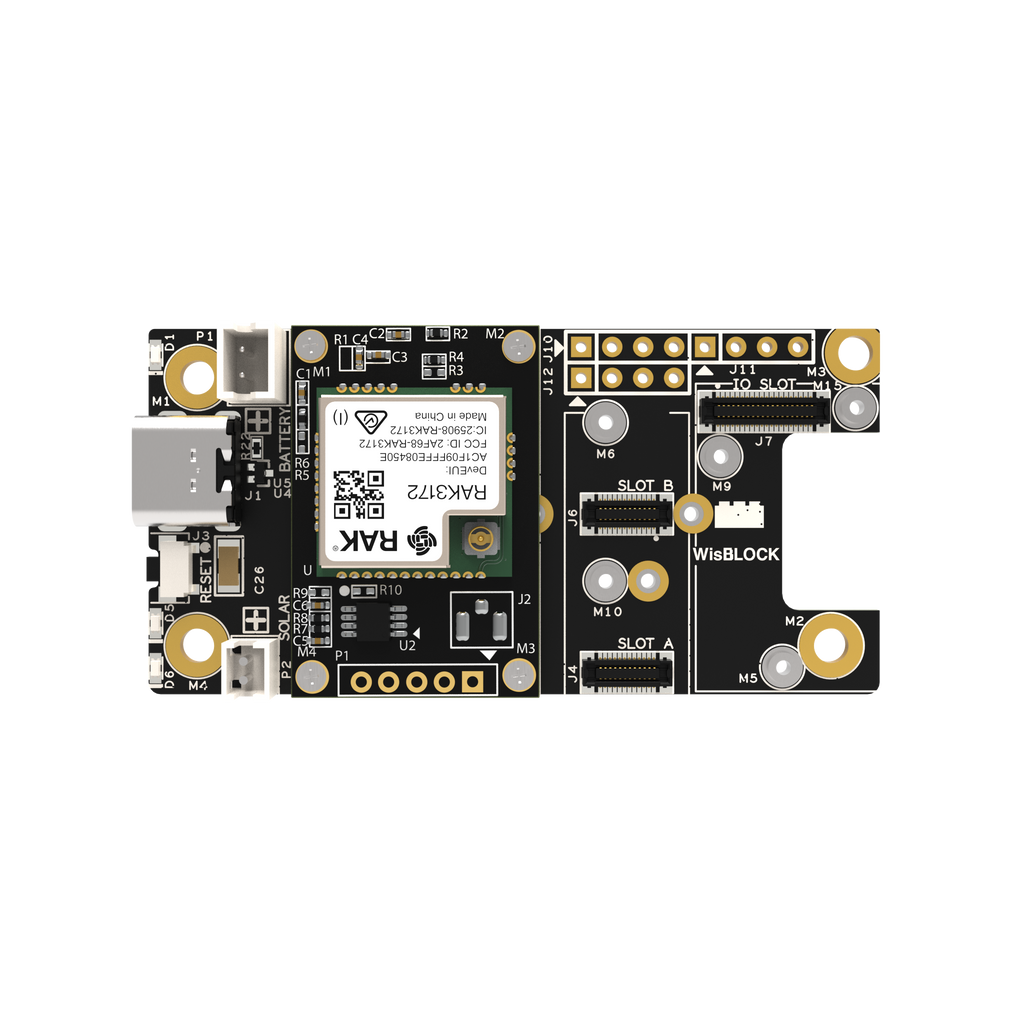

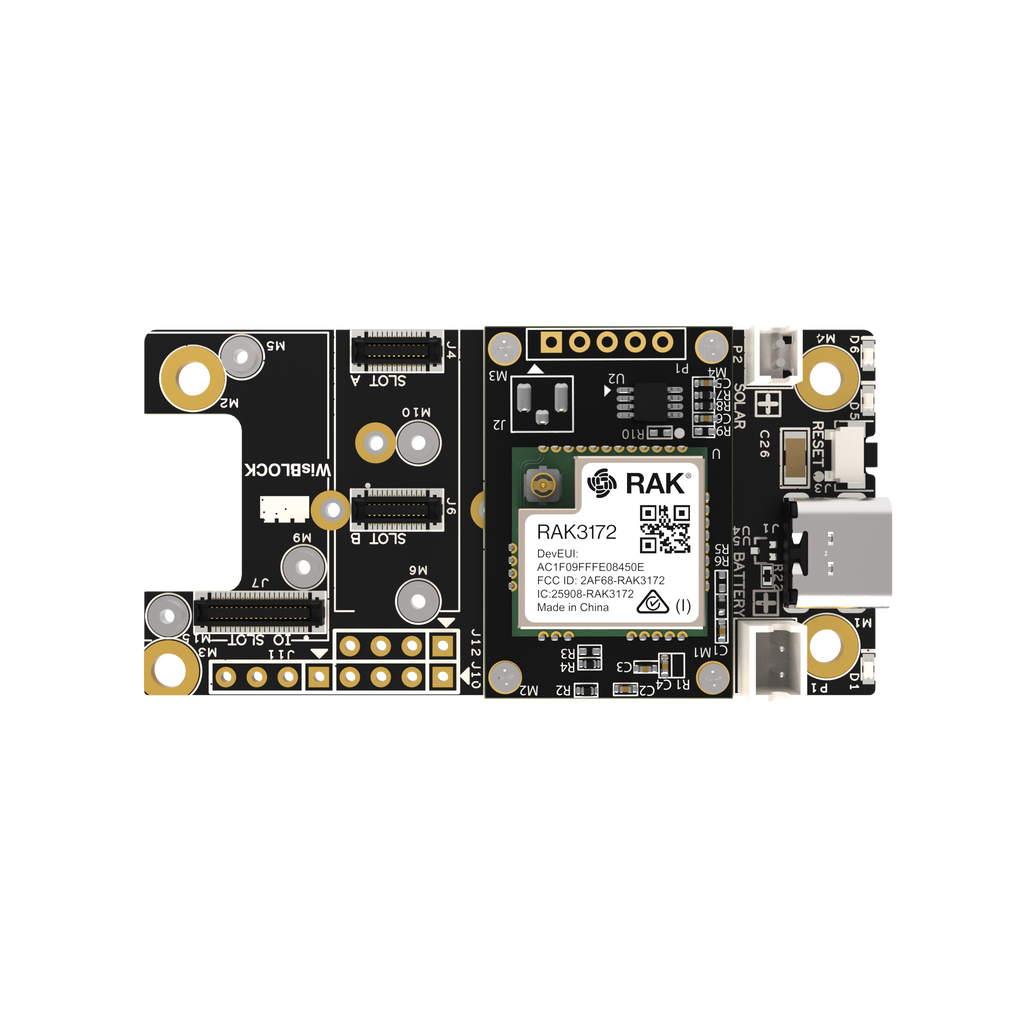

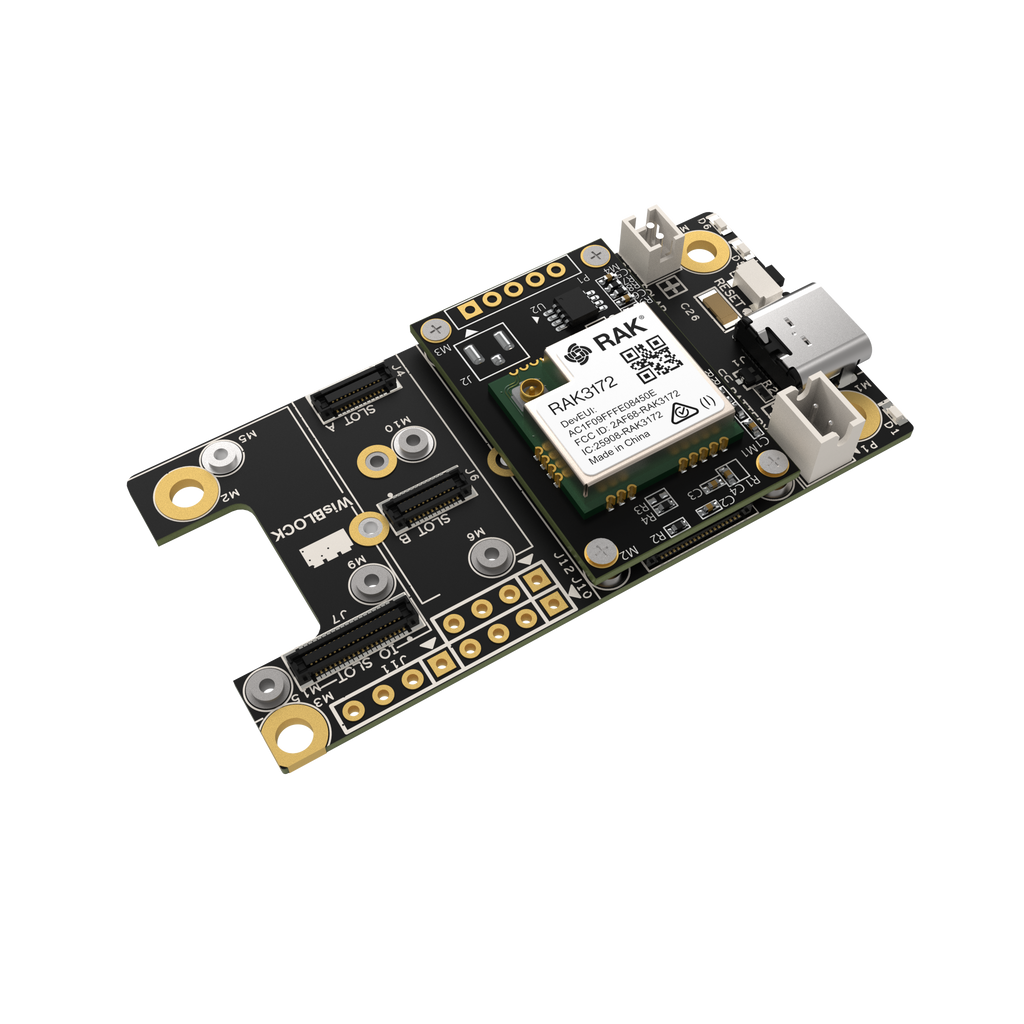

The RAK3172-E is a WisDuo Evaluation Board for RAK3172 Module that uses an STM32WLE5CC SoC chip. It is based on RAK3372 WisBlock Core PCB which is compatible to the RAK19007 base board. It provides an easy way to access the important pins of the RAK3172 module in order to simplify development and testing. It also allows you to connect other modules to the base board slots and build complete IoT project with the integrated connectors for battery and solar panel plus the on-board charging circuit. Its firmware is based on RAKwireless Unified Interface V3 (RUI3) that allows you create different functionalities using RUI APIs.
This module complies with Class A, B & C of LoRaWAN 1.0.4 specifications. It also supports LoRa Point to Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.
| SKU | Frequency | Description |
|---|---|---|
| 315050 | 8XXMHz for EU868/IN865/RU864 | RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC |
| 316045 | 9XXMHz for US915/AU915/KR920/AS923 | RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC |
| 319048 | AS923-1 for Japan | RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC |
| 312035 | CN470 | RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC |
| 311028 | EU433 | RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC |
Product Inclusion
- 1pcs RAK3372 + 1pcs RAK19007
- 1pc USB C-type Cable
- 1pc SubG Antenna (iPEX)
- 2pcs 4-pin Header
- 14pcs Dupont Lines
Documentation
