WisGate Edge Lite 2
Compact Indoor LoRaWAN® Gateway for Reliable Deployments
RAK7268V2(No LTE) / RAK7268CV2(With LTE) / RAK7268CV2-V(Verizon-Certified)
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Buy from your local authorized seller
The WisGate Edge Lite 2 | Compact Indoor LoRaWAN® Gateway for Reliable Deployments | RAK7268V2(No LTE) / RAK7268CV2(With LTE) / RAK7268CV2-V(Verizon-Certified) is available through our trusted distributors. Choose your region below to visit their website:
Select your country:
Choose an authorized seller:
What Is WisGate Edge Lite 2?
The WisGate Edge Lite 2 (RAK7268V2/RAK7268CV2) is a high-performance 8-channel LoRaWAN gateway designed for smart buildings, industrial applications, remote monitoring, and off-grid deployments. It offers flexible connectivity options, including Ethernet, WiFi, and optional LTE, ensuring seamless integration into diverse IoT environments. A Verizon-certified variant (RAK7268CV2-V) is also available for Verizon US deployments.
This gateway runs on WisGateOS 2, providing intuitive configuration, enhanced security, and remote managing and monitoring capabilities via the WisDM platform. With flexible power options, including PoE and model-dependent DC input, plus LTE configurations (built-in or external antenna), the RAK7268 series adapts to various deployment scenarios.
Choose Your WisGate Edge Lite 2 Version
Select the model based on the backhaul connection and carrier requirements of your deployment.
|
Variant |
Connectivity |
Choose this version when |
|
RAK7268V2 |
Ethernet and WiFi |
The installation already has reliable wired or WiFi network access and does not require LTE. |
|
RAK7268CV2 |
Ethernet, WiFi, and LTE Cat 4 |
The gateway needs cellular backhaul or LTE failover without a Verizon certification requirement. |
|
RAK7268CV2-V |
Ethernet, WiFi, and Verizon-certified LTE Cat 4 |
The gateway will use Verizon in the US and Verizon certification is required during procurement or deployment review. |
Why You Need WisGate Edge Lite 2
The WisGate Edge Lite 2 is a versatile off-grid LoRa gateway designed for seamless IoT connectivity. With flexible power options, reliable LTE, and remote management, it’s built for smart buildings, industrial IoT, and remote deployments.
Why it's useful:
- Flexible Power Options – Supports PoE and DC power input options, with the available DC input range depending on the selected model.
- Built-in LTE Antenna – Compact, space-saving, and perfect for urban or standard LTE coverage areas.
- External LTE Antenna – Delivers stronger reception, making it ideal for remote areas, weak signal environments, or industrial setups requiring enhanced LTE performance.
- 8 LoRa Channels – Reliable, high-performance connectivity for IoT devices.
- Multi-Backhaul Support – Choose between Ethernet, Wi-Fi, or LTE for uninterrupted connectivity.
- LoRa Frame Buffering with UDP PF – Prevents data loss when network connections are temporarily unavailable.
- WisGateOS 2 – A unified, intuitive OS with advanced features, customizable add-ons, and improved security.
- WisDM Cloud Management – Monitor, control, and update your gateway remotely, reducing maintenance costs and increasing uptime.
- LoRa Frame Filtering & Secure MQTT Bridging – Ensure efficient data transmission and encryption for secure IoT communication.
- Support for Zero Touch Provisioning – Your LoRaWAN gateway arrives pre-configured, saving you time and effort on setup.
Best Fit for WisGate Edge Lite 2
WisGate Edge Lite 2 is a strong fit for indoor LoRaWAN deployments that need reliable 8-channel performance, flexible backhaul, PoE power, and remote gateway management.
It is especially useful for teams that need to:
- Deploy LoRaWAN coverage inside smart buildings, offices, equipment rooms, and facilities
- Connect indoor sensors for energy monitoring, air quality, occupancy, leak detection, security, or equipment status
- Use Ethernet, WiFi, or LTE depending on site infrastructure
- Power the gateway through PoE or the DC input supported by the selected model
- Manage gateways remotely through WisDM
- Use WisGateOS 2 for configuration, security, and gateway operation
- Connect to common LoRaWAN network servers, such as ChirpStack, The Things Stack, AWS IoT Core for LoRaWAN, Actility, and Loriot
- Choose a Verizon-certified model for US deployments on the Verizon network
Key Features of WisGate Edge Lite 2
-
Hardware

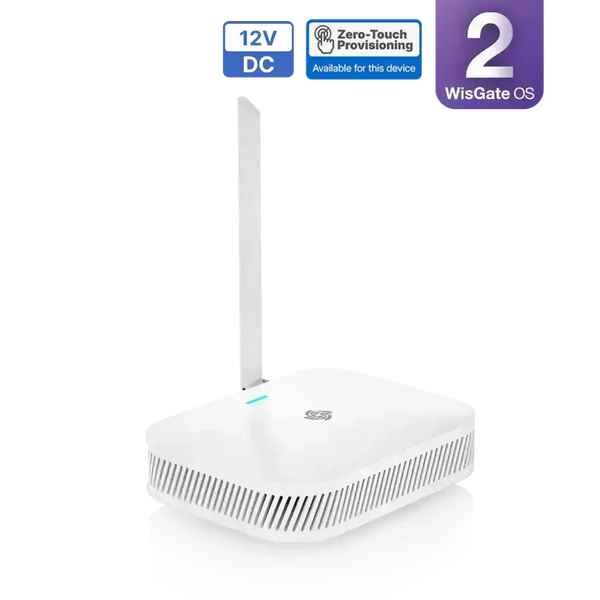

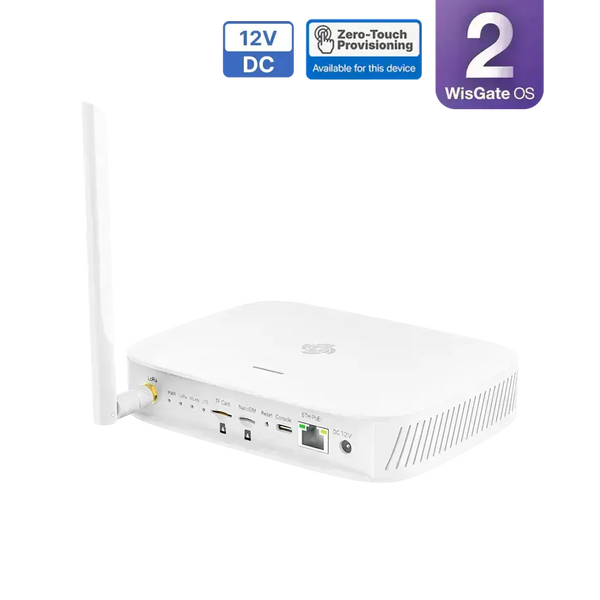

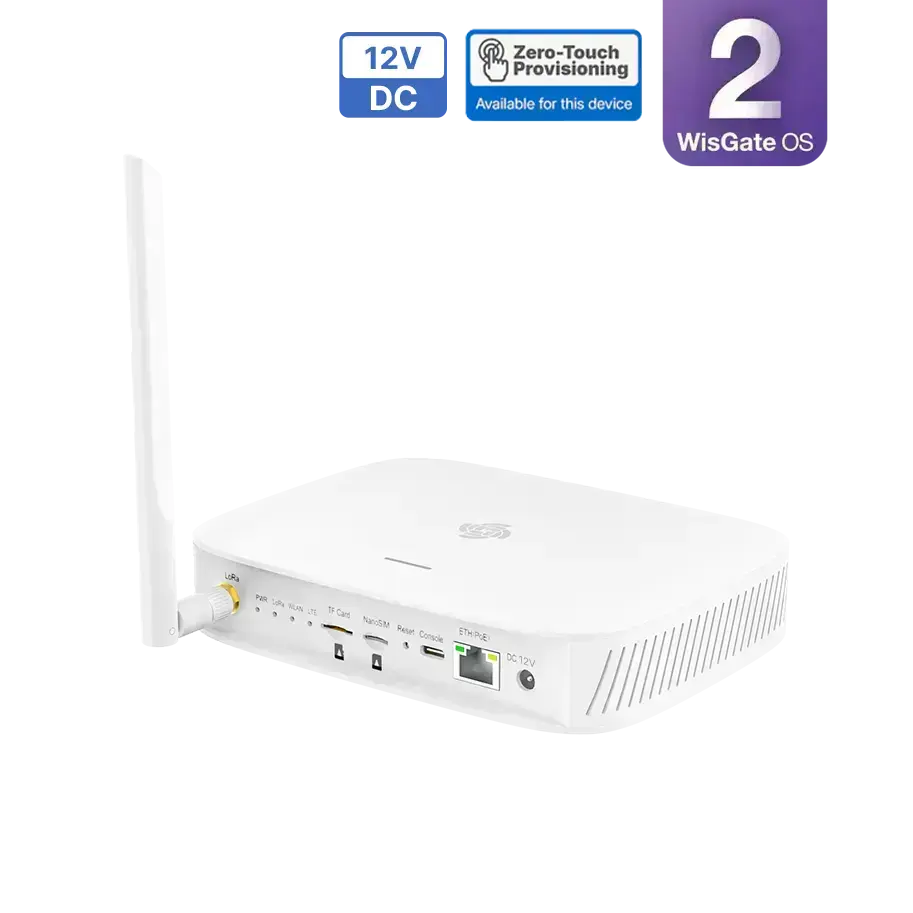

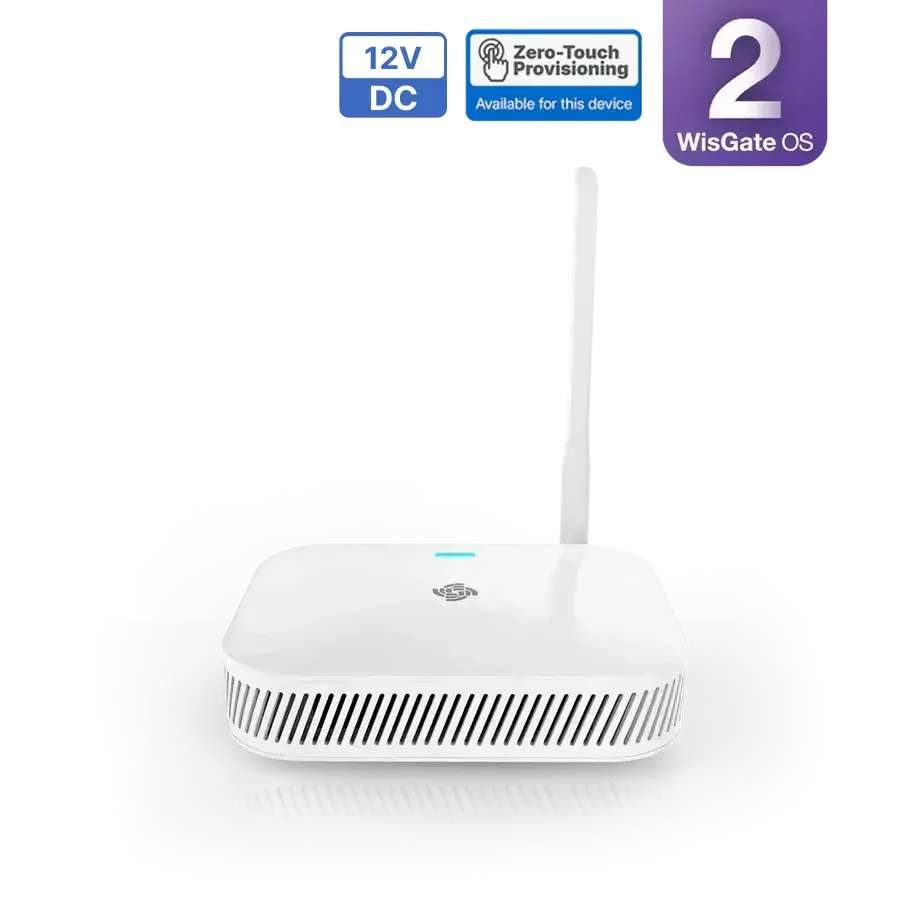

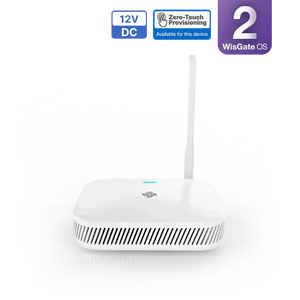

- 12V DC Input – Standard direct power option for typical indoor gateway installations.

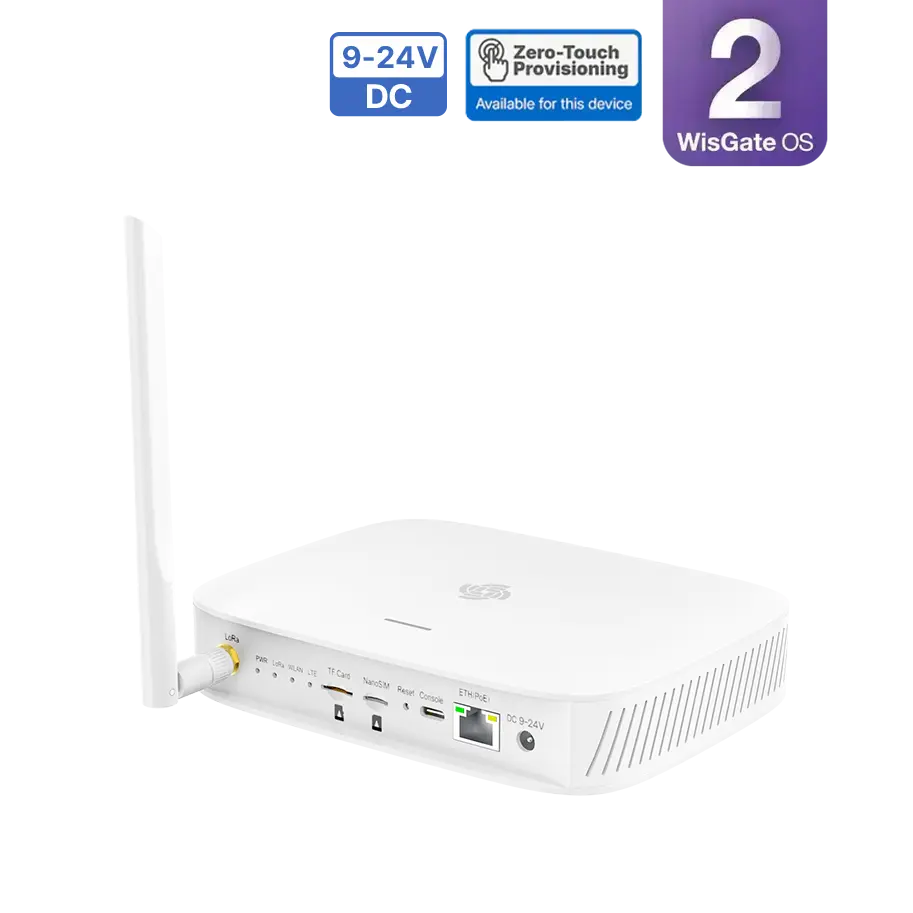

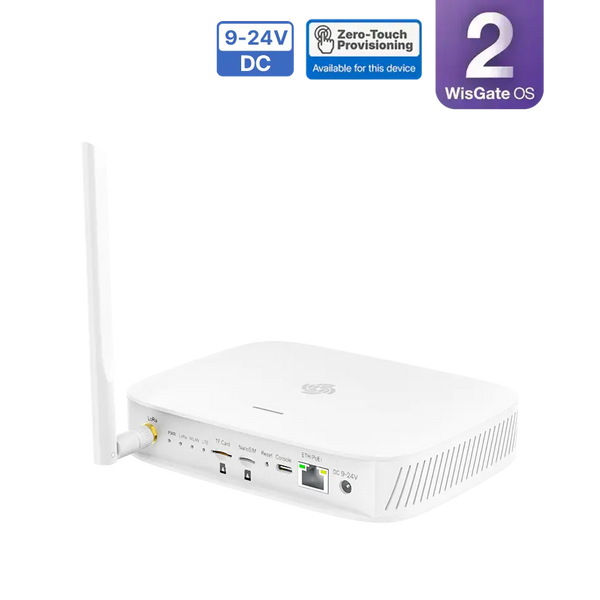

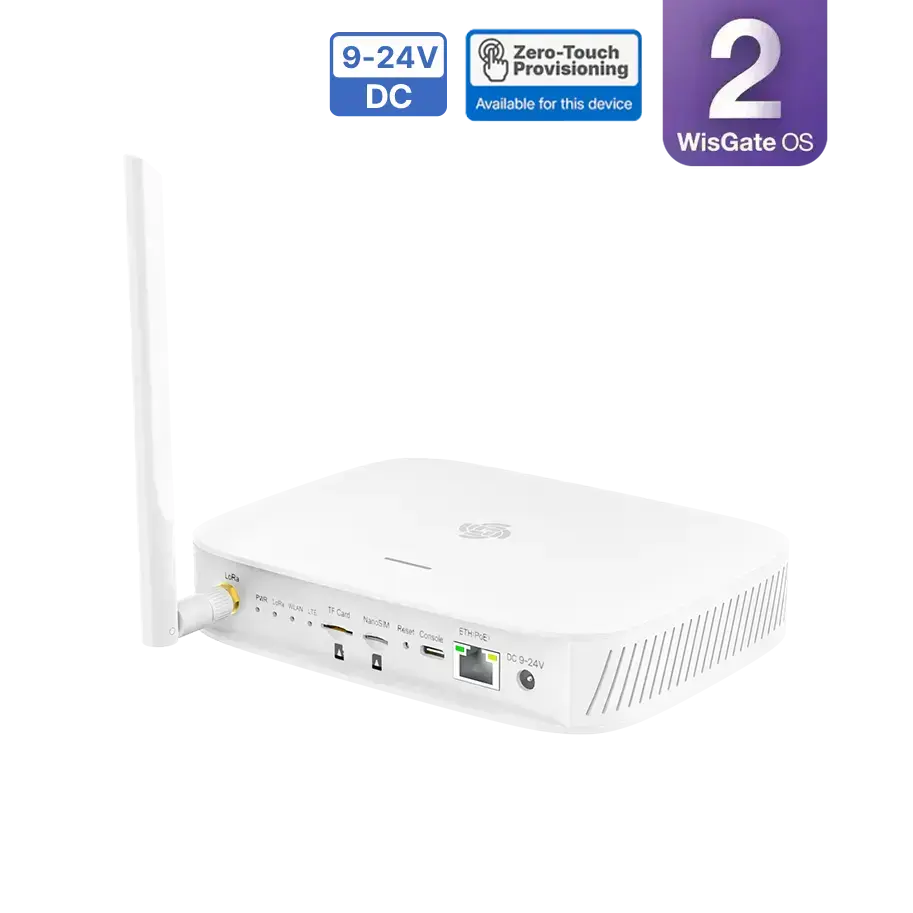

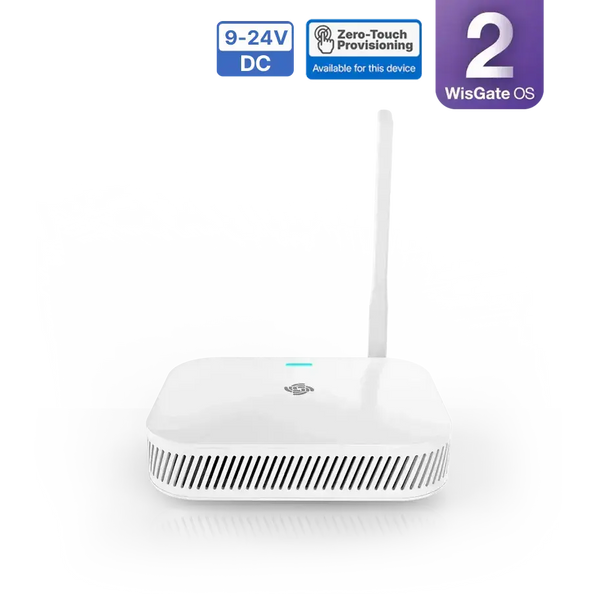

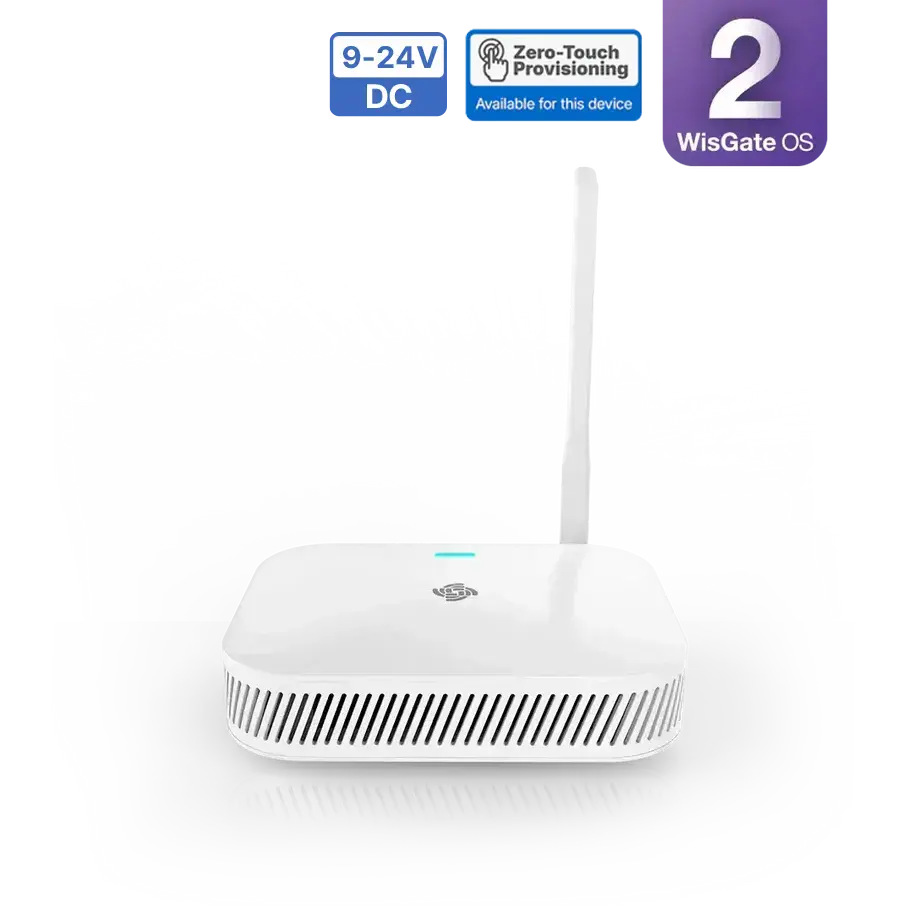

- 9–24V DC Input – Wider DC input range for industrial, cabinet, or off-grid deployments.

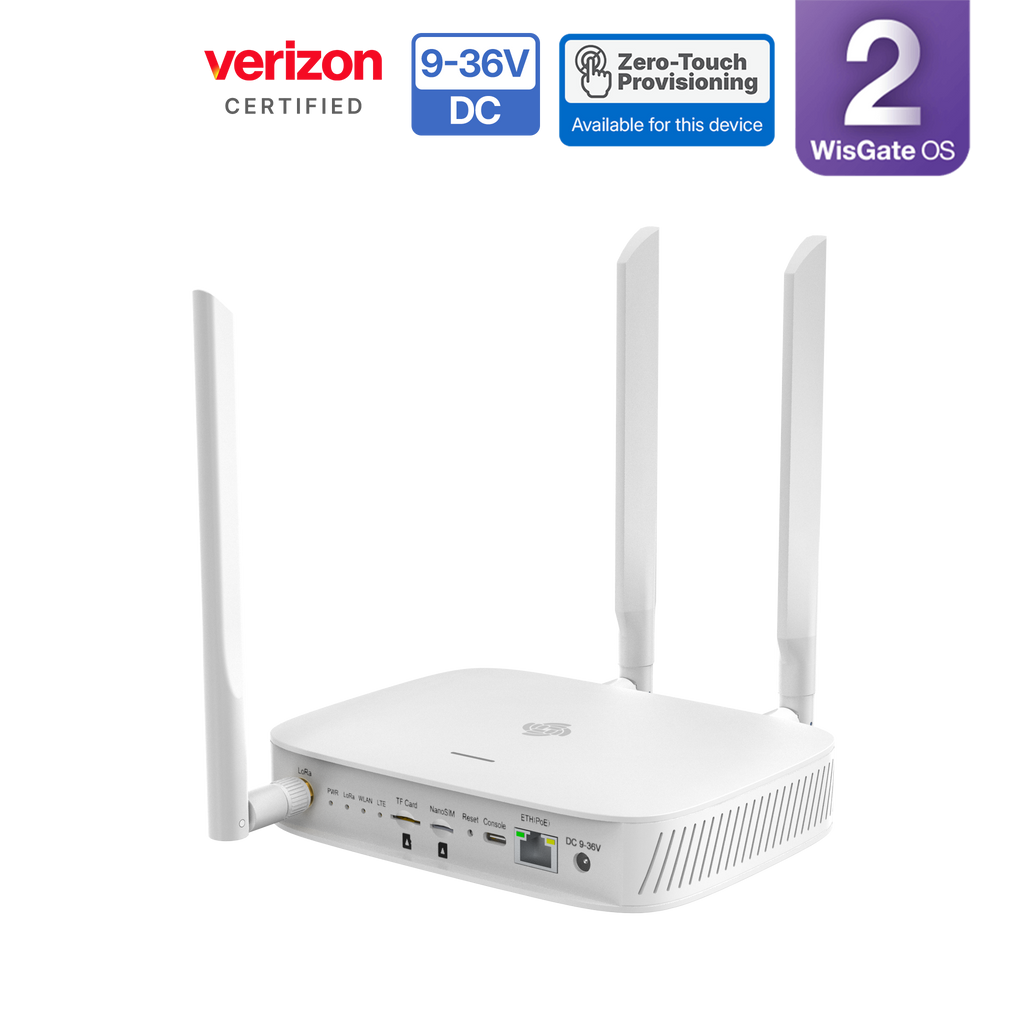

- 9–36V DC Input – Available on the RAK7268CV2-V Verizon-certified variant.

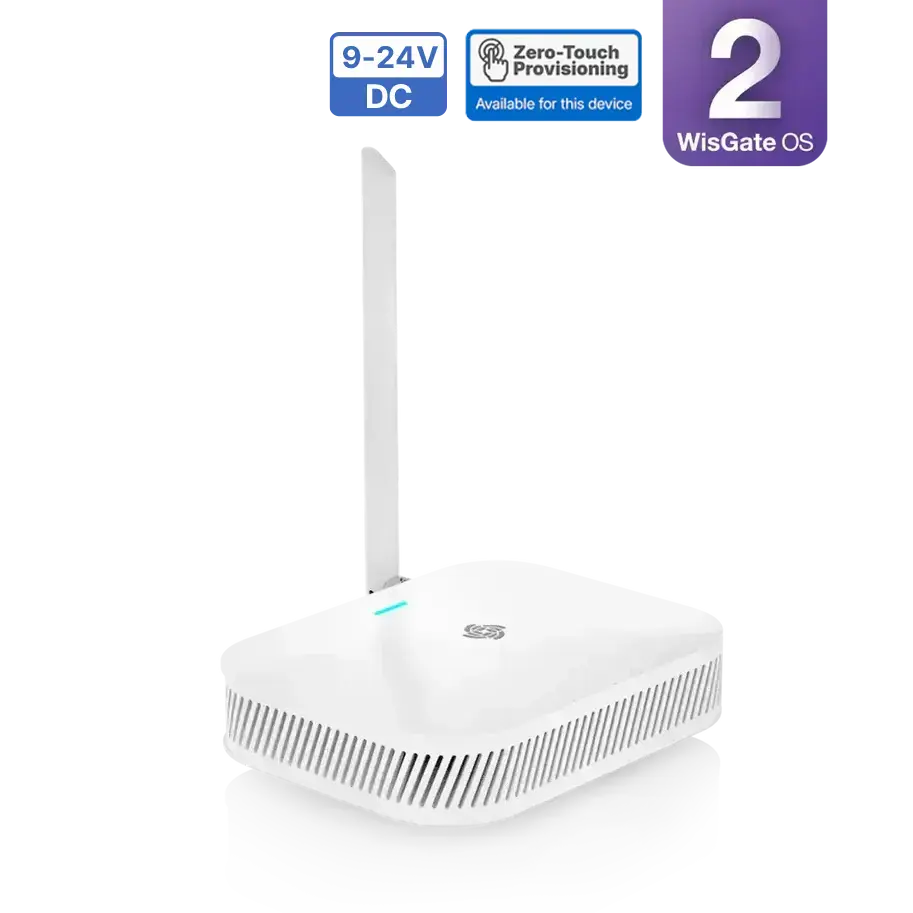

- Built-in LTE Antenna (LoRa gateway with LTE for easy integration in normal signal areas)

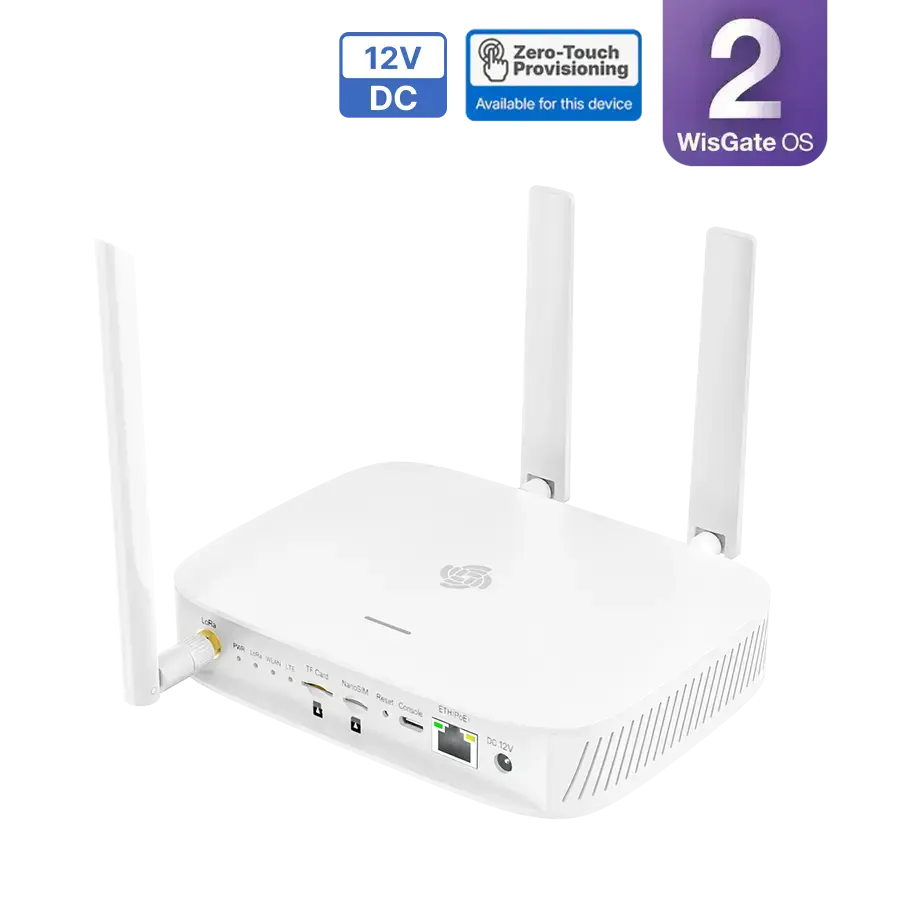

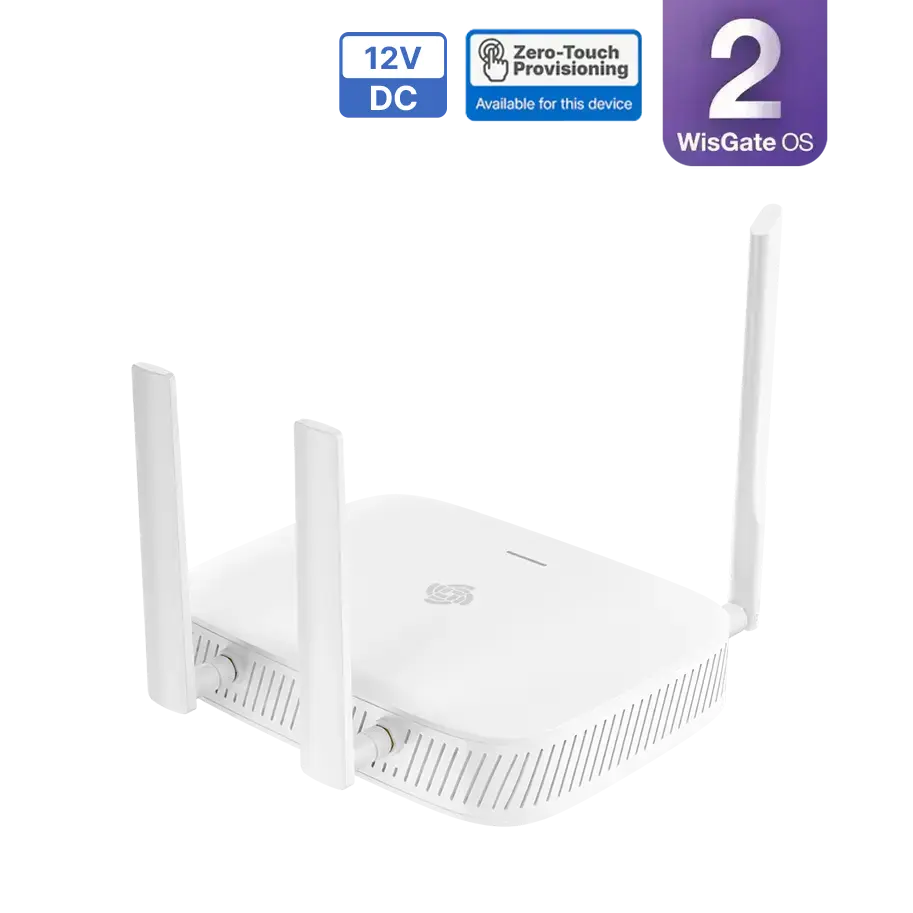

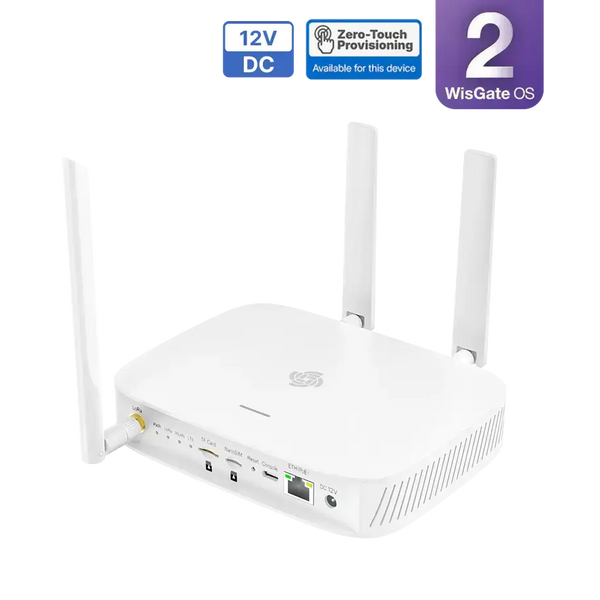

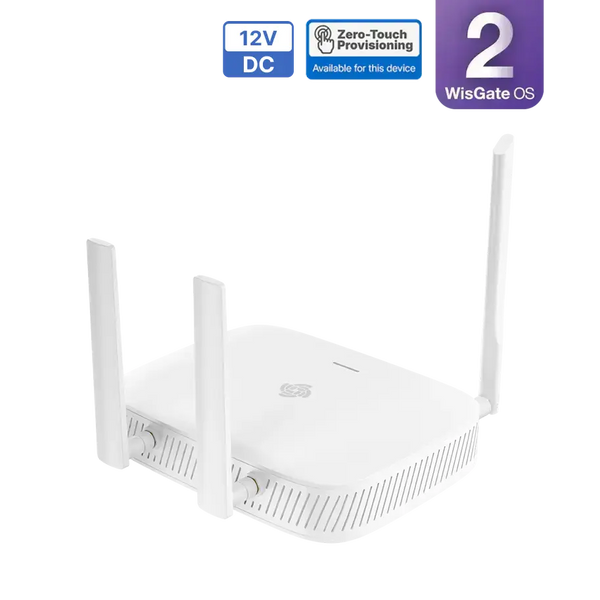

- External LTE Antenna (for improved connectivity in low-signal environments)
- 8 LoRa Channels – Reliable long-range wireless communication.
- 2.4 GHz Wi-Fi AP Mode – Enables easy local configuration.
- 100M Base-T Ethernet with PoE – Wired connectivity for stable networking.
- Flexible Power Input Options:
- Multi Backhaul Connectivity: Ethernet, Wi-Fi, and LTE (RAK7268CV2 models only).
- RP-SMA LoRa Antenna Connector – Supports a detachable LoRa antenna for easy replacement or antenna upgrades.
- LTE Cat 4 Network (Optional):
- Breathing LED Indicator – Provides real-time status updates.
- Certifications – RAK7268V2/RAK7268CV2 meets industry standards for safety, reliability, and regulatory compliance. See the full list of certifications here.
- Software
- WisGateOS 2 – Unified OS with enhanced UI and custom extension add-ons.
- Built-in LoRa Network Server – Supports LoRaWAN 1.0.3.
- Supports Basics Station & Packet Forwarder – Flexible network compatibility.
- LoRa Frame Filtering (Node Whitelisting) – Ensures efficient network traffic management.
- Secure MQTT v3 Bridging with TLS Encryption – Protects LoRaWAN data communications.
- Supports popular LoRaWAN Network Servers: TTI, AWS IoT, Actility, Loriot, Chirpstack, and others
- LoRa Frame Buffering in Packet Forwarder Mode – Ensures no data loss during network failures.
Important Notes:
- Gateways with LBT (Listen Before Talk) do not support LTE connectivity. If you need both LBT and LTE, consider the WisGate Connect series.

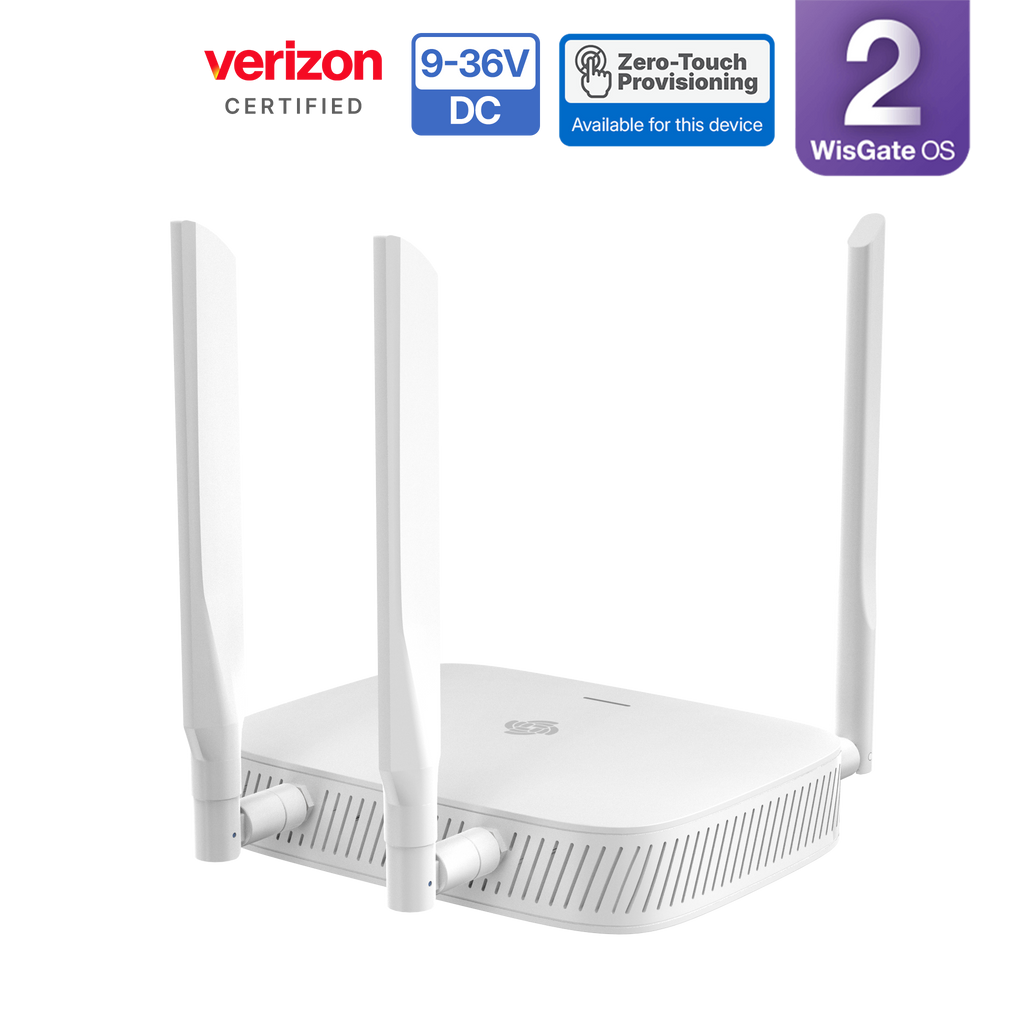

- WisGate Edge Lite 2 RAK7268CV2-V is a Verizon-certified variant (US- ready), ensuring compliance and seamless operation on the Verizon network in the United States.
Network Server and Platform Compatibility
WisGate Edge Lite 2 is designed for flexible LoRaWAN deployment. It can operate with RAK’s built-in LoRa Network Server or connect to external LoRaWAN network servers depending on the project architecture.
Compatible platforms and protocols include:
- Built-in LoRa Network Server
- UDP Packet Forwarder
- Basics Station
- MQTT Bridge
- Secure MQTT with TLS encryption
- ChirpStack
- The Things Stack / The Things Network
- AWS IoT Core for LoRaWAN
- Actility
- Loriot
This flexibility makes WisGate Edge Lite 2 suitable for private LoRaWAN networks, cloud-connected IoT projects, and enterprise sensor deployments.
Indoor Coverage and Deployment Expectations
Indoor LoRaWAN performance depends on building layout, wall materials, antenna placement, gateway location, interference, and sensor distribution. For best results, place WisGate Edge Lite 2 in a central and elevated indoor location with minimal obstruction around the LoRa antenna.
Before final installation, test sensor communication across key rooms, floors, or facility zones and adjust gateway placement as needed. Use Field Tester Solutions to confirm coverage and adjust gateway placement before final mounting.
Deployment tips:
- Place the gateway away from metal cabinets, dense walls, and enclosed utility boxes when possible.
- Test sensor communication before final mounting.
- Use PoE when Ethernet and power are available from the same network path.
- Use LTE backhaul when Ethernet or WiFi is unavailable or unreliable.
- Use the external LTE antenna option for weak-signal areas.
- Use WisDM to configure, monitor, and manage deployed gateways remotely.
- Consider a rugged RAK gateway if the site needs outdoor installation or IP67 protection.
Deployment Checklist for Indoor LoRaWAN Gateways
|
Consideration |
What to check |
|
Gateway version |
Choose RAK7268V2 for Ethernet/WiFi or RAK7268CV2 for LTE connectivity |
|
Verizon requirement |
Choose RAK7268CV2-V if Verizon certification is required for a US deployment |
|
Backhaul |
Confirm whether the site will use Ethernet, WiFi, or LTE |
|
Power |
Confirm whether the gateway will be powered through PoE or DC input. |
|
DC input range |
Check the selected model’s supported DC range: 12V DC, 9–24V DC, or 9–36V DC for the RAK7268CV2-V. |
|
Gateway location |
Place the gateway where it can reach the intended indoor sensor area |
|
LTE antenna |
Choose built-in or external LTE antenna based on signal quality |
|
LoRaWAN region |
Confirm the correct LoRaWAN frequency band for the deployment location |
|
Network server |
Decide whether to use the built-in LoRa Network Server or connect to an external network server |
|
Remote management |
Add the gateway to WisDM if remote monitoring and fleet management are needed |
|
Validation |
Test sensor communication and backhaul reliability before full rollout |
Use Case Examples for WisGate Edge Lite 2
A flexible industrial LoRaWAN gateway that provides reliable connectivity, secure data handling, and easy remote management across various IoT applications.
Use Case #2: Facility and Equipment Room Monitoring
A facility team installs WisGate Edge Lite 2 in an equipment room to collect data from temperature, humidity, vibration, and utility sensors. The gateway helps transmit LoRaWAN sensor data to the chosen network server, making it easier to monitor critical spaces without frequent on-site checks.
Use Case #3: Remote Indoor Monitoring with LTE Backhaul
A remote site uses RAK7268CV2 with LTE Cat 4 to connect LoRaWAN sensors where wired internet is limited. The external LTE antenna option helps improve cellular reception in weak-signal areas, while LoRa frame buffering helps reduce data loss during temporary network interruptions.
How to Choose the Right Variant?
Power Input Options:
- PoE – Powers the gateway through an Ethernet cable when connected to a PoE-enabled network.
- 12V DC – Standard direct power option for typical indoor gateway installations.
- 9-24V DC – Wider DC input range for industrial, cabinet, or off-grid deployments that need more voltage flexibility.
- 9-36V DC Input – Available on the RAK7268CV2-V Verizon-certified variant for deployments that require this wider input range.
Note: WisGate Edge Lite 2 supports PoE and DC power input options. The available DC input range depends on the selected model.

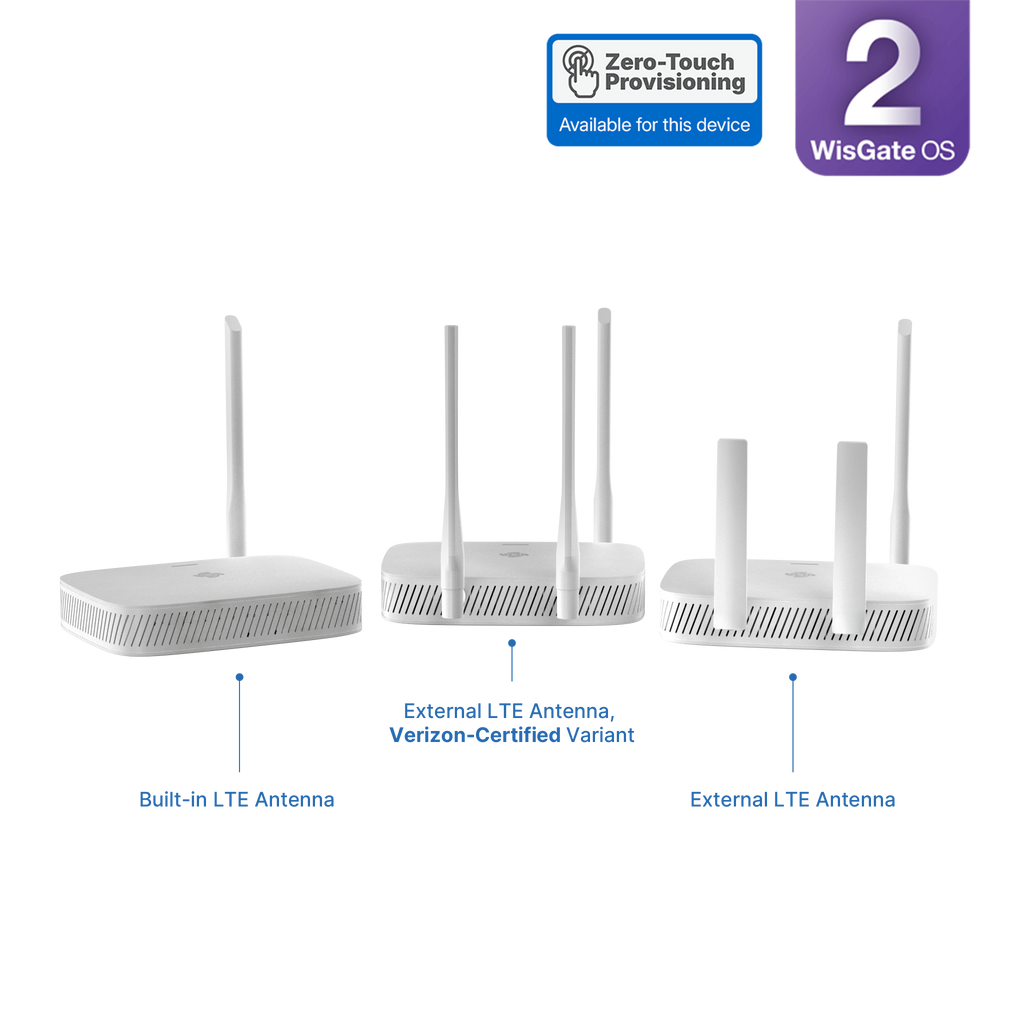

LTE Connectivity Options:
- No LTE (Wi-Fi + Ethernet Only) – For stable network environments with wired/Wi-Fi access.
- LTE (Built-in Antenna) – Compact setup, suitable for standard LTE coverage areas.
- LTE (External Antenna) – Ideal for weak signal areas, remote locations, or industrial deployments where strong LTE connectivity is essential, making it a reliable choice for a remote IoT monitoring gateway.
- LTE (External Antenna, Verizon Certified US-Ready) – Recommended for cellular deployments where the Verizon US network will be used or when certification is required.
Comparison Table: WisGate Edge Lite 2, WisGate Soho Pro, WisGate Soho Lite, and Other Indoor Gateways for LoRaWAN
WisGate Edge Lite 2 is a strong choice for indoor LoRaWAN deployments that need a compact 8-channel gateway with PoE, Ethernet, WiFi, optional LTE Cat 4, WisGateOS 2, WisDM, and flexible network server compatibility. It is especially useful for smart buildings, offices, facilities, equipment rooms, industrial IoT, private LoRaWAN networks, and remote monitoring applications.
|
Gateway |
Best Fit |
Key Deployment Strengths |
|
WisGate Edge Lite 2 (RAK7268V2/RAK7268CV2/RAK7268CV2-V) (This product) |
Indoor LoRaWAN deployments that need reliable 8-channel performance, PoE, Ethernet, WiFi, optional LTE Cat 4, and remote management |
Compact indoor design, PoE, Ethernet, WiFi, optional LTE, WisGateOS 2, WisDM, built-in LoRa Network Server, Basics Station, Packet Forwarder, MQTT Bridge, and Verizon-certified variant option |
|
Small indoor IoT projects, small-to-medium deployments, pilots, and cost-sensitive LoRaWAN networks |
Indoor-friendly design, Ethernet, WiFi, optional LTE Cat 1, WisGateOS 2, WisDM, and compact gateway hardware |
|
|
Rugged indoor/outdoor LoRaWAN deployments that need IP67 protection or wider power flexibility |
IP67 enclosure, rugged hardware, wider DC input, LTE Cat 1, WisGateOS 2, WisDM, and outdoor-ready installation options |
|
|
Milesight UG65 Indoor Gateway for LoRaWAN |
Smart buildings, facility monitoring, and indoor LoRaWAN deployments with PoE requirements |
Strong smart building positioning, PoE deployment messaging, SX1302 framing, and large-scale deployment language |
|
MultiTech Conduit AP 300 Series |
Enterprise indoor LoRaWAN deployments, smart building sensor networks, and sites that may need cellular backhaul |
Enterprise-focused positioning for in-building deployments, optional cellular backhaul, remote management, and vertical use cases |
|
TEKTELIC KONA Micro IoT Gateway |
Office spaces, facilities, indoor environmental monitoring, occupancy, asset tracking, and predictive maintenance use cases |
Strong use-case framing for facility management, IAQ, occupancy, asset tracking, and equipment monitoring |
|
Lansitec 8-Channel Indoor Gateway for LoRaWAN |
8-channel indoor LoRaWAN projects that need Ethernet, LTE, PoE, and simple setup |
Clear setup messaging around Ethernet, optional LTE, WiFi AP configuration, SX1302, OpenWRT, built-in network server, and PoE |
|
Kerlink Wirnet iFemtoCell Evolution |
Deep indoor LoRaWAN deployments, private LoRaWAN networks, and remotely managed gateway fleets |
Strong private network and enterprise remote management positioning |
|
SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway |
Multi-platform LoRaWAN deployments, open-source projects, and global LoRaWAN use cases |
Strong positioning around open-source flexibility, network server options, global frequency support, smart buildings, and environmental monitoring |
|
Dragino LPS8N Indoor Gateway for LoRaWAN |
Open-source indoor LoRaWAN projects and WiFi/Ethernet gateway deployments |
Clear explanation of connecting LoRa wireless networks to IP networks through WiFi or Ethernet |
|
The Things Indoor Gateway Pro |
Managed LoRaWAN deployments using The Things Stack, zero-touch provisioning, and cloud-managed gateway workflows |
Strong managed gateway positioning, The Things Stack integration, zero-touch provisioning, and cloud-managed setup |
What’s in the Box
Each WisGate Edge Lite 2 package Includes：
- 1 pc RAK7268V2 / RAK7268CV2 / RAK7268CV2-V Gateway
- RAK7268V2 / RAK7268CV2: DC 12V or 9-24V input, with internal or external LTE antenna depending on variant
- RAK7268CV2-V: DC 9-36V input with external LTE antenna
- 1 pc LoRa Antenna
- 1 pc 12V 2A Power Supply
- 1 pc Mounting Bracket
- 1 pc Screw Kit for Mounting
- UP to 2 pc LTE Antennas (only included with external LTE antenna variant)
- Documentation Pack (Quick Start Guide, Datasheet, and LoRa Network Server Support)
How to Get Started with WisGate Edge Lite 2
Frequently Asked Questions
Questions and Answers
Didn't find what you're looking for?
Submit your questions and our team will get back to you soon.
Product Reviews
Related Products
|
Hardware |
|
|---|---|
|
Computing |
|
|
LoRa® |
|
|
Supported LoRaWAN® Bands |
EU868/US915/AS923/AS923-1/AS923-2/AS923-3/AS923-4/AU915/IN865/KR920/ EU433/CN470 (depends on the selected model) |
|
Wi-Fi |
|
|
Cellular (available with RAK7268CV2 model) |
Quectel EG95-E/EG95-NA (IoT/M2M -optimized LTE Cat 4 Module) |
|
EG95-E for EMEA Region (Europe, Middle East and Africa) |
|
|
EG95-NA for North America Region |
|
|
EC25-J for Japan |
|
|
EC25-AU for Brazil |
|
|
Ethernet |
|
|
Power Supply |
|
|
Enclosure |
|
|
Environmental Characteristics |
|
|
Notification LEDs |
|
|
Additional |
|
|
Mounting Options |
|
|
Software |
|
|---|---|
|
WisGateOS2 Firmware |
|
