WisGate Developer D3 / D3+

Please Read: Helium is not accepting these gateways into the blockchain for now as the Alpha Hotspot program has ceased, consult using this Discord channel for details. If you want to actively participate in the Helium network and earn HNT please order our RAK Hotspot V2 instead.

Product Description

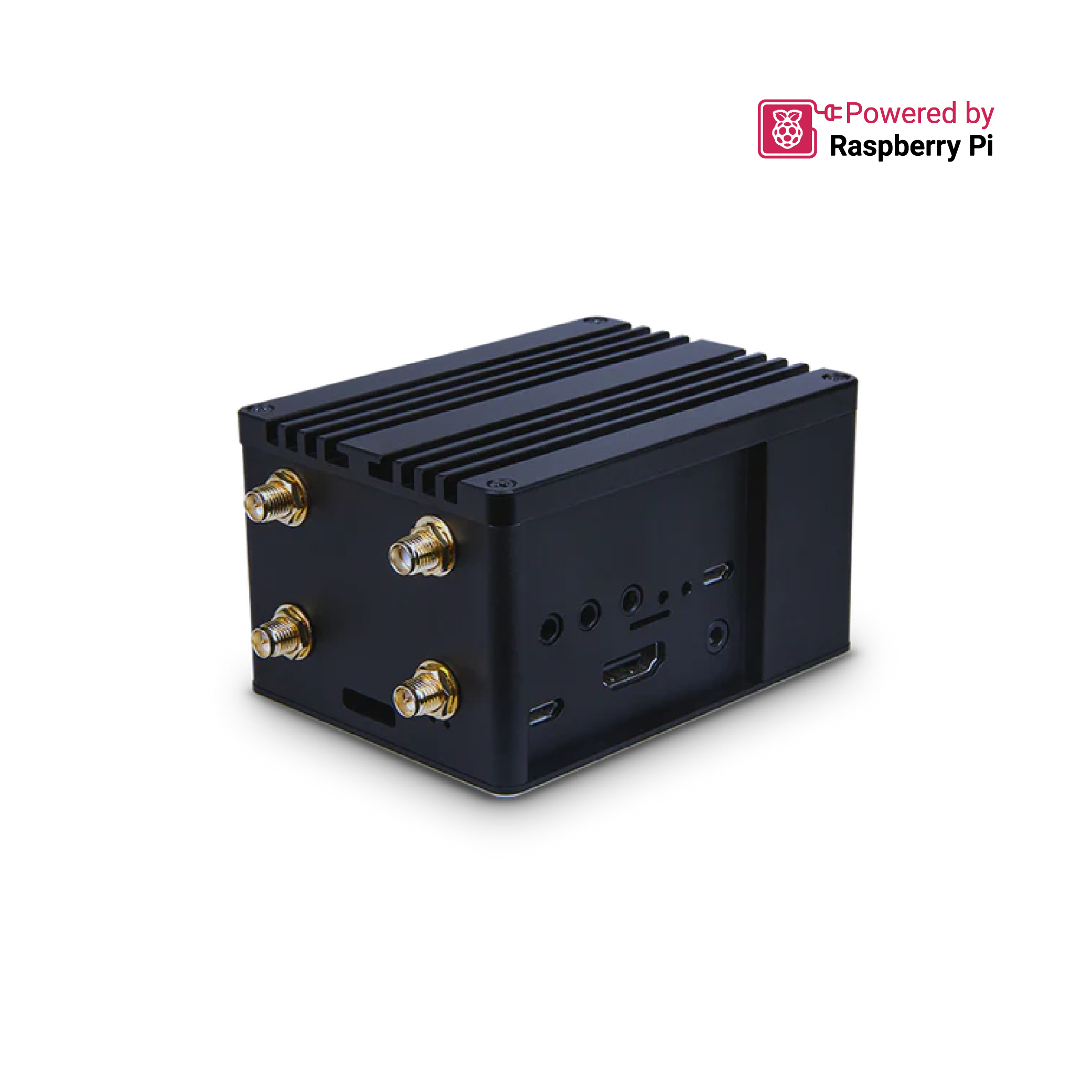

The RAK7243C is a fully-fledged 8 channel LoRaWAN gateway that is Class A and C compliant. It consists of the following modules: RAK2245, RAK2013, and Raspberry Pi 3B+.

At its core is the Raspberry Pi 3B+, which integrates all the other hardware components and runs the OS. The RAK2245 is the concentrator module, playing the role of a LoRa® transceiver. The RAK2013 provides for cellular backhaul (in addition to the Wi-Fi and Ethernet of the Raspberry Pi 3B+).

Software-wise one could choose to either go with TTN or LoRa Server in addition to bringing his own solution. TTN is more suitable for public, cloud deployment. LoRa Server provides a solution that can be run on a private server or the gateway itself.

Thus the RAK7243C is a flexible solution suitable for both small scale projects, as well as large scale industrial solutions. It provides a variety of connectivity options and its size and weight make it ideal for indoor deployment.

Note that you can not add WisLink Cellular Pi HAT RAK2013 later and add it to WisGate Developer RAK7243/44 without modification of the RAK2245 board in the Gateway.

To know the difference between EG95-E and EG95-NA, please refer to the following table:

* Certifications are for the RAK2013 Cellular Pi HAT Module only, not the whole device.

Key Features

• Preassembled, fully functioning LoRaWAN Gateway
• Full LoRaWAN Stack support (version 1.0.2)
• Supports all 8 channels and spreading factors (SF7-SF12)
• Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
• Tx Power: 27 dBm Max
• RX Sensitivity: -139dBm
• The new design integrates Ublox MAX-7Q GPS module
• Quectel BG96/EG95 (depending on chosen configuration)

Packaging

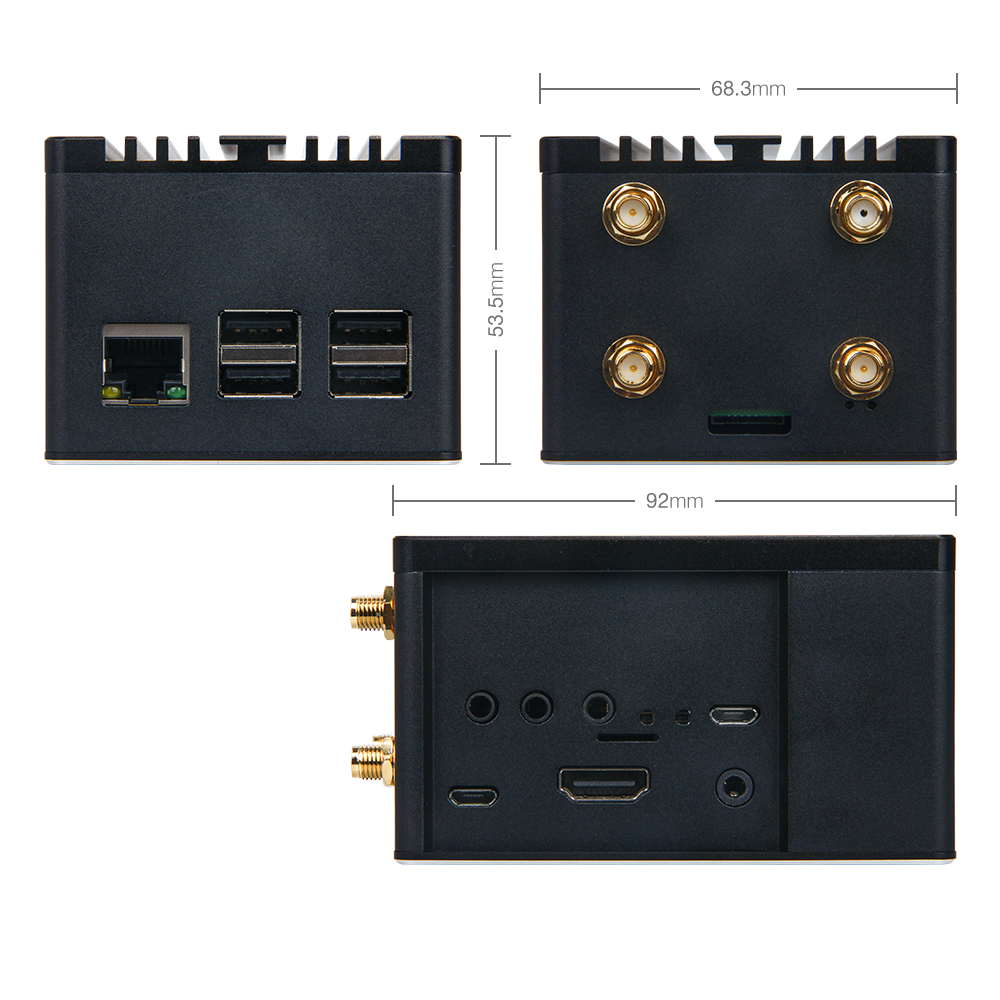

• Product Dimensions: 150mm x 90mm x 90mm
• Product Weight: 0.6kg

Package Inclusions

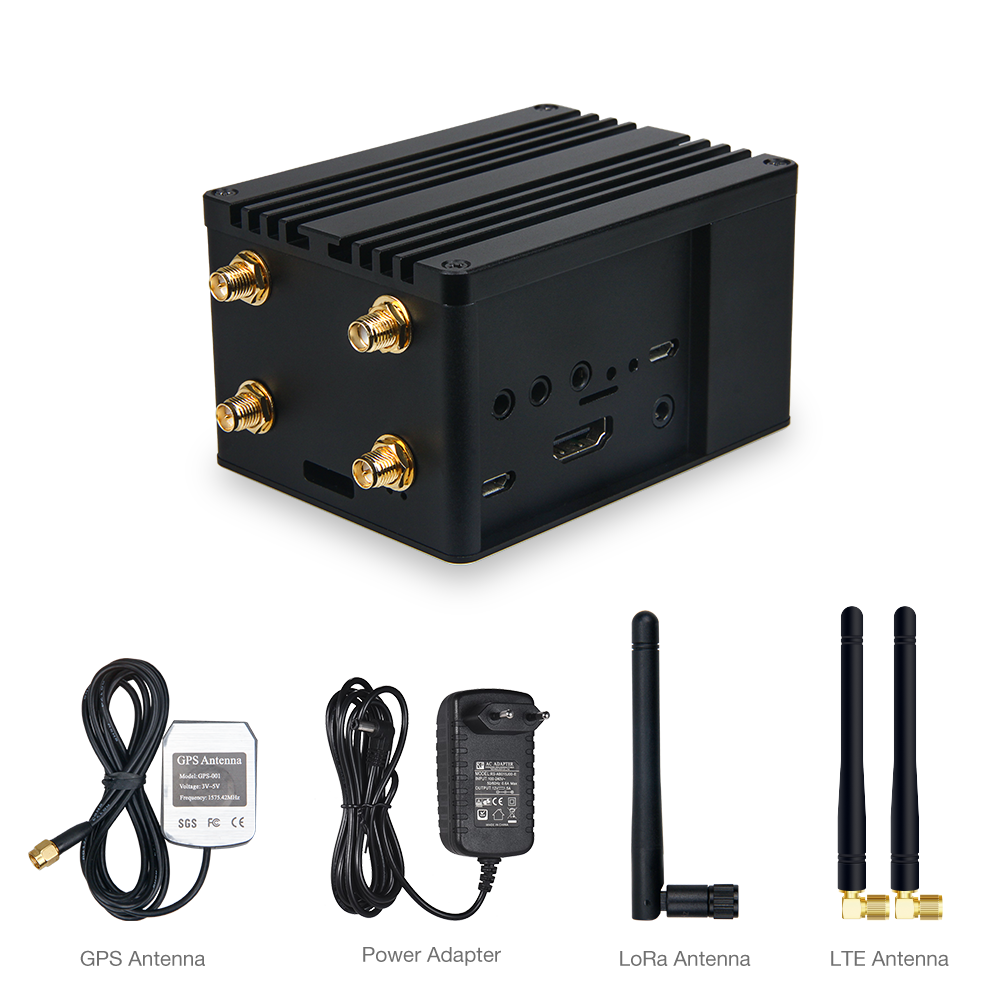

RAK7243C

• 1pc RAK7243C LPWAN Developer Gateway
• 1pc GPS antenna
• 1pc LoRa antenna
• 2pcs LTE antenna
• Power adapter

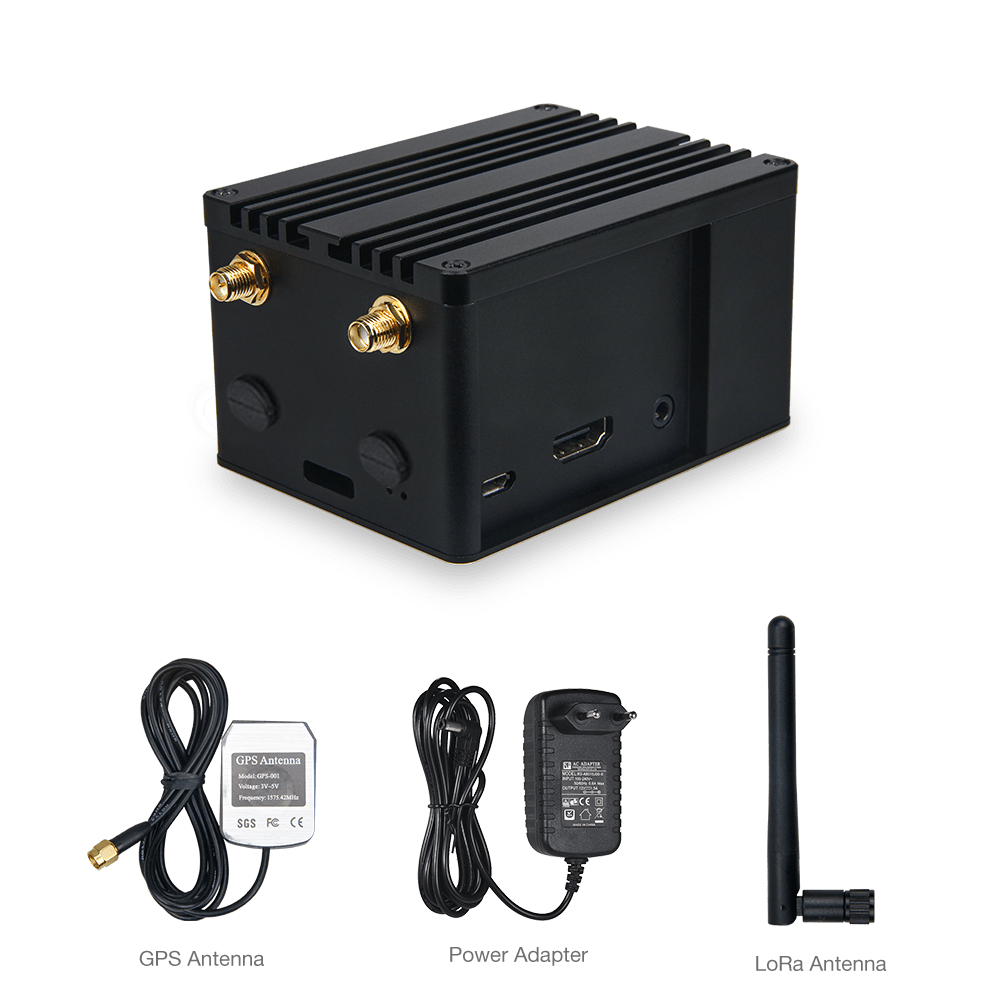

RAK7243

• 1pc RAK7243 LPWAN Developer Gateway
• 1pc GPS antenna
• 1pc LoRa antenna
• Power adapter

Documentation

• WisGate Developer D3 (RAK7243) Quick Start Guide
• WisGate Developer D3 (RAK7243C) Quick Start Guide
• WisGate Developer D3 (RAK7243C) Datasheet
