RAK4200

STM32L071 SX1272 LPWAN Module

SKU:319040
$75.00
Variant prices start at $39.00 to $204.00.
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Buying WisDuo as a sample and want to save on import fees to the US?

We recommend bundling your WisDuo module with an evaluation board—we’ll pre-assemble it to reduce tariffs by up to 25%. You can disassemble it later and use the module separately.

Hover over your region on the map to see local country frequencies.



Product Description

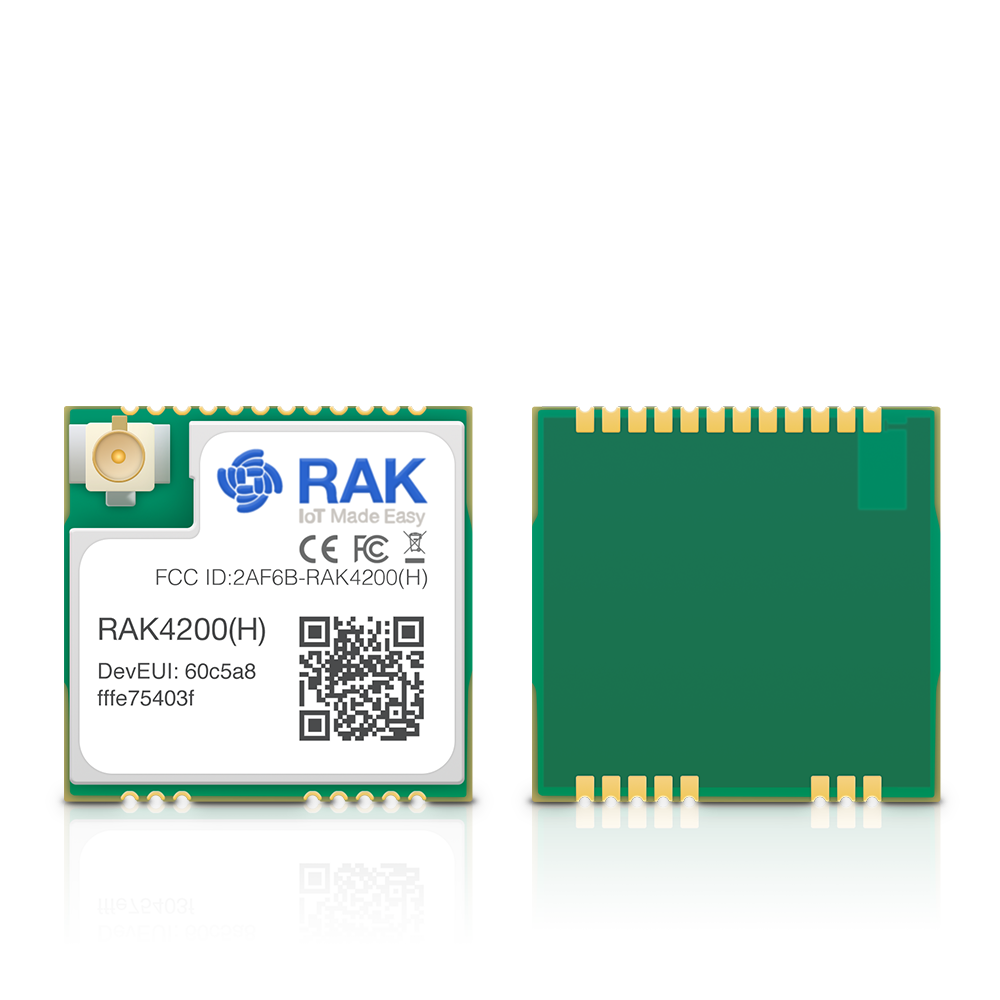

RAK4200 LPWAN Module includes an STM32L071 MCU and an SX1276 LoRa® chip. It has an ultra-low power consumption of 1.5uA in sleep mode and high LoRa® output power up to 19dBm max in work mode.
The module complies with LoRaWAN® 1.0.2 protocols. It also supports Lora® Point-to-Point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption.


Complete documentation of this product can be found on our website documentation page.

You can find a comparison table of our LPWAN modules here.

Note:

In order to have an optimal antenna matching for the Low and High LoRa bands, there are two types of modules with different hardware. The L type module only works for the 433MHz and 470MHz LoRa bands. The H type module is for the 868MHz to 923MHz (the rest of the spectrum). Note that the hardware is specific for your selected band and can't be changed.

Key Features

  • LPWAN module for Smart City, Smart Agriculture, Smart Industry
  • Compact Form Factor: 15 x 15.5 x 2.5 mm
  • 20 Pin Stamp Pad for PCB SMT mounting
  • I/O ports: UART/I2C/GPIO
  • Temperature range: -40°C to +85°C
  • Supply voltage: 2.0 ~ 3.6V
  • Frequency range: 863MHz to 870MHz (EU) / 902 to 928MHz (US), ISM and SRD systems
  • Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
  • Ultra-Low Power Consumption 1.5uA in sleep mode
  • Core: ARM 32-bit Cortex M0+ with MPU
  • Up to 128KB flash memory with ECC
  • 20KB RAM

Packaging

  • 1pc RAK4200
