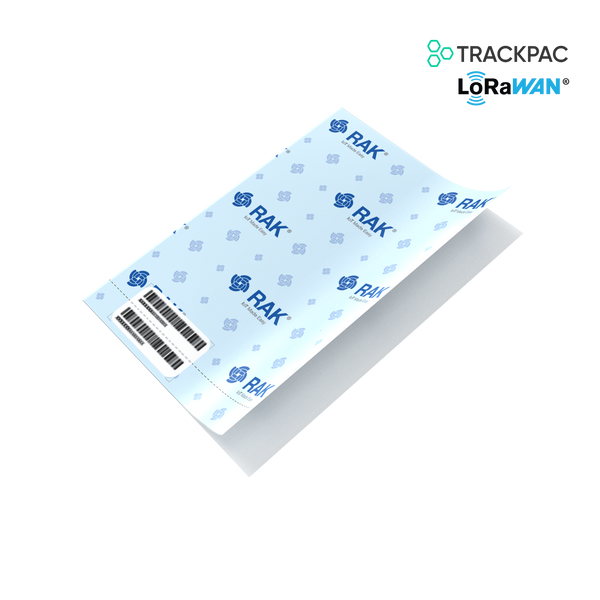

RAK2270 RAK Sticker Tracker
RAK2270 is a state-of-the-art sticker tracker designed for the modern needs of LoRaWAN® applications. This sleek, label-like device effortlessly attaches to any product, offering an elegant solution for various tracking requirements. Whether you're a seasoned developer, an IoT platform manager, or a solutions provider, the RAK2270 is engineered to meet your specific needs.
Tailored for Every Application:
-
RAK2270 - Solutions：Ideal for immediate deployment in IoT solution
-
Plug-and-Play with Helium Network：Connect effortlessly with the Helium Network for immediate, hassle-free tracking. Ideal for those who value quick setup and straightforward functionality.
-
Simple Setup:
- Trackpack: Scan the QR Code of the sticker and onboard your RAK2270 on https://rak.trackpac.io/
- Peel off the bottom strip to power up and connect. No buttons, just a quick, easy start.
-
-
RAK2270 - Generic: Perfect for building custom LoRaWAN solution
-
Versatile Software Platform Compatibility: Connect with any software platform or LoRaWAN network. Your gateway to free programming and customized LoRaWAN solutions.
-
-

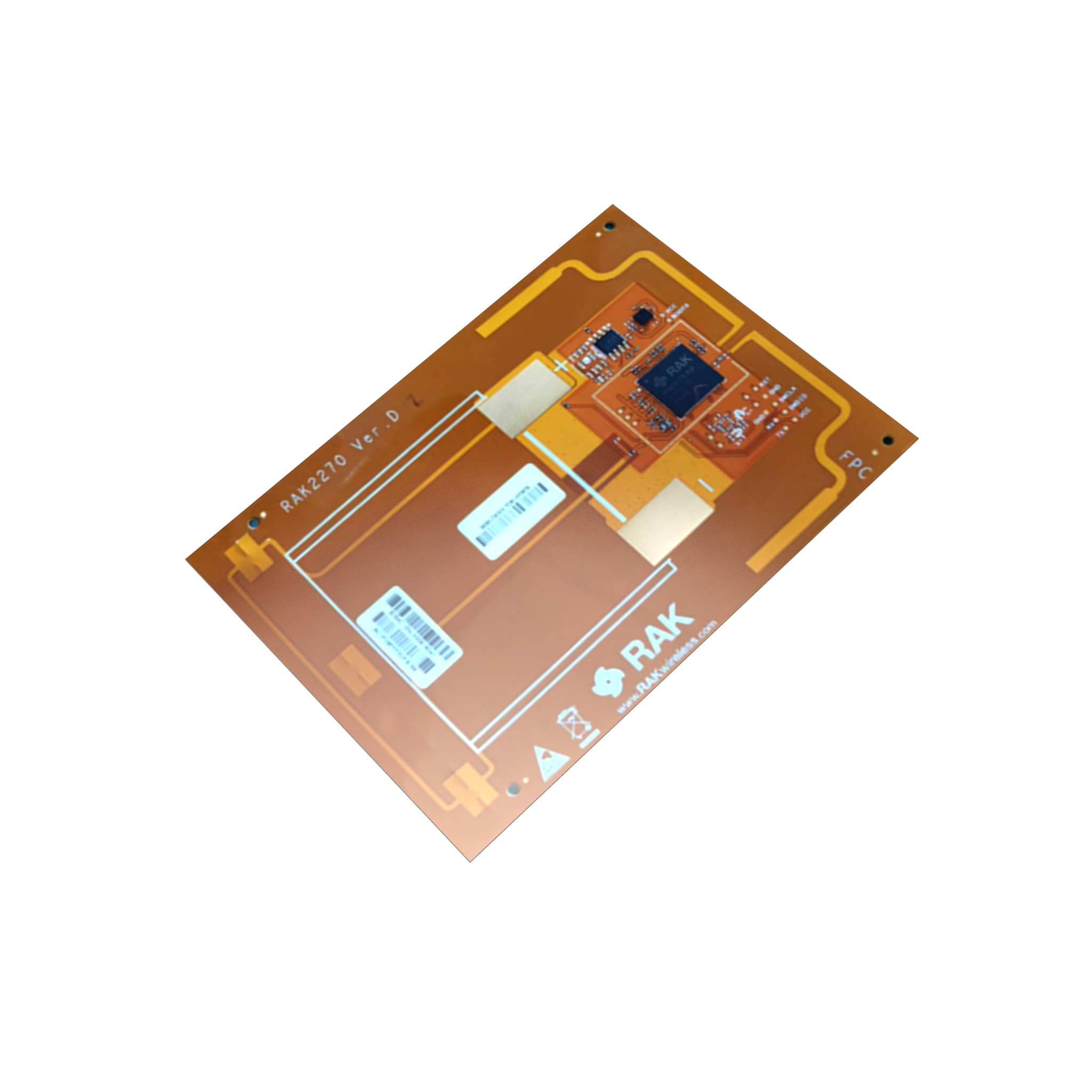

RAK2270 - Developer：Designed for R&D and product deployment
-

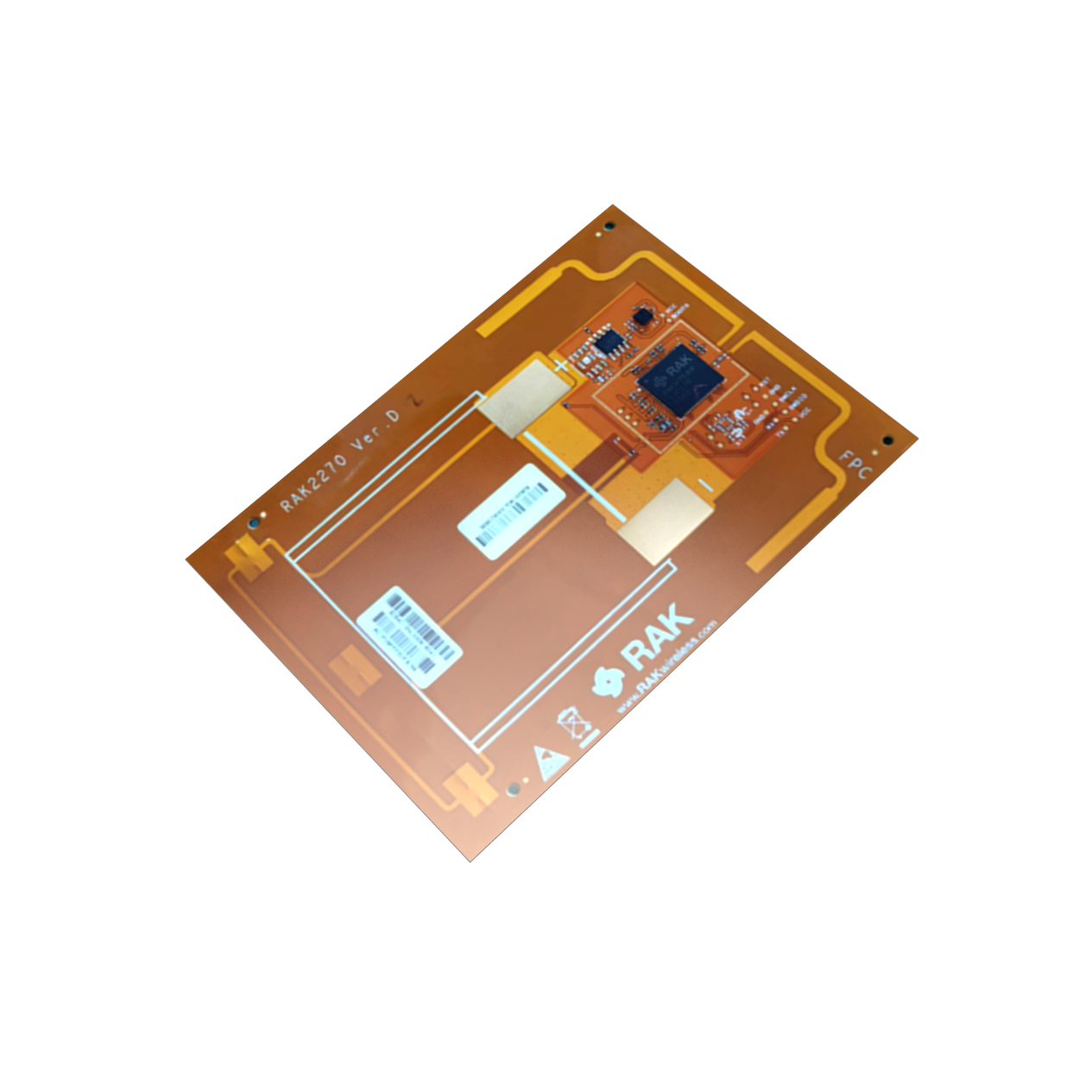

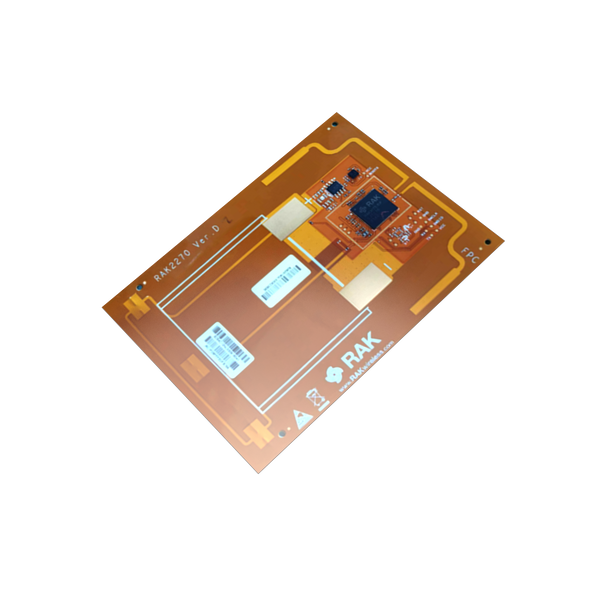

Programmable with Ease: Includes a PCB clip for straightforward programming. A developer's dream for creating and testing custom firmware. We offer RAK2270-Developer with Clip and RAK2270-Developer without Clip. Whether you need the complete package with the PCB clip or just the sticker tracker itself, the RAK2270 - Developer variant offers the flexibility and power to bring your innovative ideas to life.
-
|
|
RAK2270 - Solutions |
RAK2270 - Generic |
RAK2270 - Developer |
|
Platform integrated (Trackpac) |
Yes |
No |
No |
|
Plug-and-play |
Yes |
No |
No |
|
Sticker form factor |
Yes |
Yes |
No |
|
Battery included |
Yes |
Yes |
No |
|
OTAA EUIs and key provided |
No |
Yes |
No |
|
Can be integrated to own LNS and platform |
No |
Yes |
Yes |
|
Programmable with user custom firmware |
No |
No |
Yes |
|
Accessible programming pins, components and testpoints |
No |
No |
Yes |
|
Use cases |
||
|
RAK2270 - Solutions |
RAK2270 - Generic |
RAK2270 - Developer |
|
Ideal for system integrators and solution providers who offer IoT products and devices that works immediately |
Designed for IoT platforms who wants to onboard LoRaWAN sticker and build their own solutions on top of it |
Designed for R&D and product development team |
|
Preconfigured, plug-and-play and can deploy out of the box |
User owned LoRaWAN application |
Development board for engineers |
|
Works immediately with chosen platform (Trackpac) |
Can be integrated to user own platform |
User can upload custom firmware |
Note: With every RAK2270-Solution purchase, subscription to trackpac.io for top-notch tracking and sensing will be added at checkout. Your RAK2270 will uplink every 15minutes on the every hour on trackpac.io. The device can work for up to a year depending on the uplink interval. Your platform subscription lasts as long as your sticker's battery life though uplink intervals can be changed via downlink by contacting your solution provider.
Important: The RAK2270-Solutions variant requires Helium Network coverage to onboard and view temperature and location information regardless of the chosen software or tools. To check coverage go here: https://explorer.helium.com/.
Features

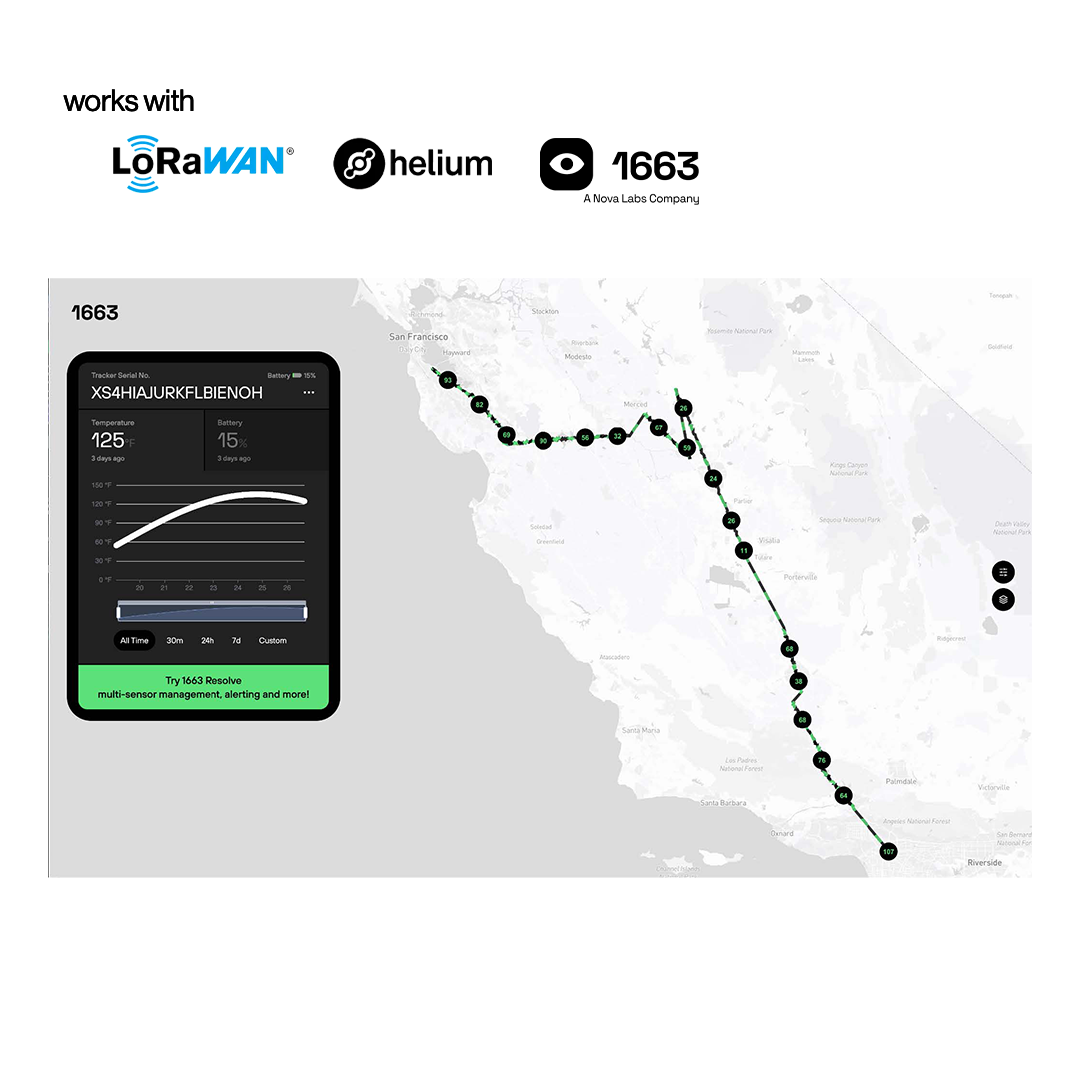

- Advanced Real-Time Tracking: Real-time location tracking estimate via Helium network server using Trackpac platform(applicable to RAK2270-Solutions variant).

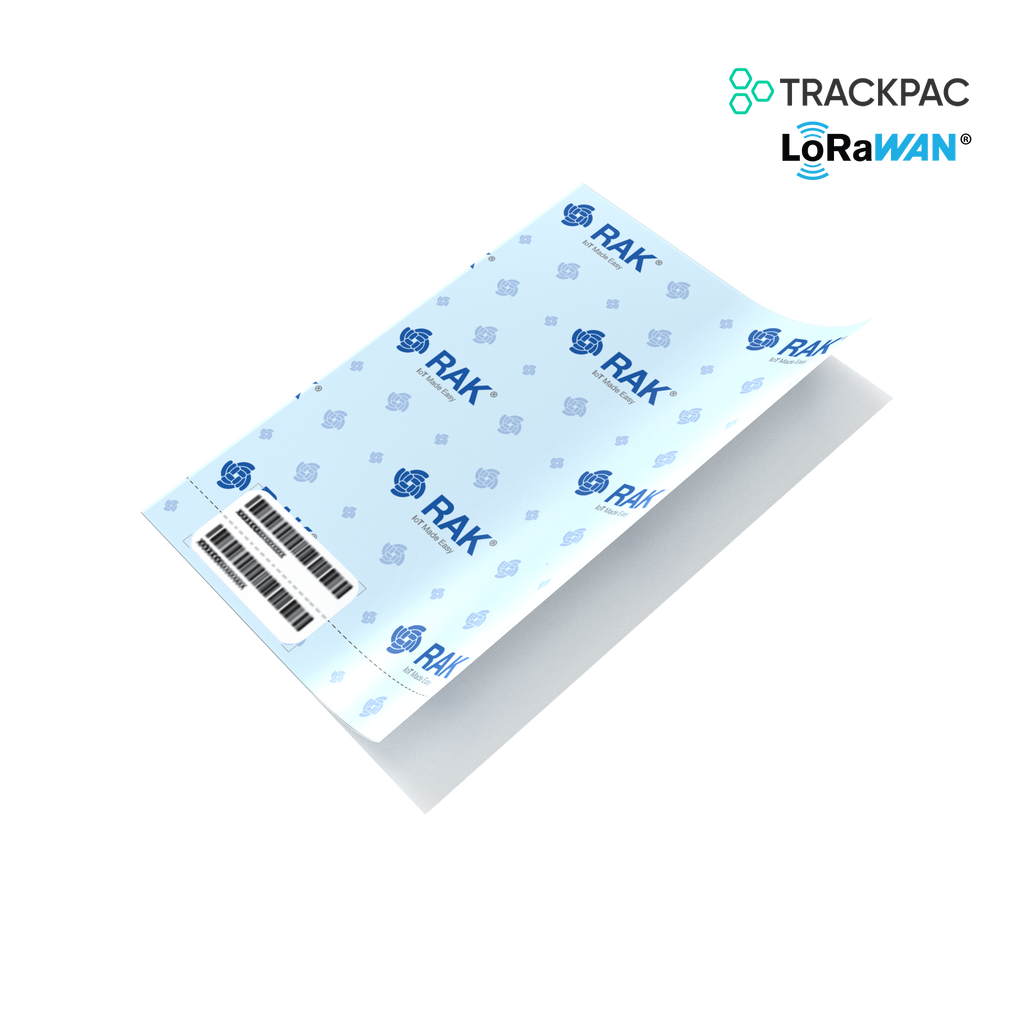

- Instant Activation: Simply peel off the bottom strip to power up and connect. No buttons, just a quick and easy start.

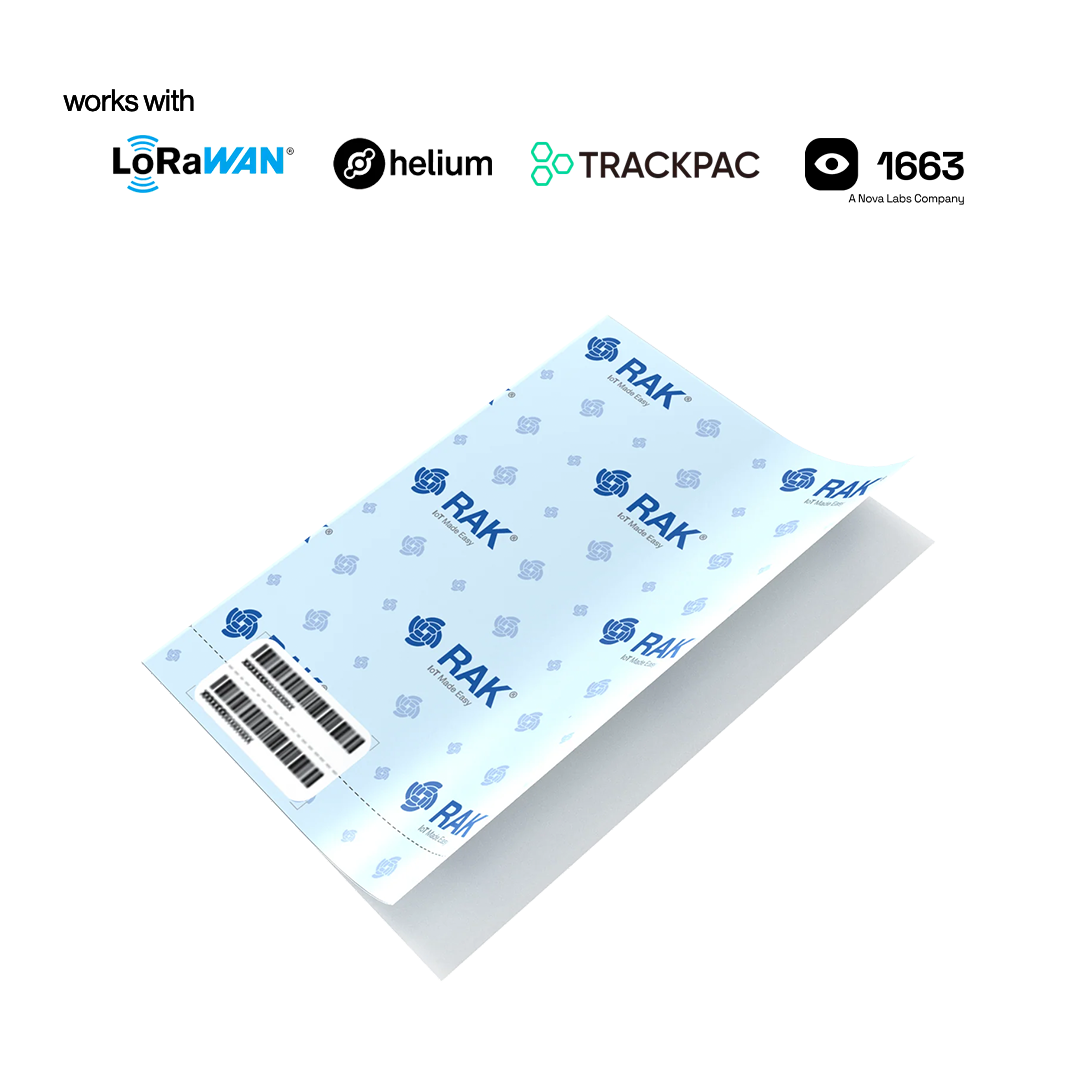

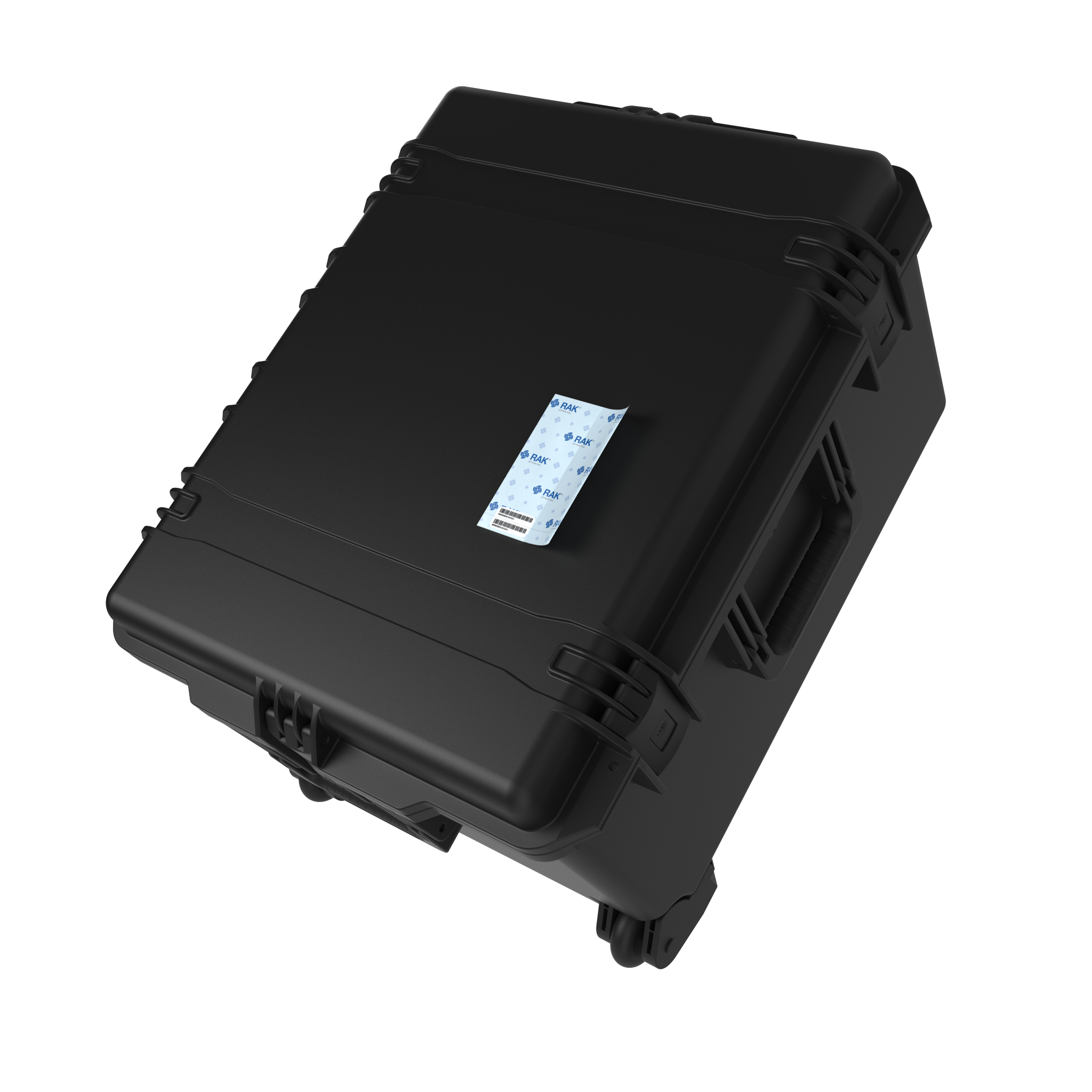

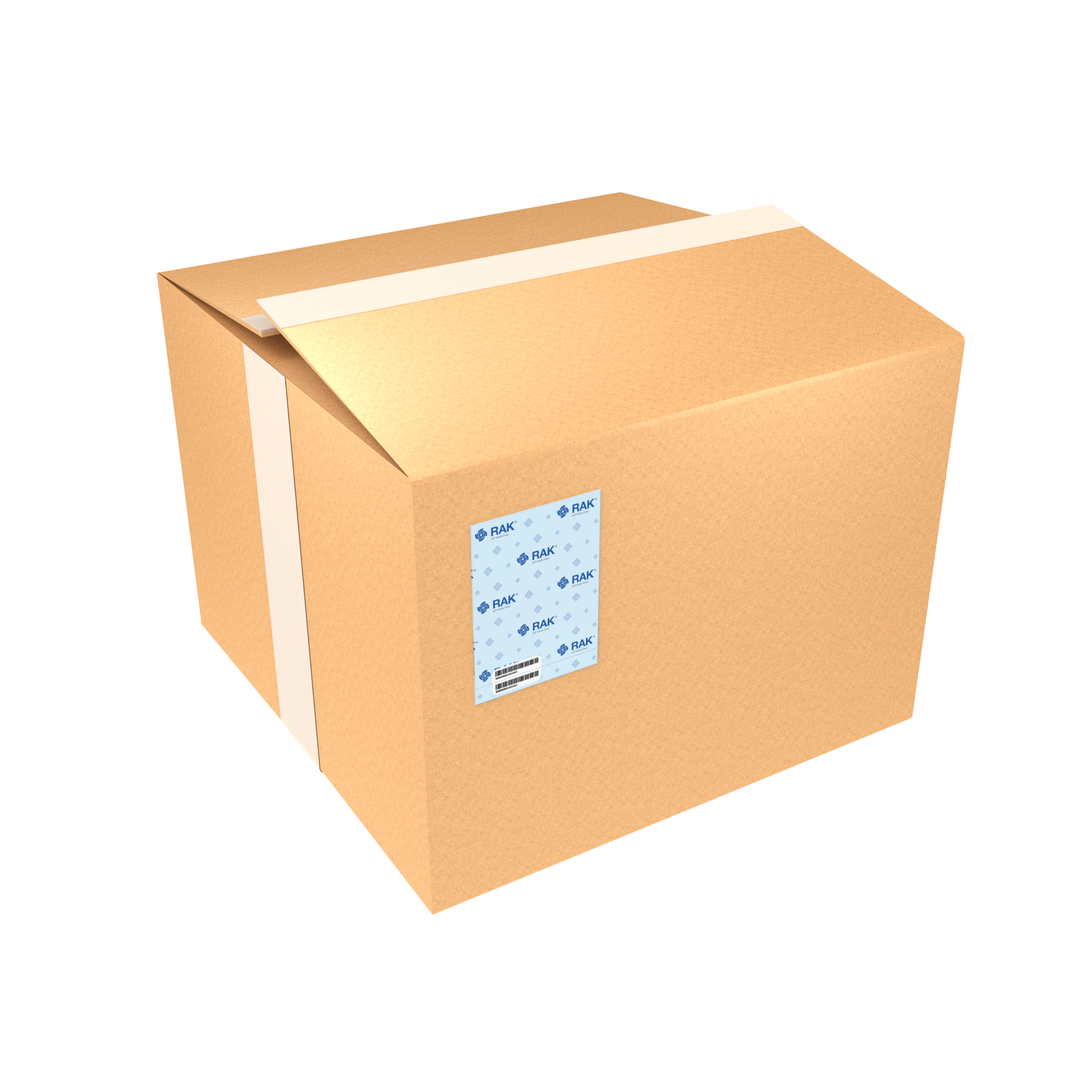

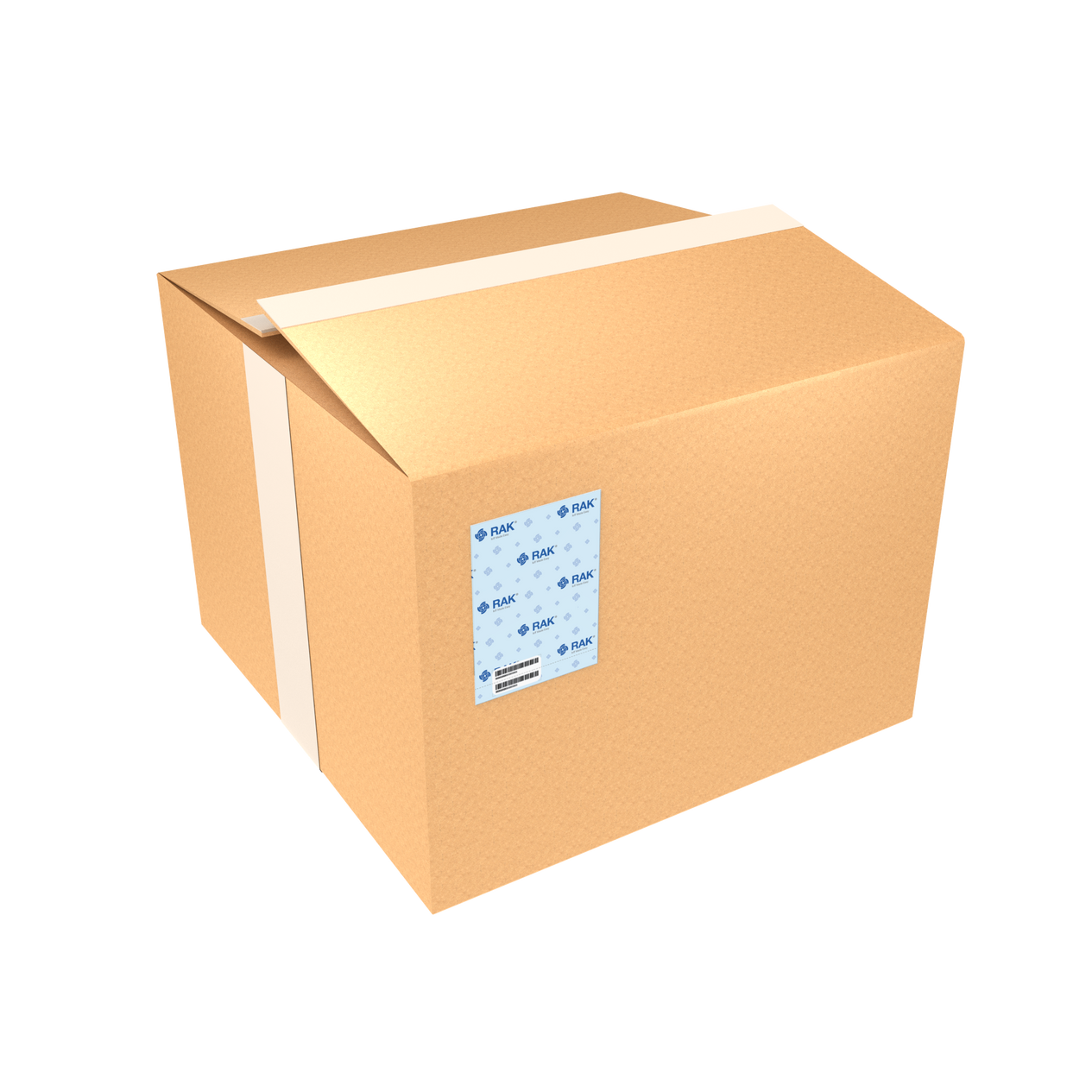

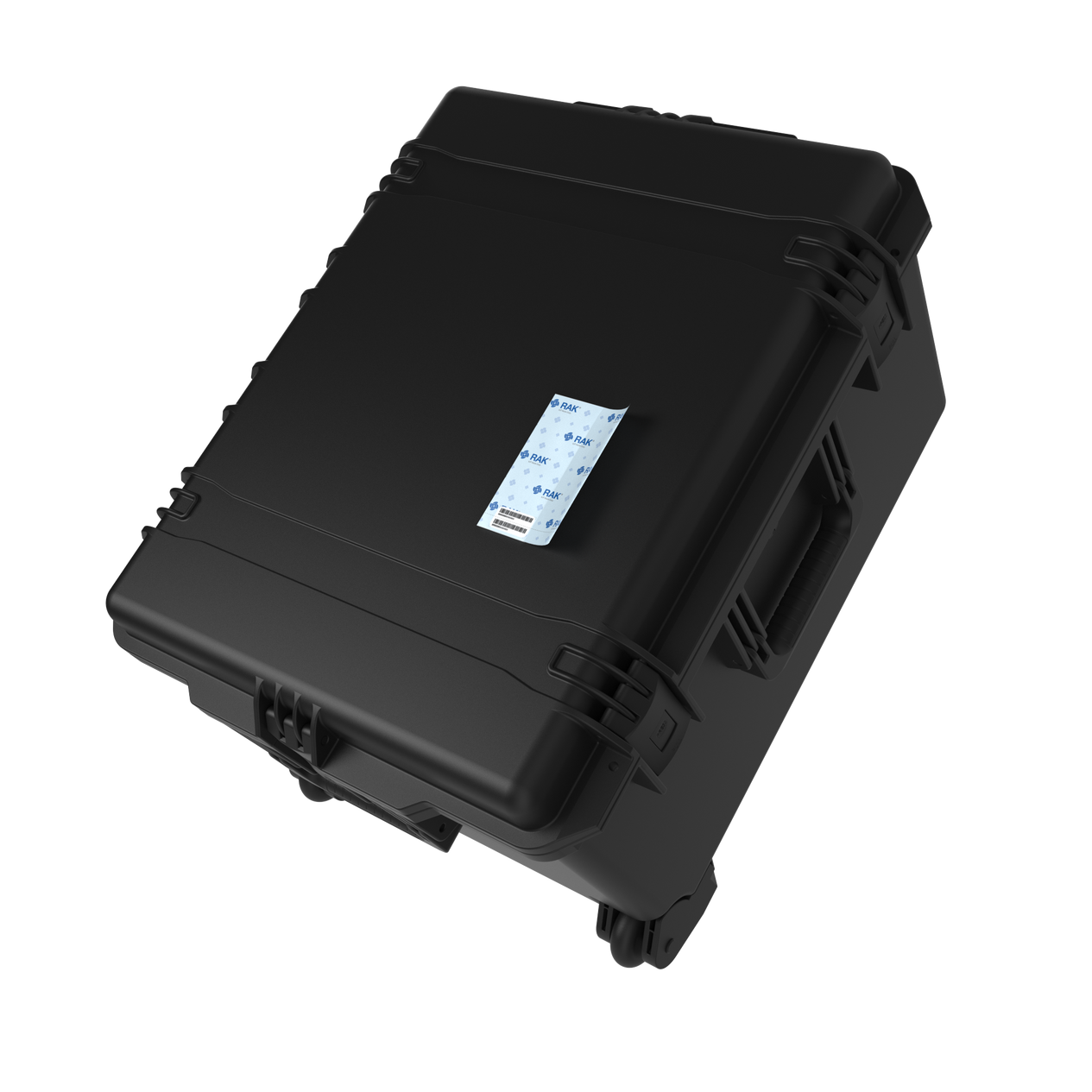

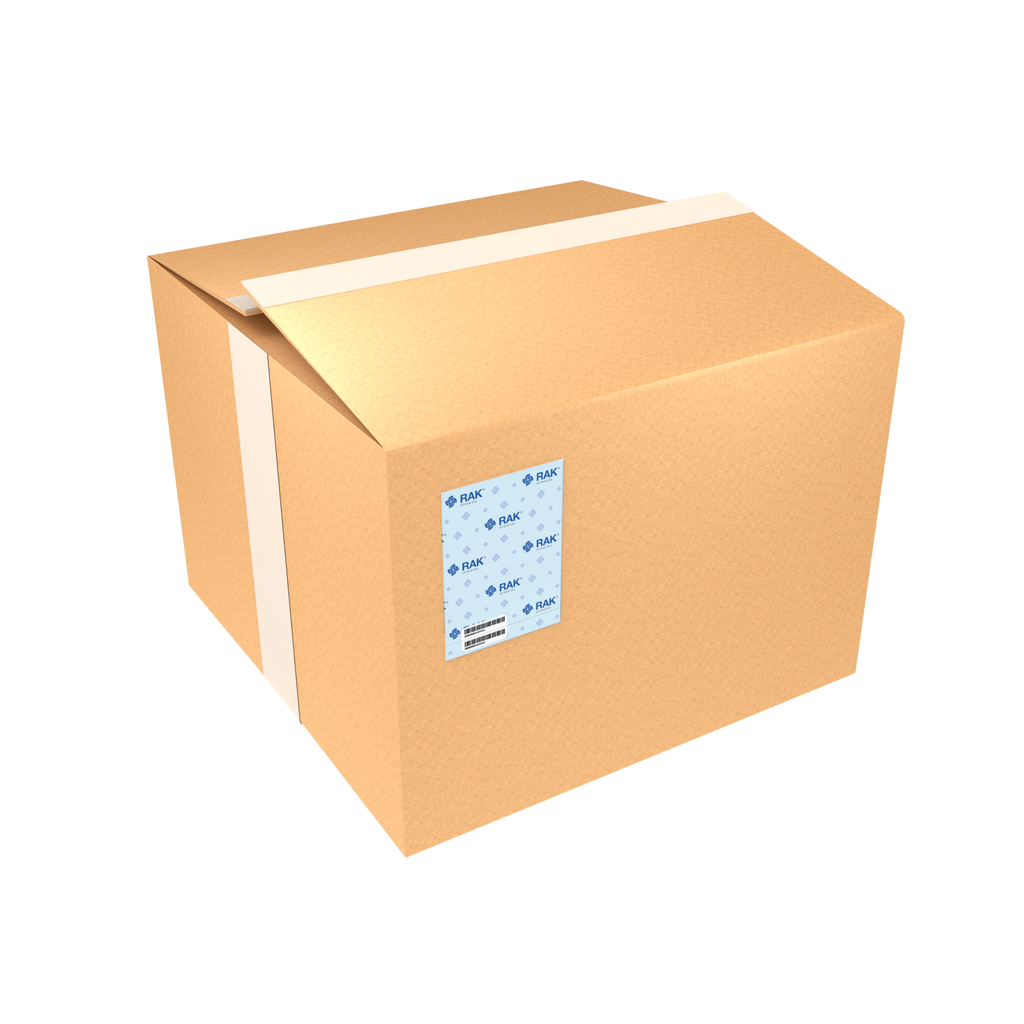

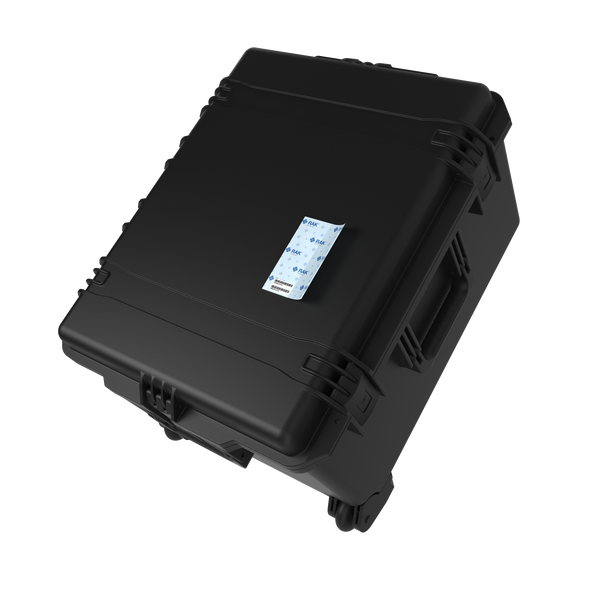

- Label-Like Form Factor: Unique label-like form factor for easy attachment to any product
- Temperature Monitoring: Built-in temperature sensor with a range of -20° C to +60° C and a resolution of 0.1° C
- Simultaneous Data Upload: Enjoy the convenience of simultaneous data upload to the server for up-to-date temperature monitoring.
- 3-Axis Accelerometer: Integrated 3-axis accelerometer for automatic positioning frequency adjustment based on movement status. Accelerometer is not yet supported by Open Source FW. Customer needs to write their own code or wait for the next RAK2270 Open Source FW release.
- Wide Compatibility: The sensor sticker is compatible with various LoRaWAN® bands, including IN865, EU868, AU915, US915, KR920, RU864, and AS923-1/2/3/4.
- Long Battery Life: Powered by a LiMnO2 battery, the tracker promises reliable tracking over an extended period.
- Module size: 85 x 118 x 1.5 mm
Embrace the future of tracking with the RAK2270 sticker tracker for LoRaWAN®. With accurate, real-time tracking and efficient temperature monitoring, ensure your assets are always within reach and under optimal conditions.
Additional Features
- Design: Sleek, label-like design that makes it easy to attach to any product.
- Usability: Easy-to-install and operate with a buttonless activation method.
- Integration: Seamlessly integrates with the Helium network server for advanced tracking capabilities.
-
Reliability: Long-lasting battery ensures continuous, reliable tracking.
Included in the package
RAK2270-Solution：
- 1x RAK2270 RAKwireless Tracking and Temperature Sticker
- 1x Trackpac License
- 1x Battery
RAK2270-Generic：
- 1x RAK2270 RAKwireless Tracking and Temperature Sticker
- 1x Battery
RAK2270-Developer with Clip：
- 1x RAK2270 RAKwireless Tracking and Temperature Sticker
- 1x PCB Clip
RAK2270-Developer without Clip：
-
1x RAK2270 RAKwireless Tracking and Temperature Sticker
Unleash Your Creativity with Custom LoRa® Stickers!
Ever dreamed of designing your own IoT devices? With the RAK2270, it's not just a dream anymore! This open-source platform, supported by JLCPCB, empowers you to create unique LoRa® stickers tailored to your ideas. Just a click away - start crafting your personalized IoT solution with ease. Discover How to Start Your Journey.
