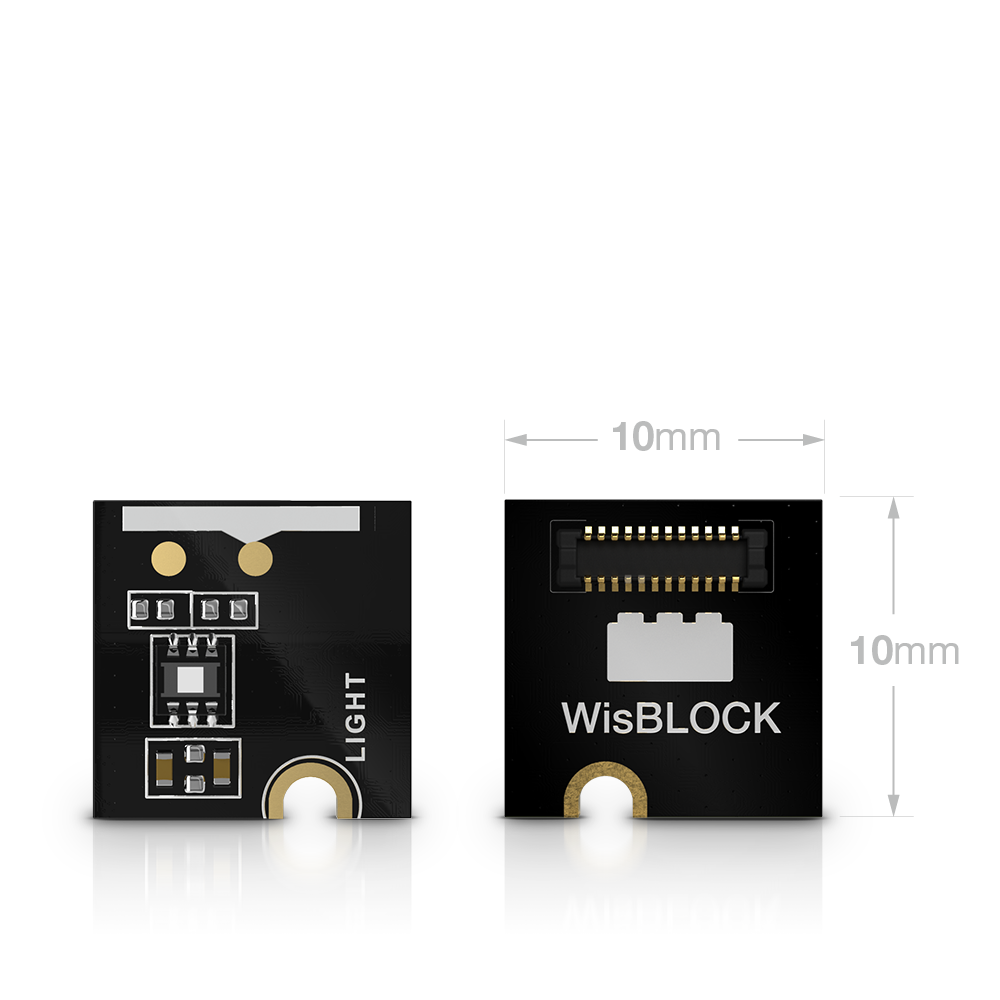

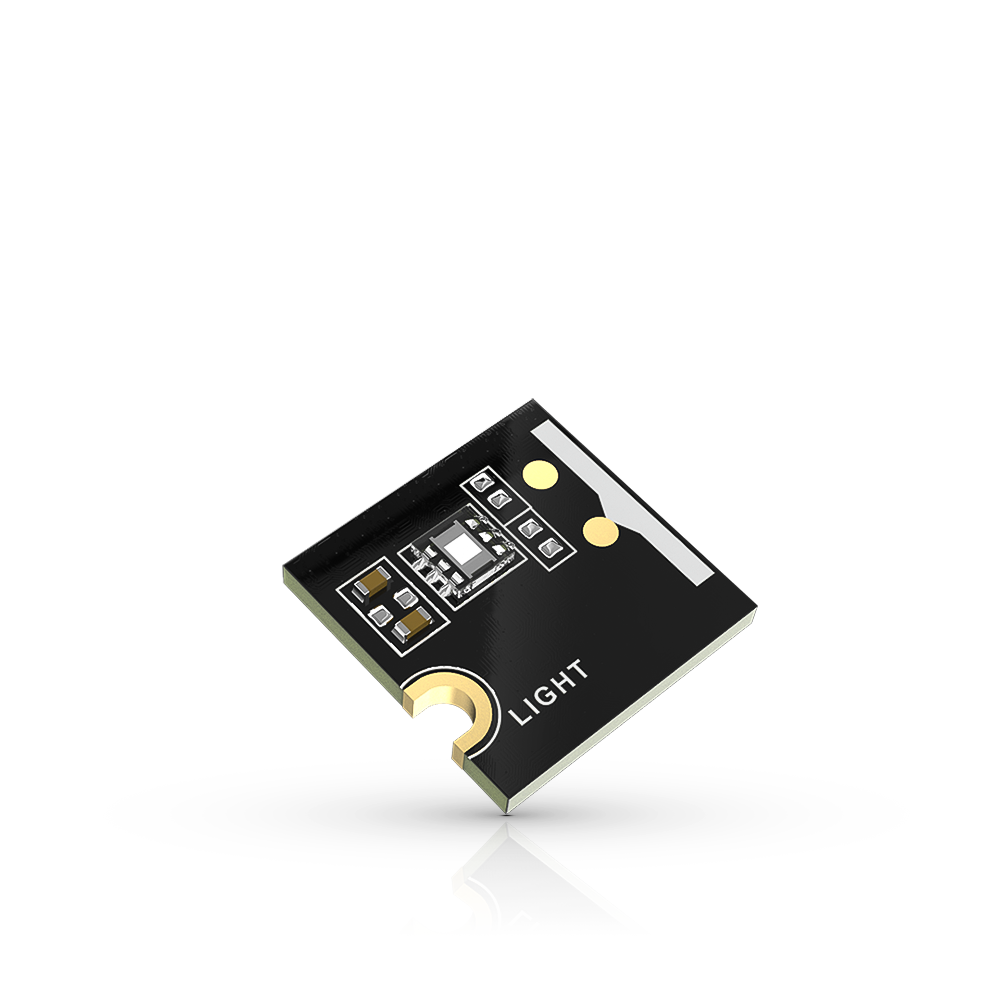

Light Sensor Texas Instruments OPT3001
RAK1903
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
RAK1903 is a WisBlock Sensor based on Texas Instruments OPT3001 chip which extends the WisBlock system with ambient light sensing capabilities. A ready to use SW library and tutorial makes it easy to build up an ambient light data acquisition system.
RAK1903's range from 0.01 lux to 83865 lux makes it suitable for a greenhouse control system, light detection system, or alarm systems.
RAK1903 combined with the RAK4631 WisBlock Core is ready to go system to collect ambient light data. The acquired data can be send using LoRaWan® communication, LoRa® point to point connections and BLE.
RAK1903 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.
Key Features
- Using the TI OPT3001DNPR light sensor
- Low power consumption
- Small form factor
- Measurement range from 0.01 lux to 83865 lux
- Optical filtering to match the human eye
- Low power consumption of 1.8uA
Package Inclusions
- 1pc RAK1903
Documentation
- RAK1903 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- RAK1903 3D Model
- 24-Pin Male Connector 3D File
- WisBlock Sensor Tutorial
Examples
For All WisBlock Core Modules:
For WisBlock Core RAK4630:
LoRaWAN Weather Monitoring Kit with WisBlock RAK1903
Tutorials
- WisBlock Starter Kit and RAK Edge Gateway Complete LoRaWAN Guide
- Installation of Board Support Package in Arduino IDE
- The Icing on the Cake: A Template to Innovate Custom IoT Applications with RAKwireless and Datacake
- Work in a Well-lighted Environment. Measure the Lux with Wisblock
Check Hackster Projects
Articles
- Choosing Between WisBlock Modules For Your Next IoT Project? Take A Quiz!
- Why We Make WisBlock: The Story Behind RAK’s Modular IoT Platform
- Build your IoT Breakthroughs Fast with the WisBlock System!
- RAKwireless Announces Partnership with One Planet Education Network (OPEN) to Launch STEM IoT Sensor Kits for Schools Worldwide
- RAKwireless Launches New Modular Product Series - WisBlock
- New WisBlock Modules in RAK Autumn Launch
WisBlock Success Stories
