WisBlock Dual IO Base Board
RAK19001
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Attention: If using the Unify Enclosure 100 x 75 x 38 mm, only RAK19007 Base Board can be used.
Check our WisBlock Documentation
Product Description

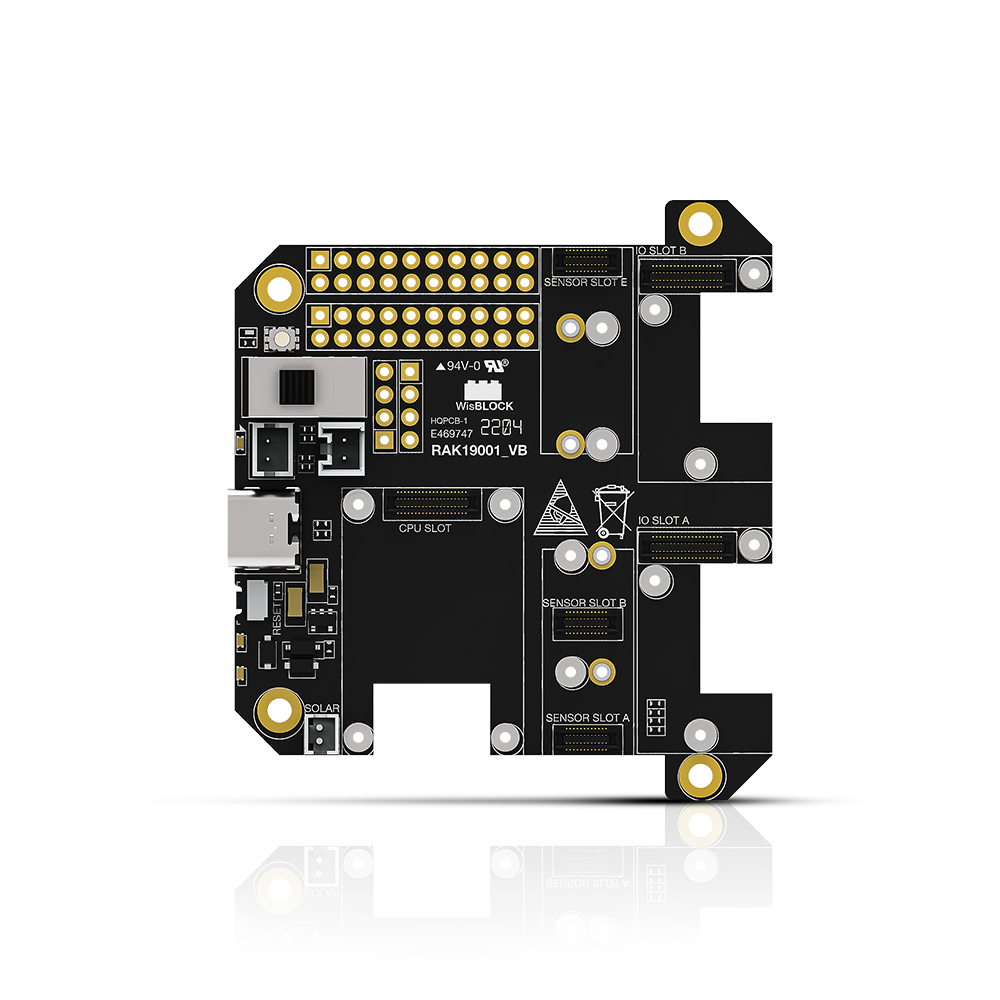

The RAK19001 is the newest WisBlock Base Board. With 2 IO slots for large modules and 6 sensor slots for sensors, GNSS modules and similar, it opens the WisBlock to more complex applications where many modules are required. As additional feature, it has all GPIO's exposed on a solder pad that makes it easy to connect other (third party) modules. Other features are - Solar panel connector - rechargeable battery connector - separate connector for non-rechargeable batteries - USB type C connector - User definable button - On/Off switch on the base board.
Features
- Flexible building block design, which enables modular functionality and expansion
- High-speed interconnection connectors in the WisBlock Base board to ensure signal integrity
- Multiple Headers and Modules Slots for WisBlock Modules
- Two (2) IO slots
- Six (6) Sensor (A to F) slots
- All key input-output pins of WisBlock Core are exposed via headers
- Access to various communication bus via headers: I2C, SPI, UART, and USB
- One user-defined push button switch
- Power supply
- Supports both 5 V USB, 3.7 V rechargeable battery, and 3.3 to 5.5 V non-rechargeable battery as power supply
- The power supply for the WisBlock modules boards can be controlled by the WisBlock Core modules to minimize power consumption
- Slide switch to select between a rechargeable or non-rechargeable battery
- Size
- 60 x 67 mm
Package Inclusion
- 1 pc RAK19001
- 1 pc USB Cable
- 1 pc Battery Cable
- 22 pc M1.2*3 Screw
- 8 pc M2.5*4 Screw
