ADC Expansion Module Texas Instruments ADS7830
RAK16001
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

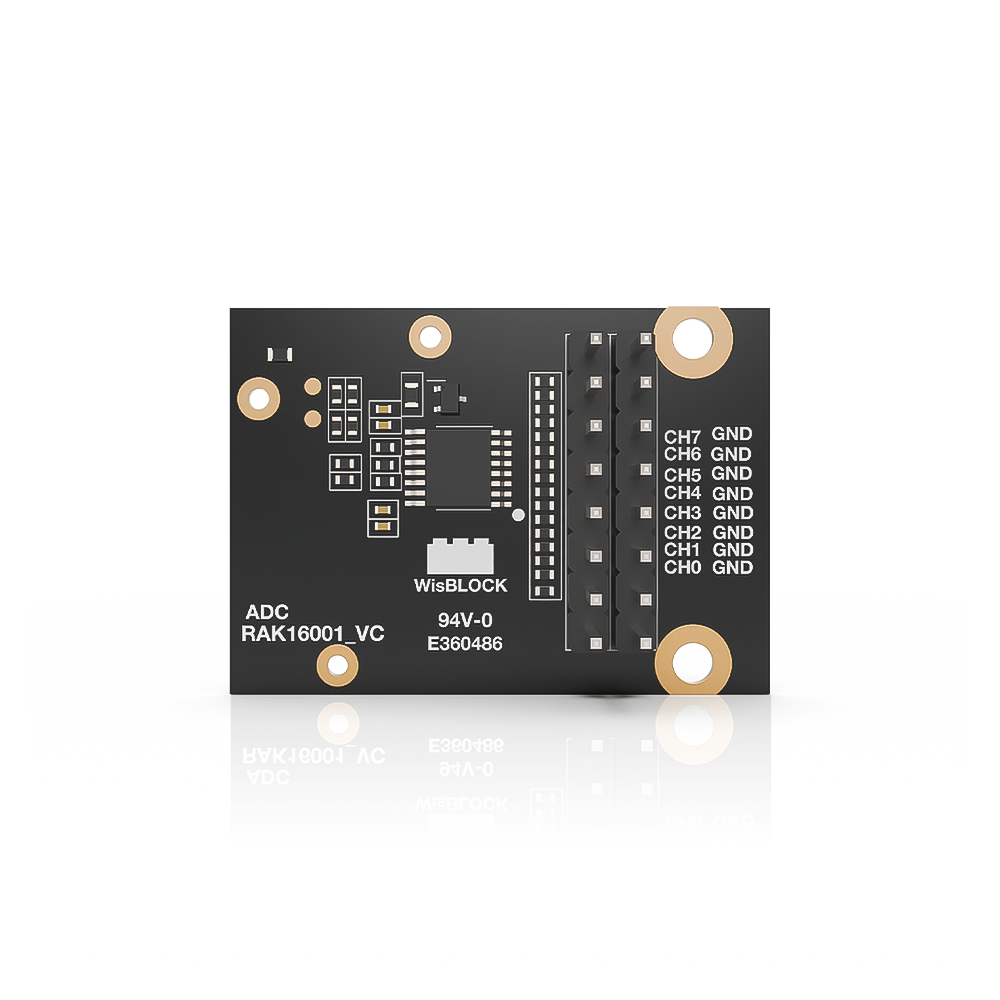

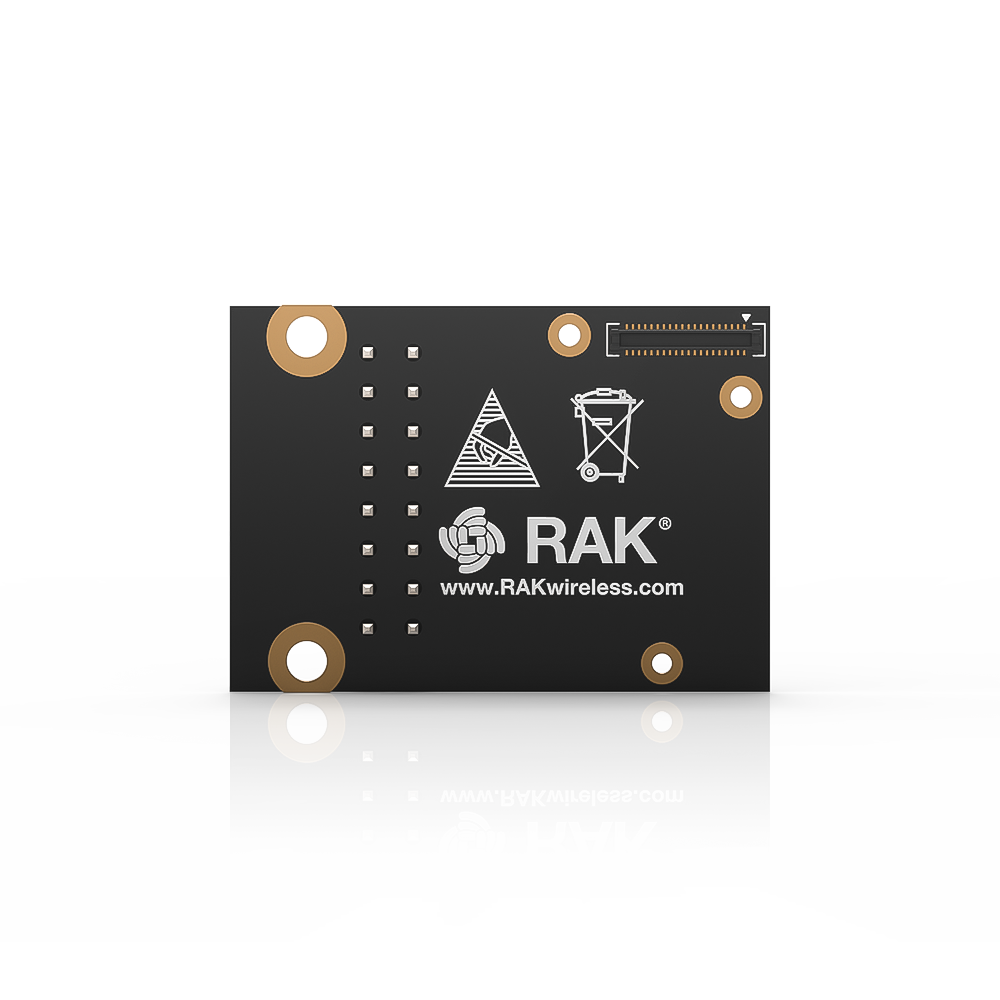

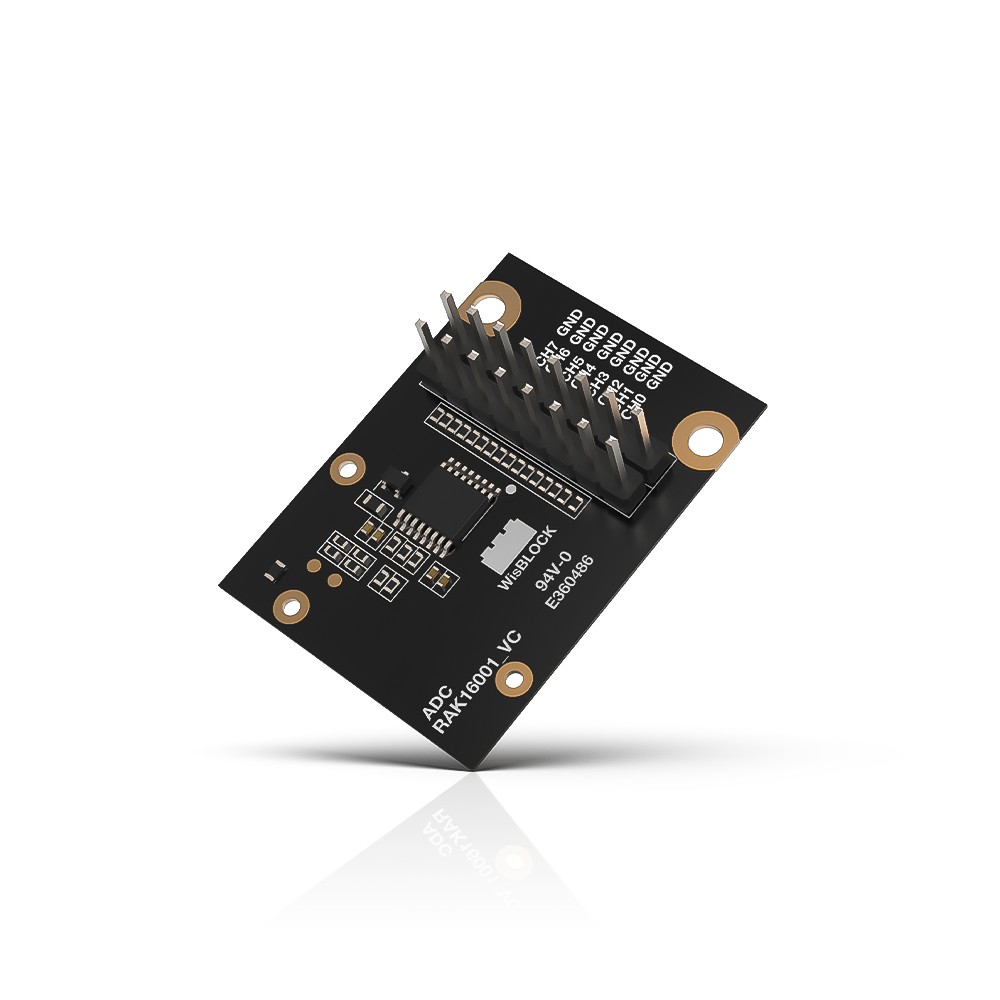

RAK16001 is a WisBlock ADC expansion module based on Texas Instruments ADS7830 which adds 8 additional analog input channels to the WisBlock system.
Use it to extend the analog input capacity of your WisBlock solution. It offers two configurations, either 8 single analog inputs or 4 differential analog input.
Features
- Multiple Voltage Measure Module: 8 Single-ended Inputs Or 4 Differential Inputs
- 70kHz Samping Rate
- ±0.5LSB INL/DNL
- 3.3V Power supply
- Size: 25mm x 45mm
