Joystick Module Atmel ATTINY441-SSU
RAK14007 + RAK14013
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Product Description

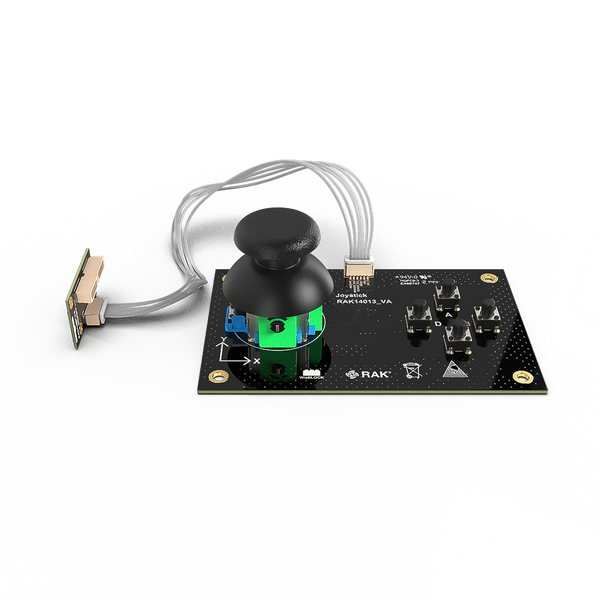

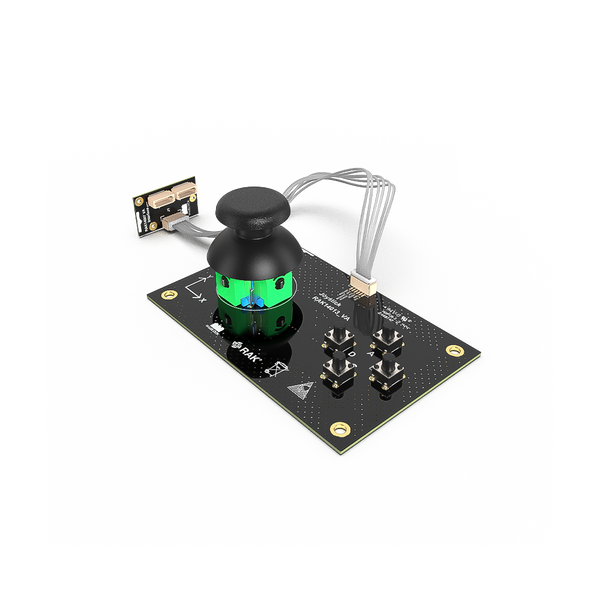

The RAK14007/RAK14013 joystick pad is made with an interface board and a separate module with a joystick and buttons. Even it looks like a video game controller, it can be used in many different IoT applications as HMI to control equipment with WisBlock.
Features
RAK14007
- A separate joystick PCB module RAK14013 is required
- One (1) available connector for RAK14013 WisBlock Joystick Module.
- RAK14007 : 15x25mm
RAK14013
- Joystick module and push buttons
- I2C interface
- 3.3 V Power supply
- RAK14013 : 54x85mm
Package Inclusion
- 1 pc RAK14007
- 1 pc RAK14013
- 1 pc Rectangular Cable
- 1 pc Joystick Cap Rubber
