Keypad Module 3x3 / 3x4 / 4x4
RAK14004 / RAK14009 / RAK14010 / RAK14011
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Product Description

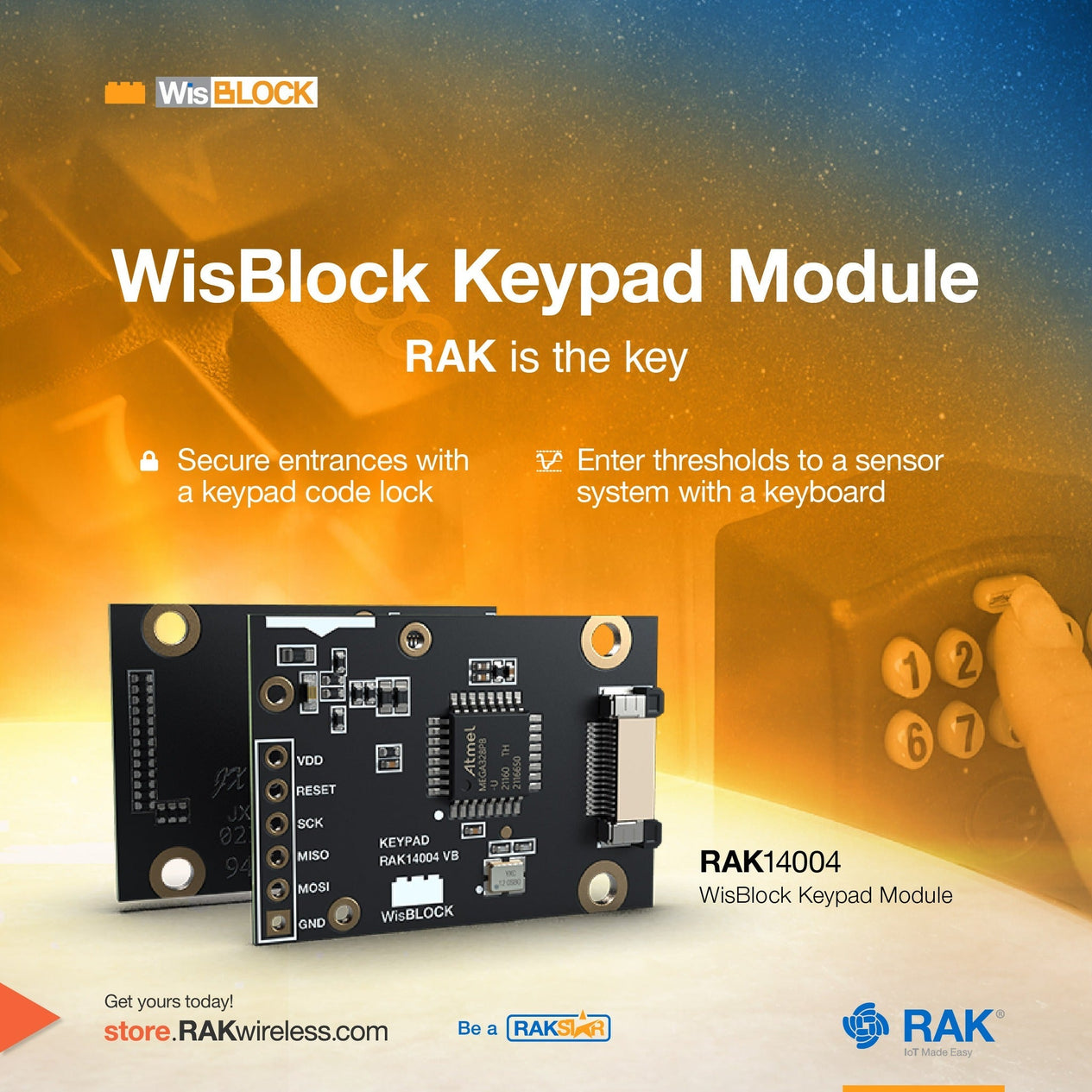

The RAK14004 keypad interface extends your WisBlock solution with a variety of keypads for manual data input or control of your solution.
Select one of our keypads with 3x3, 3x4 or 4x4 key matrices that are connected to the keypad interface with a flex cable.
Build a security entry point or change sensor threshold values on the fly with these keypads.
Features
- RAK14004:
- I2C interface to the WisBlock Core module
- Interrupt on single or multiple key entries
- Supports keypads with a maximum of 64 keys
- Size: 25mm x 35mm

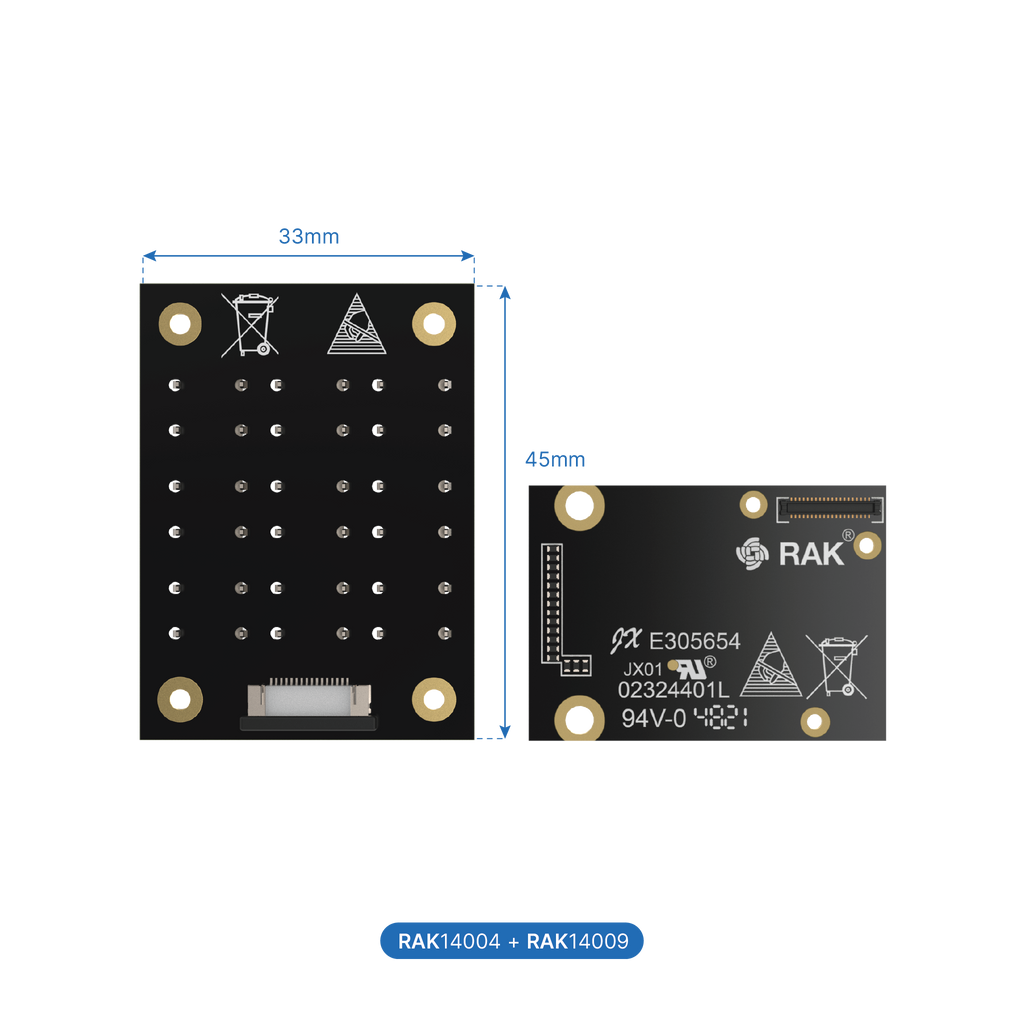

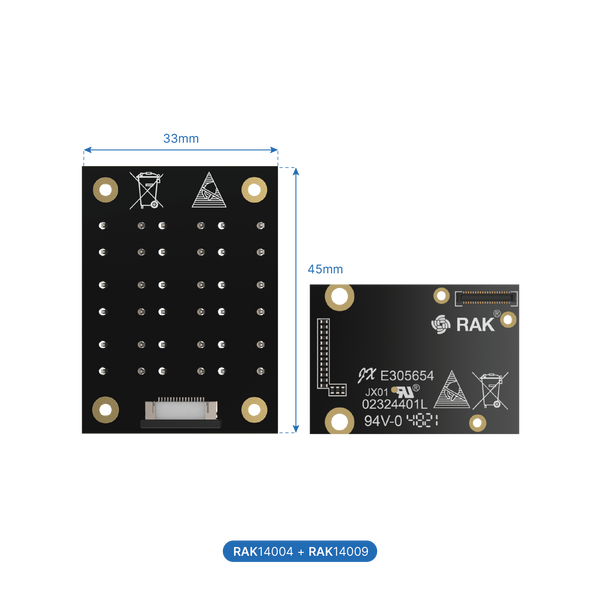

- RAK14009:
- 3 x 3 keypad
- Size: 33mm x 45mm

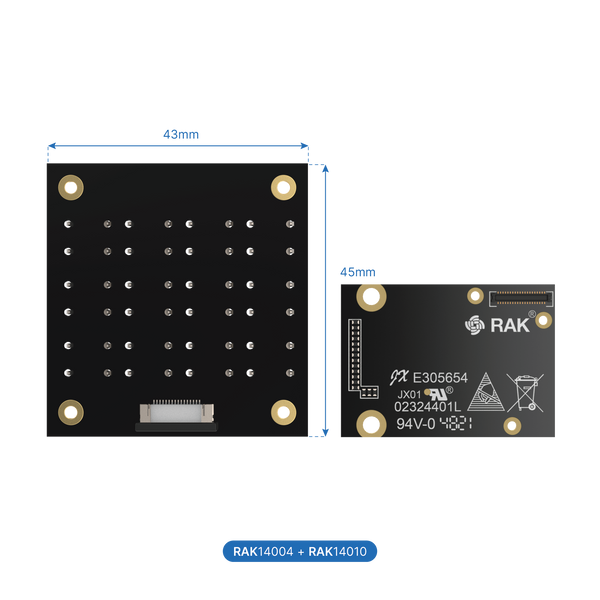

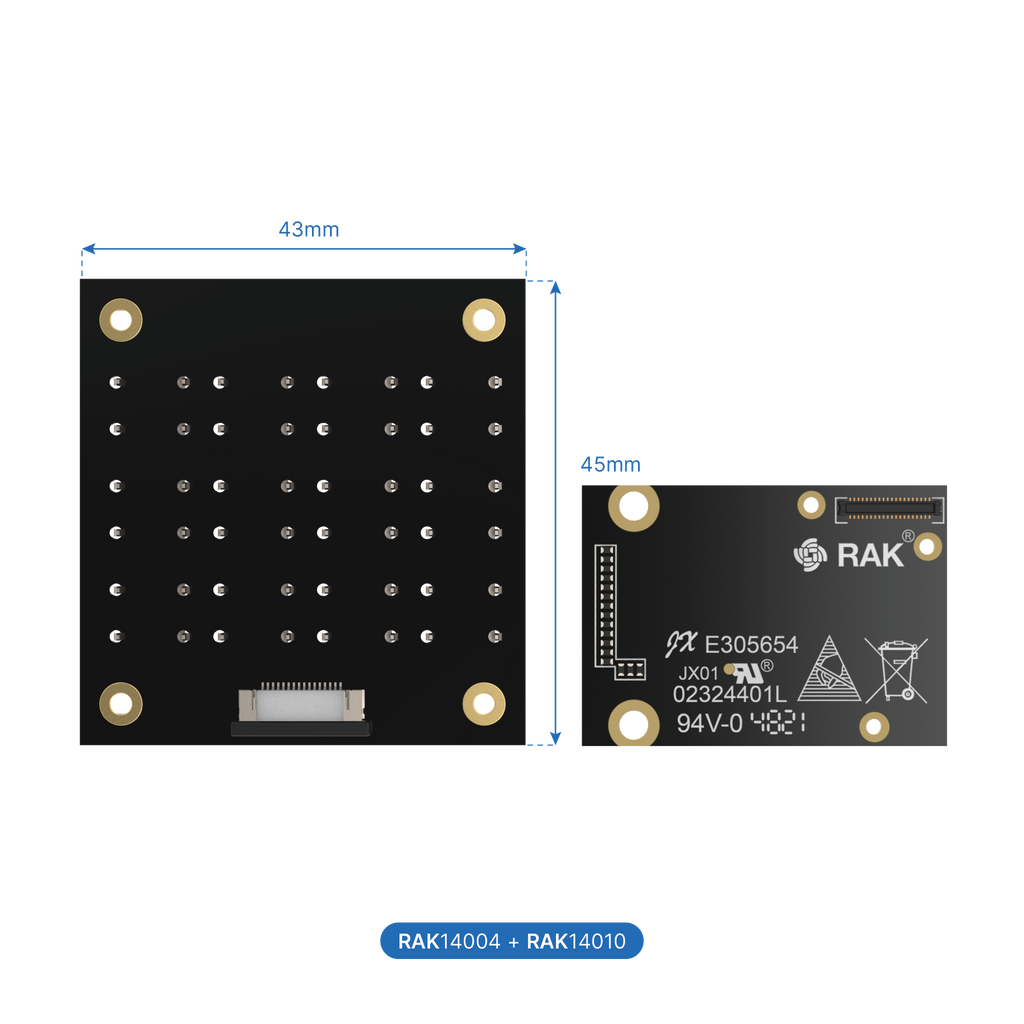

- RAK14010:
- 3 x 4 keypad
- Size: 43mm x 45mm

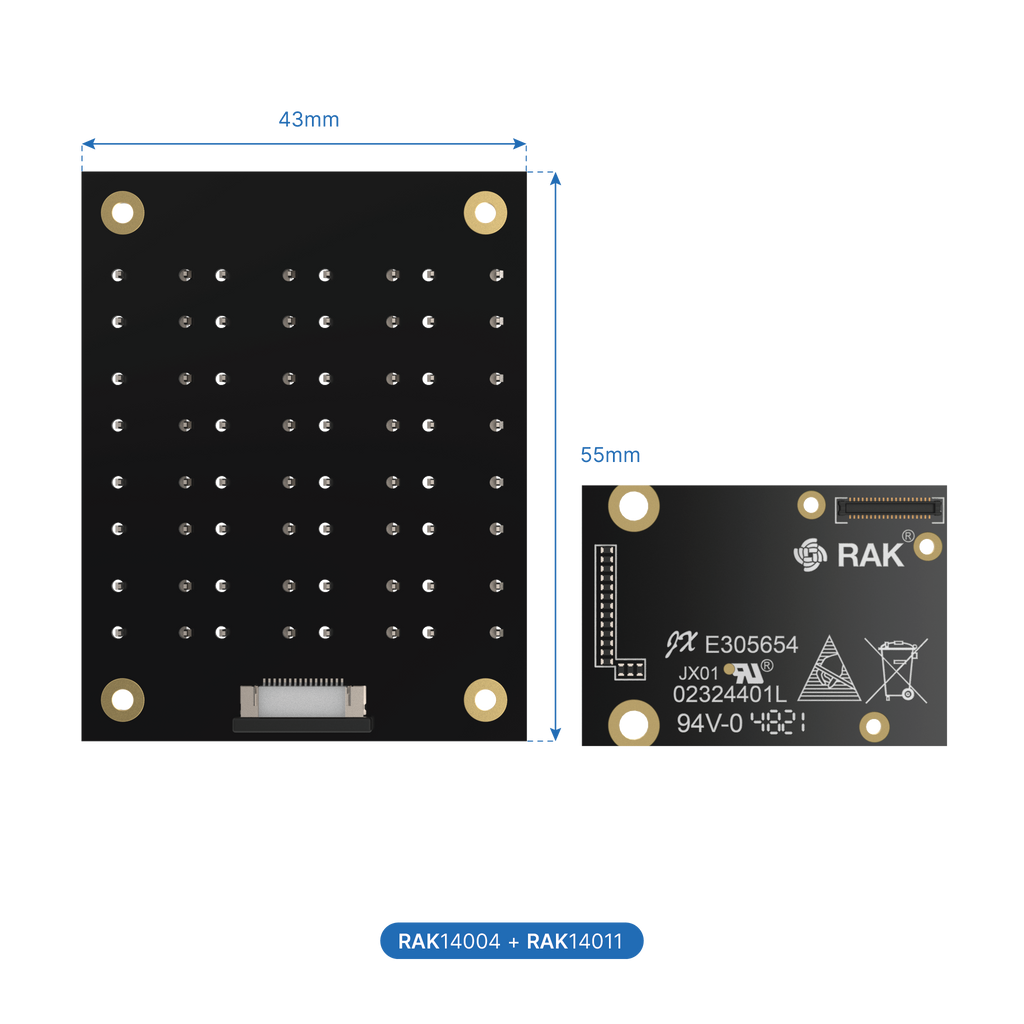

- RAK14011:
- 4 x 4 keypad
- Size: 43mm x 55mm
