9-axis Accelerometer Sensor Bosch BMX160

RAK12034

SKU:100094
$12.50 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Product Description

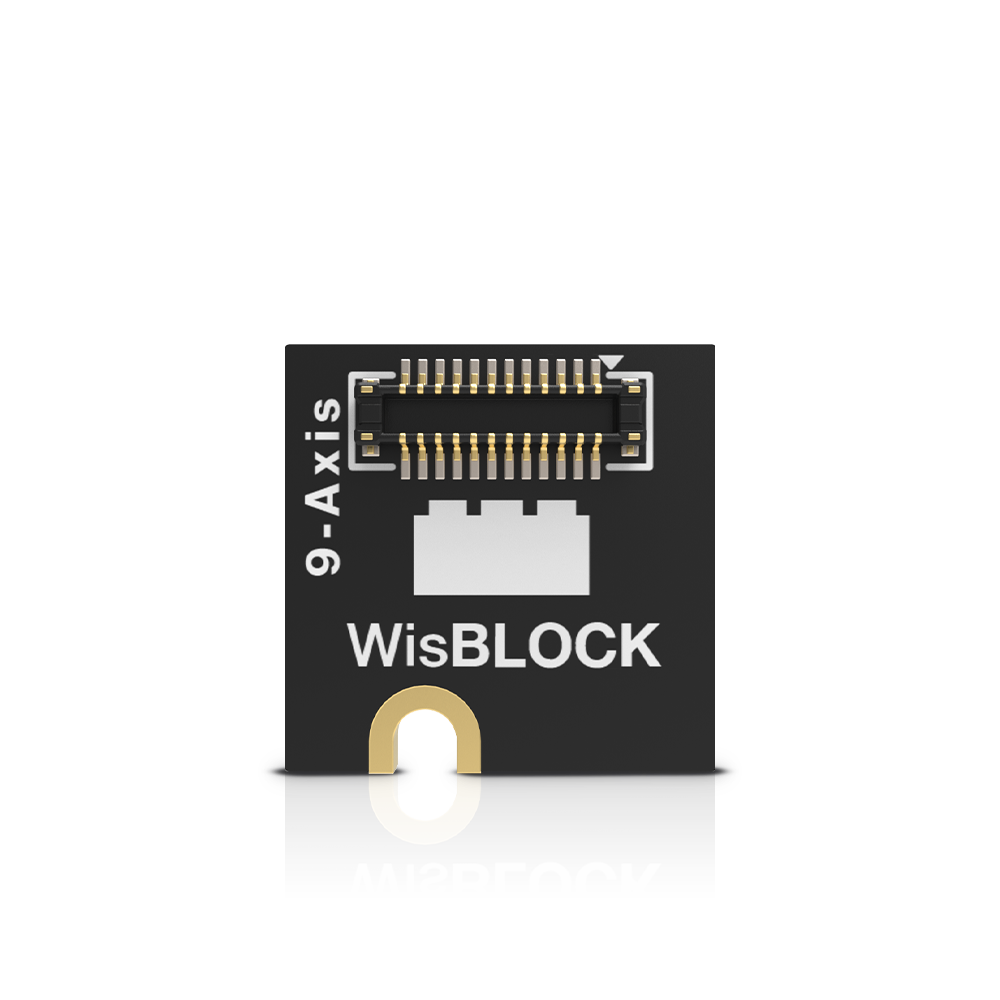

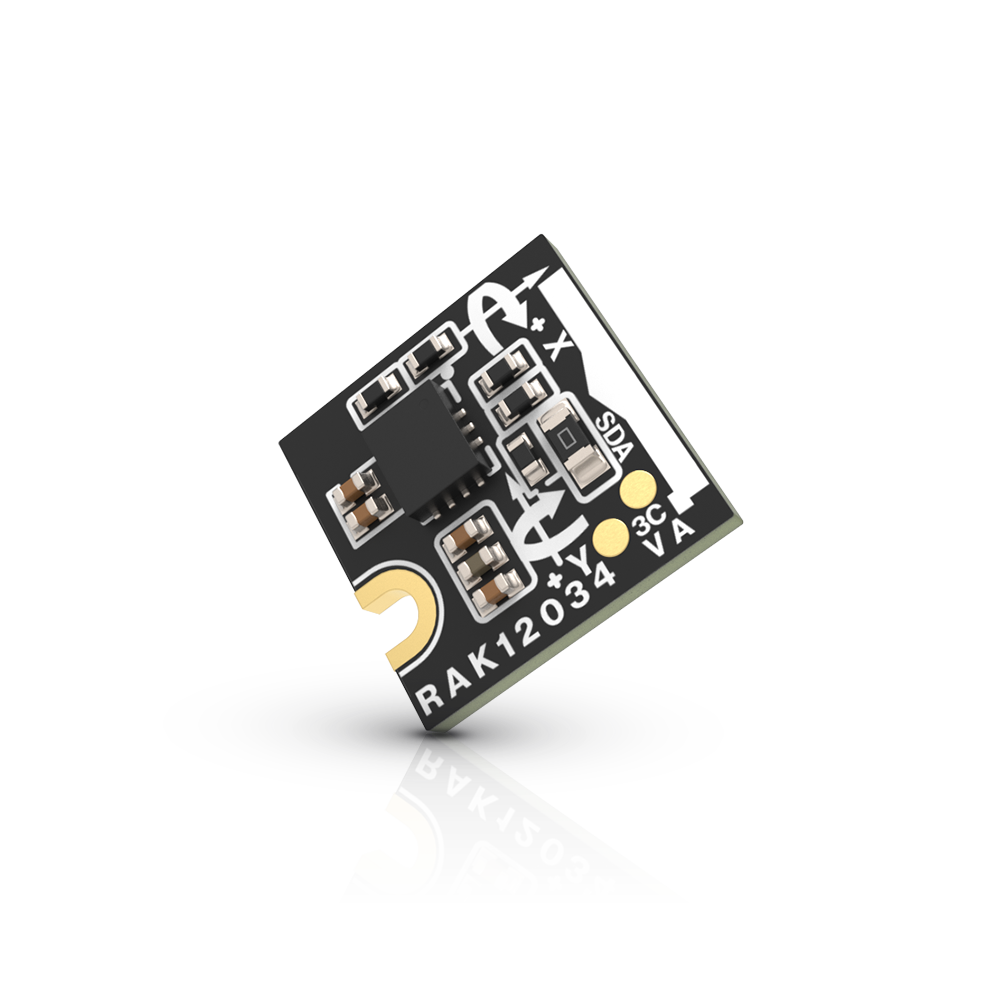

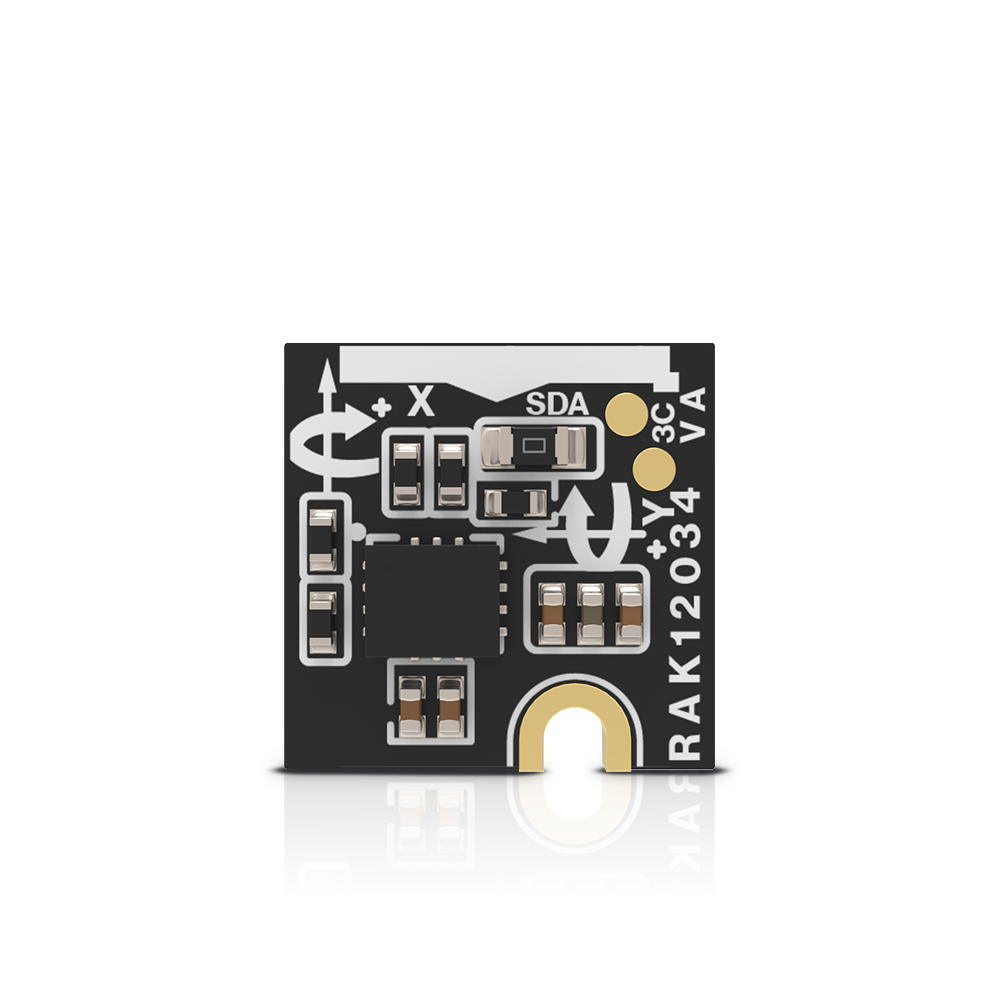

RAK12034 is a WisBlock Sensor based on the Bosch BMX160 which extends the WisBlock system with an absolute orientation sensor.

It combines a 3-axis accelerometer, a 3-axis gyroscope and a geomagnetic sensor in a small package.

RAK12034's scale from ±2g to ±16g and ±125 to ±2000 degrees/sec can be adjusted to the requirements of your application. The geomagnetic sensor has a resolution of 0.3μT.

RAK12034 combined with any WisBlock Core module is a ready to go system for navigation, orientaton measurement, tilt sensing, platform stabilization and robotic systems. The acquired data can be send using LoRaWan® communication, LoRa® point to point connections, BLE or WiFi, depending on the Core module.

RAK12034 is ideal for battery-powered applications because of its low power consumption.

Features

  • Based on Bosch BMX160
  • Very low power consumption: typ. 1585 μA in high performance mode
  • Selectable Acceleration Range ±2 to ±16 g
  • Gyroscope Range 125 °/s to 2000 °/s
  • Magnetic Field Range x/y ±1300 z ±2500 μT
  • 3.3V Power supply
  • Operating Temperature: -40° C ~ 105° C
  • Size 10x10mm
