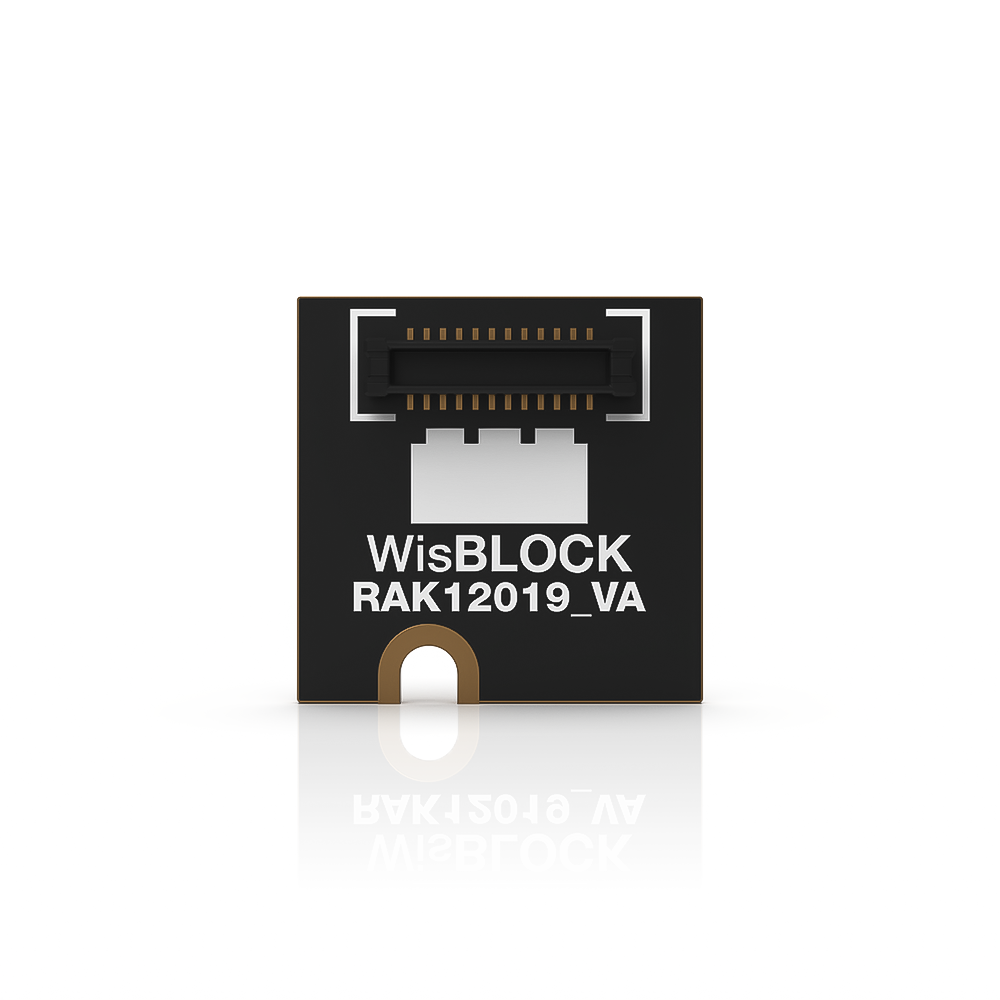

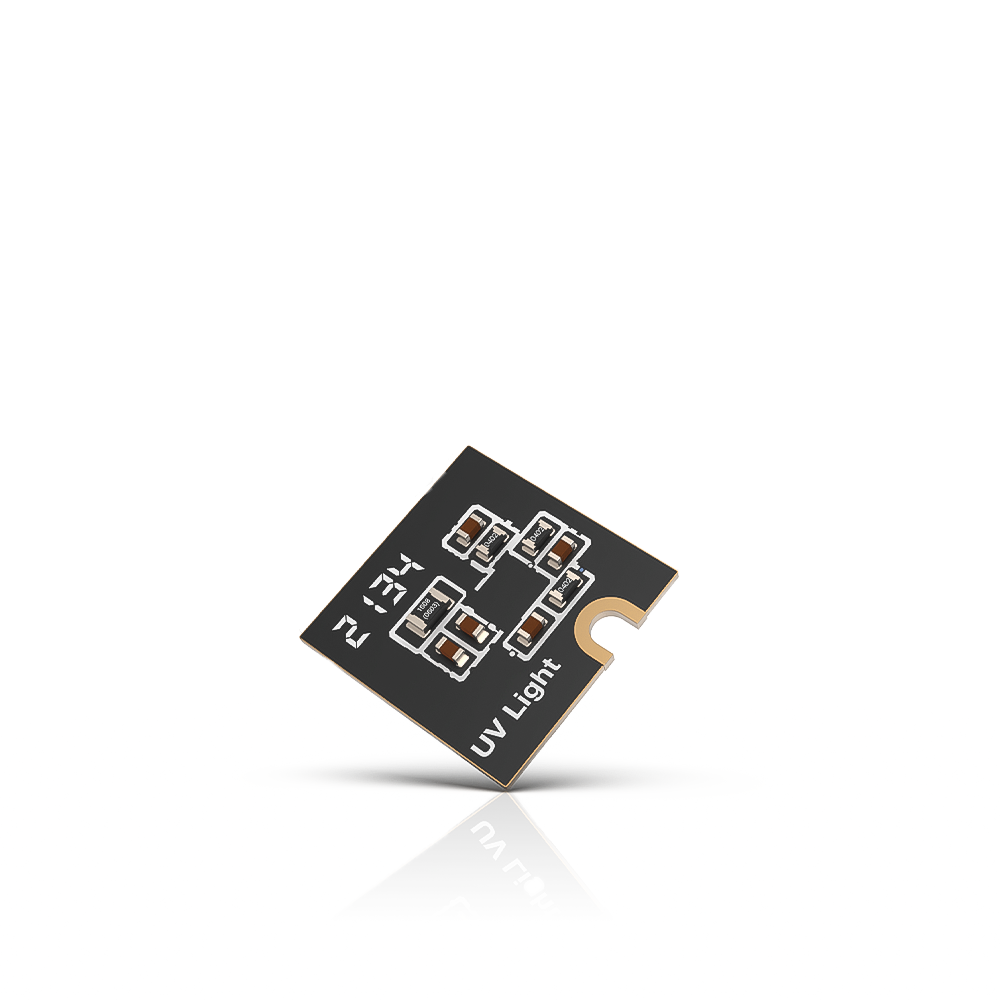

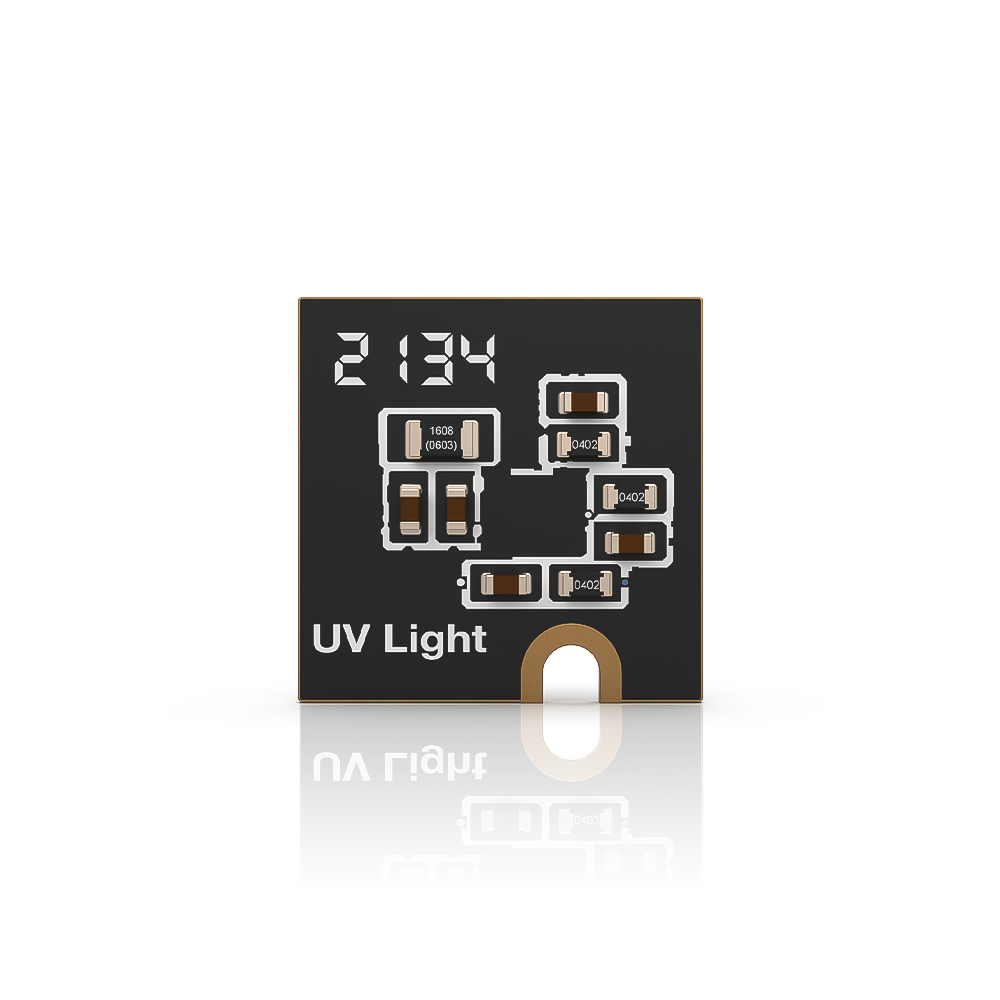

UV Light Sensor Lite-On LTR-390UV-01
RAK12019
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Product Description
RAK12019 is a UV sensor module based on Lite On LTR-390UV-01 sensor. This sensor can measure both ambient and UV light intensities.
Use it in an greenhouse control applications to protect your plants from UV light exposure. Or build a UV level warning systems.
It can be used as well in building lightning and window shadowing applications.
Features
- optional Light Sensor（ALS）or ultraviolet light sensor (UVS)
- I2C interface capable of Standard mode @100kHz or Fast mode @400kHz communication
- Very low power consumption with sleep mode capability
- 13 to 20 bits effective resolution
- Wide dynamic range of 1:18,000,000 with linear response
- Close to human eye spectral response
- Automatic rejection for 50Hz/60Hz lighting flicker
- Operating voltage ranges: 1.7V to 3.6V
- Operating temperature ranges: -40 to +85 ºC
- Built-in temperature compensation circuit
- Programmable interrupt function for ALS , UVS with upper and lower thresholds
Documentation
- RAK12019 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- RAK12019 3D Model
- 24-Pin Male Connector 3D file
- WisBlock Sensor Tutorial
