RAK Battery Plus
The Solar Battery Kit for LoRaWAN Gateways
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Buy from your local authorized seller
Rokland is a RAK distributor in the US. They offer RAK Battery Plus, the best solar battery for LoRaWAN. Check their website regularly for promotions and availability.
Buy at RoklandChoose Rokland for fast and local delivery.
This solution includes everything to power the WisGate Edge Pro or WisGate Edge Prime (with Battery Plus support) gateway with Solar energy anywhere where reliable LoRaWAN coverage is needed.

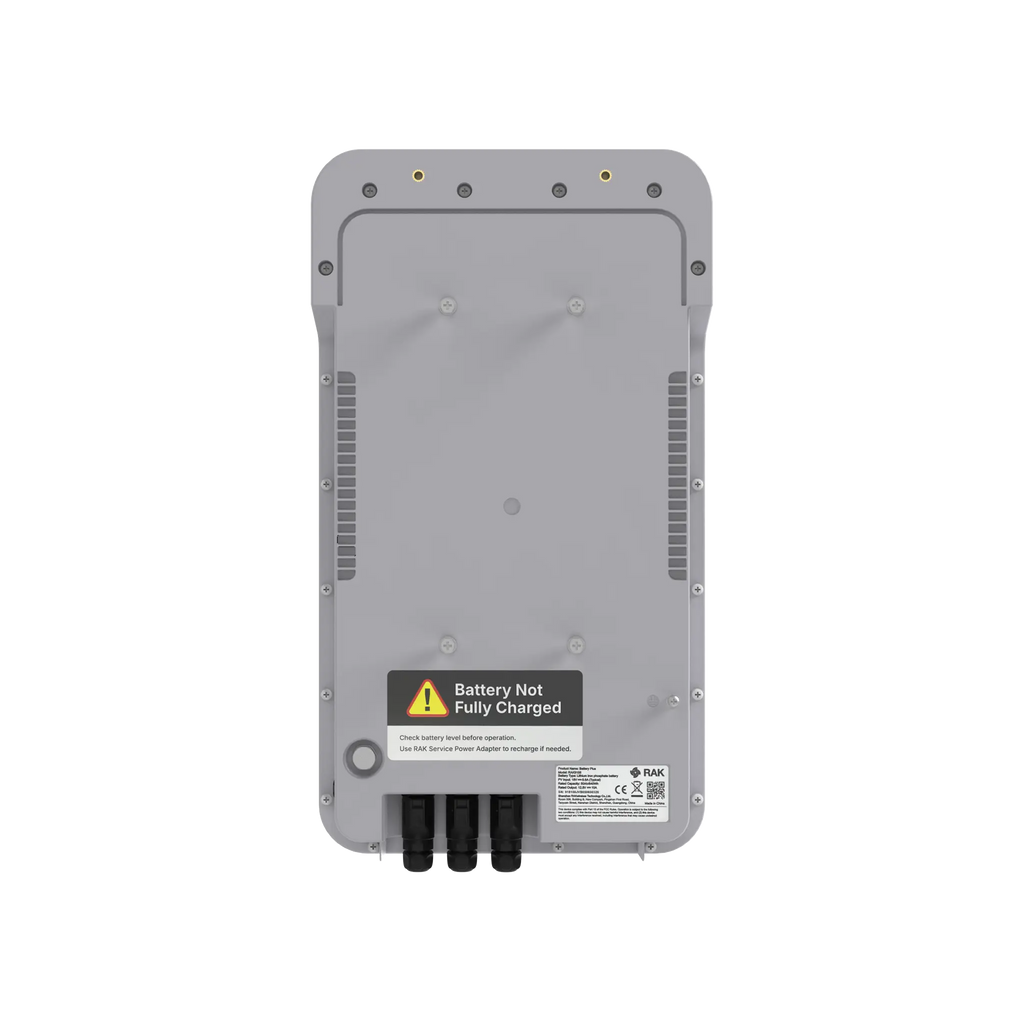

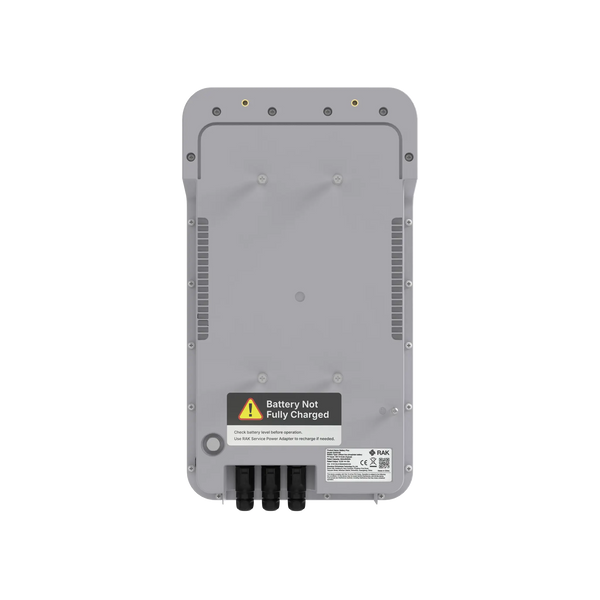

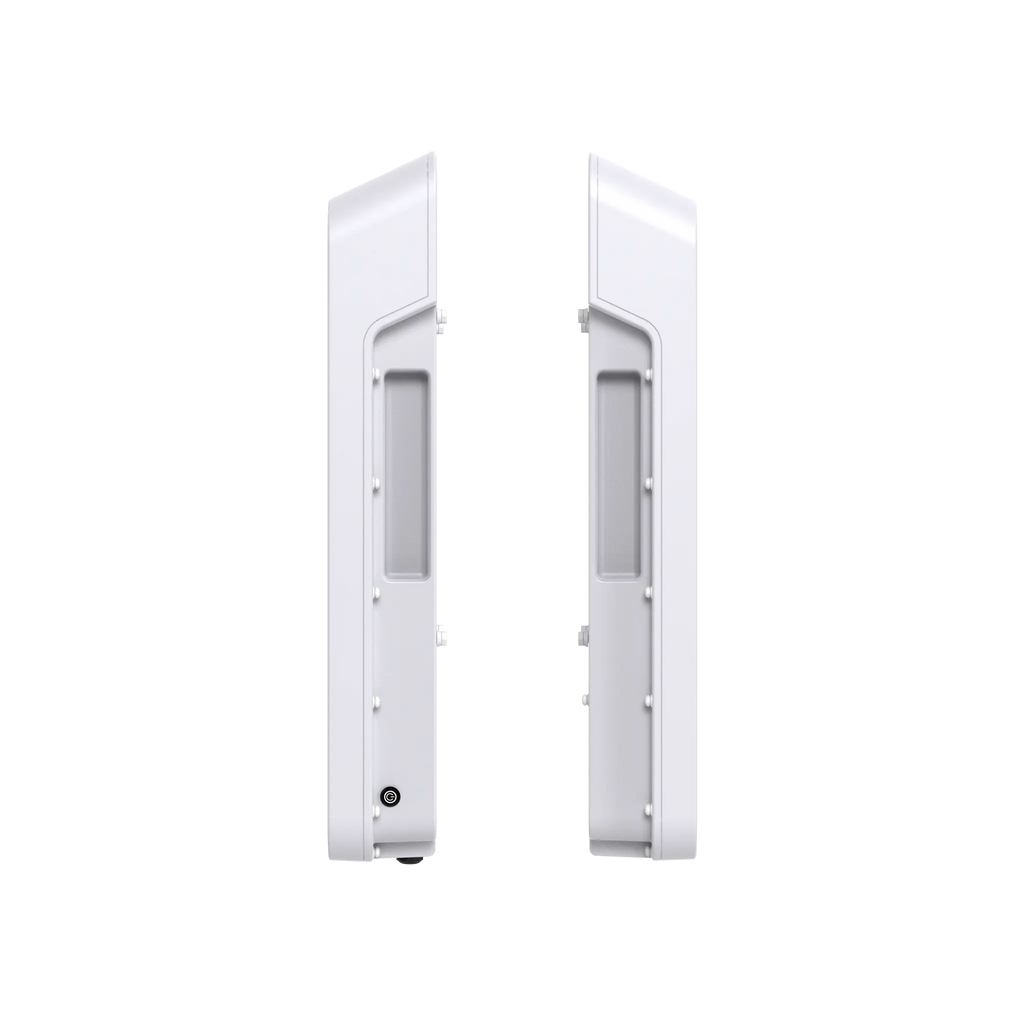

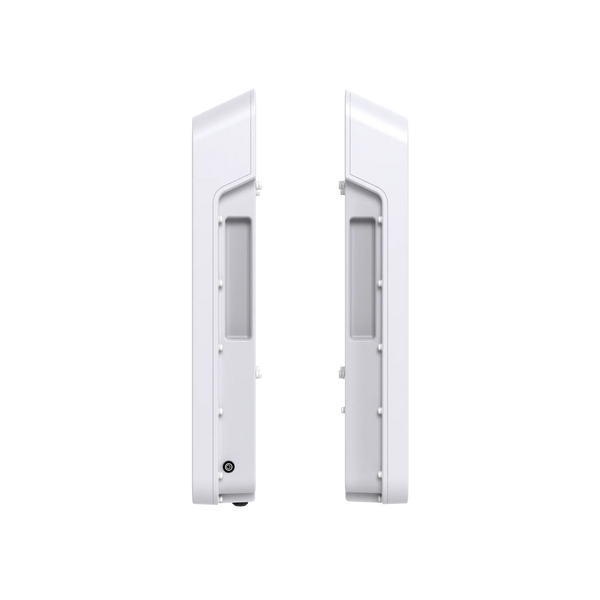

Battery Plus, combined with the Solar Panel Kit, is the latest RAK battery system incorporating a solar panel, mounting kit, solar charging system, and status monitoring. It is specially developed for the WisGate Edge Pro and WisGate Edge Prime(with Battery Plus support) gateways. It will allow reliable outdoor deployment of the gateway in remote off-grid scenarios where the power is unreliable or inaccessible. Not only will your gateway be powered 24/7, but you will also get all the battery information and status in the WisGateOS Web UI locally and in the WisDM platform remotely.
With this 50ah battery, your gateway can run for more than 5 days without sun. The 80W panel is specially selected to meet the needs of the Battery Plus system and with the included mounting kit the solution can be deployed quickly and easily.
Enhance your commercial and large-scale deployments with the RAK Battery Plus, backed by a Product/Public Liability Certificate of Insurance for unparalleled reliability and risk mitigation in even the most remote locations.
Battery Plus Features
- Long Life Span - The Lithium Iron Phosphate battery can be expected to remain serviceable for more than 10 years, considering that it is charged and discharged once a day at room temperature (25°C).
- Integrated Heating Function - The battery integrates a solar charger and heater, it can be connected to PV panels directly and charged under 0°C.
- Lightweight Design - The weight of RAK9155 is no more than 8kg making installation by a single person easier.
- High Waterproof Grade - With an IP65 rating of the enclosure, RAK9155 is suitable for both indoor and outdoor environments.
Solar Panel Kit Features (included with the RAK Battery Plus & Solar Panel kit variant)
- Peak power: 80 W
- Open circuit voltage (Voc): 24.4V
- power voltage (Vmp): 20.5V
- power current (Imp): 3.90A
- Dimensions: 795x580x30mm
- Operating temperature: -20°C to +60°C
- The pole diameter supported by the mounting kit is 50-100 mm
Note:
Bundle Inclusion
- Battery Plus power solution with 50Ah battery
- Solar Panel with mounting kit (if selected)
- All cables for the connection between the Solar Panel, Battery Plus, and gateway are included
Package Inclusion
- 1pc Solar Battery
- 3pcs Power Cable
- 1pc Mounting Kit
- 3pcs Cable trap-Screw Mount
- 1pc Carry equipment
|
Ensure Optimal Performance
A dedicated Service Power Adapter for Battery Plus is available. Add it via the "Check to Include" option! It is suitable for the following purposes:
This adapter is an essential tool for maintaining and ensuring the efficiency of your RAK Battery Plus. |
