Pulsar Cable | RAK9731/RAK9732
Pulsar Cable | RAK9731/RAK9732

Pulsar Cable

RAK9731/RAK9732

SKU:920093
$10.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Buying from the US? Up to 70% tarrif may apply.

Choose Your Product Options:
Authentication Service

Notice:  New Product

Product Description

RAK9731

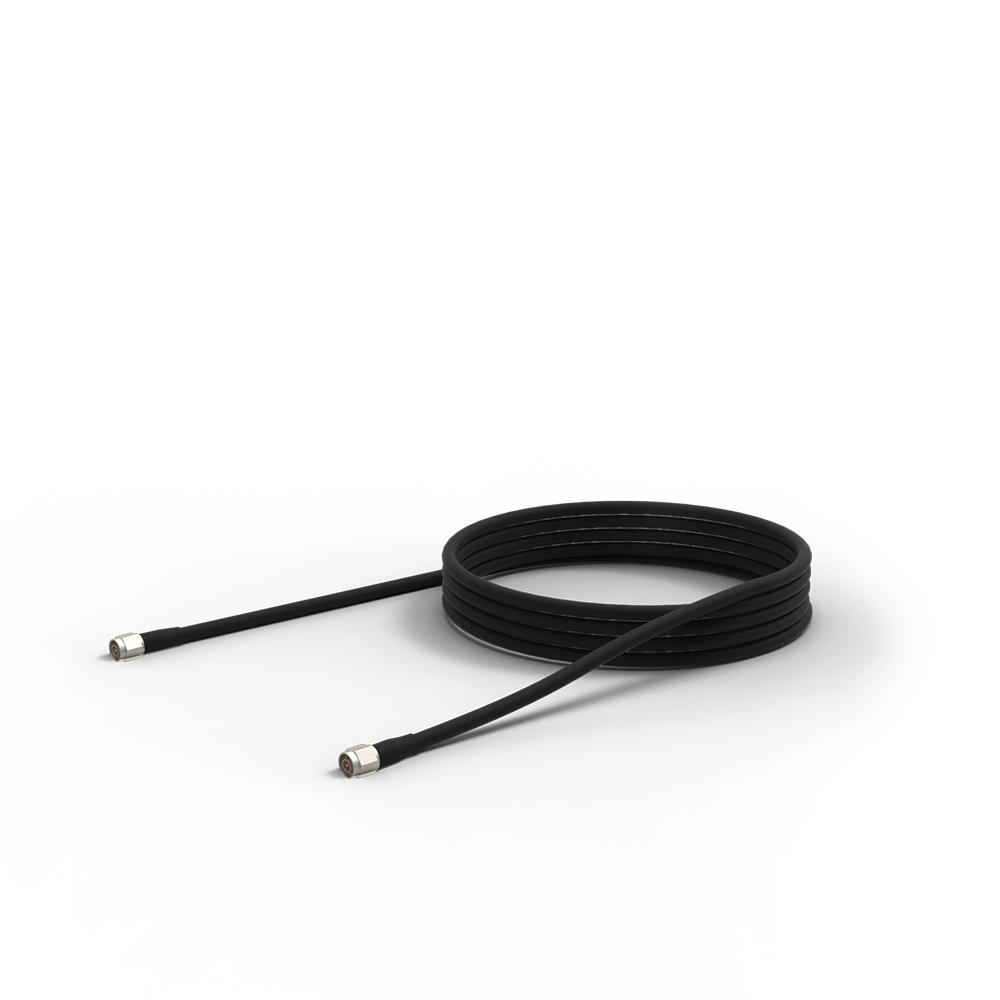

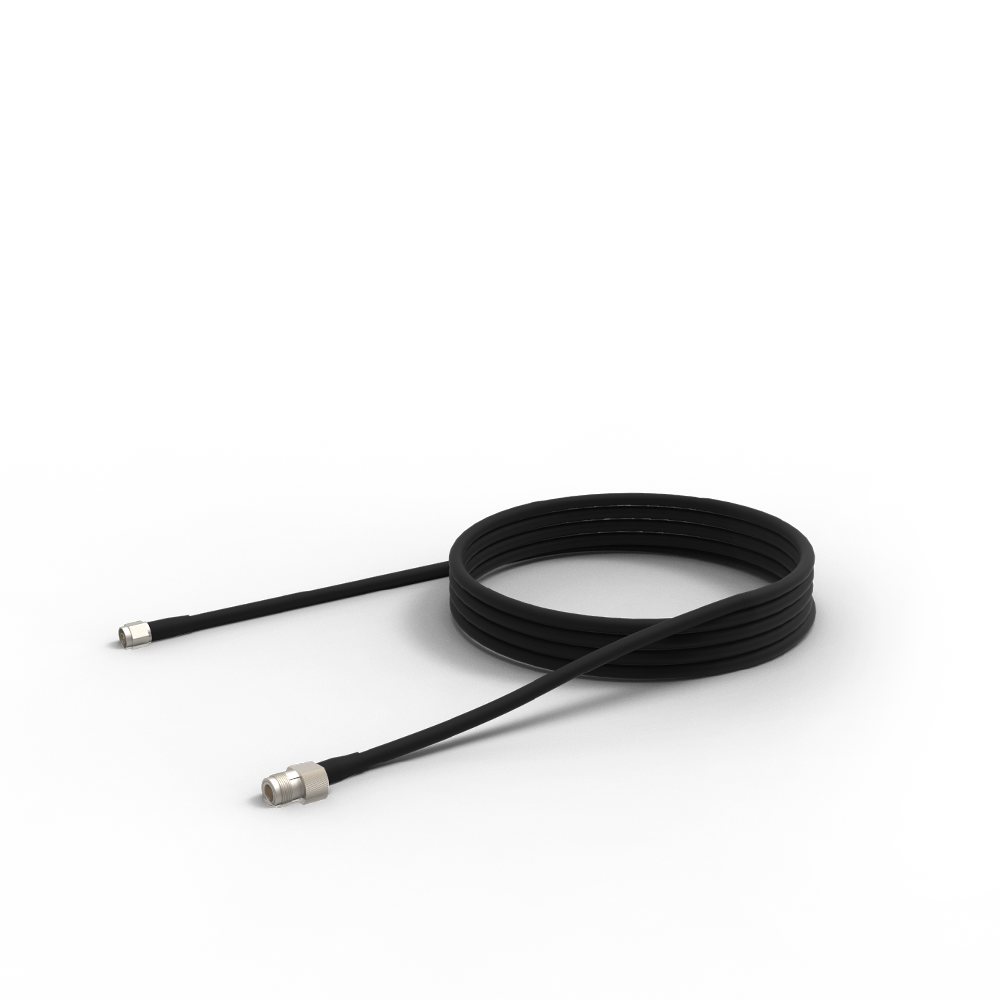

The Pulsar cable is a high-grade, low-loss cable, suitable for outdoor applications with WisGate Edge Prime, Max, and Pro (RAK7240, RAK7249, and RAK7289).  This cable allows you to better position the gateway's antennas for optimal coverage.

Power loss

Frequency 1.5-m / 4.9-f Length 3-m / 9.8-f Length 5-m / 16.40-f Length 10-m / 32.80-f Length
433 - 435 MHz ≤ 0.30 dB ≤ 0.15 dB ≤ 0.65 dB ≤ 1.15 dB
470 - 510 MHz ≤ 0.35 dB ≤ 0.50 dB ≤ 0.70 dB ≤ 1.20 dB
863 - 870 MHz ≤ 0.10 dB ≤ 0.63 dB ≤ 0.85 dB ≤ 1.65 dB
902 - 930 MHz ≤ 0.15 dB ≤ 0.65 dB ≤ 0.90 dB ≤ 1.70 dB

Product Features

  • RAK9731
    • Cable length variants: 1.5 m, 3 m, 5 m, 10 m
    • Connector: N-type male to N-type female
    • Frequency Range: 0~6 GHz
    • Cable type: LMR400
    • VSWR: ≤ 1.5

Documentation
