PDM Ultrasonic Microphone Sensor Knowles SPH0655LM4H-1

RAK18032

SKU:110111
$7.50 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Description

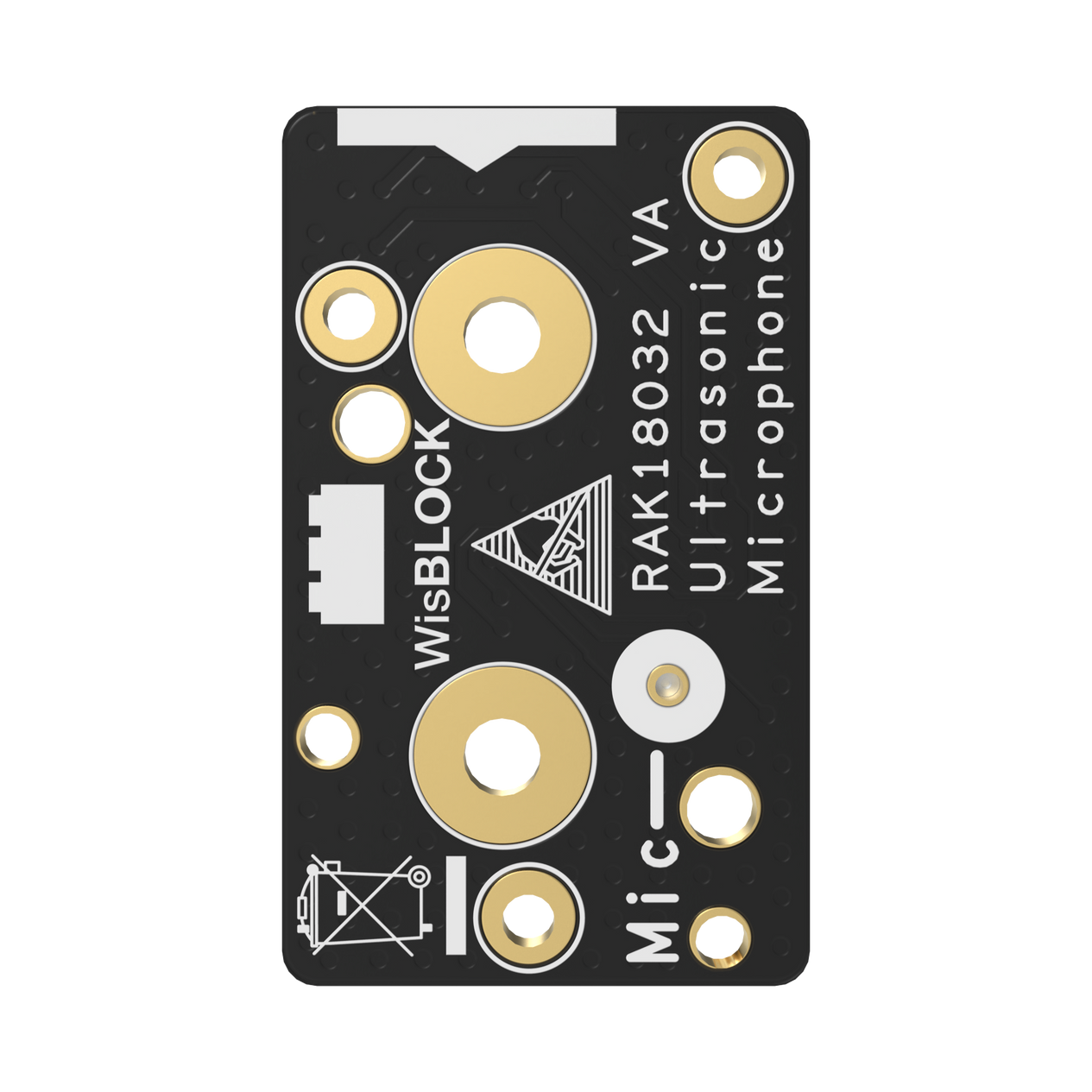

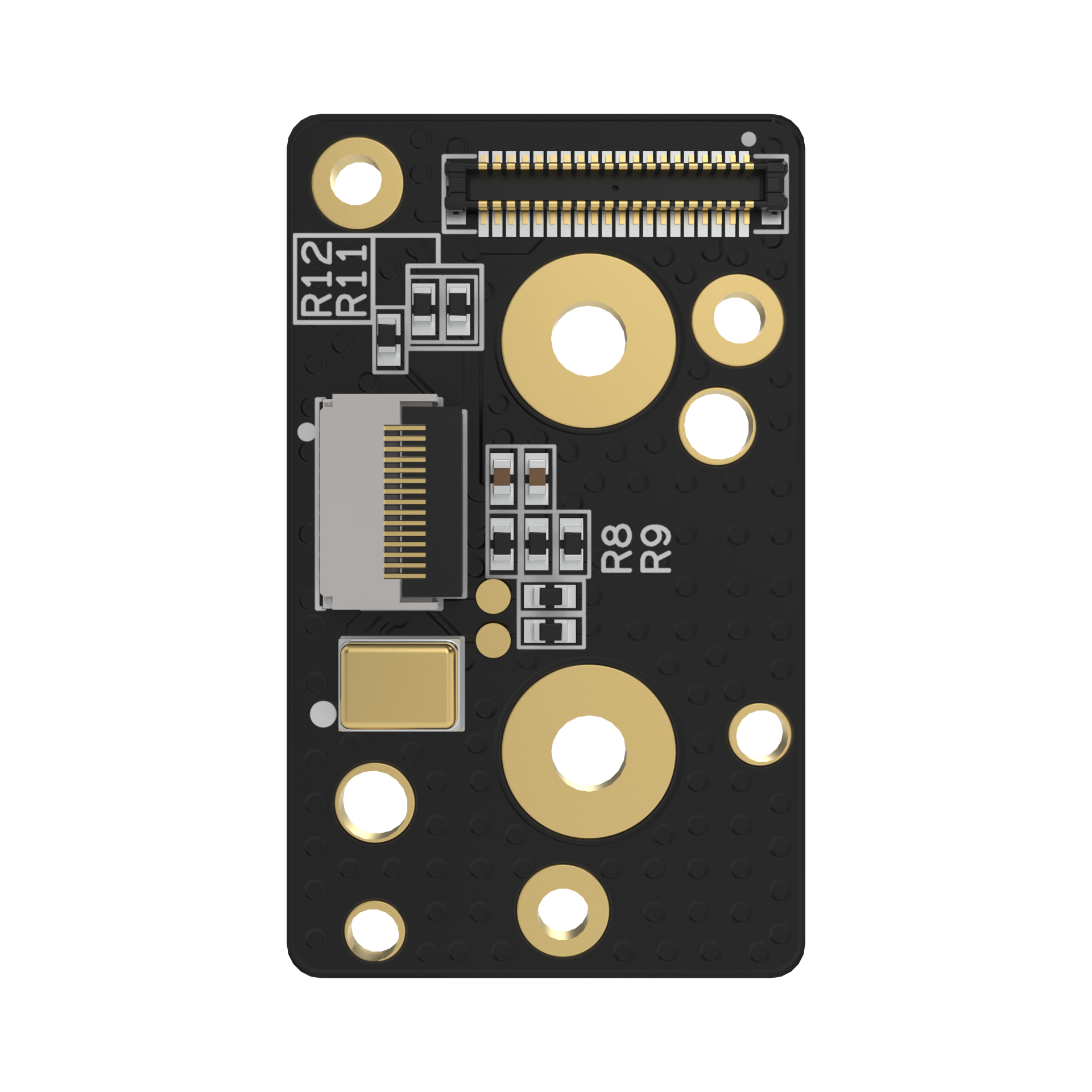

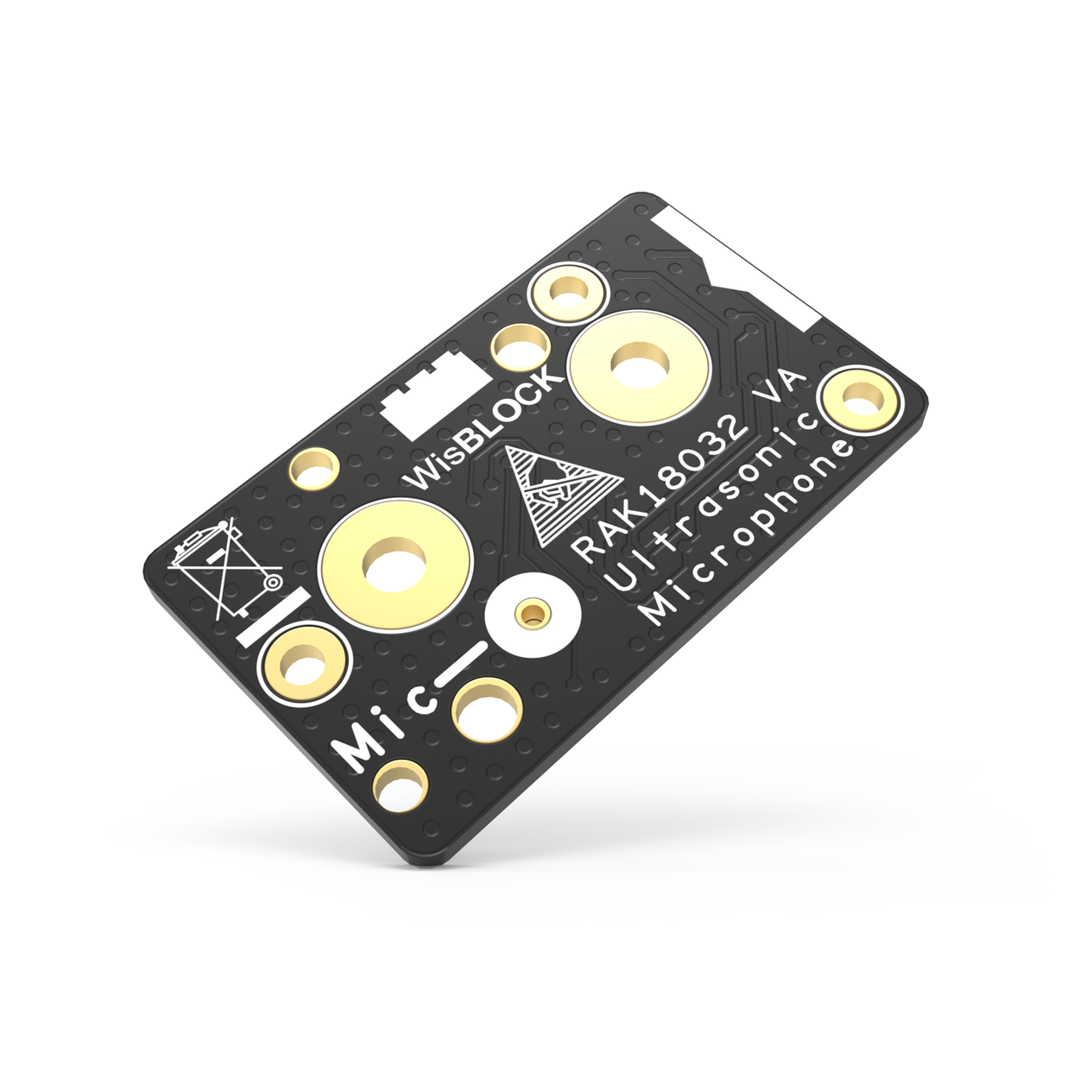

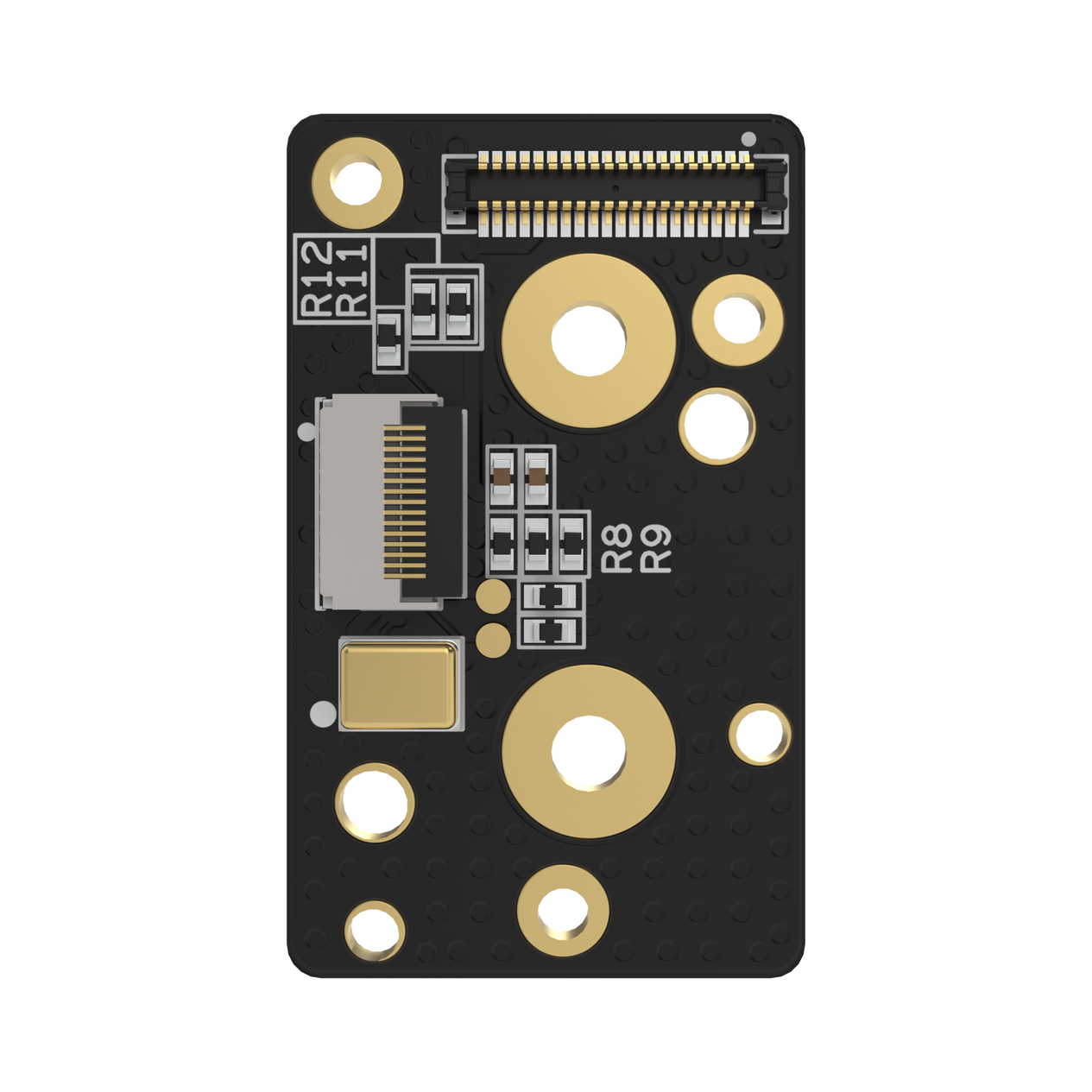

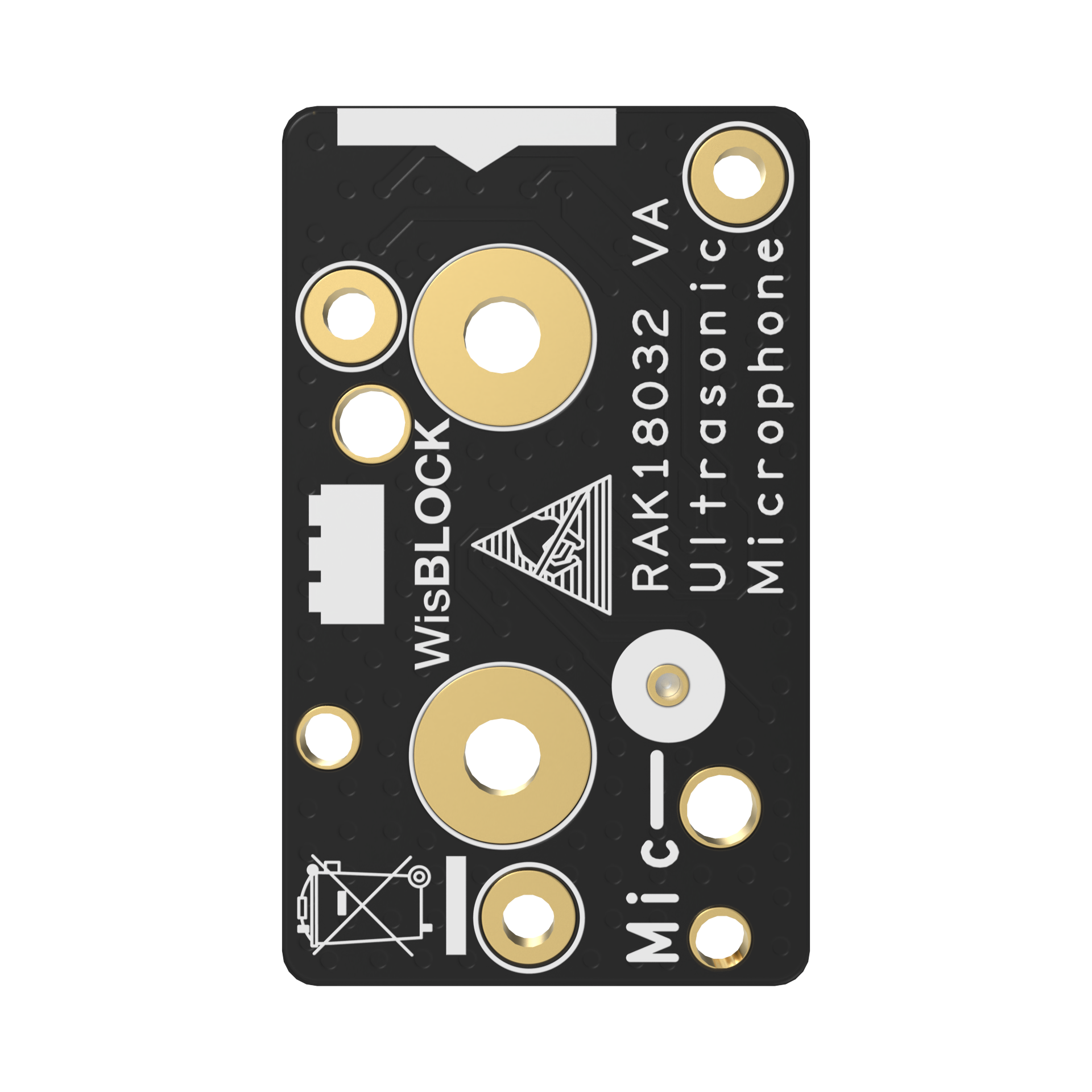

The RAK18032 is a mono PDM microphone module based on the Knowles SPH0641LU4H-1 which extends the WisBlock system with sound sensing capability.

The RAK18032 is a digital microphone module that converts analog audio to digital PDM signals. It supports left and right channels through a GPIO signal.

The RAK18032 can be used in applications such as audio sensing and audio recording.

Features

  • PDM microphone
  • Frequency Response 20 - 80kHz
  • Low Distortion of 0.2% at 94dB SPL
  • 64 dB(A) signal-to-noise ratio
  • Omnidirectional sensitivity
  • Size 15mmx 25mm

Package Inclusion

  • 1 pc RAK18032
  • 3 pc M1.2x4 Screw
