Particle Matter Sensor Plantower PMSA003I
RAK12039
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Description

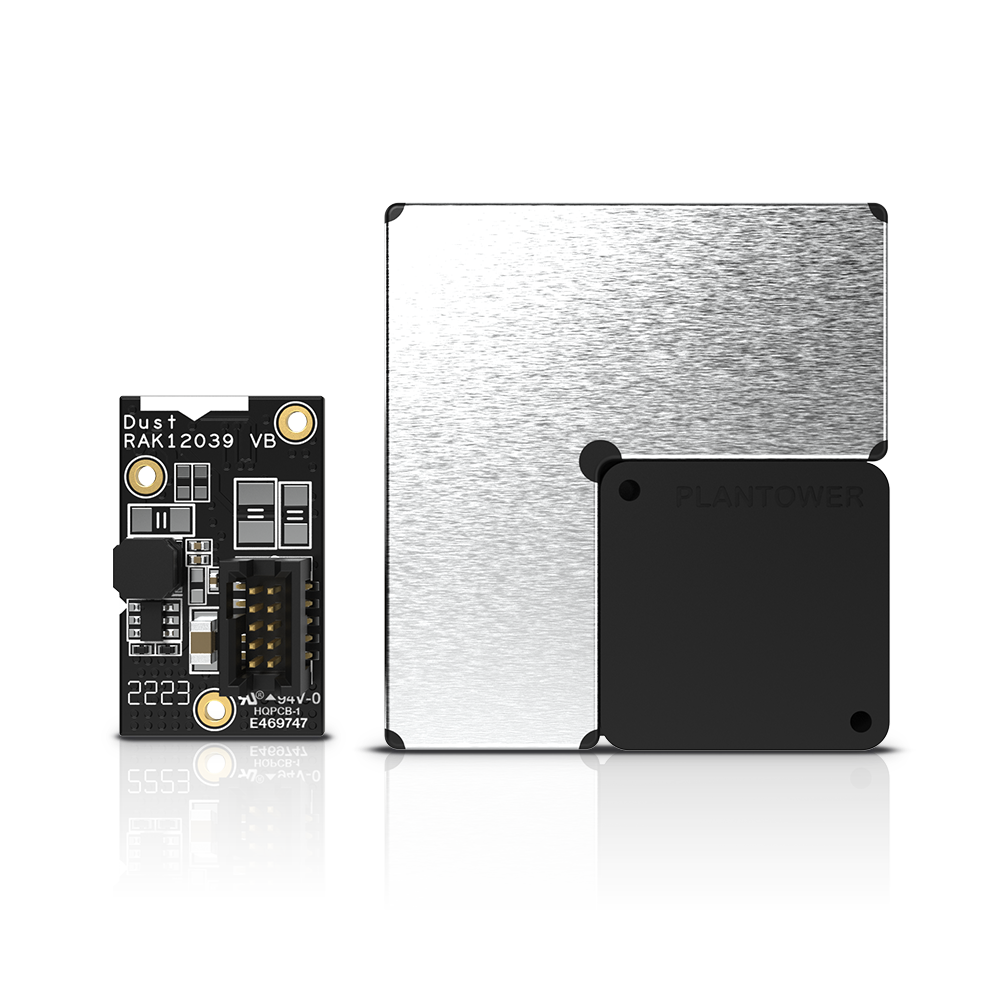

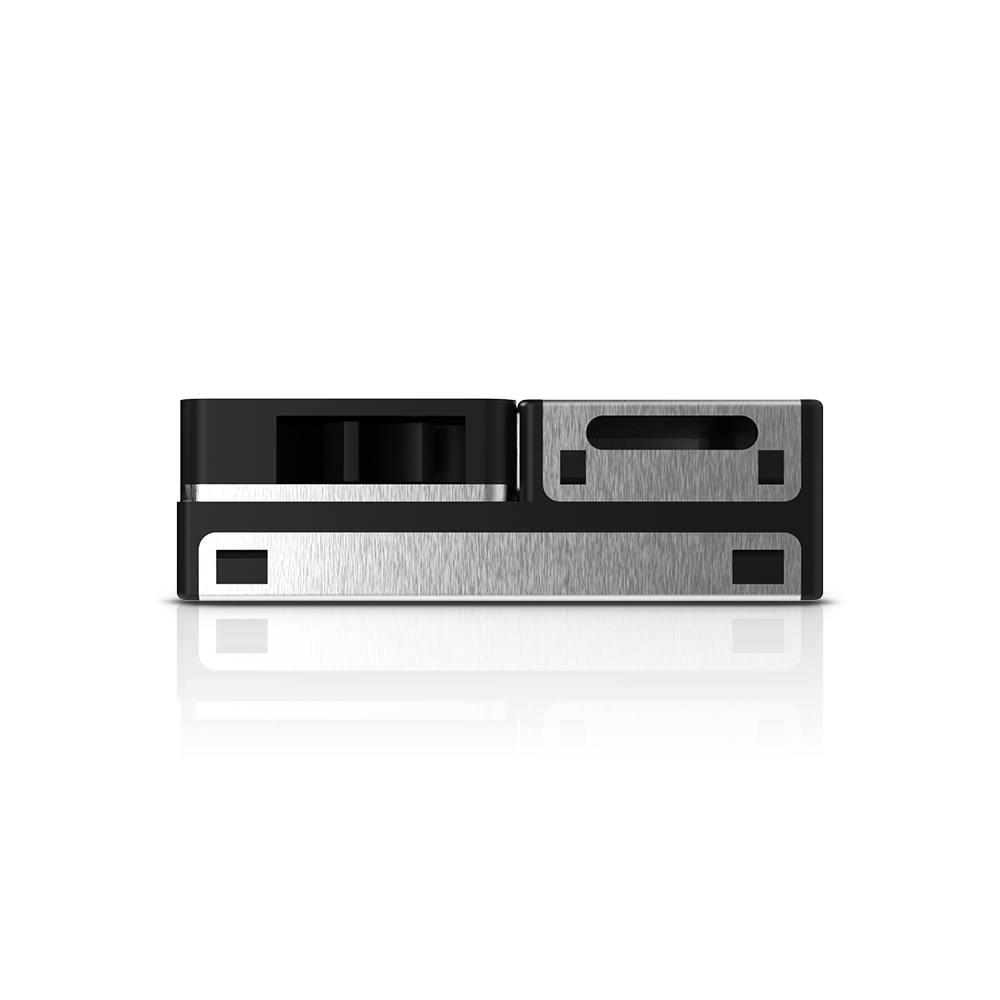

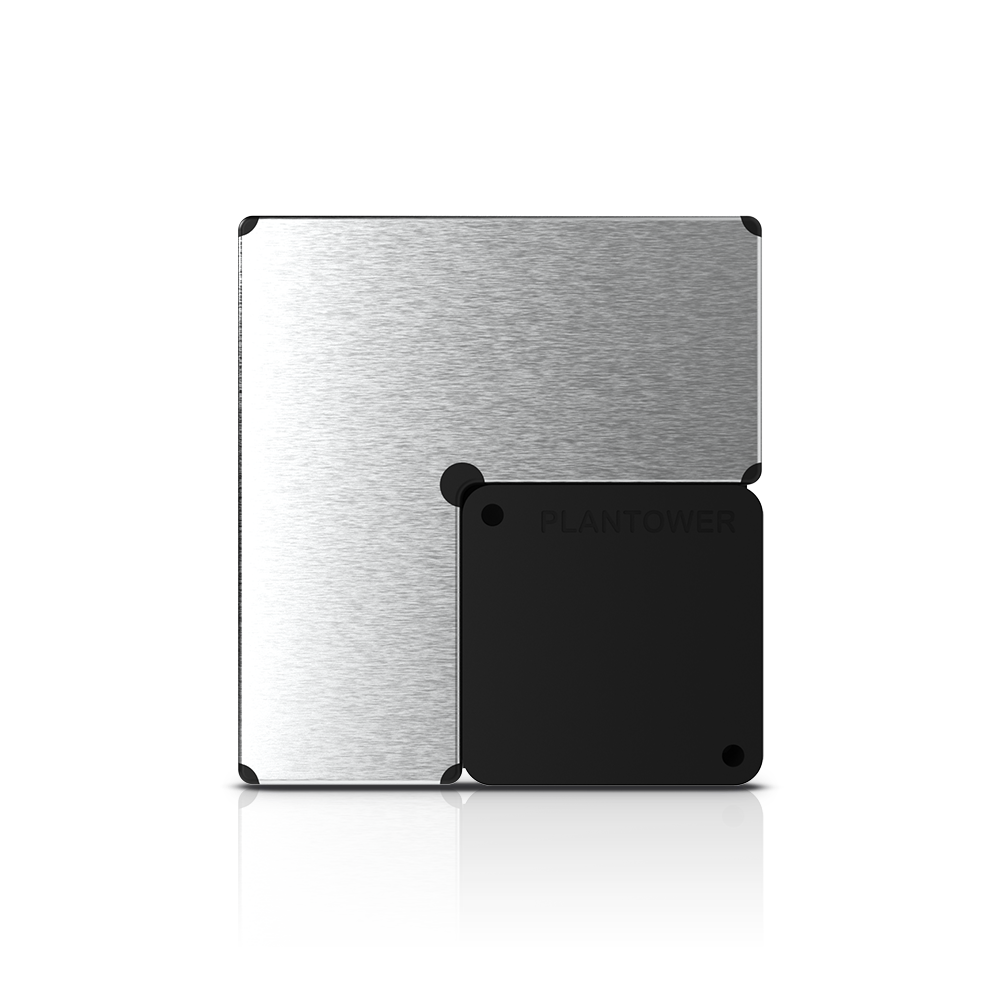

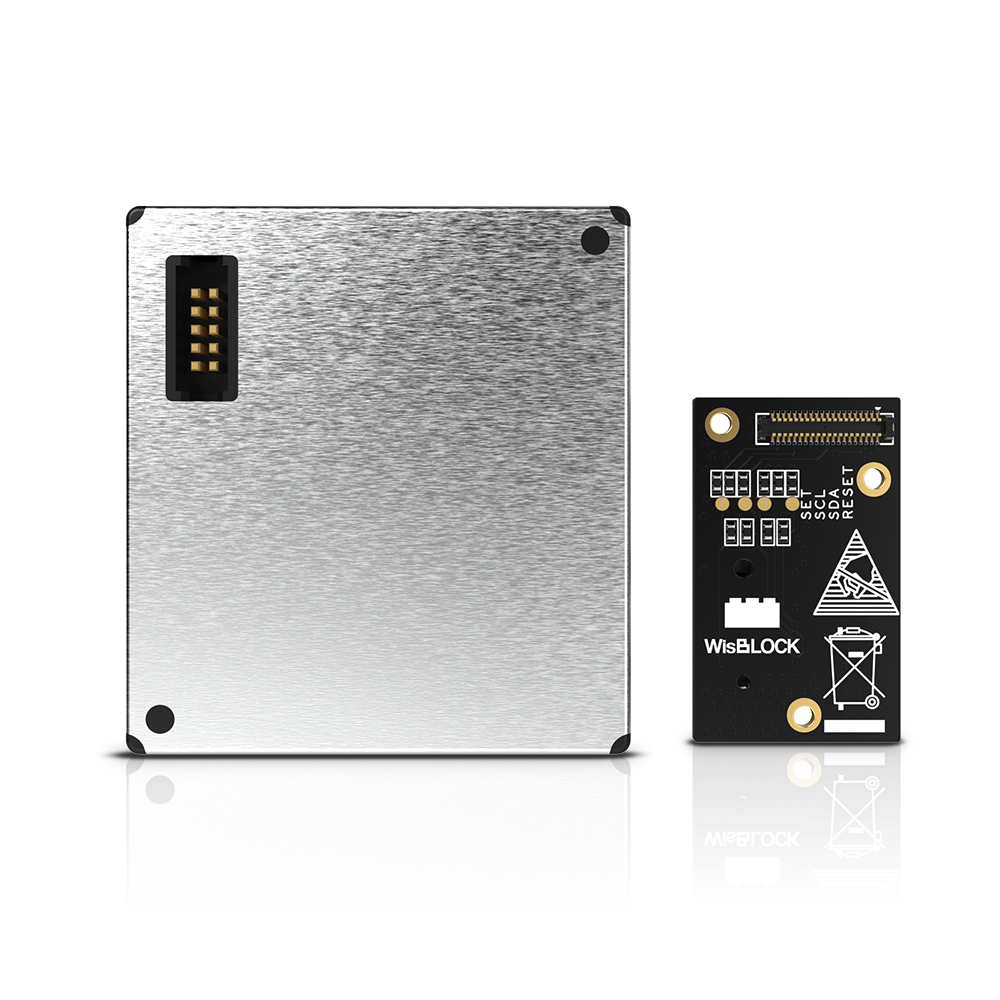

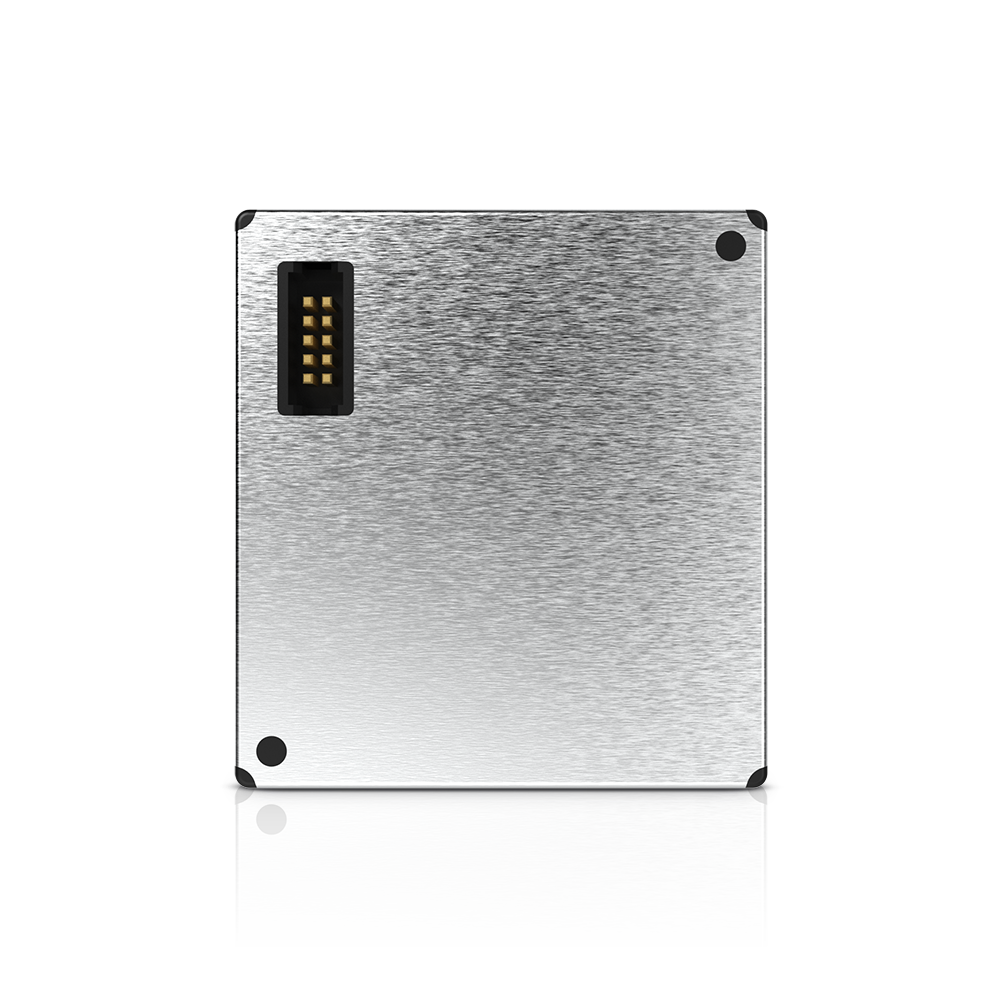

The RAK12039 is using the Plantower PMSA003I Particle Matter sensor, that can detect the concentration of particles in the air with sizes of 1.0, 2.5 and 10μm. The PM sensors are an important part of indoor Air Quality devices.

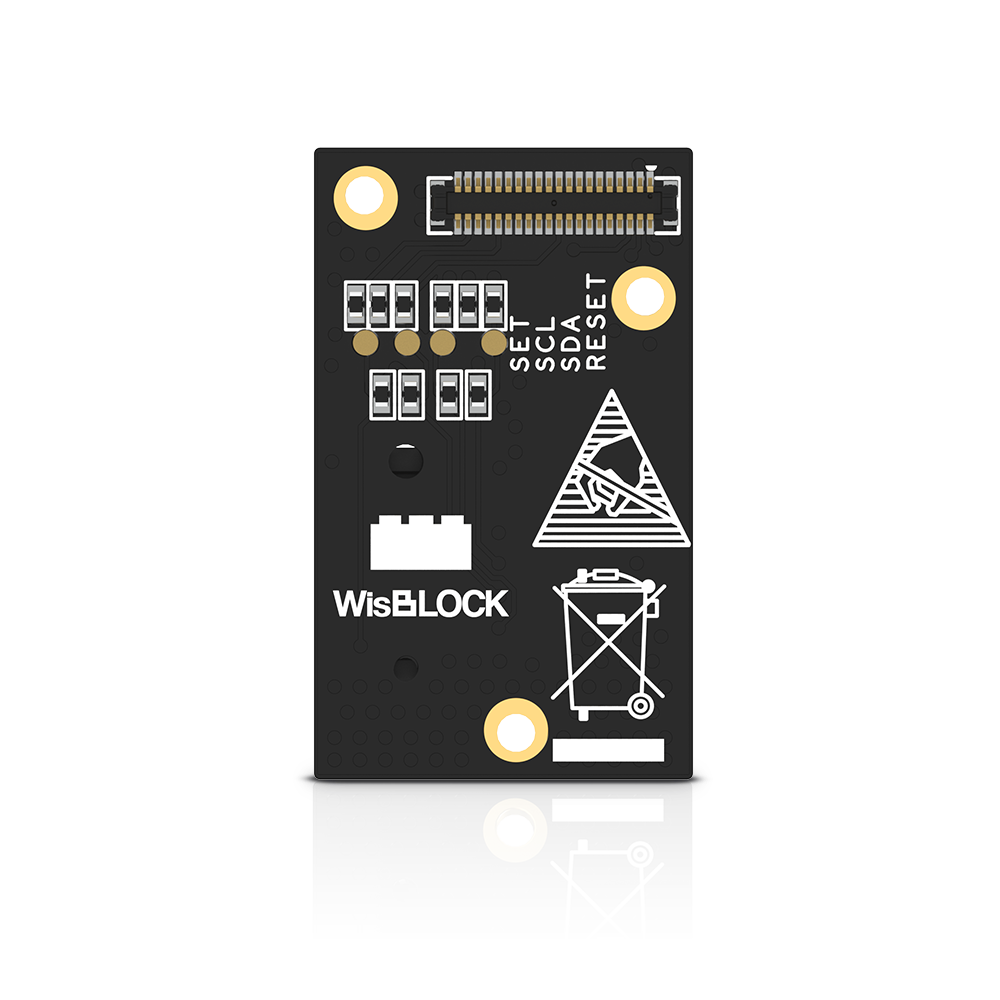

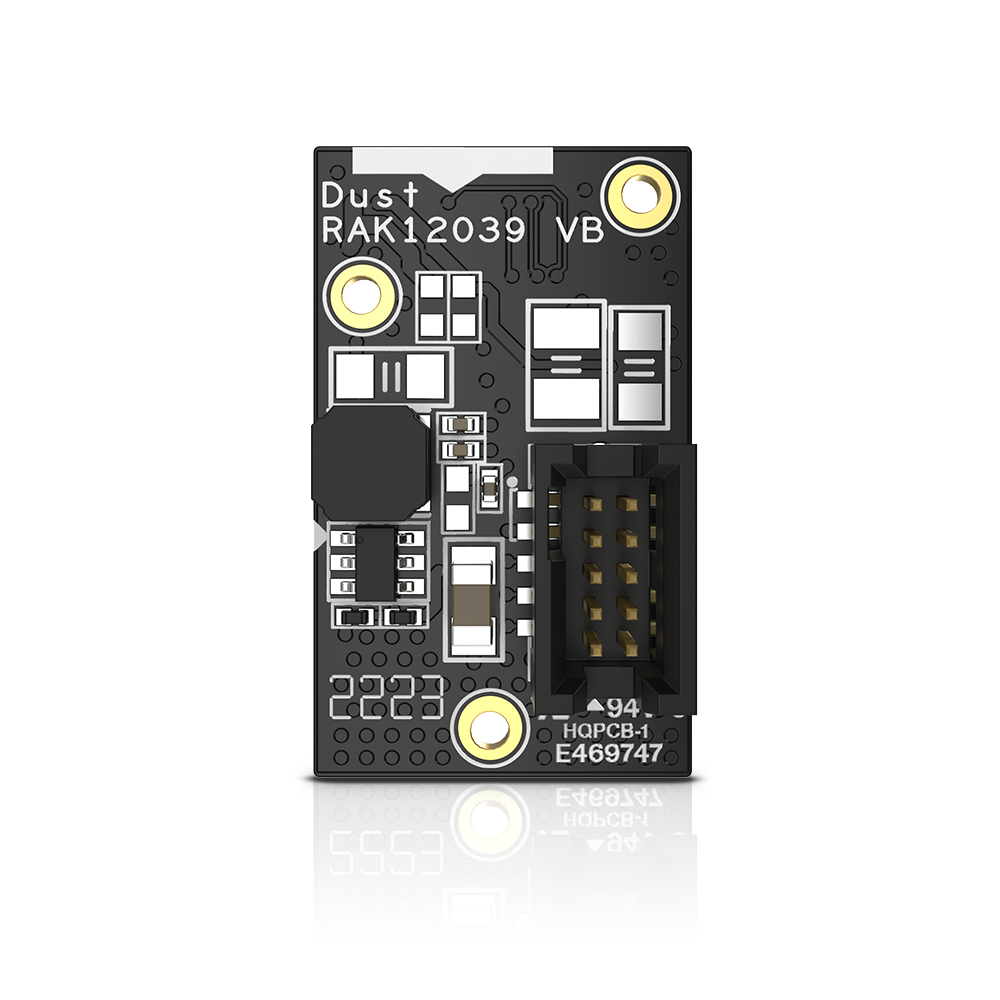

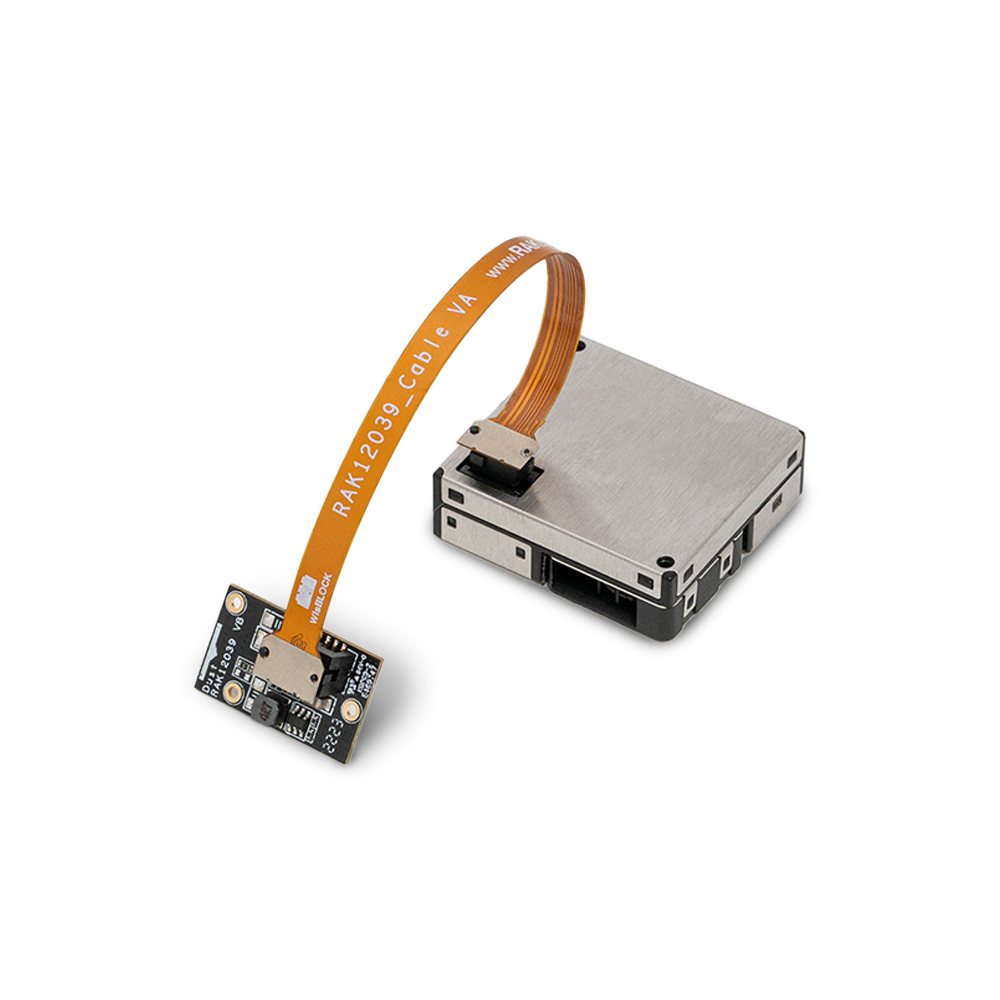

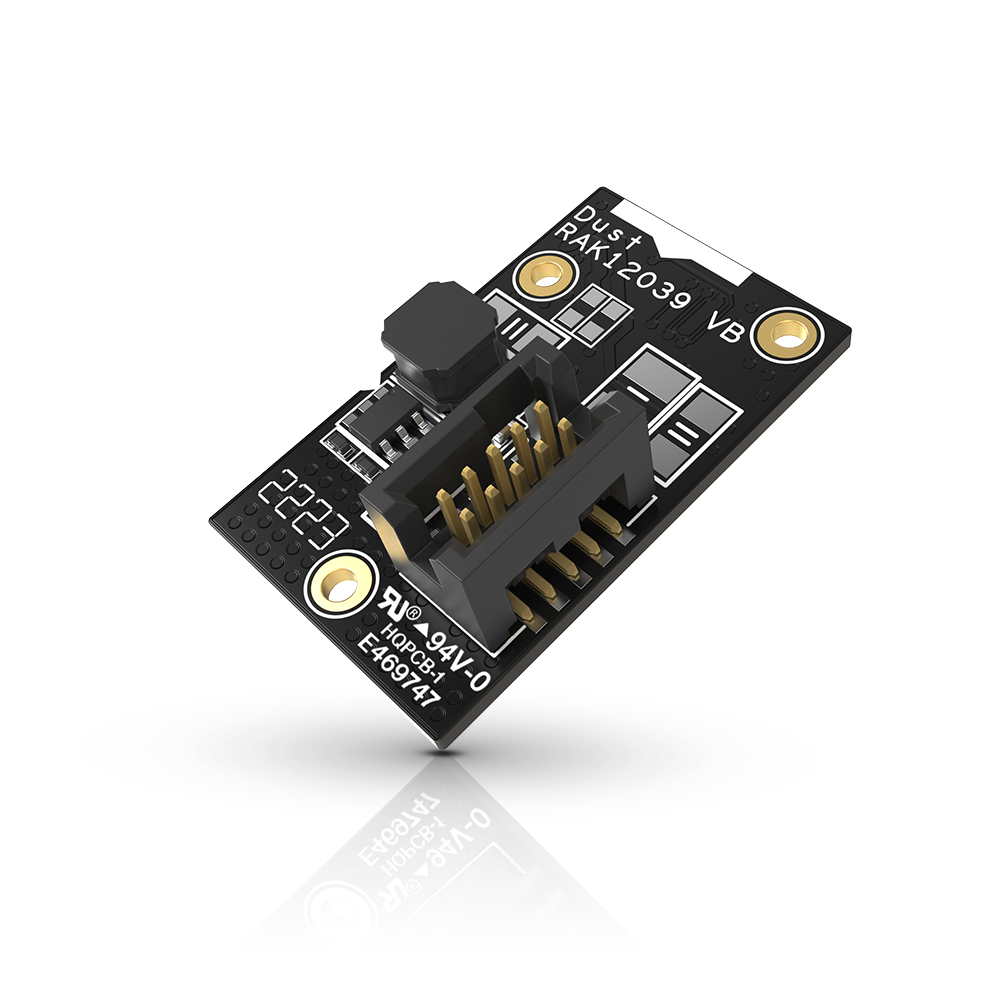

Due to the size of the PM sensor, it is separated from the IO module and connected with a flex PCB cable that makes it easier to place the sensor inside an enclosure.
Features
- Zero false alarm rate
- Real-time response
- Minimum distinguishable particle diameter :0.3 micrometer
- Particle Range of measurement: 0.3~1.0, 1.0~2.5, 2.5~10 Micrometer(μm)
- High anti-interference performance because of the patent structure of six sides shielding
- Power Supply: 3.3 V
- I2C bus communication
- Flex PCB between sensor and IO module
- Operating Temperature: -10° C ~ 60° C
- Storage Temperature :-40° C ~ 80° C
- Size 15 x 25 x 1 mm

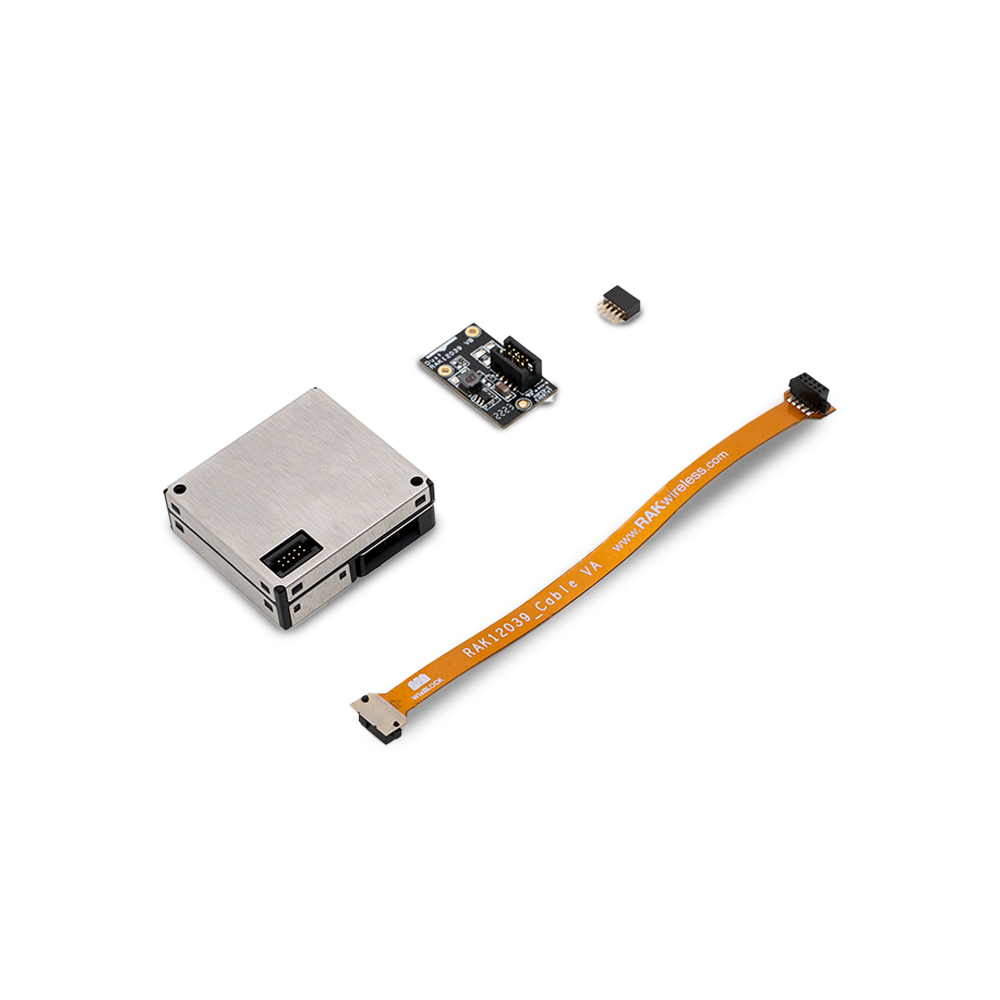

Package Inclusion
- 1 pc RAK12039
- 1 pc cable
- 1 pc Partical concentration sensor
Documentation
- Datasheet
- WisBlock Source Code Repository
- RAK12039 3D Model
- 40-Pin Male Connector 3D File
- WisBlock IO Tutorial
