LIN Module Infineon TLE7259-3
LIN Module Infineon TLE7259-3
LIN Module Infineon TLE7259-3
LIN Module Infineon TLE7259-3
LIN Module Infineon TLE7259-3

LIN Module Infineon TLE7259-3

RAK13005

SKU:100083
$6.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Buy from your local authorized seller

The LIN Module Infineon TLE7259-3 | RAK13005 is available through our trusted distributors. Choose your region below to visit their website:

Product Description

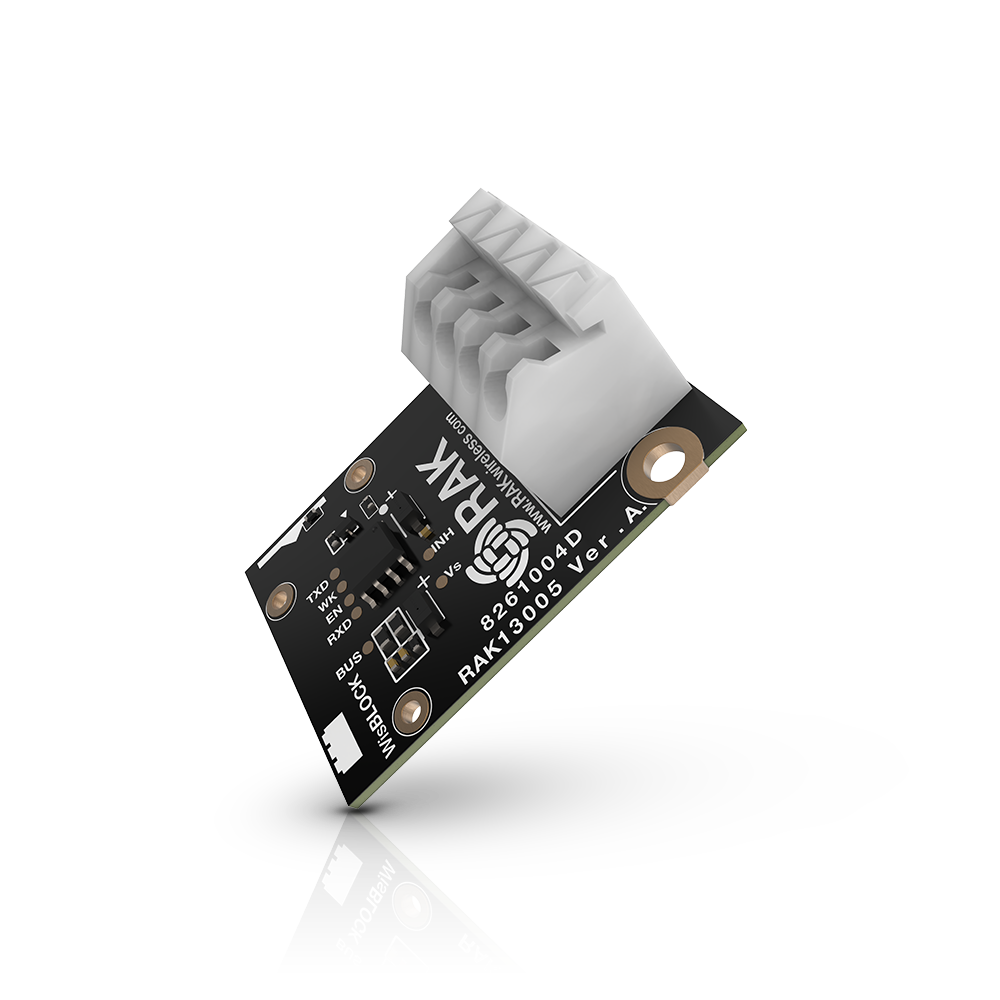

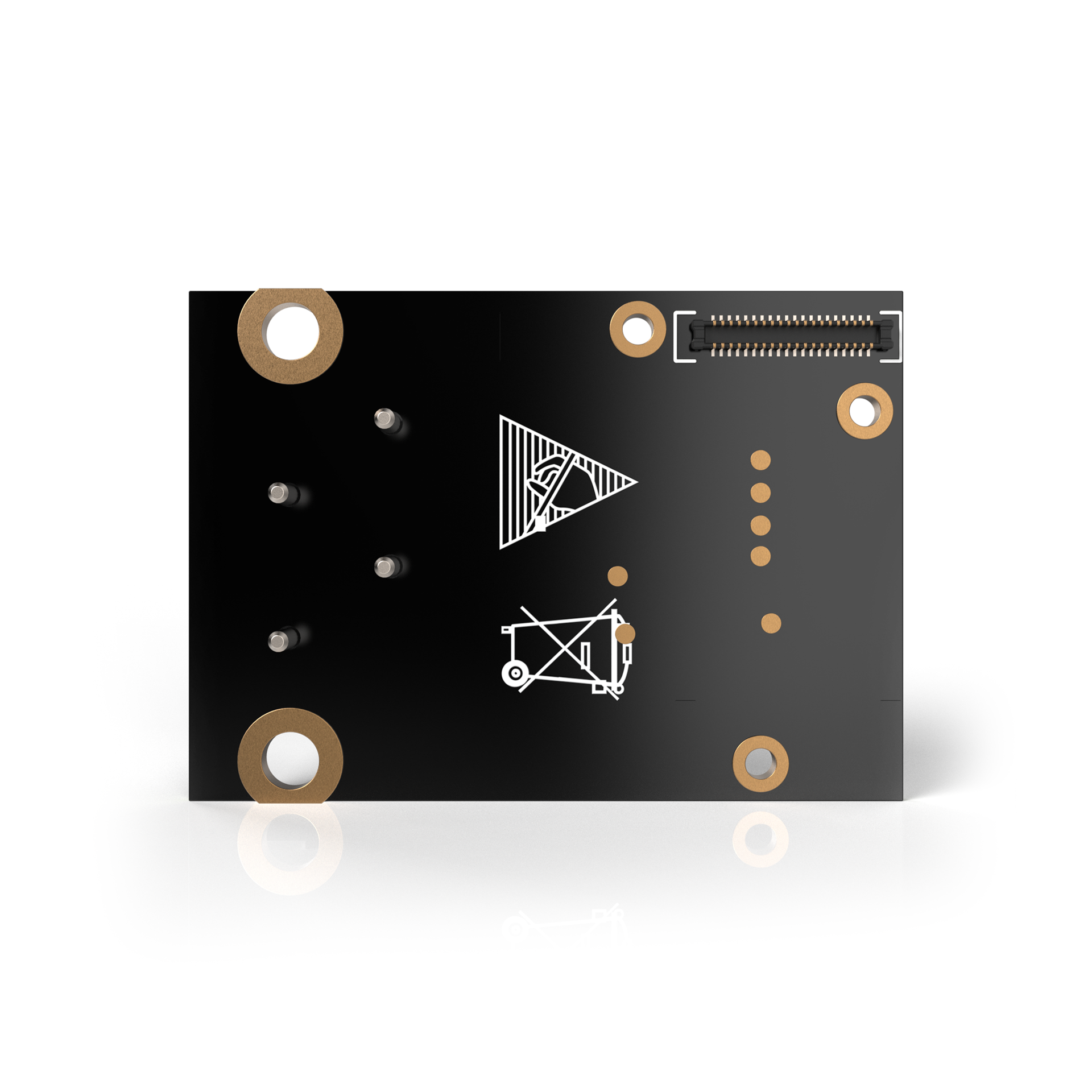

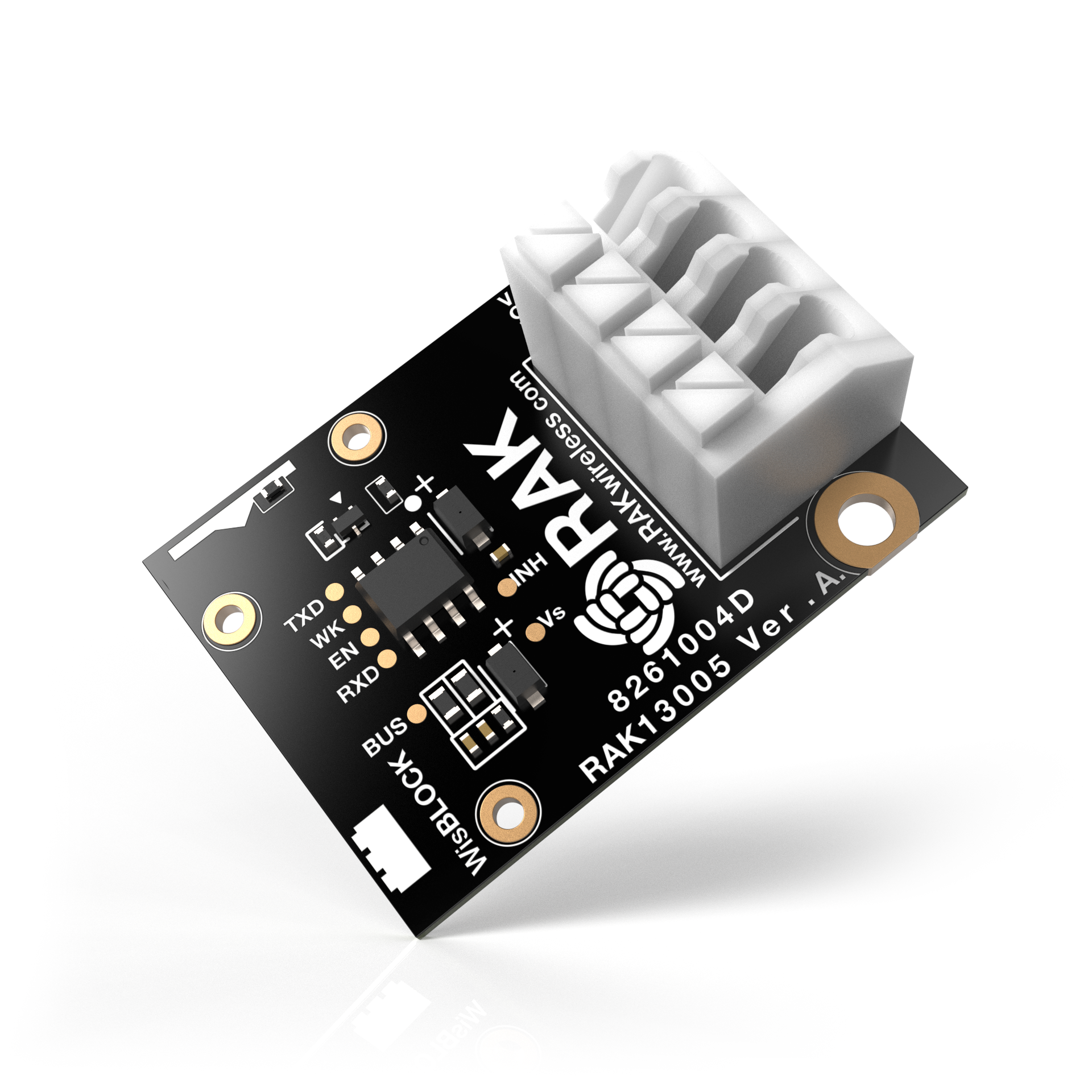

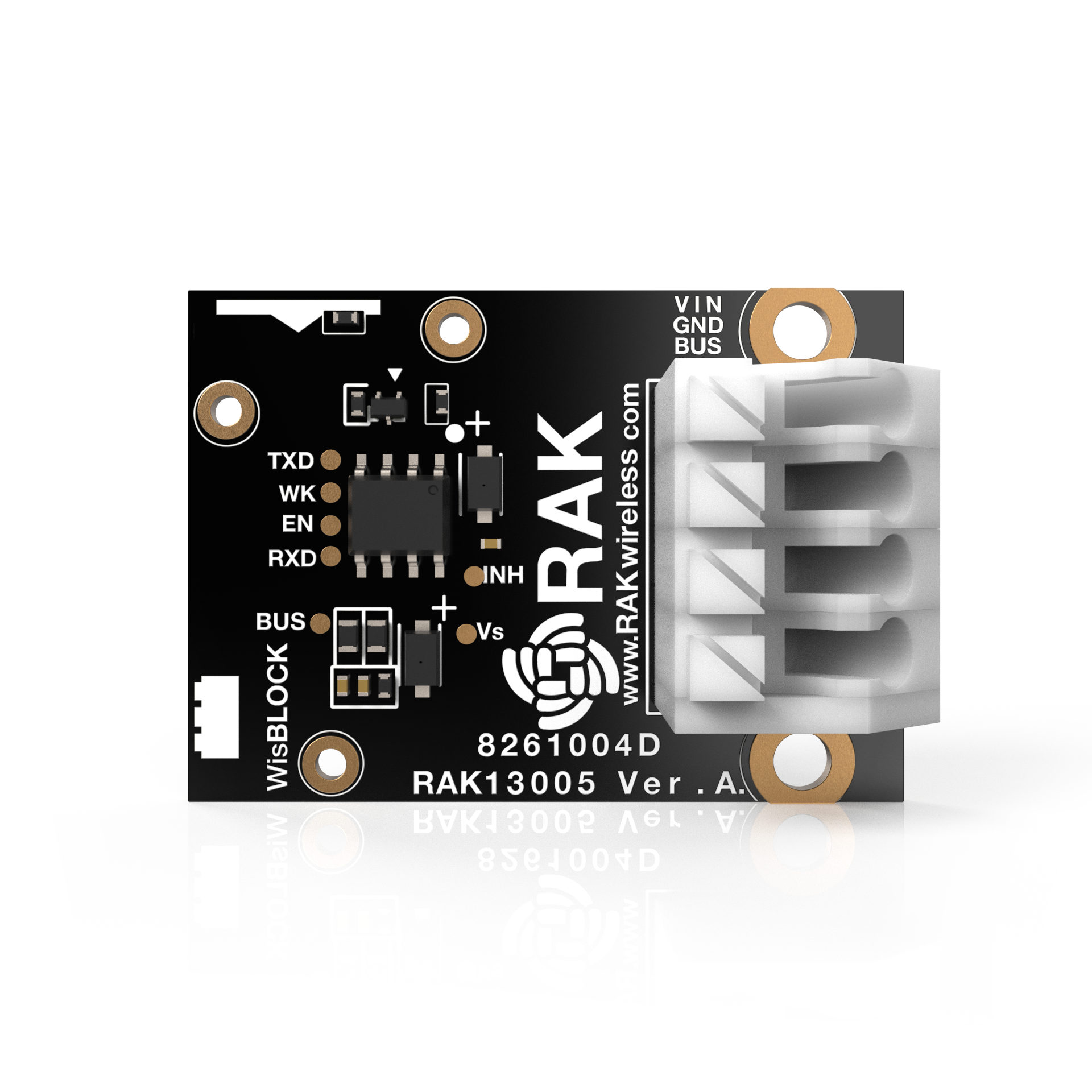

RAK13005 is a WisBlock LIN interface module based on Infineon TLE7259-3 LIN chip which is commonly used in industrial and automotive technologies. It offers safe communication over up to 40m distance between the LIN bus nodes. Beside of the use in automotive environment it is as well implemented in home appliances (like washing machines, refrigerators, …) and industrial automation (manufacturing equipment, metal working).

The LIN bus technology consists of Peripheral (Slave) and Controller (Master) Nodes. The Controller Node is controlling the communication on the LIN bus and the Peripheral Nodes are listening.

Please select the mode of the RAK13005 (master or slave) required in your application.

Product Features

  • One LIN bus connector
  • Supports both Master and Slave function
  • Transmission speed up to 20 kbit/s
  • Cable length up to 40 meter
  • Module size: 25X35mm
