IO Expansion Module Microchip MCP23017
IO Expansion Module Microchip MCP23017
IO Expansion Module Microchip MCP23017
IO Expansion Module Microchip MCP23017

IO Expansion Module Microchip MCP23017

RAK13003

SKU:100026
$6.50 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Product Description

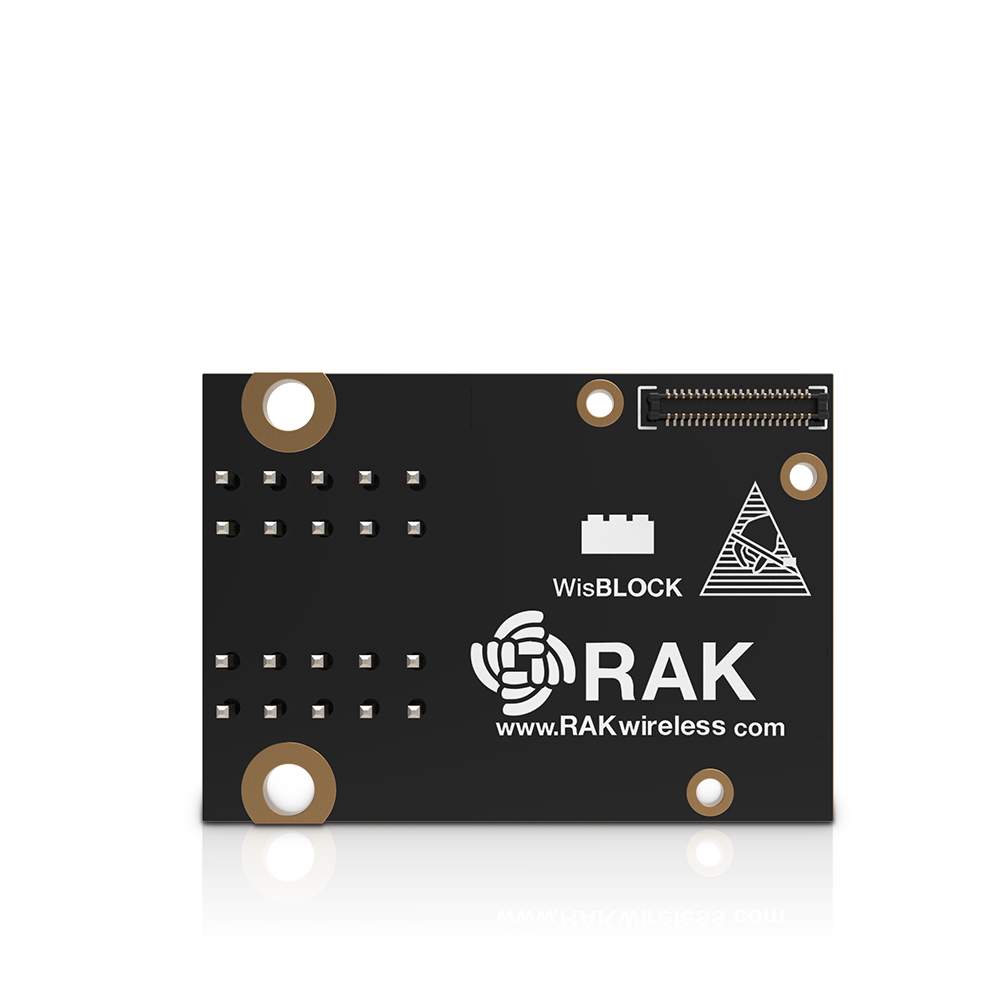

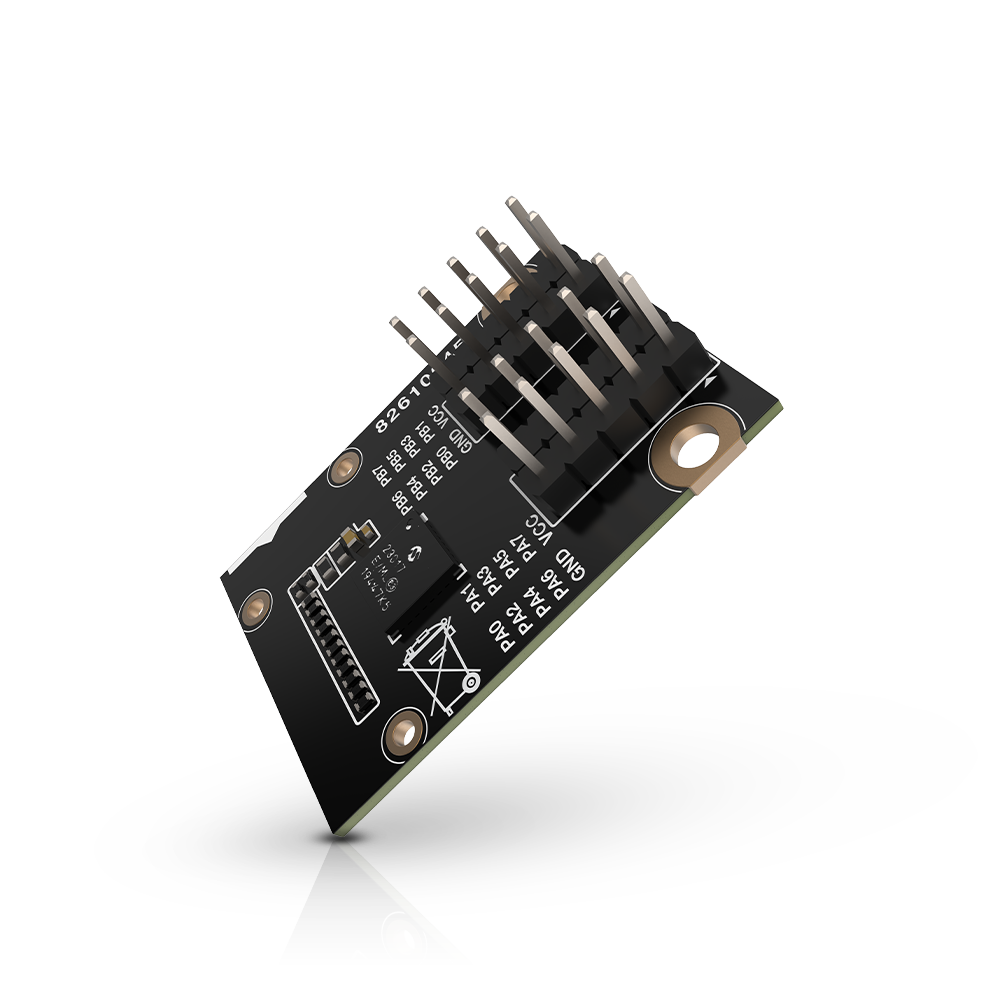

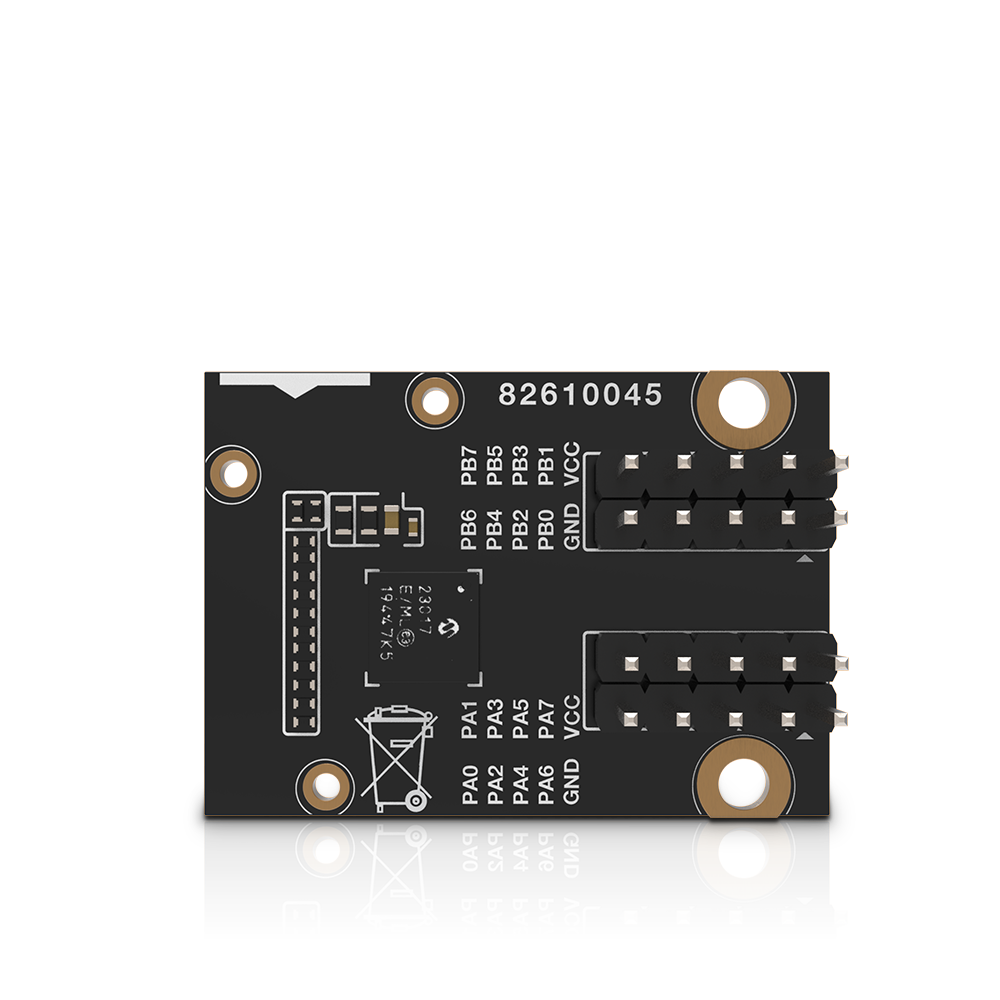

RAK13003 is a WisBlock IO expansion module based on Microchip MCP23017 which extends the available digital IO ports of the WisBlock Core module with additional 16 bidirectional IO’s. It also supports interrupt capabilities when an IO pin is used as input.

Product Features

  • 16-Bit Remote Bidirectional I/O Port
  • High-Speed I2C Interface
  • Configurable Interrupt Output Pins
  • INTA and INTB can be configured to operate independently or together
  • External Reset Input
  • Low Standby Current: 1 μA (max.)
  • Operating Voltage: 2.7 V to 5.5 V @ -40 °C to +85 °C
  • Module size: 25mm X 35mm
