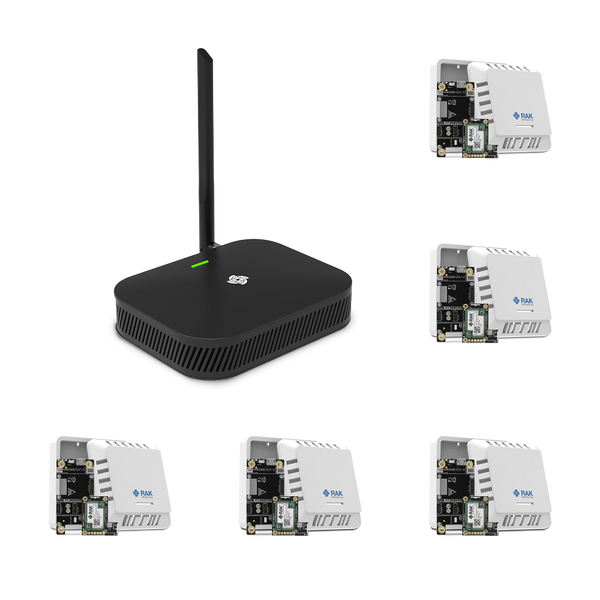

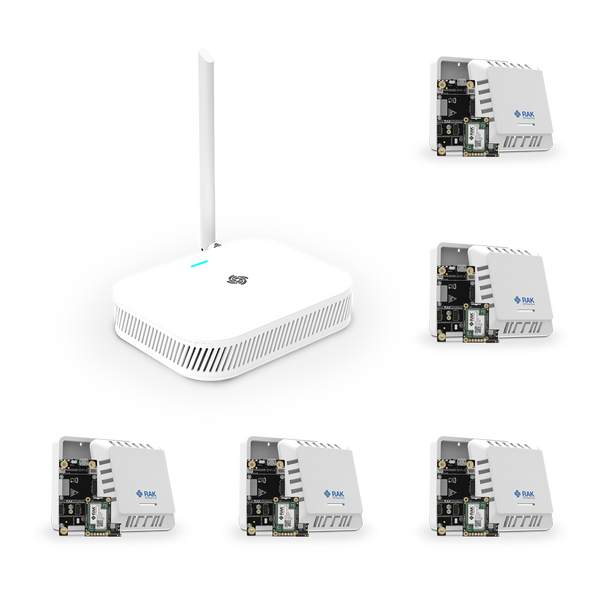

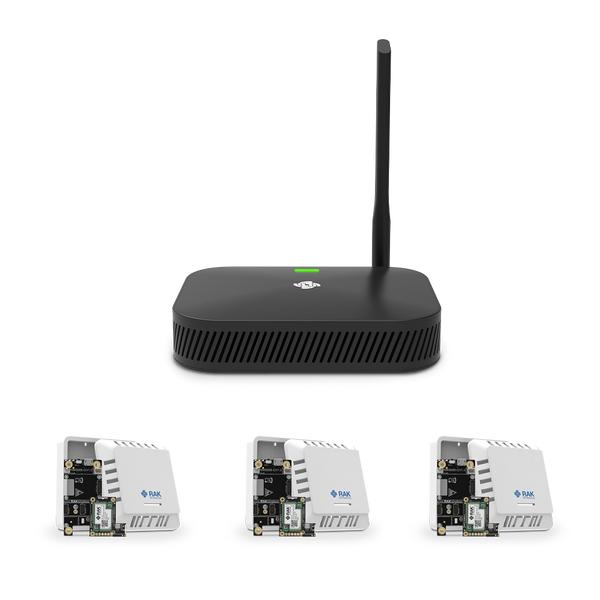

Indoor Environment Monitoring Kit
Air Quality Monitoring kit with a Gateway for LoRaWAN
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Product Description
This kit is the perfect start in the world of IoT and LoRaWAN. It is suitable for home, office, or industrial indoor spaces environment monitoring to help keep healthy living or working conditions. The RAK WisGate Edge Lite 2 gateway is an indoor gateway with LoRaWAN connectivity that provides quick setup and reliable network coverage. You can choose 3 or 5 sensors that provide insight into environmental parameters like temperature, humidity, pressure, and Indoor Air Quality index (based on the gas sensor).
Product Features
WisGate Edge Lite 2 RAK7268\RAK7268C
- Full LoRaWAN Stack support (V 1.0.3) with Semtech SX1302
- Supports 2.4 GHz Wi-Fi AP for configuration
- 100M Base-T Ethernet with PoE
- Multi back-haul with Ethernet, Wi-Fi, Cellular
- OpenWRT software supports Web UI for easy configuration and monitoring
- Can integrate with both private (ChirpStack) and public (TTN) network servers
- TF card for log backup and LoRa frame buffering (in case of backhaul failover)
- Built-in Network Server for easy deployment of applications and integration of gateways
- LTE Cat 4 network (optional for C models)
WisBlock Kit 4 – Air quality monitor
- Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
- Small form factor
- Supports 3 different power supply sources
- Optimized for low power consumption applications
- I2C, UART, GPIO's an analog input accessible with solder contacts
- 2 user-definable LED's
- Reset button
- USB debug port
- 1 slot for WisBlock Core MCU
- 4 slots for WisBlock Sensor modules
- 1 slot for another WisBlock extension modules
- Using the Bosch BME680 environment sensor
- Temperature range: -40°C to +85°C
- Humidity range: 0% to 100%
- Pressure range: 300 to1100 hPa
- Gas sensor response time < 1s
- Gas sensor direct output of IAQ: Index for Air Quality
