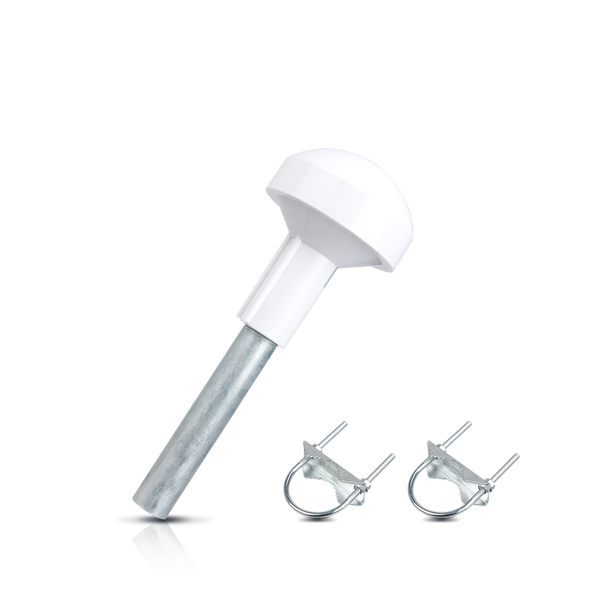

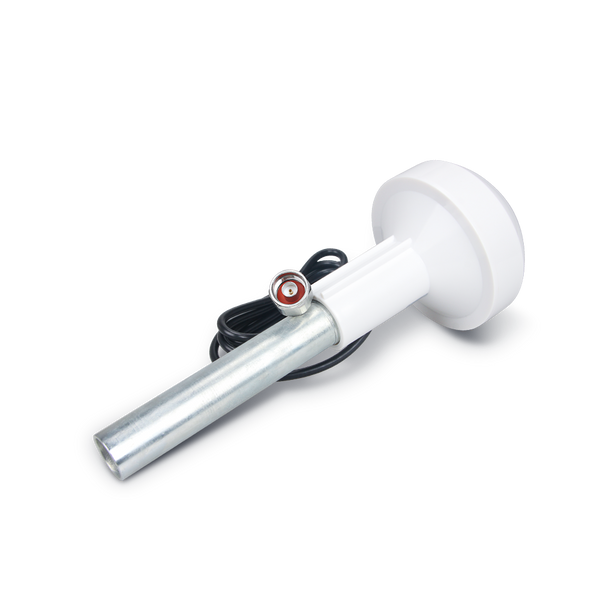

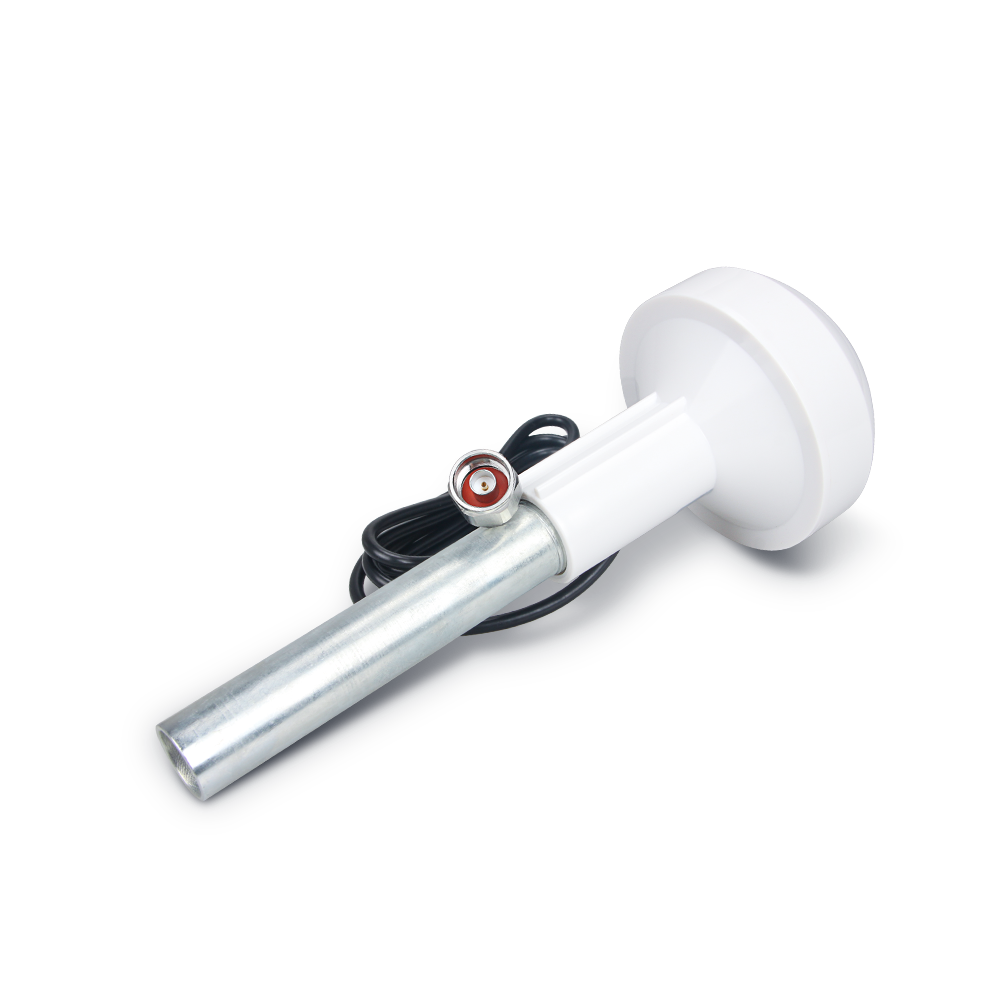

GPS Antenna
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description
This GPS Antenna is a high-gain and high-efficiency antenna designed with lightning protection antistatic (LNA) feature. It is widely used in power base stations and supports 1559 - 1577 MHz frequencies.
Specifications
Frequency: 1559 - 1557 MHz
Gain: 28 ± 2dBi typical gain
Voltage: 3V ± 0.3V DC
Current: ≤ 10mA @ 3V
Noise Figure: 1.5dB max
Bandwidth: 18MHz min
Output VSWR: 3.0 max
Polarization: Right-hand side circular polarized antenna (RHCP)
Filter: SAW filter 30dB min ± 45MHz
Output Impedance: 50Ω
Connector: N-type Male
Dimension: Œ€ 96mm x 129mm
Cable: 2m ± 50mm RG195 Coaxial Cable
Operation Temperature: -40°C to +85°C
Storage Temparature: -40°C to +90°C
Operation / Storage Humidity: 10% to 95% Relative Humidity
Packaging
Package Size: 30cm x 20cm x 14cm
Package Weight: Approximately 1kg
