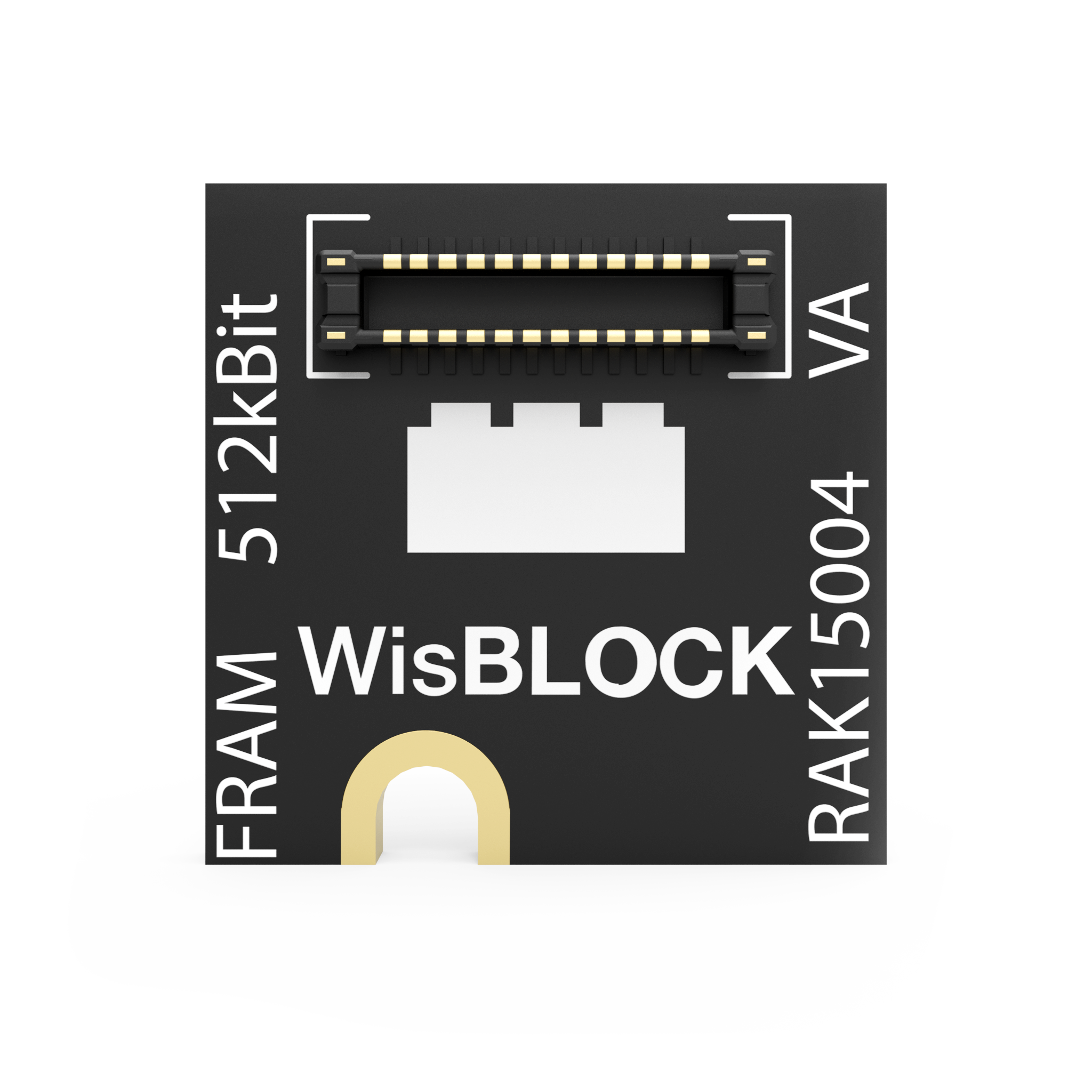

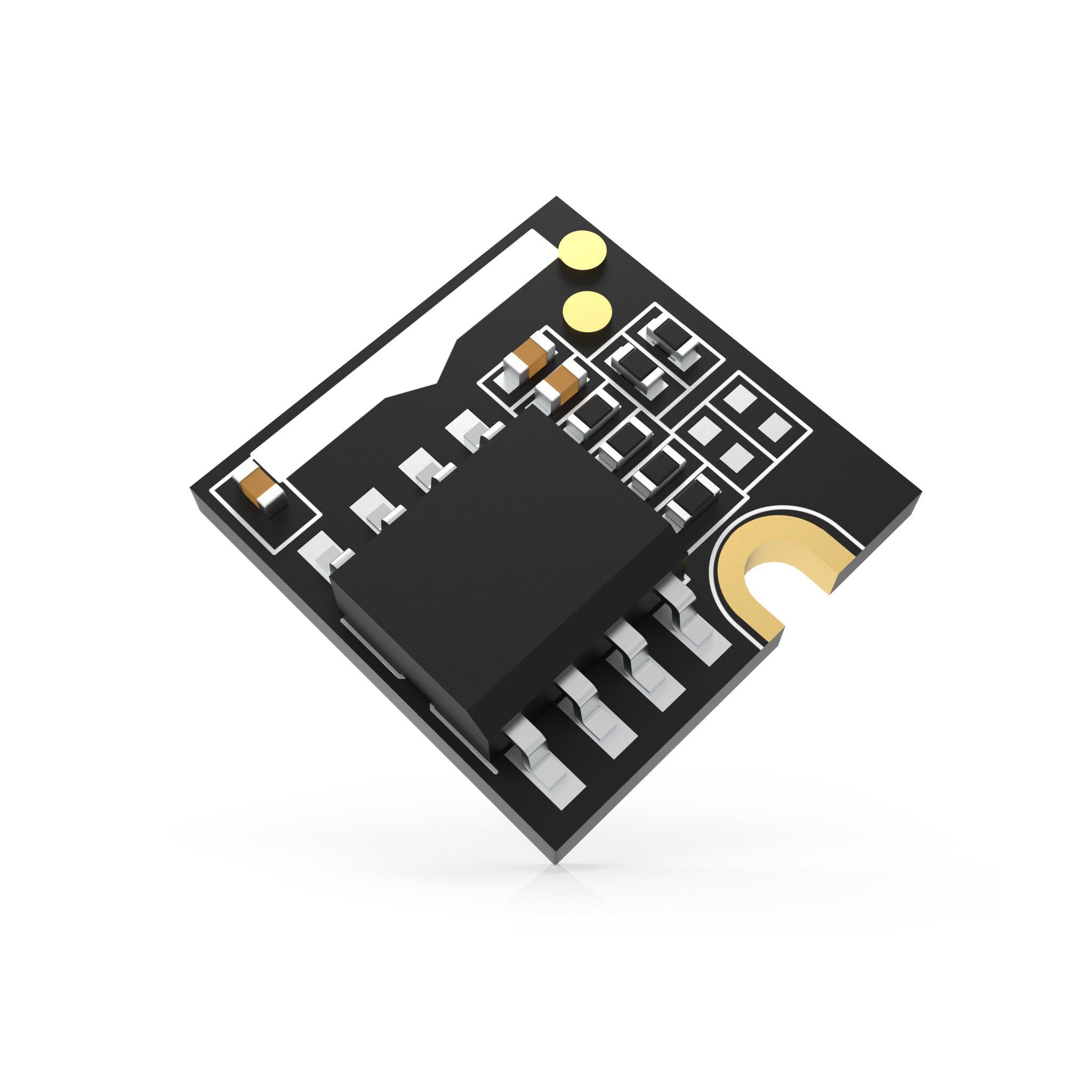

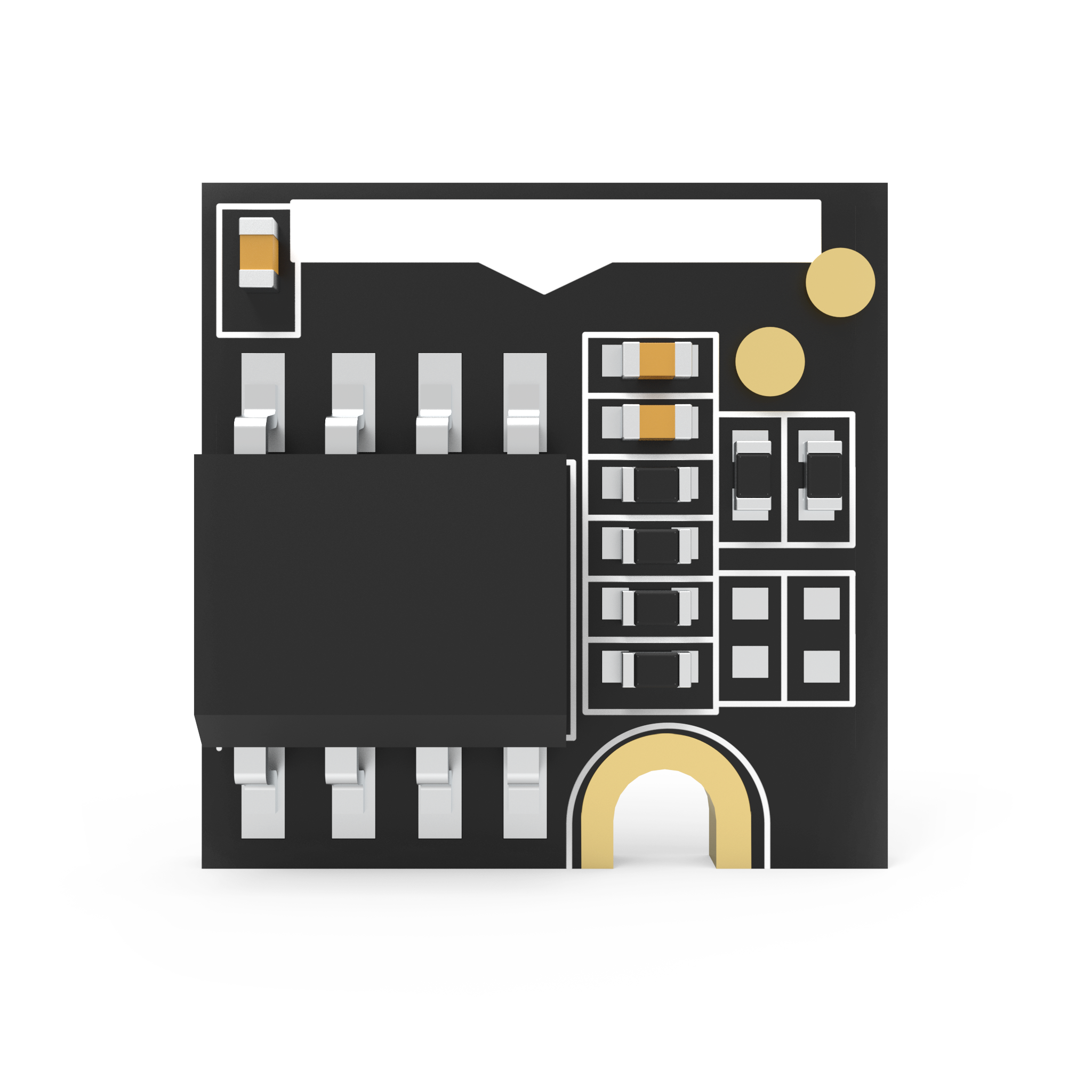

Fujitsu MB85RC512T 512 kBit FRAM memory module
RAK15004
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Description
The RAK15004 FRAM module is featuring the Fujitsu MB85RC512T storage chip. With this low power none-volatile RAM you can secure your settings and collected data from power outage without the limitation of write cycles as known by other NVRAM technologies. With a data retention of 10 years and 10 trillion write cycles it outperforms any EEPROM or Flash storage devices.
It’s capacity of 64 kByte is sufficient for most applications
Features
- Temperature range: -40℃ to +85℃
- I2C compatible digital interface
- Operating power supply current 0.71 mA (Typ @3.4 MHz) 1.2 mA (Max @3.4 MHz)
- Standby current 15 μA (Typ)
- 64 kBytes / 512 kBit storage capacity
- High Reliability:
- Read/write endurance : 1013 cycles
- Data retention: 10 years ( + 85 °C), 95 years ( + 55 °C)
- Module size: 10 x 10mm
