Fiberglass Antenna Kit for Helium Hotspot
Prefer another courier for your delivery? Contact us for special shipping arrangements.
This is a bundle of 5.8dBi gain LoRa® antenna specially packaged for Helium Hotspot. It already includes an RP-SMA connector for your convenience and a bracket for easy installation.
Note:
- The included antenna connector is RP-SMA male and it is fully compatible with RAK's WisGate Developer Gateways and Hotspot V2. For compatibility with other devices, please check their documentation. If you want to know more about the connectors used in our devices you can see this blog.
- The RP-SMA to N-Type cable (if selected) included with the antenna is designed for indoor use only. For outdoor deployment of the fiberglass antenna, please purchase the corresponding Pulsar cable.
Key Features

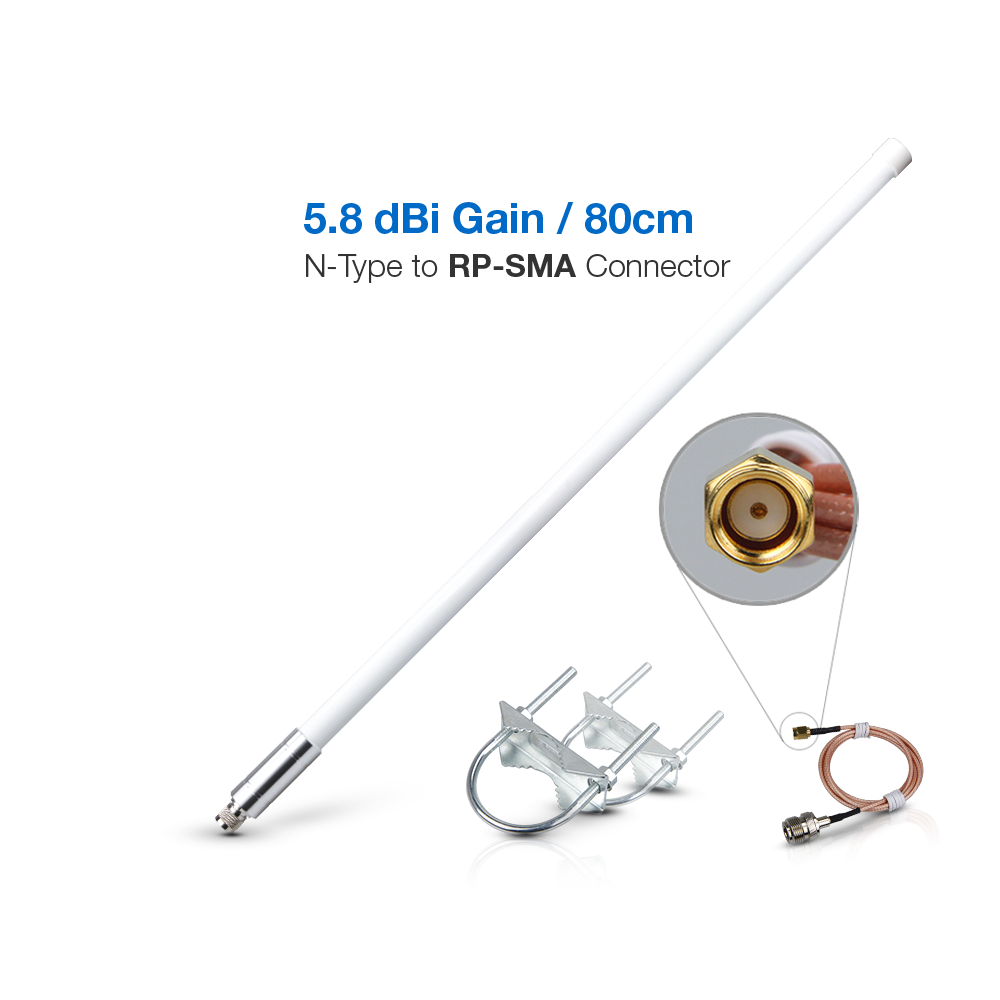

- White 5.8dBi Fiberglass Antenna
- Frequency Range: 863 - 870 MHz
- Gain: 5.1 ~ 5.8 dBi
- VSWR: ≤2.0
- Beamwidth: 360º
- Impedance: 50 Ohms
- Polarization: Vertical
- Type: Dipole
- Body radome: Fiberglass
- Connector: N-Type Male
- Bracket included: 2pcs brackets
- Dimensions: ø25, 800 ± 10mm
- Operation Temperature: -40ºC~ +60ºC
- Store Temperature: -30ºC~ +75ºC

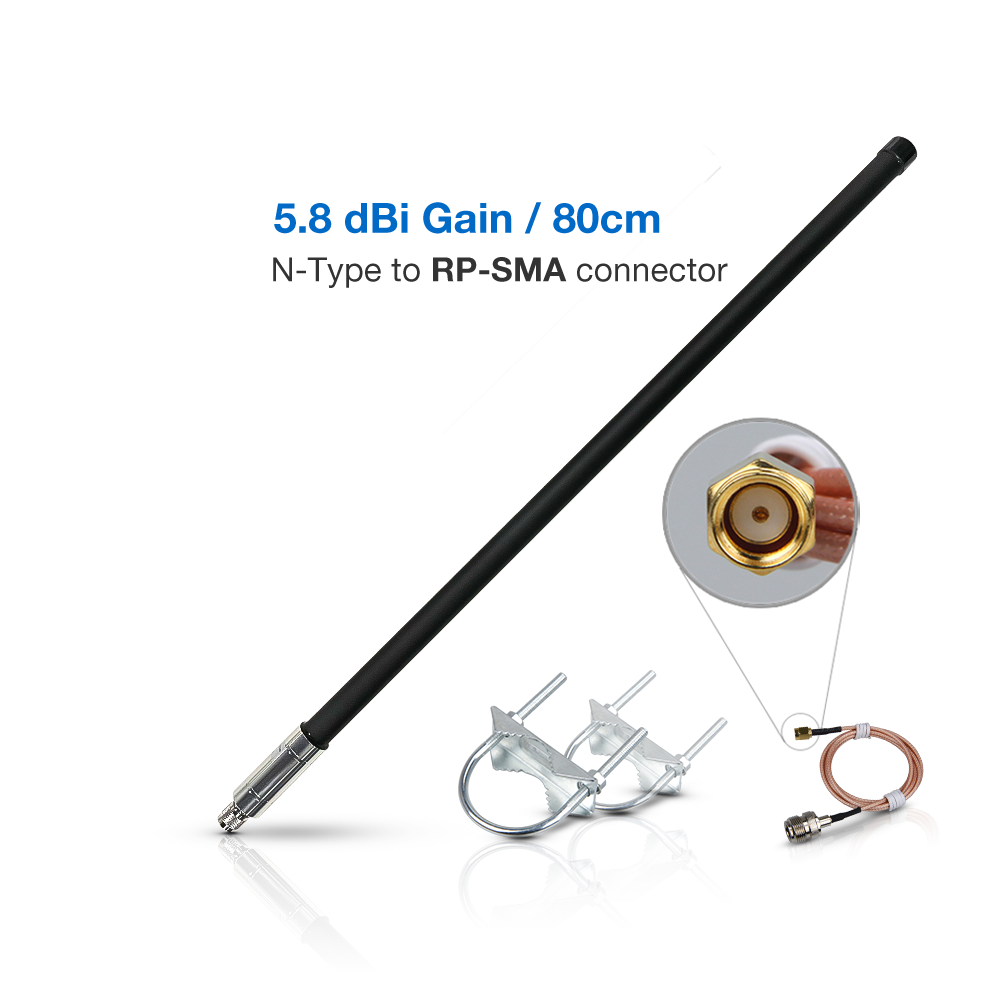

- Black 5.8dBi Fiberglass Antenna
- Frequency: 863~870 MHz
- Max gain: 5.9 dBi
- VSWR: ≤ 2
- High efficiency
- Vertically polarized dipole
- N-type connector
- Easy to mount with the included Installation kit
Package Inclusions
- 1x Antenna
- 1x Pigtail interface converter
- 2x Mounting brackets
