IO Module
RAK13002
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

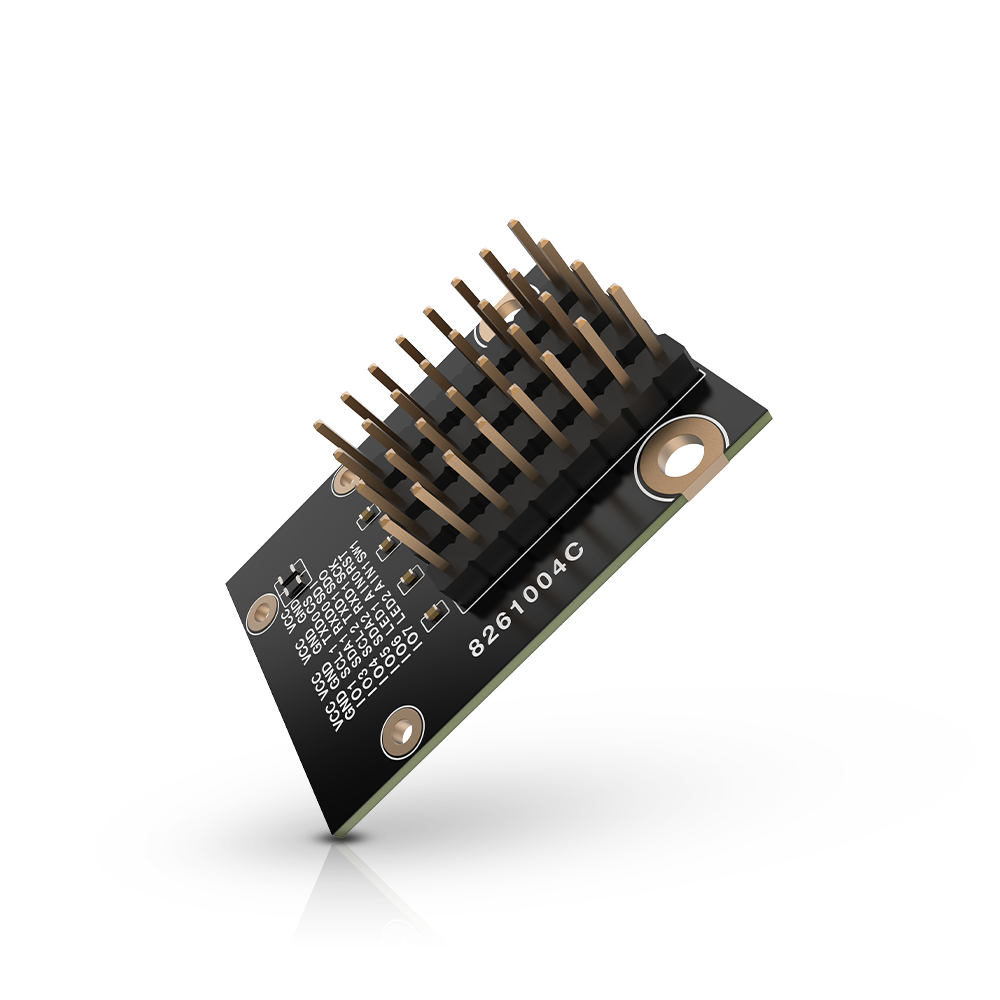

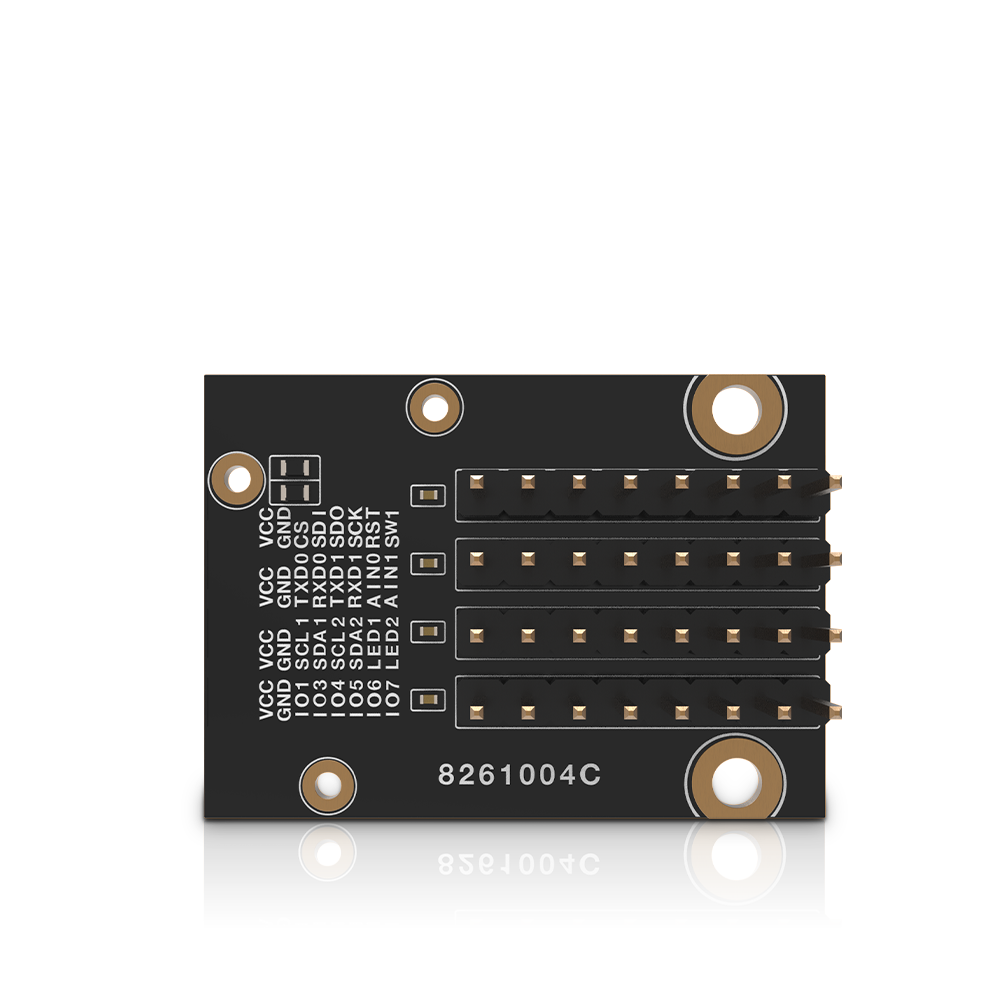

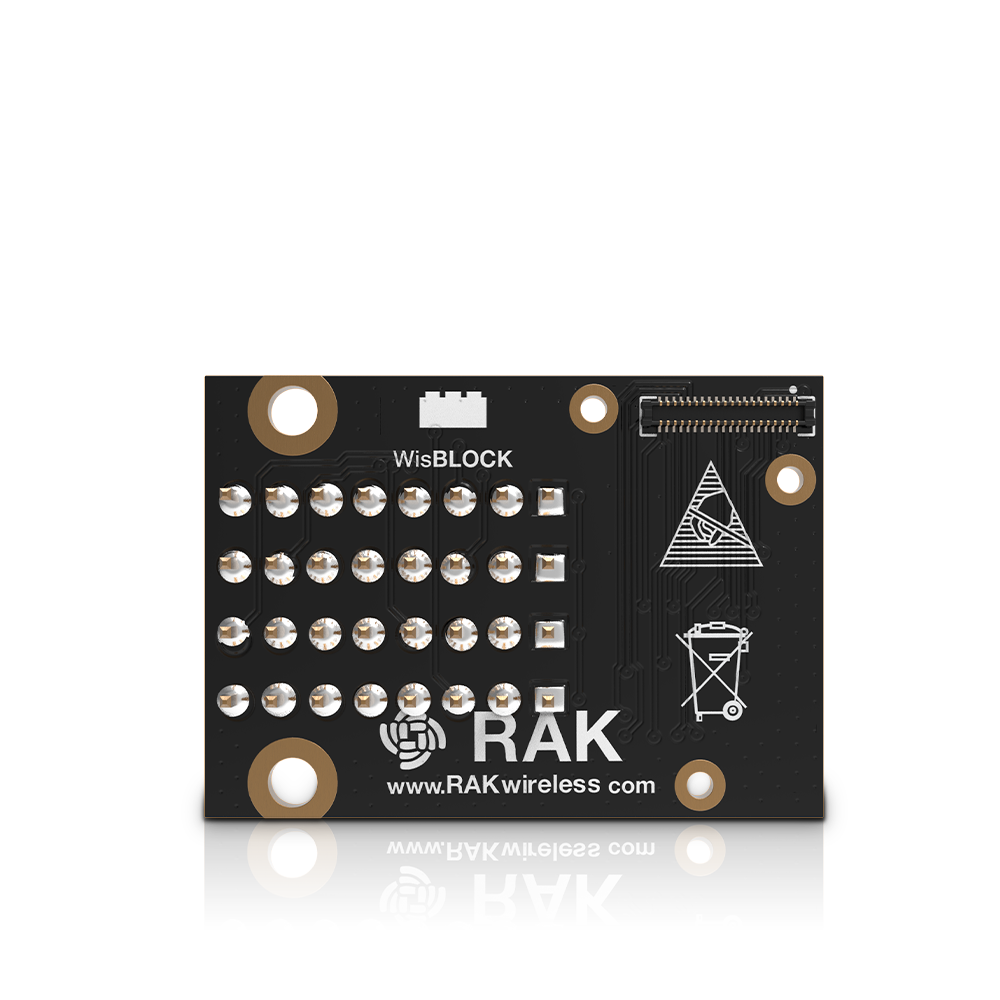

RAK13002 is a WisBlock IO adapter module that allows you to access all WisBlock Core IO pins to four 8 pin headers with standard 2.54mm pitch. This will allow you to connect more external peripherals to your IoT project.
Product Features
- Supports two I2C interfaces
- Supports two UART interfaces
- Supports one SPI interface
- Supports up to 6 GPIOs
- Supports 2 ADC interfaces
- 3.3V power supply interfaces
- Module size: 25X35mm
Documentation
- RAK13002 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- RAK13002 3D Model
- 40-Pin Male Connector 3D File
- WisBlock Sensor Tutorial
