WisMesh WiFi Gateway

The WisMesh MQTT WiFi Gateway is the ideal solution for connecting your Meshtastic devices to the cloud. It provides an interface from your Meshtastic nodes to either the Meshtastic MQTT Broker or your own MQTT Broker. Whether you need to send sensor data, location information, or text messages to the cloud, this device meets your requirements.

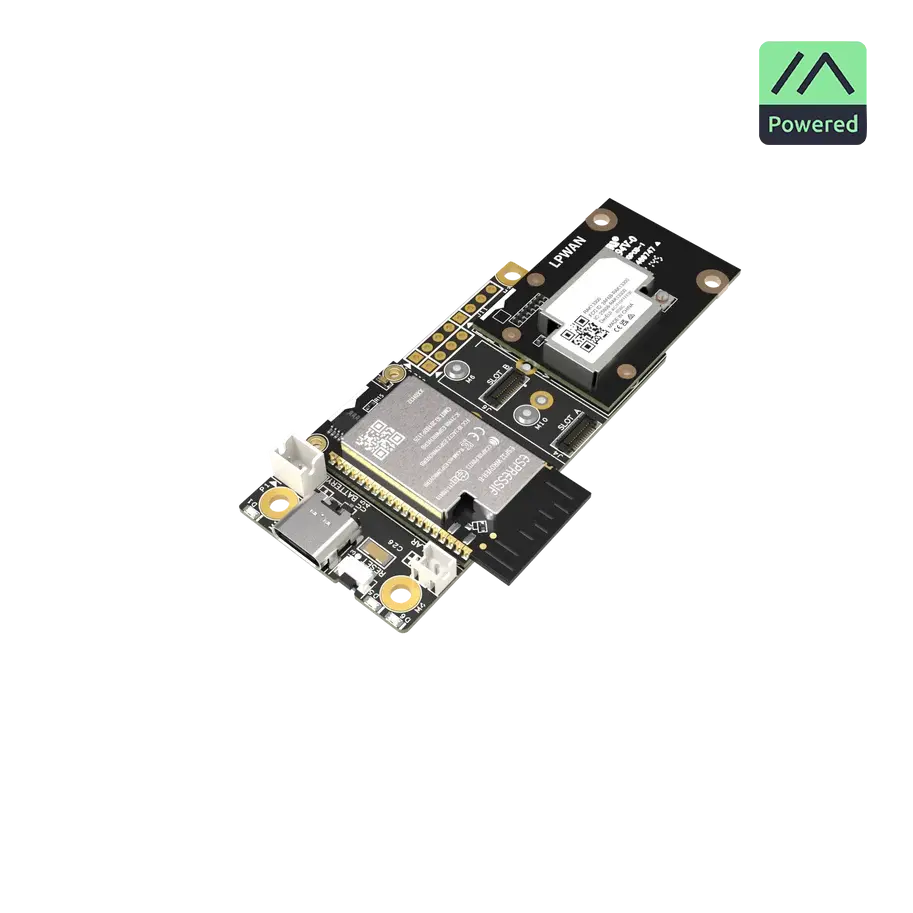

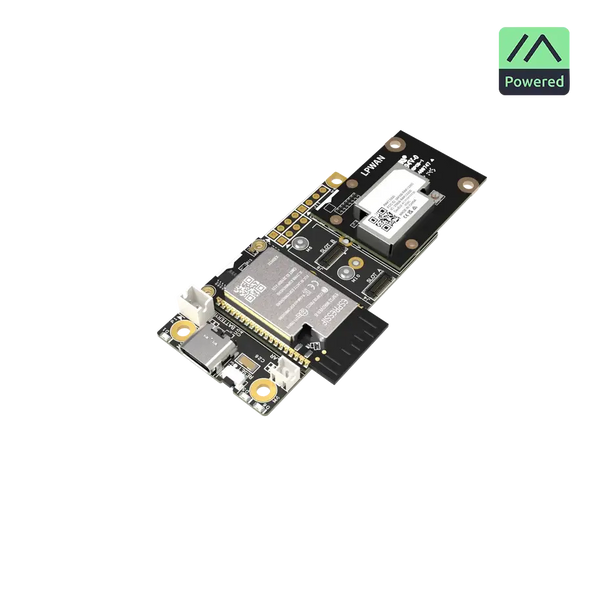

At its core, the WisMesh MQTT WiFi Gateway utilizes our WisBlock RAK11200 Core module, which is pre-flashed with the Meshtastic firmware and features integrated WiFi and BLE. LoRa capability is provided by the RAK13300 LoRa module, and all components are mounted on the RAK19007 Base Board.

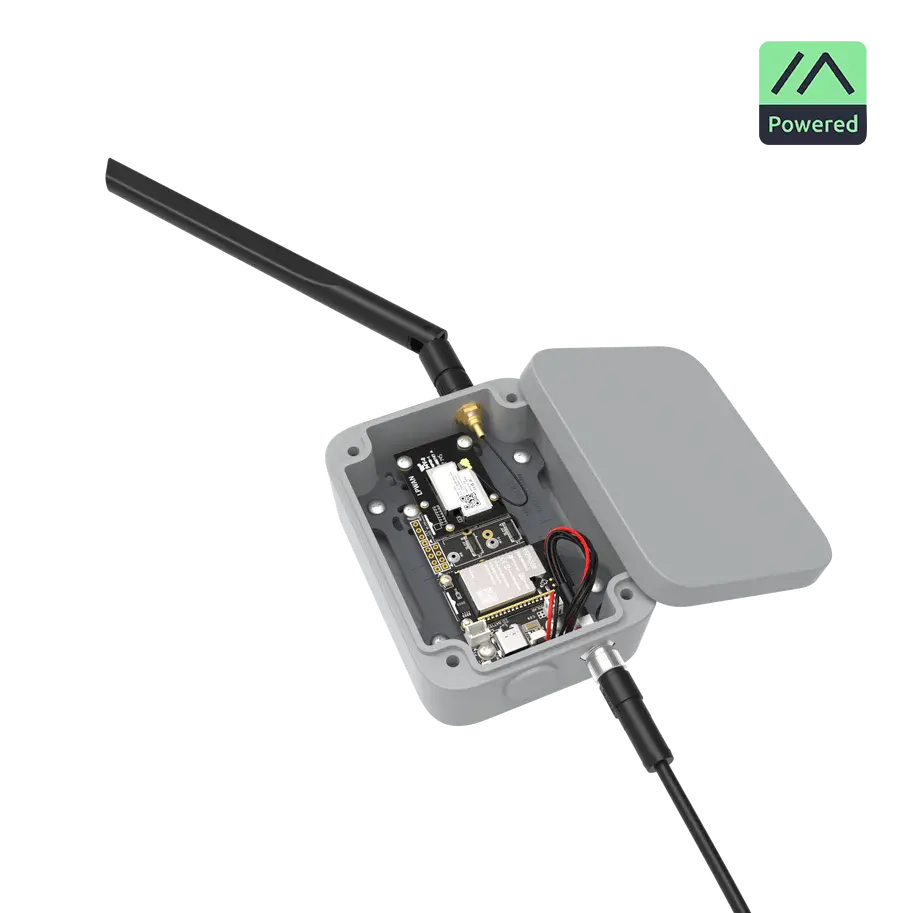

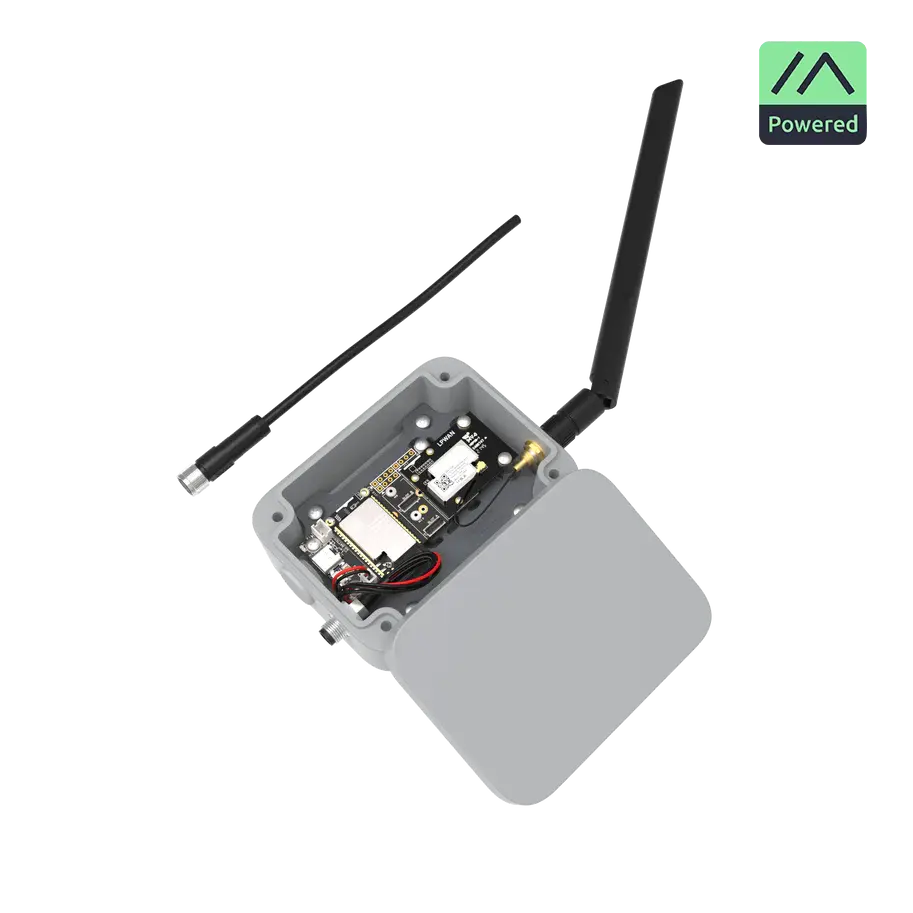

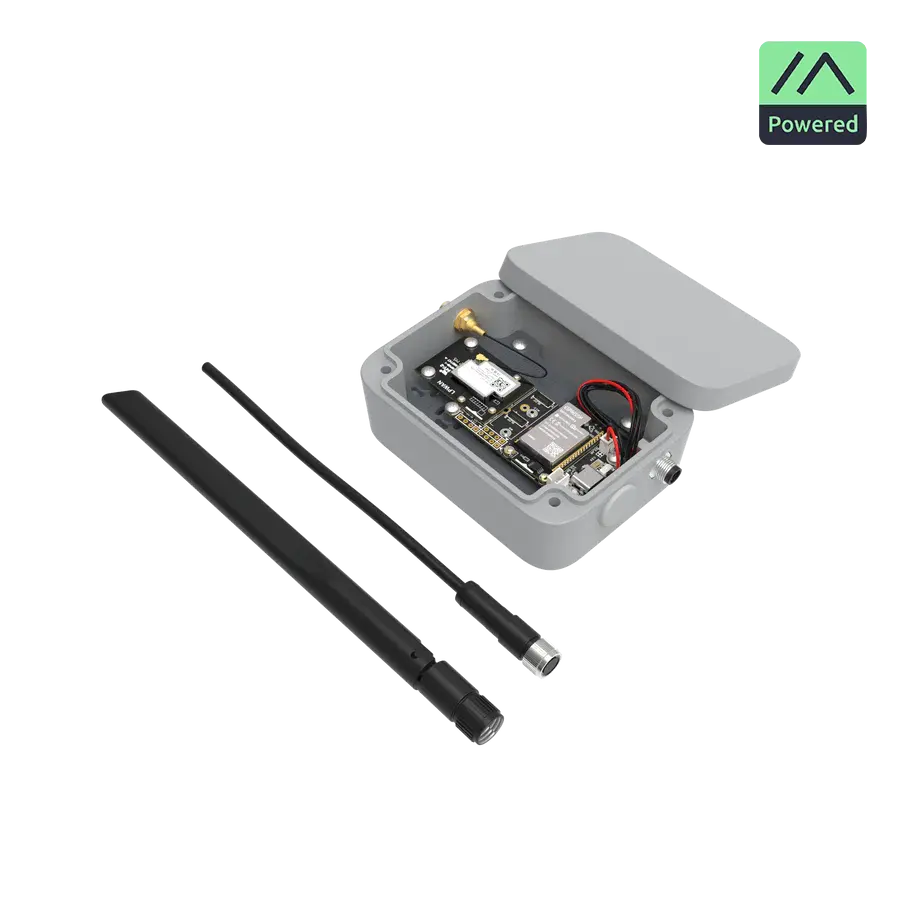

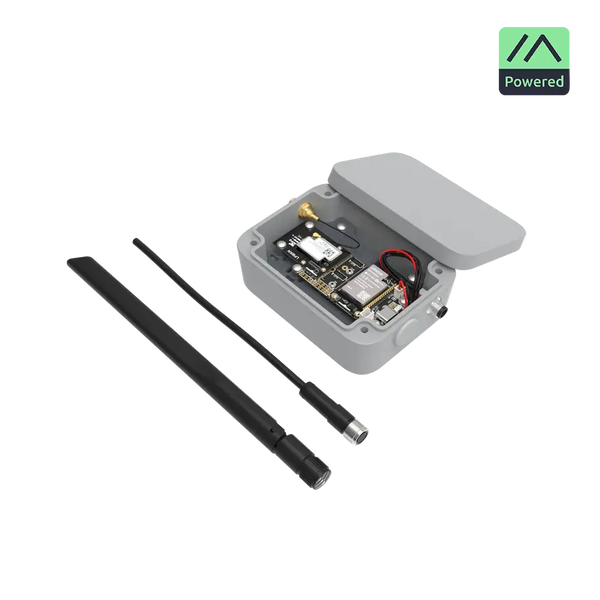

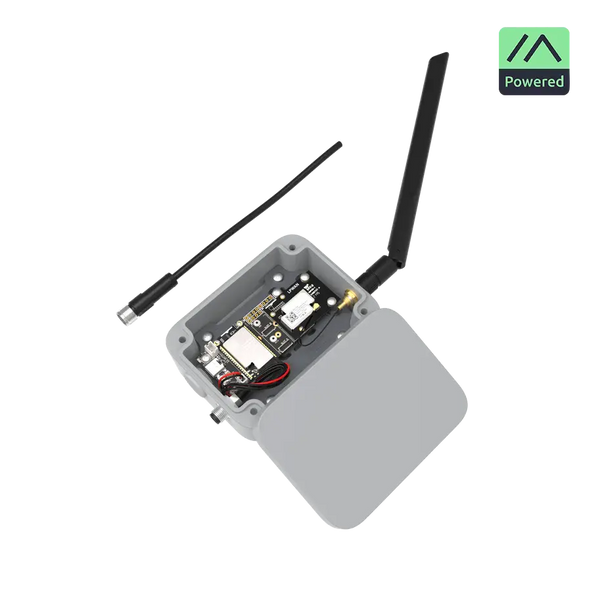

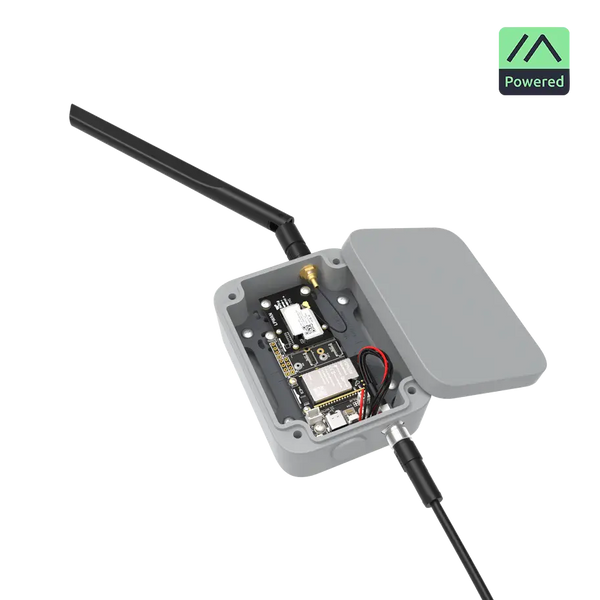

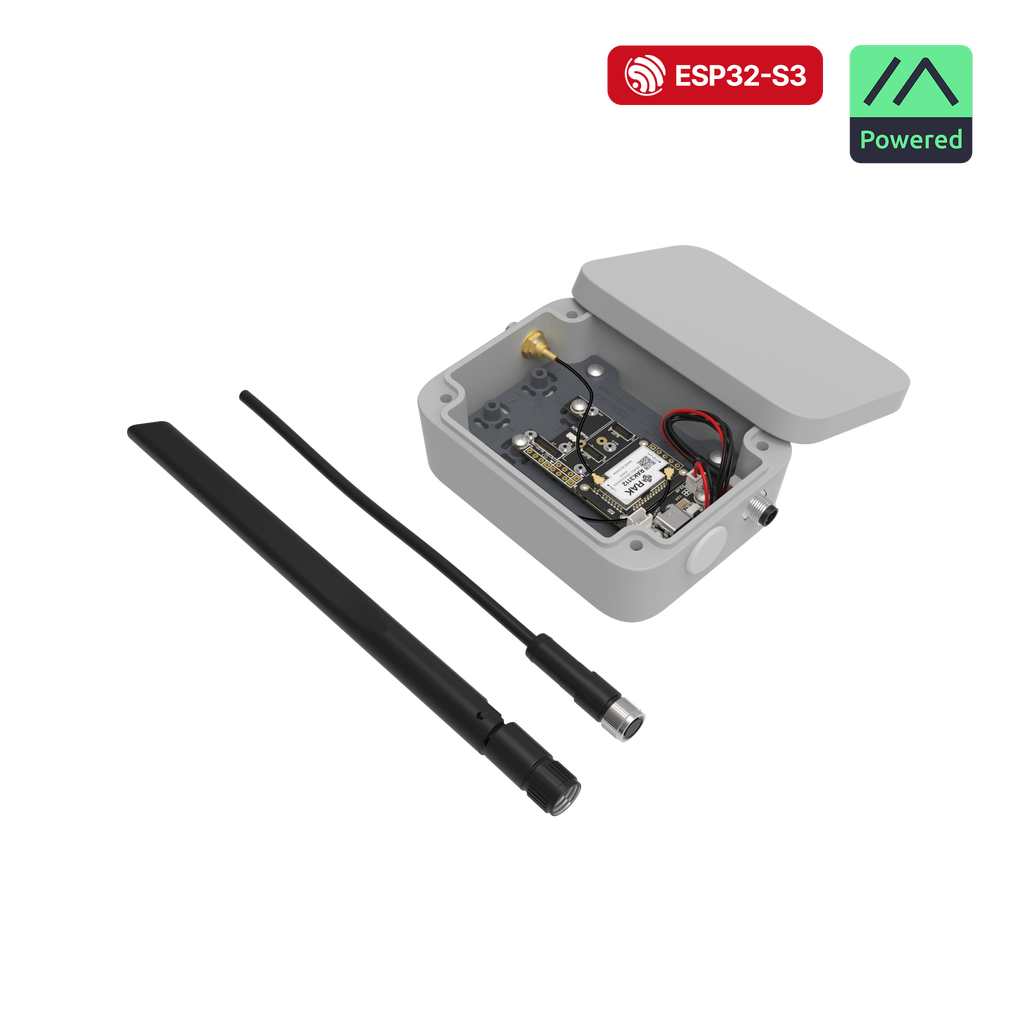

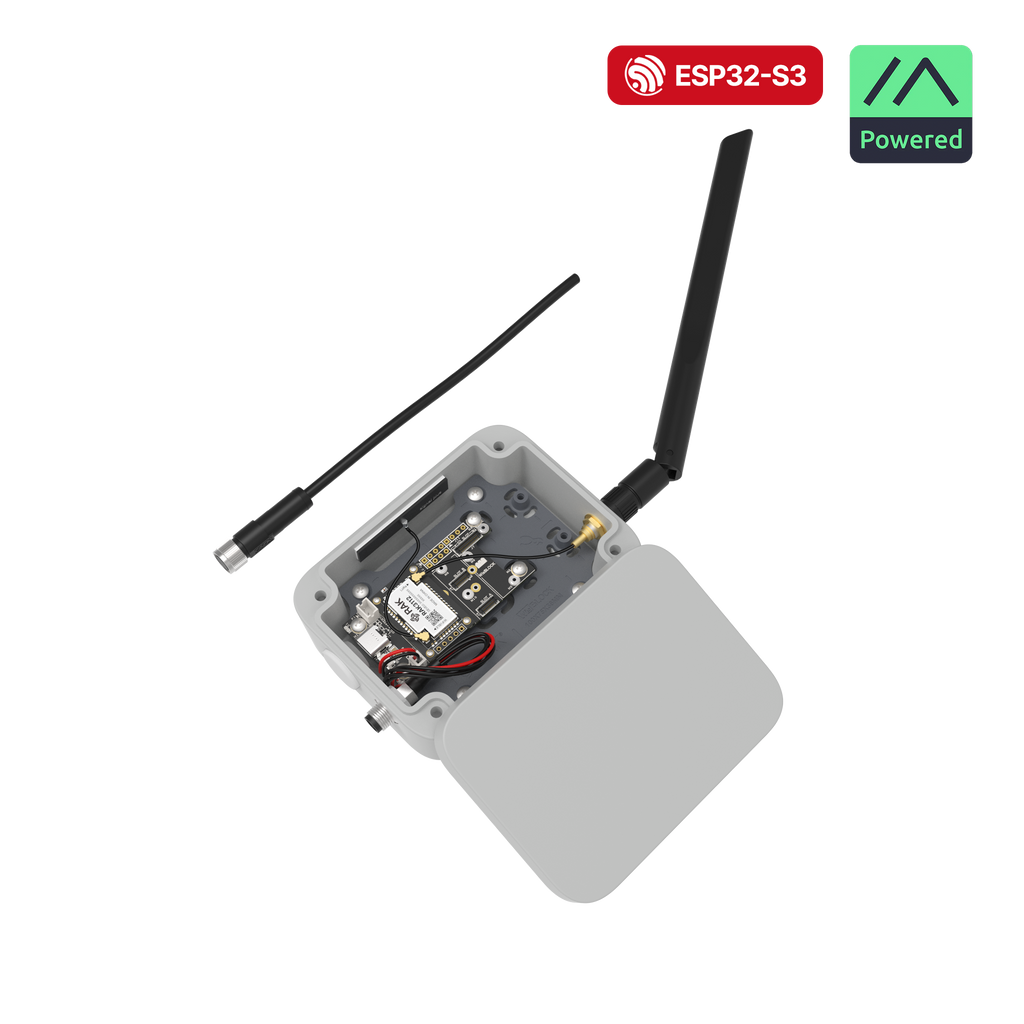

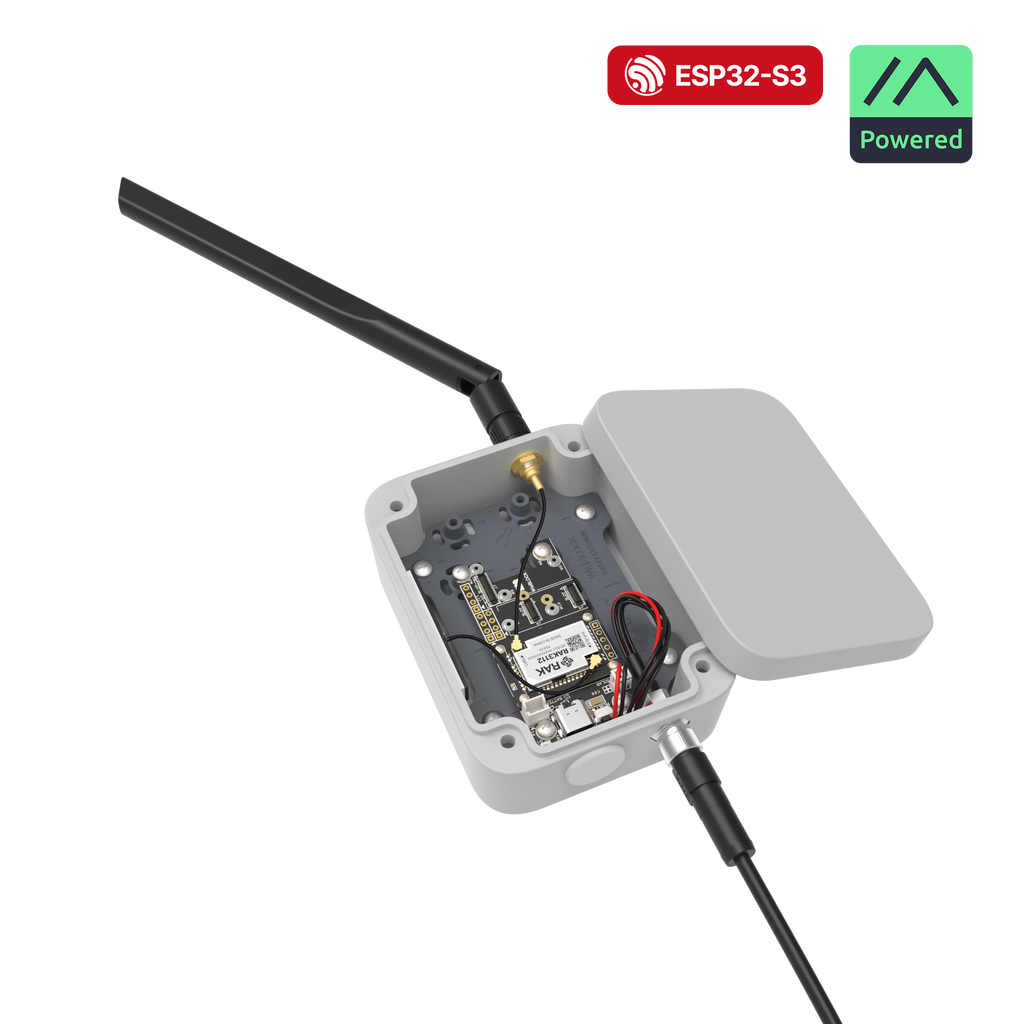

For ease of deployment, the WisMesh MQTT WiFi Gateway is optionally available assembled in the compact Unify Enclosure IP67 100x75x38mm. Swappable mounting accessories simplify installation, making it adaptable to various locations.

The WisMesh MQTT WiFi Gateway comes pre-assembled and pre-flashed with the original Meshtastic firmware. Setup is quick and simple with the Meshtastic mobile app via BLE.

Product Features

• WisBlock RAK11200 Core Module

  • Espressif ESP32-WROVER WisBlock Core module, pre-flashed with the Meshtastic firmware
  • Bluetooth v4.2 BR/EDR and BLE
  • WiFi 802.11 b/g/n (802.11n up to 150 Mbps)
  • 4 MB External SPI Flash, 520 KB RAM
  • 8 MB SPI Pseudo static RAM (PSRAM)
• WisBlock RAK13300 LoRa Module
  • Semtech SX1262
  • LoRaWAN compliant LoRa® transceiver
• WisBlock RAK19007 Base Board, 30x35mm with four Sensor Slots and two IO slots
  • USB Type C debug port
  • 1 slot for WisBlock Core MCU
  • 2 slots for modules with 24pin WisBlock Sensor Modules
• WisMesh Blade Antenna
  • Black high-performance LoRa antenna
  • High efficiency
  • Omnidirectional
  • Vertically polarized
  • 9xx MHz variant
    • Frequency Range: 902~928 MHz
    • VSWR: ≤ 1.5
  • 8xx MHz variant
    • Frequency Range: 863~870 MHz
    • VSWR: ≤ 1.3
• Unify Enclosure 100x75x38mm (as per option selected)

Product Inclusions

• With Unify Enclosure 100x75x38mm
  • 1 pc WisMesh WiFi Gateway
  • 1 pc WisMesh Blade Antenna
  • 1 pc USB Cable
  • 1 pc M8 Cable
• Without Enclosure
  • 1 pc WisBlock RAK19007 Base Board
  • 1 pc WisBlock RAK11200 Core Module
  • 1 pc WisBlock RAK13300 LoRa Module
  • 1 pc WisMesh Blade Antenna
  • 1 pc USB Cable
  • 1 set Screw
