WisMesh Antenna for any Meshtastic Node

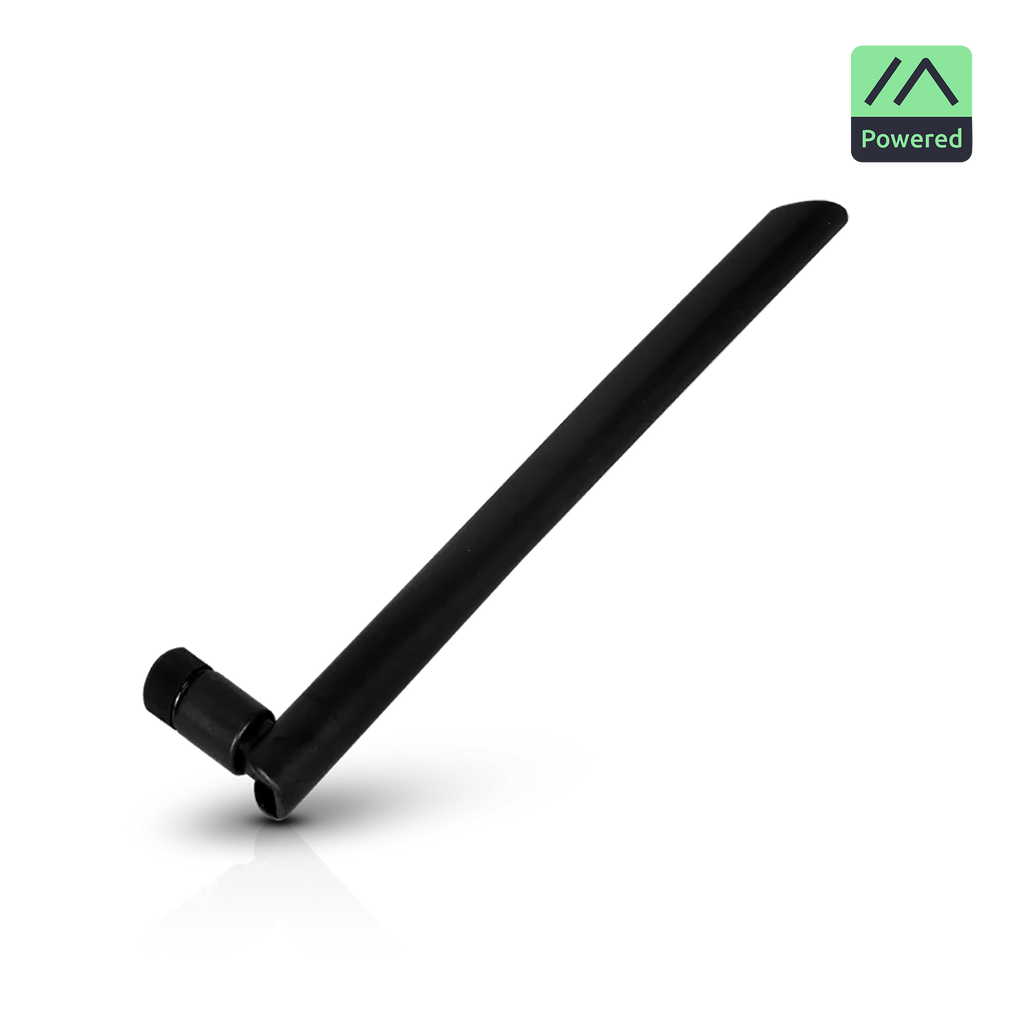

WisMesh Blade Antenna: The LoRa Antenna for Meshtastic and More

The antenna is one of the most crucial components of any Meshtastic device, as it directly affects the range of communication with other Meshtastic nodes.

Our WisMesh Blade Antenna is the best antenna for Meshtastic devices, designed to replace your existing antenna and solve range-related issues. It is available in two variants:

• 915MHz (902-928 MHz) with a max gain of 2.3 dBi and a VSWR ≤ 1.5.
• 868MHz (863-870 MHz) with an impressive gain of 2.8 dBi and a VSWR ≤ 1.3.

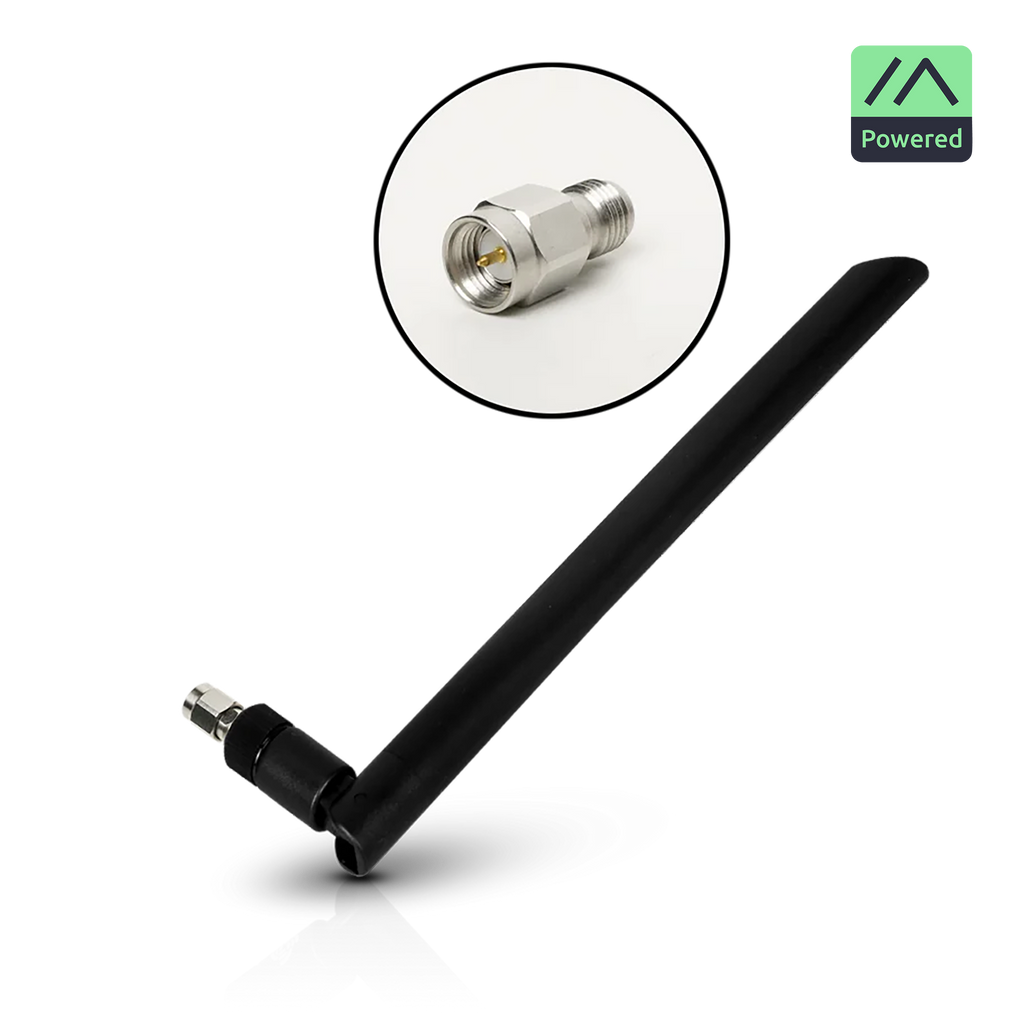

In addition to WisBlock Meshtastic devices, you can also use the WisMesh Blade Antenna to upgrade other popular LoRa devices like Lilygo LoRa32V2, Heltec LoRa32V3. We offer a variant with an RP-SMA Female to SMA Male Adapter, ensuring full compatibility.

Key Features

• Black high-performance LoRa antenna
• High efficiency
• Omnidirectional
• Vertically polarized
• 915MHz variant
  • Frequency Range: 902~928 MHz
  • VSWR: ≤ 1.5
• 868MHz variant
  • Frequency Range: 863~870 MHz
  • VSWR: ≤ 1.3
• Dimensions: Փ13.0mm x 198.0mm
• Feed Impedance: 50Ω
• Efficiency: >80%
• Connector Type: RP-SMA
• Operation Temp(°C) : -30°C ~ +75°C

Package Inclusions

• 1 pc Blade Antenna
• 1 pc SMA Adapter (as per option selected)

Documentation

• RAKARJ16 915MHz Black Blade Antenna
• RAKARJ17 868MHz Black Blade Antenna
