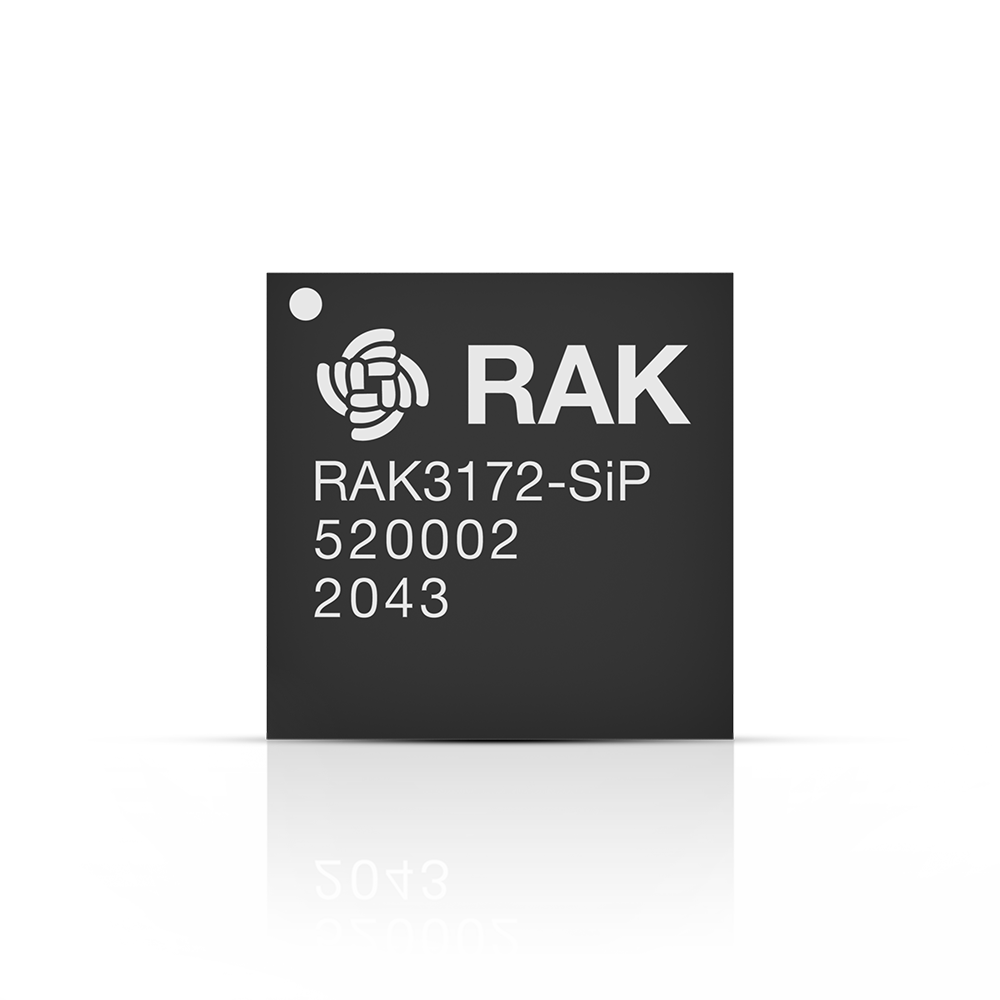

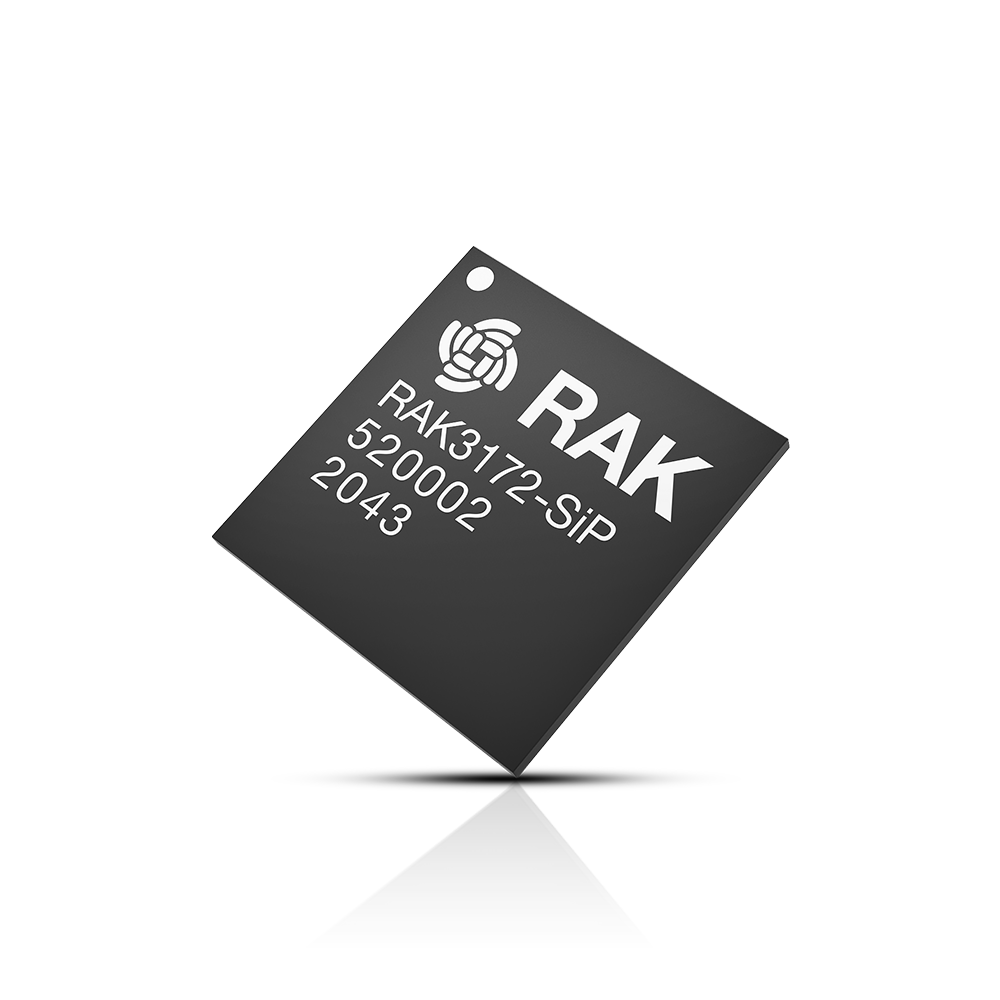

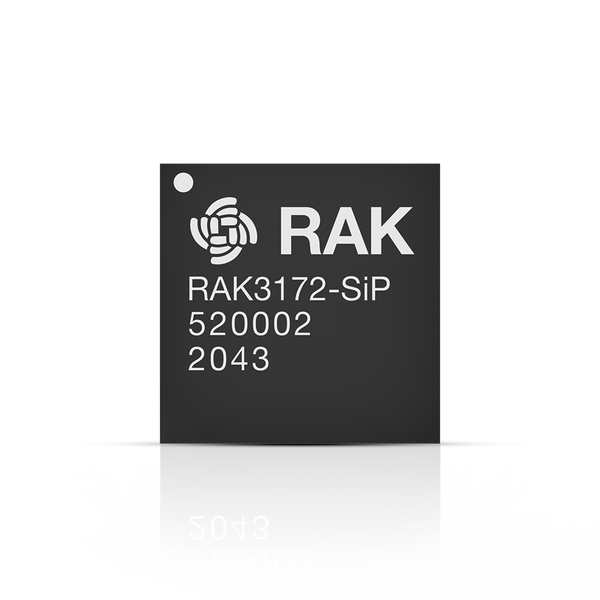

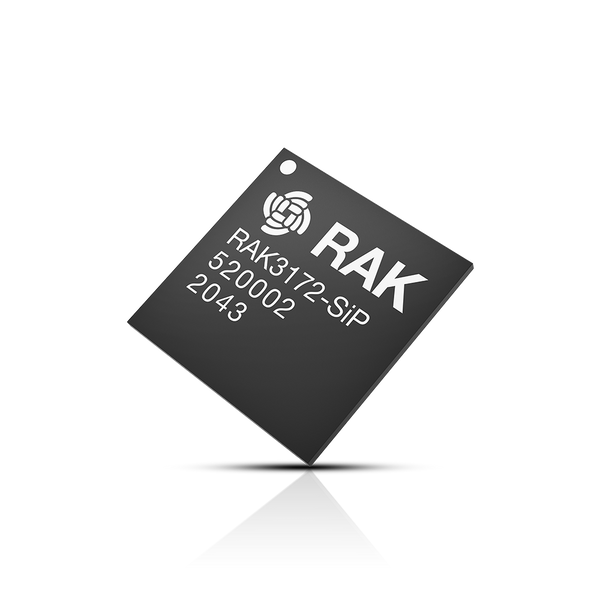

RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN
RAK3172/RAK3172LP
Prefer another courier for your delivery? Contact us for special shipping arrangements.
RAK3172-SiP is a low-power long range transceiver system in a package (SiP) that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.4 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-to-Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.
You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172-SiP also offers low power features which is very suitable for battery-powered applications. It is RUI3 compatible which allows you to create custom firmware using RUI3 APIs.
Note: The RAK3172-SiP does not come with pre-flashed LoRaWAN credentials. You can create unique EUI’s and Keys in the LoRaWAN server and set them on the RAK3172-SiP with AT commands.
| SKU | Model# | Description | Frequency |
|---|---|---|---|
| 305041 | RAK3172-SiP | STM32WLE5 SiP Module for LoRaWAN | 8XXMHz for EU868/IN865/RU864 |
| 306039 | RAK3172-SiP | STM32WLE5 SiP Module for LoRaWAN | 9XXMHz for US915/AU915/KR920/AS923 |

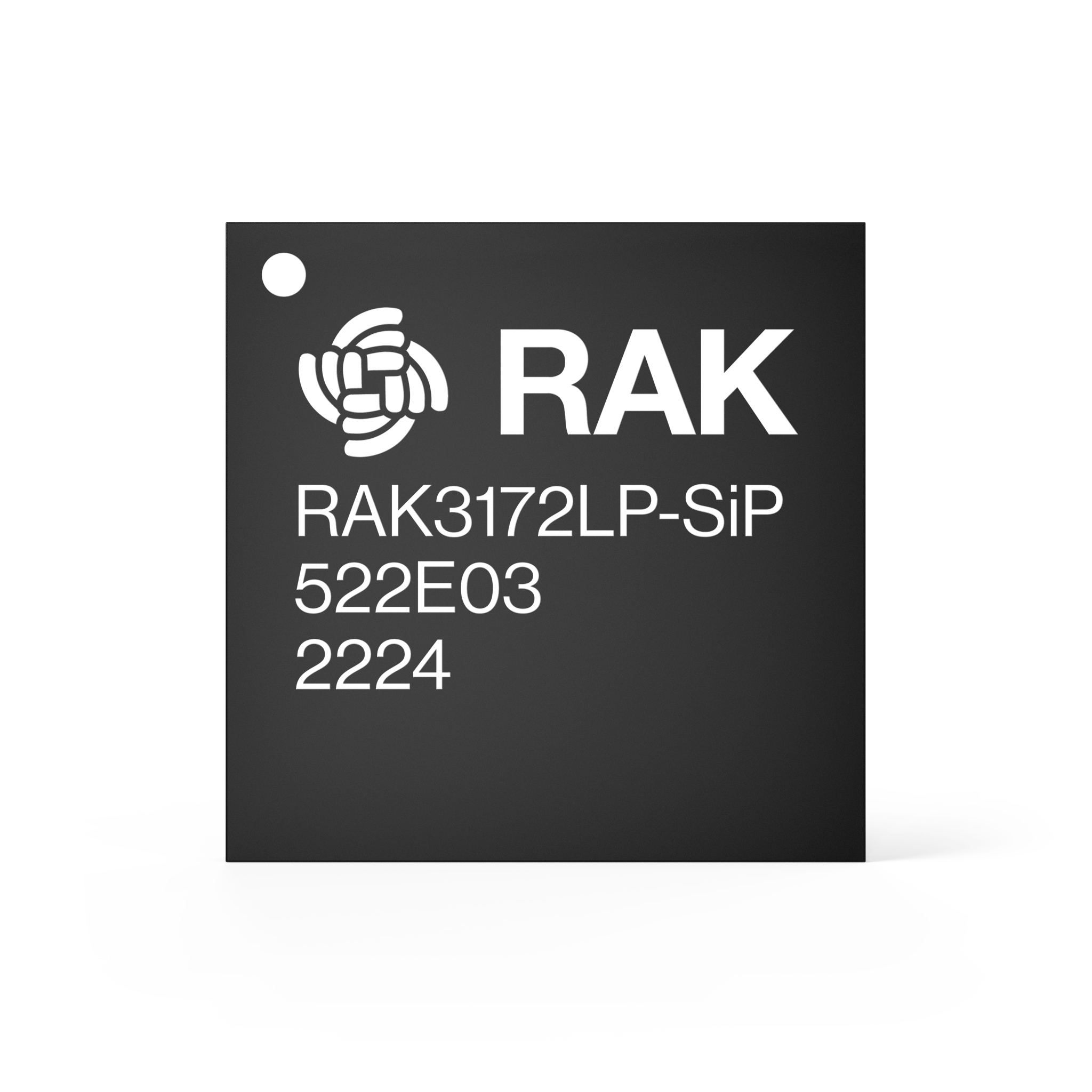

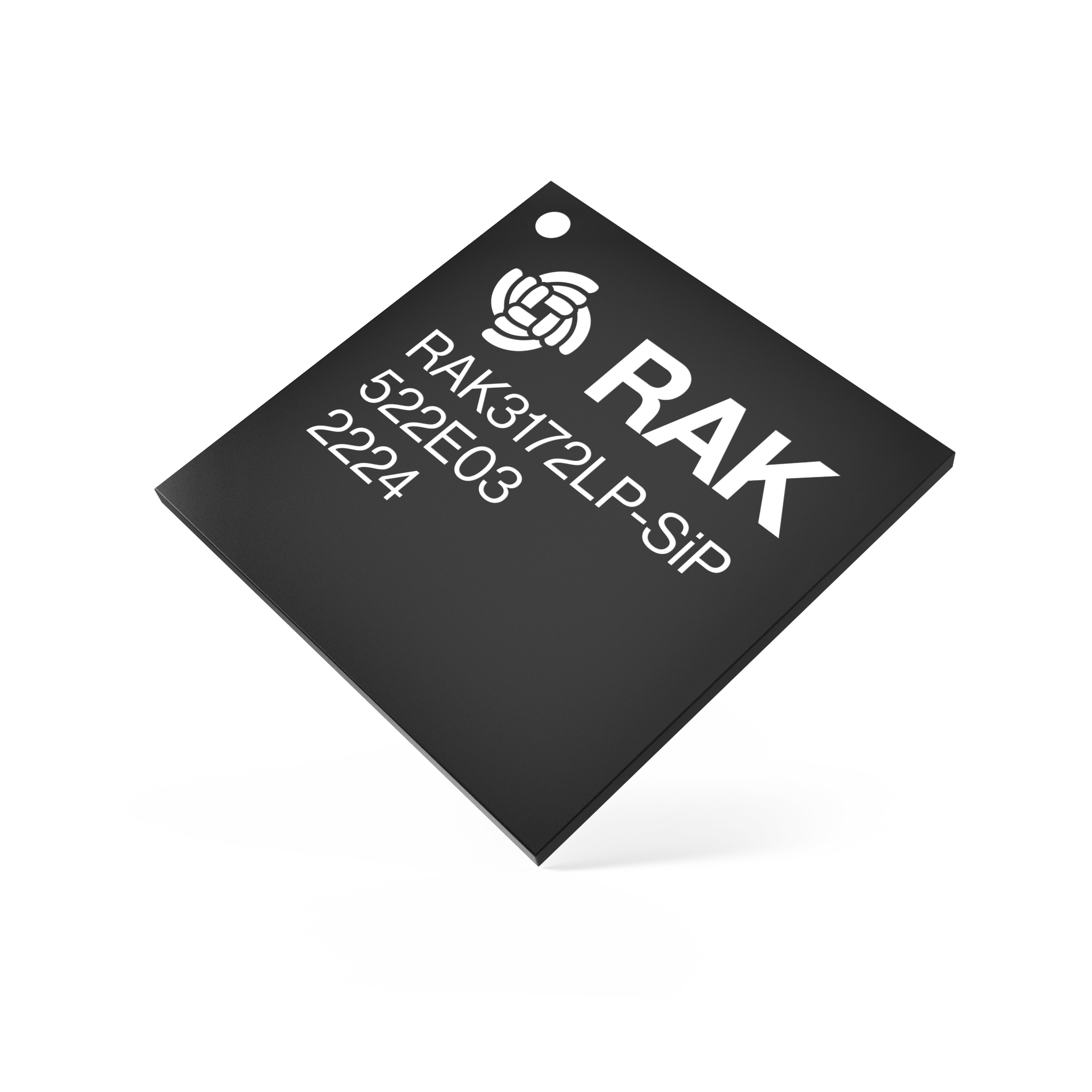

| 305049 | RAK3172LP-SiP | Low Power Version STM32WLE5 SiP Module for LoRaWAN | 8XXMHz for EU868/IN865/RU864 |
| 306049 | RAK3172LP-SiP | Low Power Version STM32WLE5 SiP Module for LoRaWAN | 9XXMHz for US915/AU915/KR920/AS923 |
Features
- Based on STM32WLE
- System-in-Package form factor
- RUI3 API compatible
- LoRaWAN 1.0.4 specification compliant
- Supported bands: IN865, EU868, AU915, US915, KR920, RU864, and AS923
- LoRaWAN Activation by OTAA/ABP
- LoRa Point-to-Point (P2P) communication
- Easy to use AT Command Set via UART interface
- Long-range - up to 15 km with optimized antenna
- Use TCXO for better frequency stability
- ARM Cortex-M4 32-bit
- 256 kbytes flash memory with ECC
- 64 kbytes RAM
- Ultra-Low Power Consumption of 1.69 μA in sleep mode
- Supply Voltage: 2.0 V ~ 3.6 V
Documentation
-
RAK3172-SiP Documentation
- RAK3172-SiP Reference Design
- RAK3172-SiP STM32WLE5 SiP Module Datasheet
- RAK3172-SiP STM32WLE5 SiP Module Quick Start Guide
- RAK3172-SiP STM32WLE5 SiP Module AT Command Manual
- RAKwireless Unified Interface V3 (RUI3) Documentation
- RUI3 Best Practices
- RUI3 Tips and Tricks
Transform Your Ideas into Reality with RAK3172-SIP!
Did you know that the RAK3172-SIP is the powerhouse behind our innovative RAK2270 LoRa® Sticker project - the most popular IoT Open Source Project in the community now? Whether you're a hobbyist or a professional, this module offers endless possibilities for your projects. Ready to build your dream sticker? Learn More and Get Started.
