WisMesh RP2040 Starter Kit for Meshtastic
Raspberry Pi RP2040 Modular Off-Grid IoT Solution
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Build Your LoRa Mesh Network with the Meshtastic RP2040 Starter Kit
The Meshtastic RP2040 Starter Kit is ideal for building off-grid LoRa mesh networks. It features the WisBlock RAK11310 Module, powered by the Raspberry Pi RP2040. Pre-flashed with Meshtastic firmware, the kit ensures a quick and easy setup. It is designed to support Meshtastic Client, Tracker, and Router Repeater roles.
Why Choose the RP2040 Starter Kit for Meshtastic?
The WisMesh RP2040 Starter Kit combines modular design with cutting-edge technology to help you deploy LoRa mesh networks for off-grid communication. Perfect for outdoor enthusiasts, IoT developers, and system integrators, this kit simplifies the process of building reliable Meshtastic networks.
- Plug-and-Play: Pre-flashed with Meshtastic firmware for immediate use.
- Modular Design: Customize your setup with WisBlock Base Boards and additional sensor modules.
- Versatile Roles: Support for Client, Tracker, and Router Repeater roles.
- Durable and Secure: Compatible with Solar IP67 enclosures for outdoor use.
Use Cases for the Meshtastic RP2040 Starter Kit
Off-Grid Communication：Easily build Meshtastic devices to send messages to your team over a LoRa mesh network. Stay connected during outdoor adventures or in emergency situations, even in remote areas.
Asset Tracking：Use the Meshtastic Tracker Role with GNSS and accelerometer modules to track assets in real time.
Network Extension：Extend your network range using the Meshtastic Router Repeater, supported by Ethernet and PoE capabilities for scalability.
IoT Applications：The modular design supports IoT projects for environmental monitoring, logistics, and smart cities.
Kit Features and Options
-
Core Module
- RAK11310 WisBlock Core Module: Based on the Raspberry Pi Pico RP2040, pre-flashed with Meshtastic firmware for easy setup.
-
Base Boards--Choose the WisBlock Base Board for your needs:

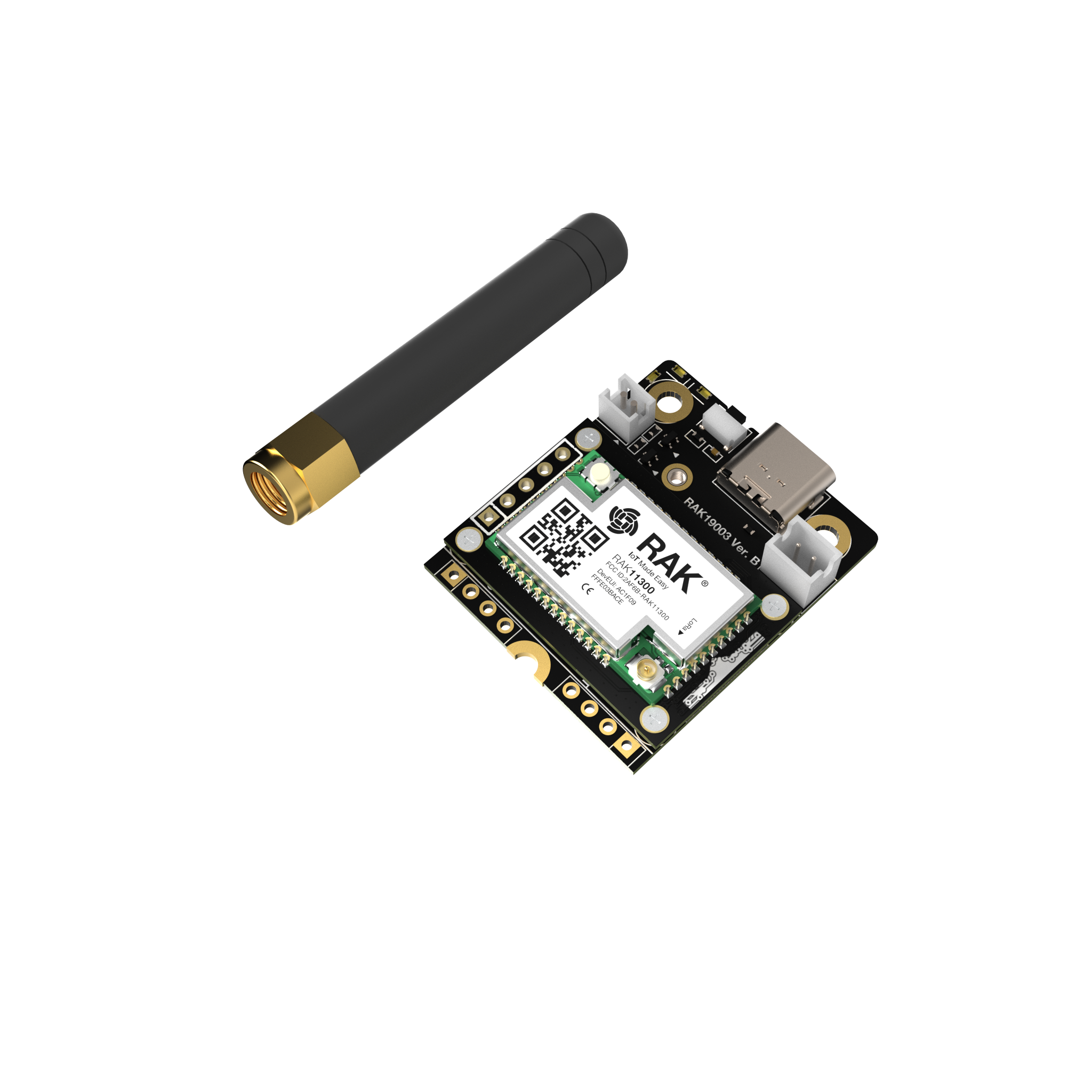

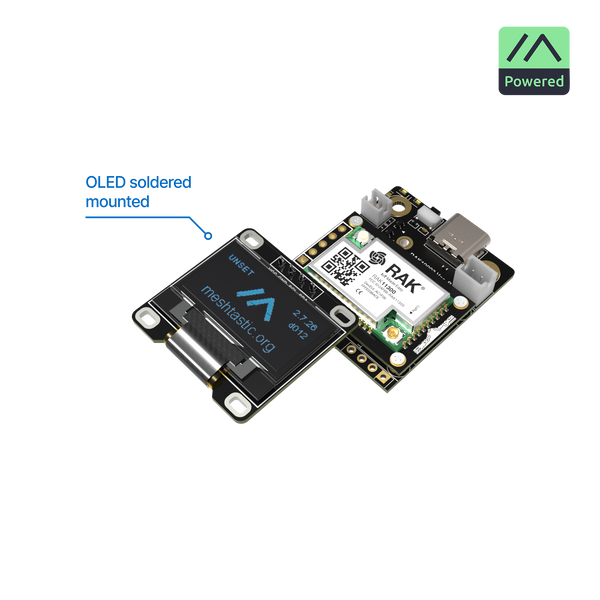

- RAK19003 Mini Base Board: Compact 30 mm x 35 mm with two sensor slots, ideal for Client or Router roles.

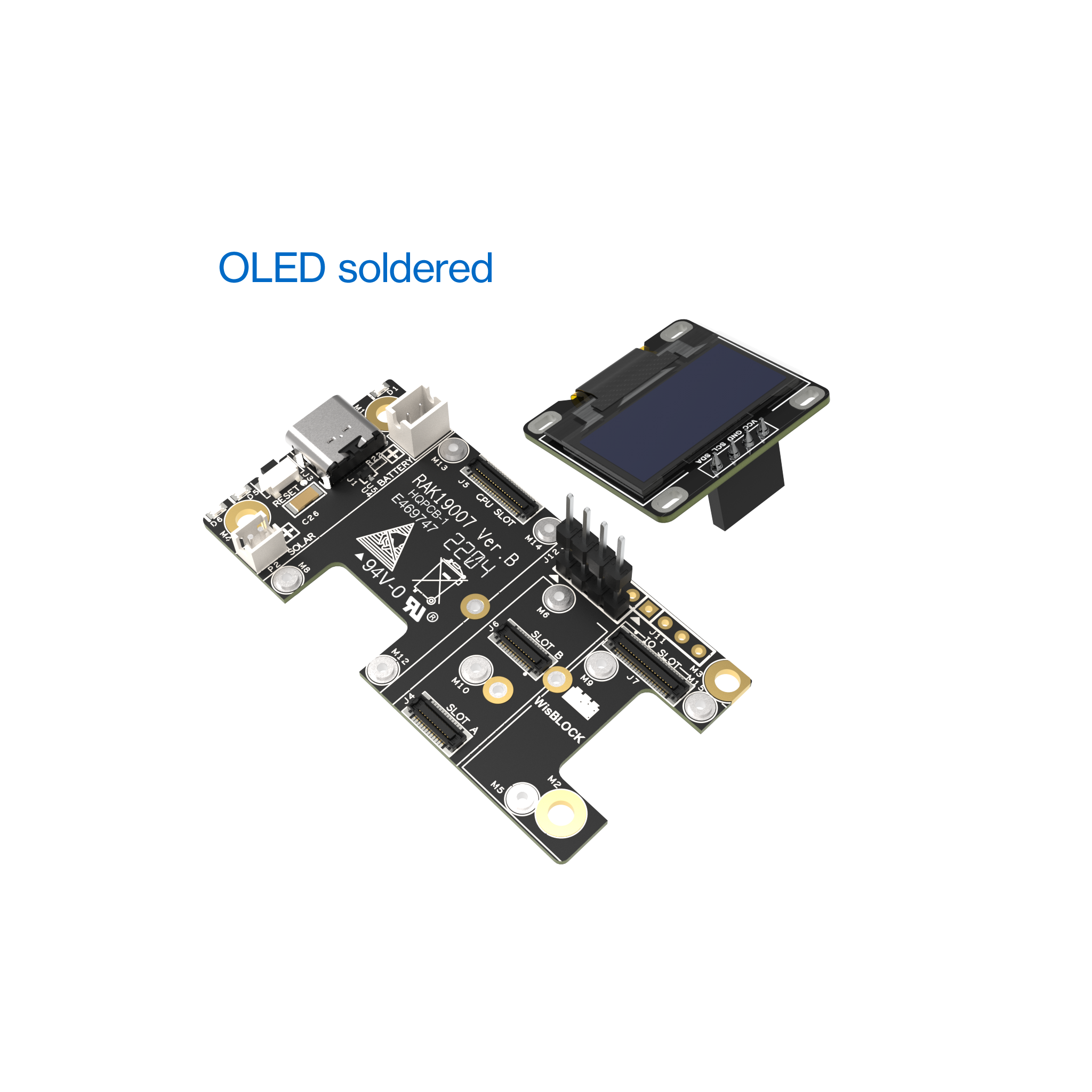

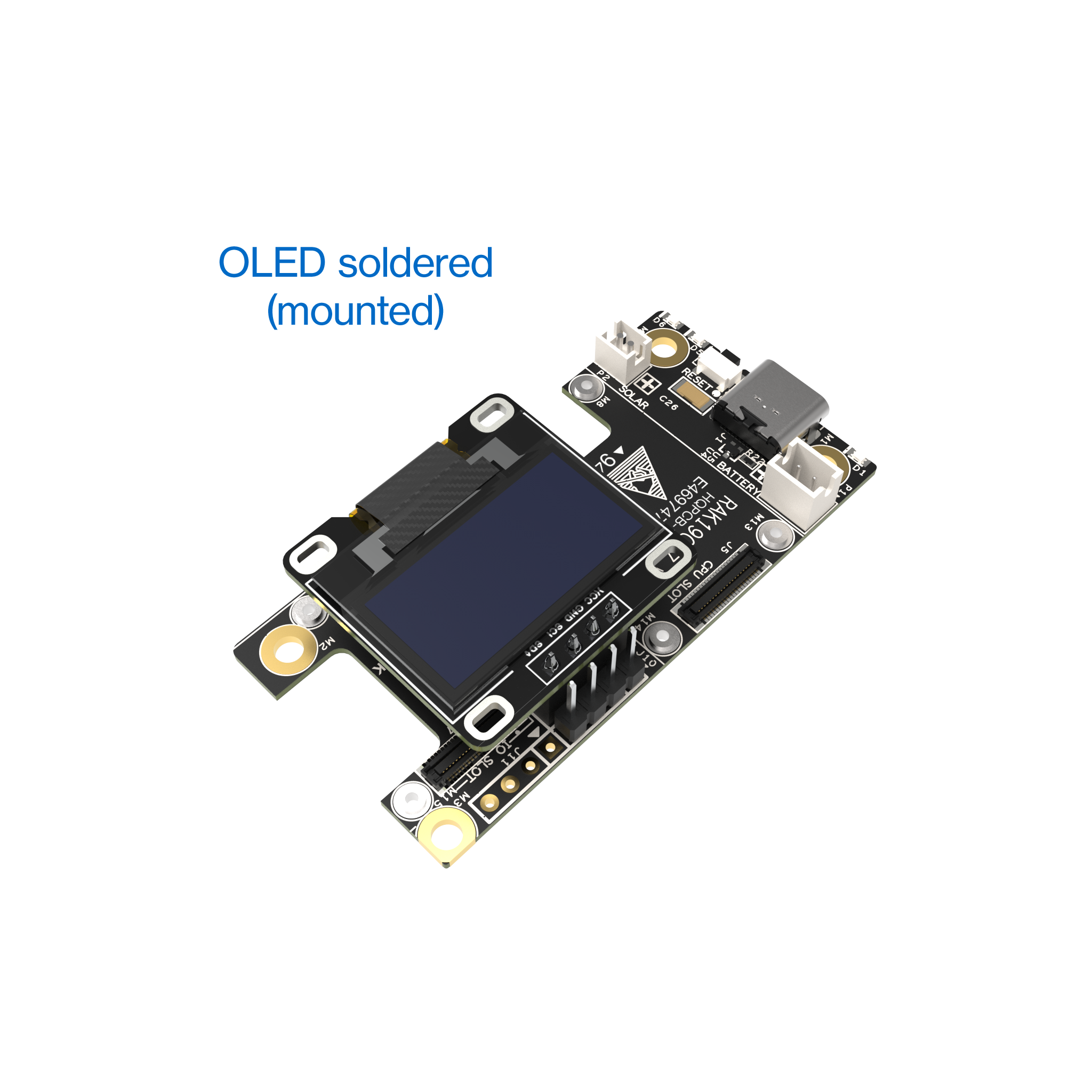

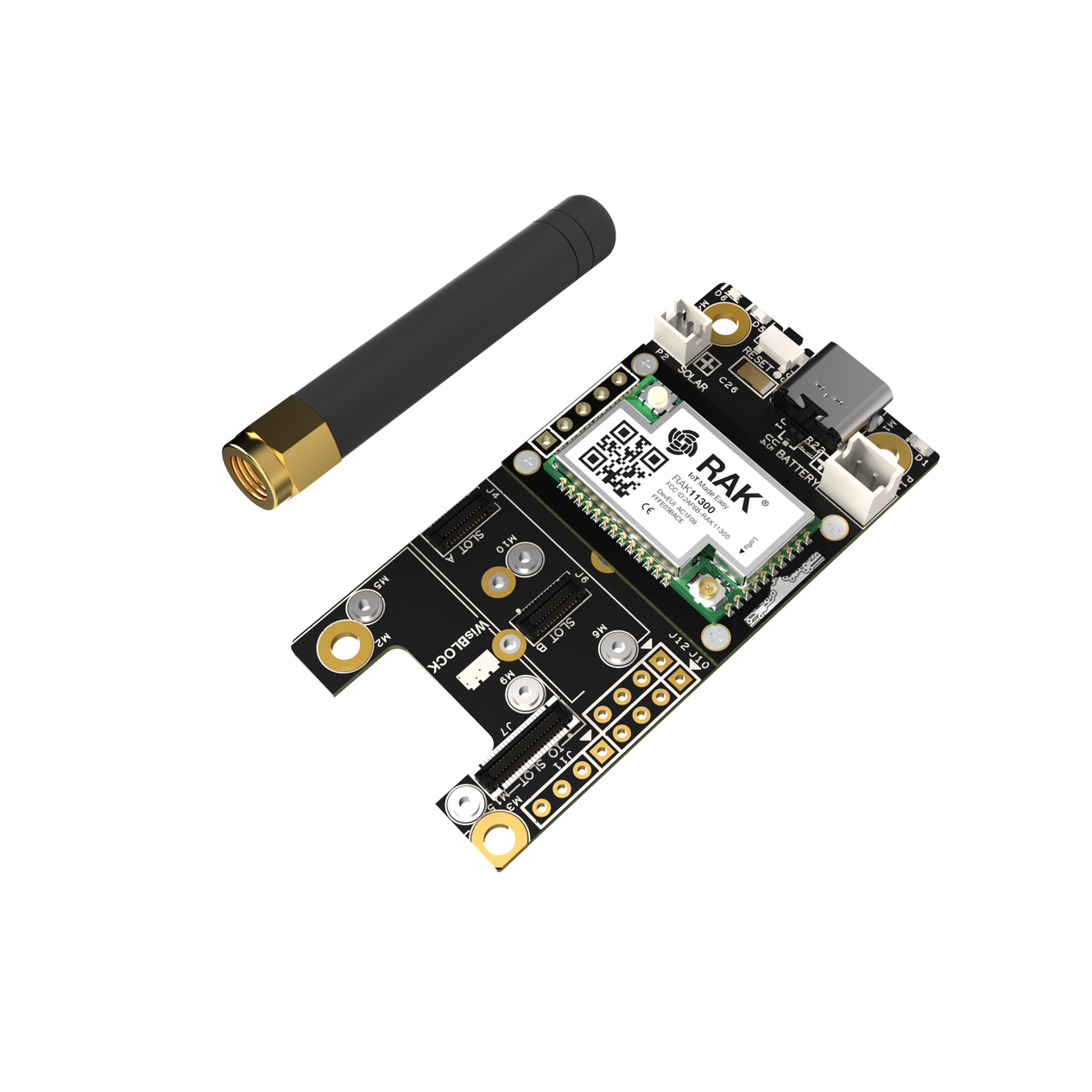

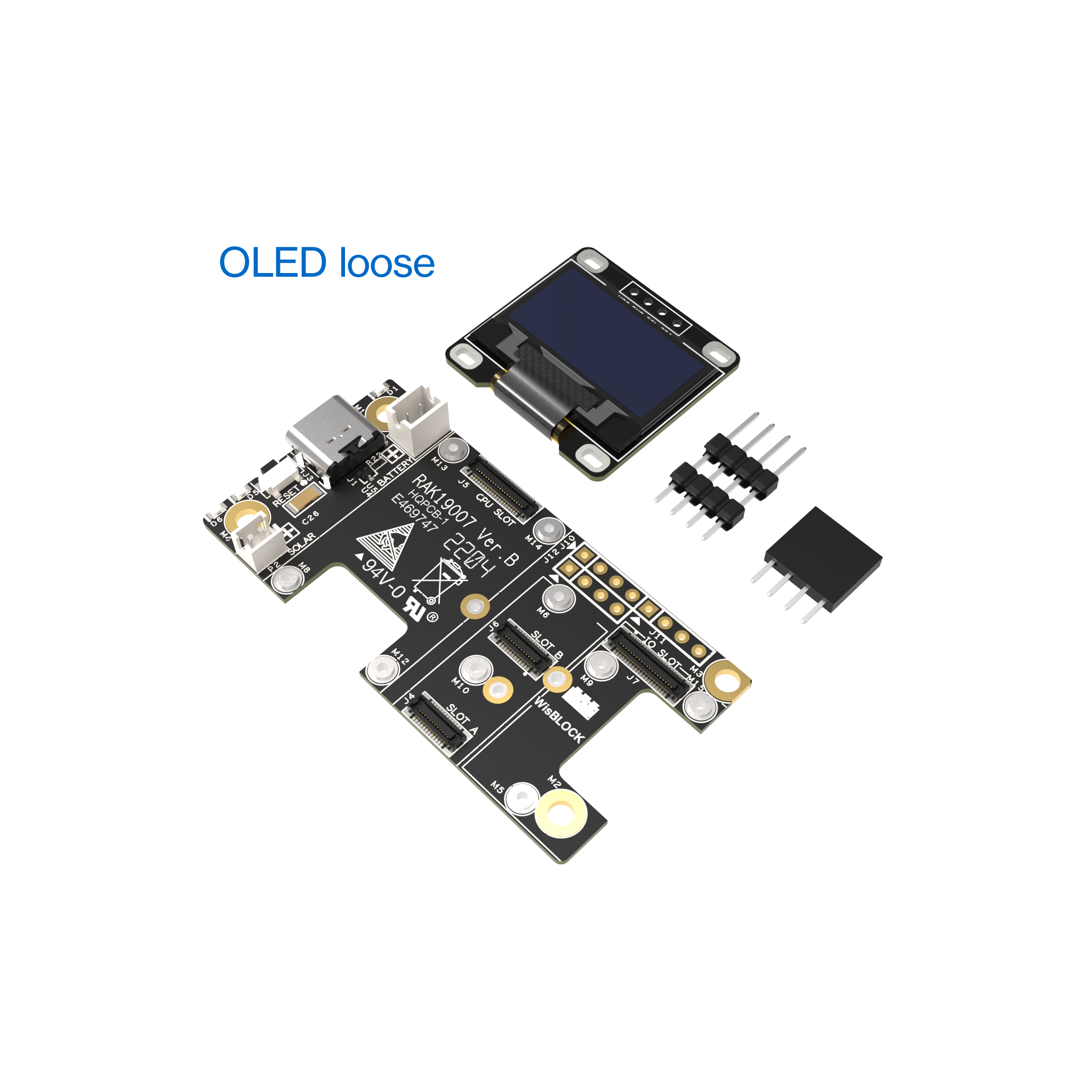

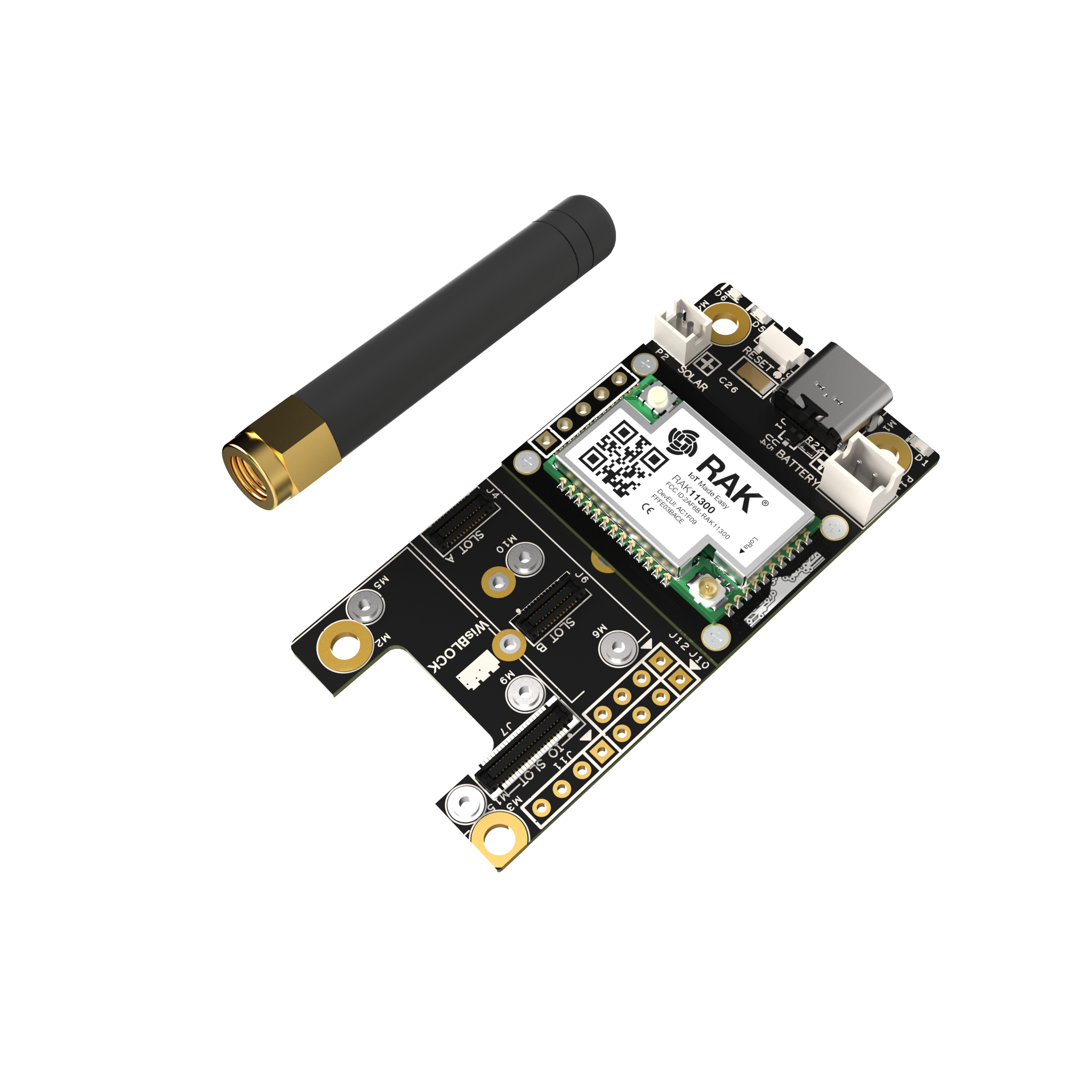

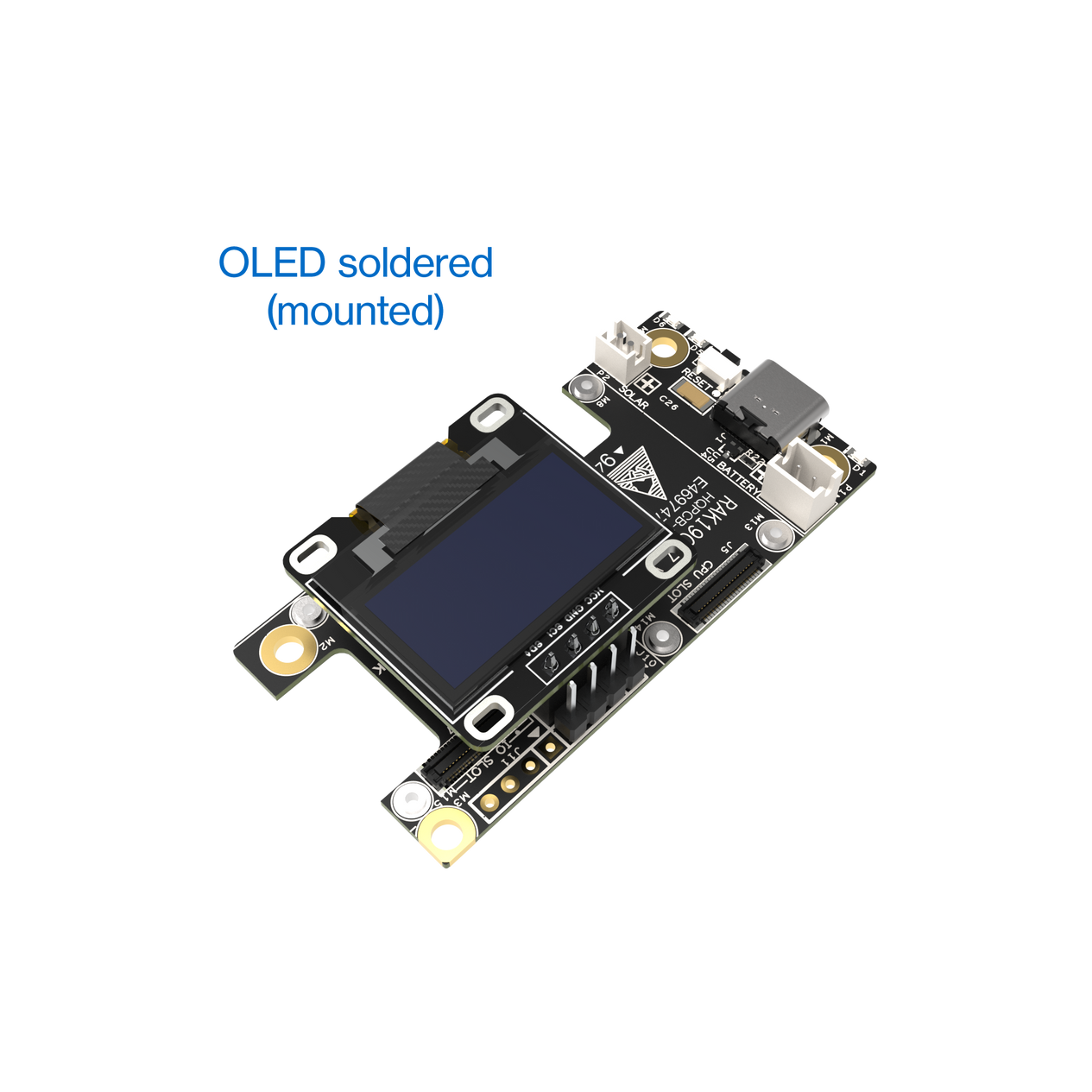

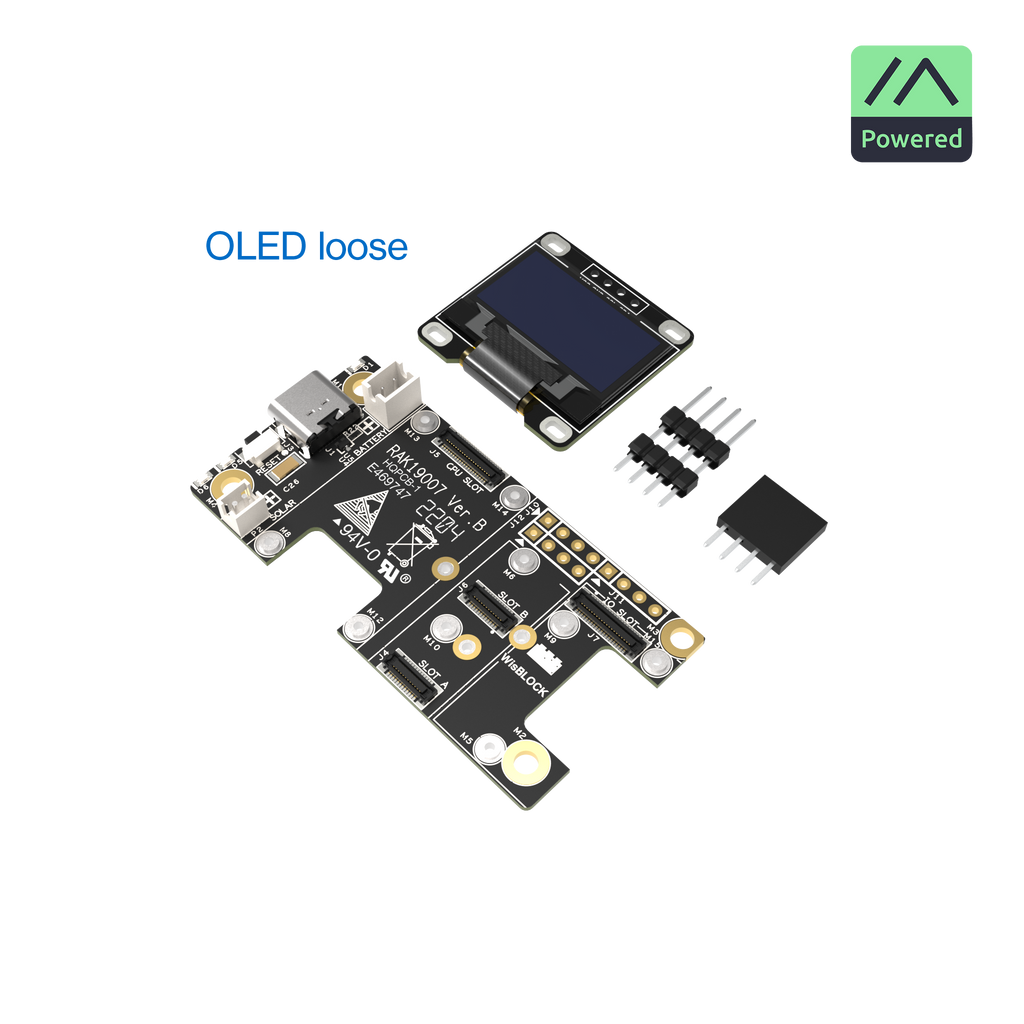

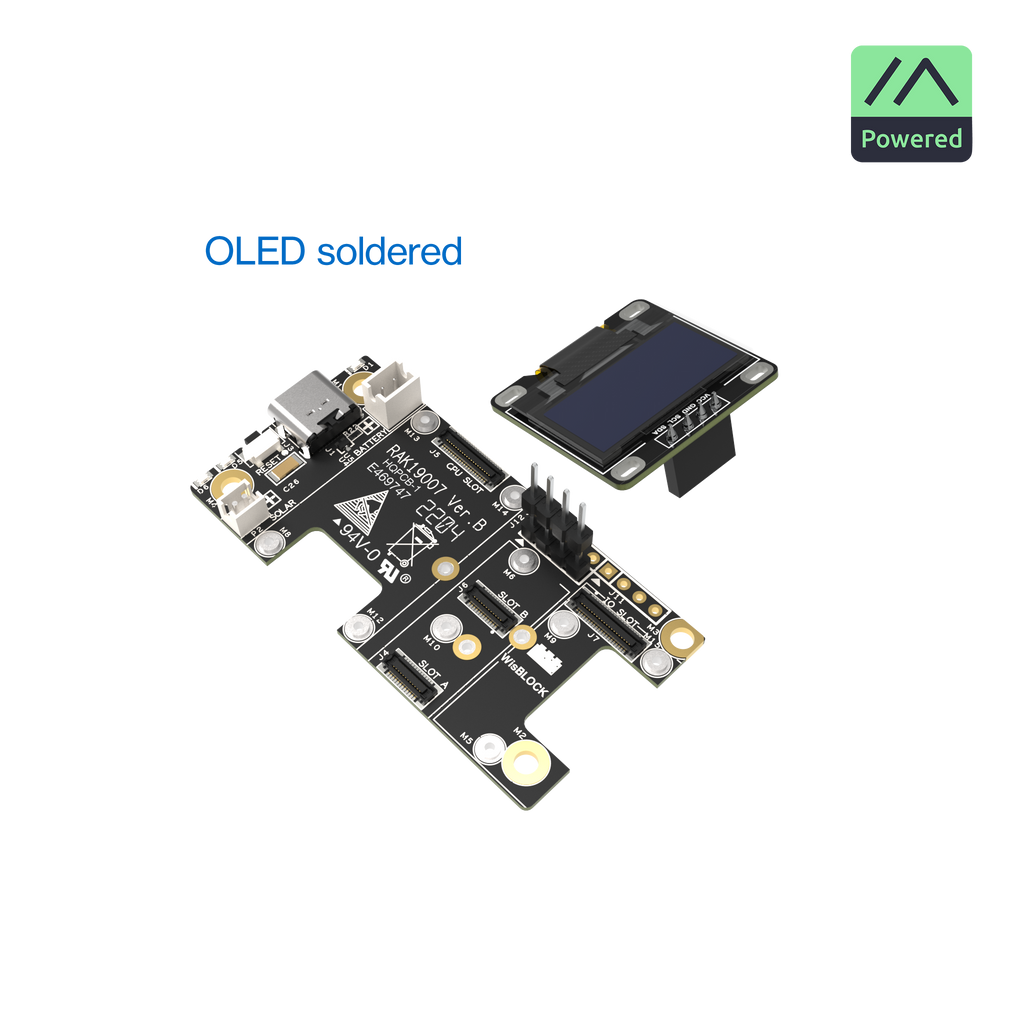

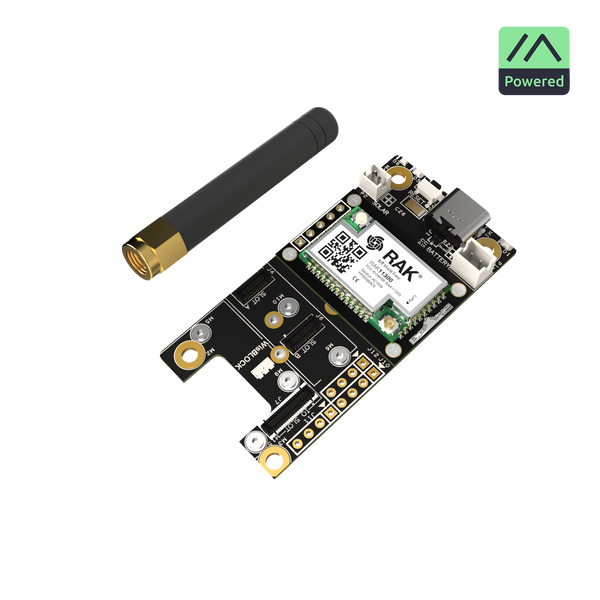

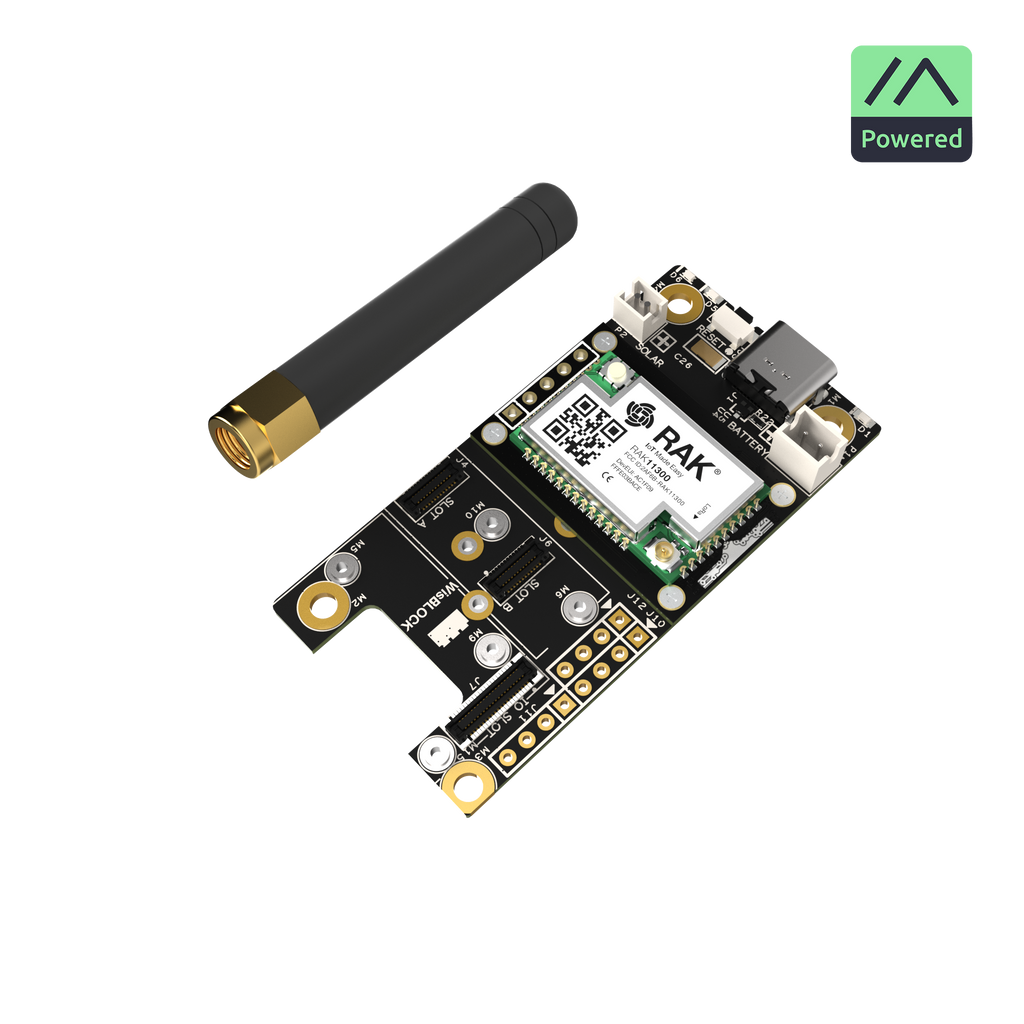

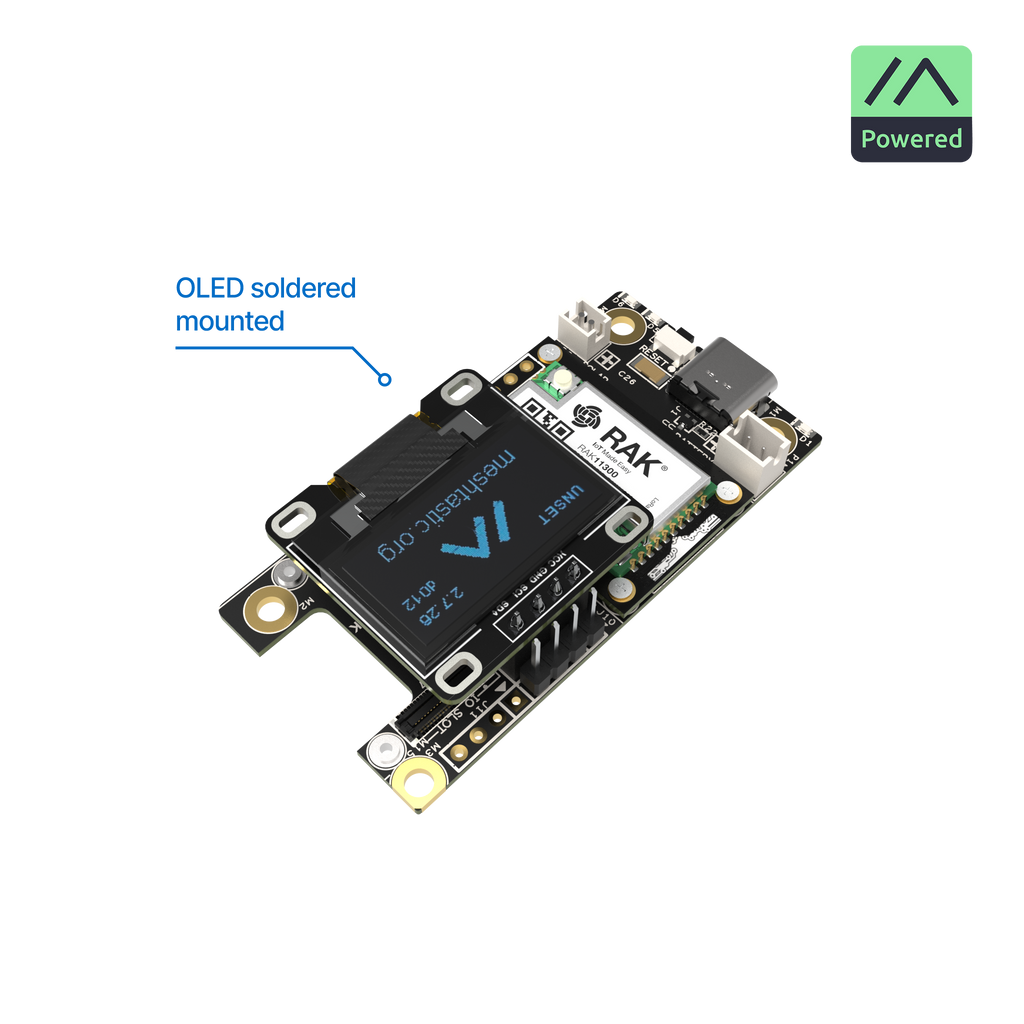

- RAK19007 Base Board: Medium 30 mm x 60 mm with four sensor slots and one IO slot for added expandability.

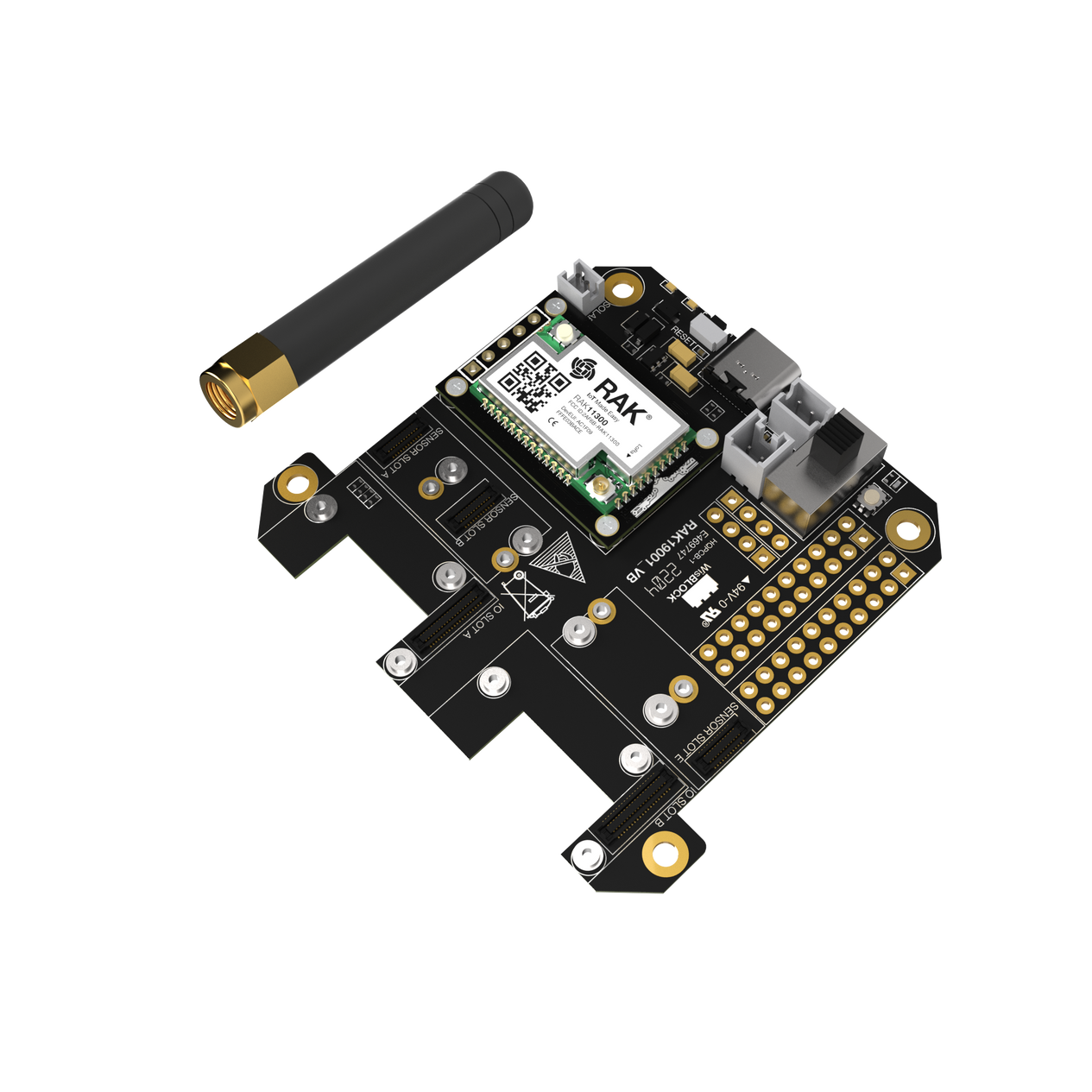

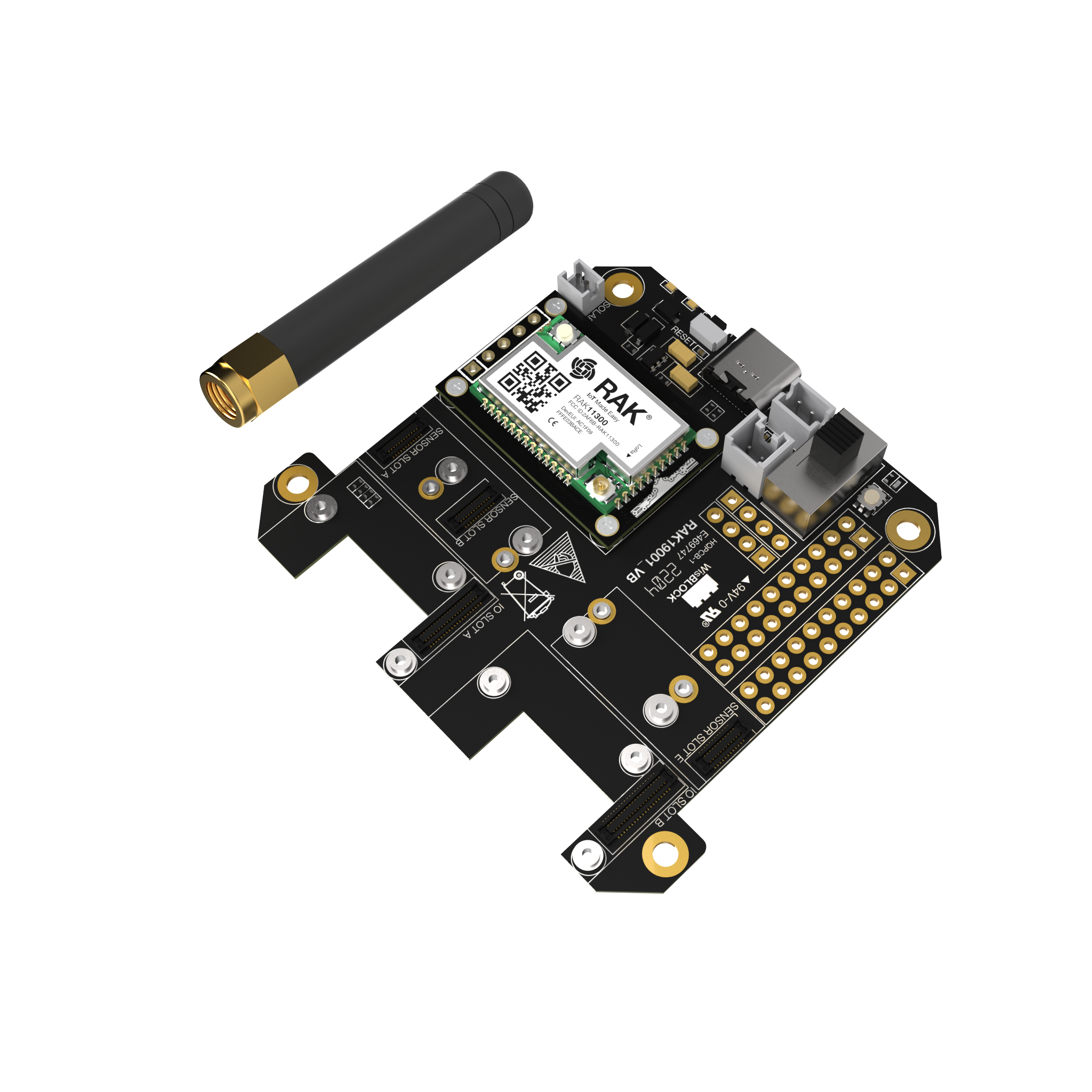

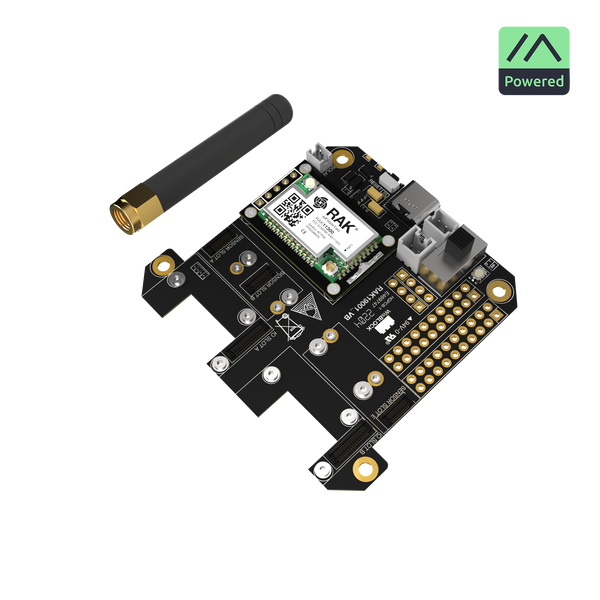

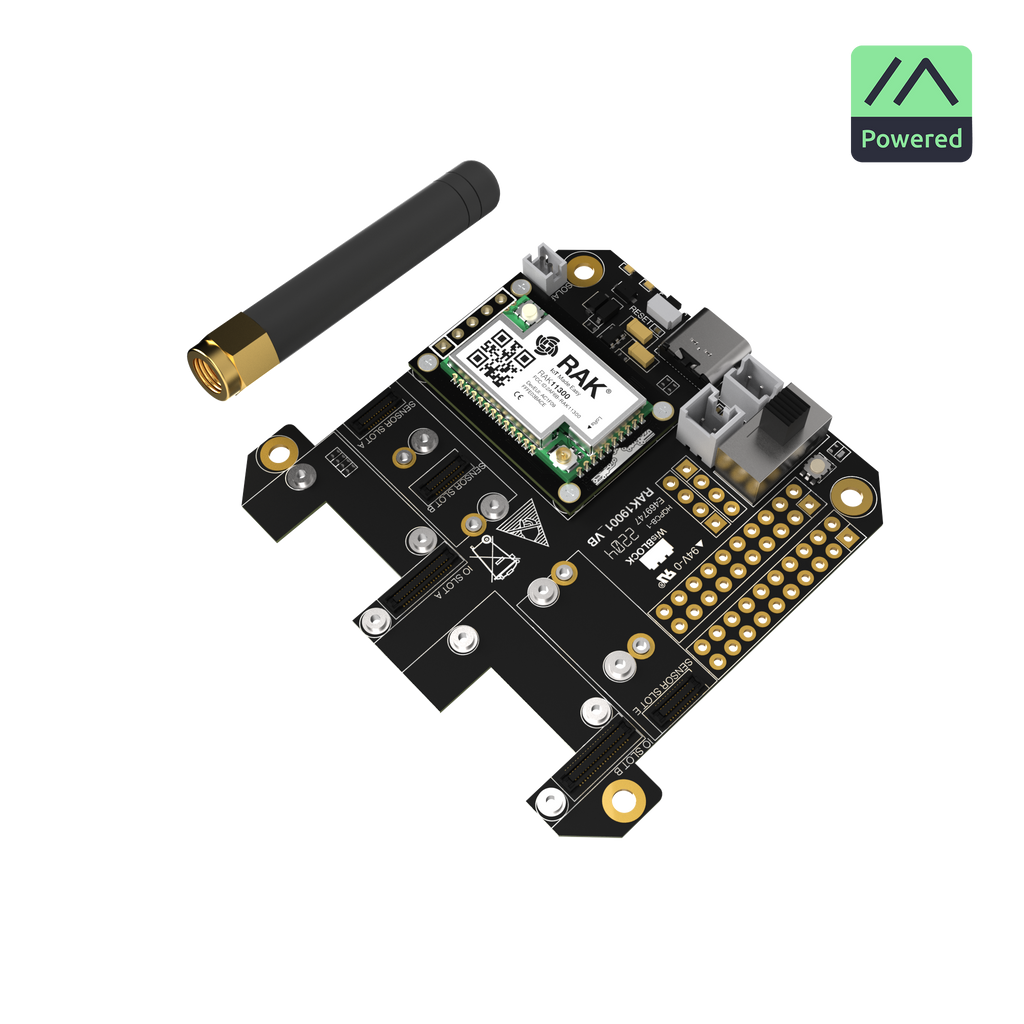

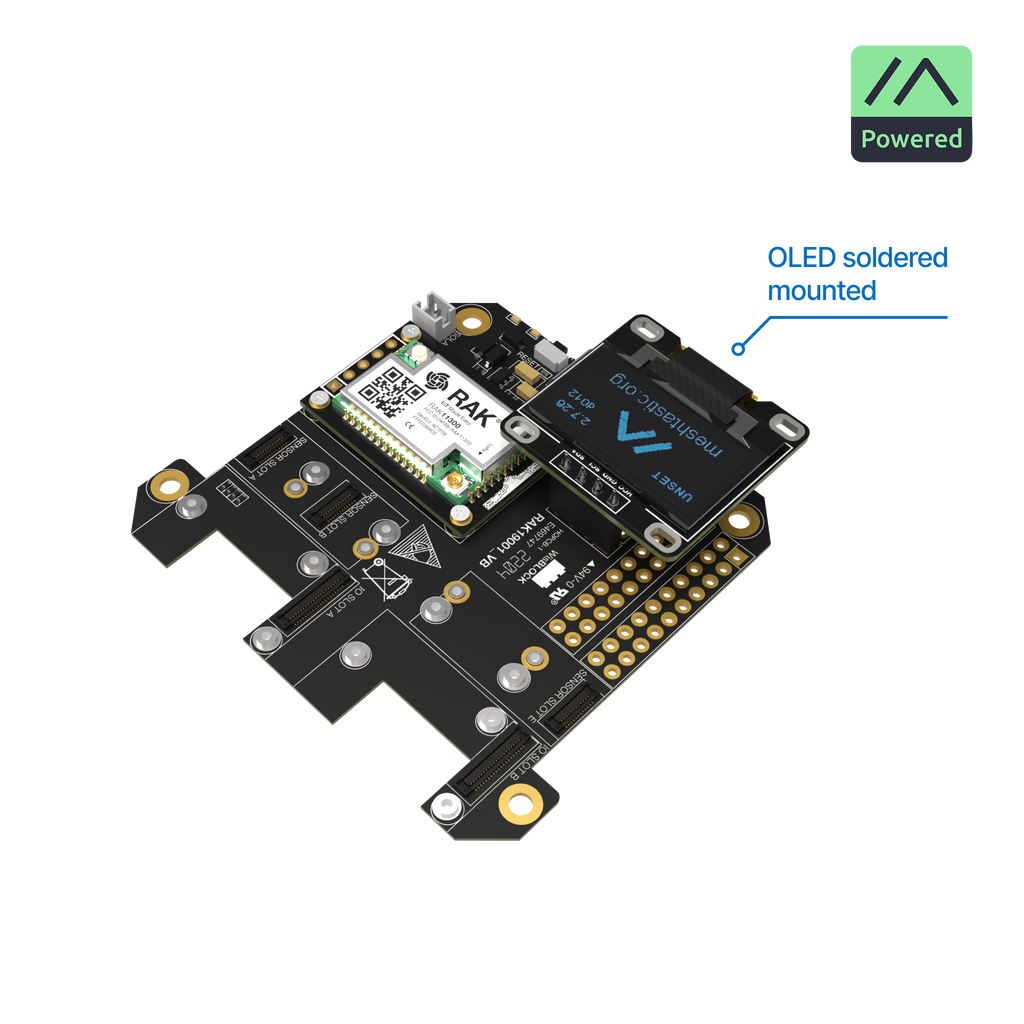

- RAK19001 Base Board: Large 57 mm x 60 mm with six sensor slots and two IO slots, perfect for advanced configurations.
-
Enclosure Options
- You can choose an IP67-rated enclosure with a solar option and multiple mounting brackets from the Unify Enclosure Collection.
- You can also add other WisBlock modules to your selection. In the Meshtastic Documentation you can find a list of supported WisBlock modules.
-
Sensor and Role-specific Modules--Customize your kit with modules designed for specific Meshtastic roles:
- Client Role:
- Tracker Role:
- Combined Client-Tracker Role:
- Router-Repeater Role:
Package Inclusions
- 1x WisBlock Base Board (your choice)
- 1x RAK11310 WisBlock Core Module (RP2040)
- 1x SMA Rubber LoRa Antenna
- 1x IPEX to SMA Cable for LoRa Antenna
- 1x BLE Antenna
- Option to add sensor modules for your chosen role
What is Meshtastic?
Meshtastic is an off-grid messaging system. It relies on LoRa technology to establish mesh networks. Messages are forwarded from one node to another. This allows communication over long distances. No cellular or internet connection is needed.
The WisMesh RP2040 Starter Kit connects the Raspberry Pi Pico ecosystem with the Meshtastic network.
Documentation and Support
Get started quickly with our comprehensive guides：
-
Meshtastic Installation and Usage Guide
- WisBlock RP2040 Starter Kit for Meshtastic Quick Start Guide
- Meshtastic Basic Device Setup
- Meshtastic Gateway Setup
Need help? Our team is ready to assist you in creating your ideal Meshtastic setup.
