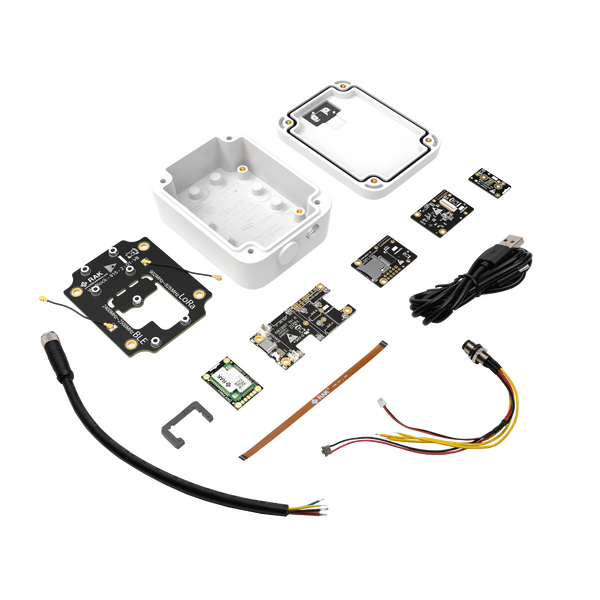

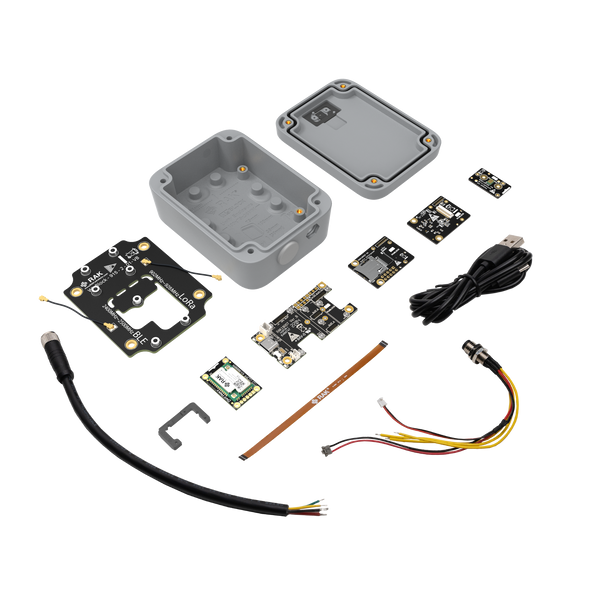

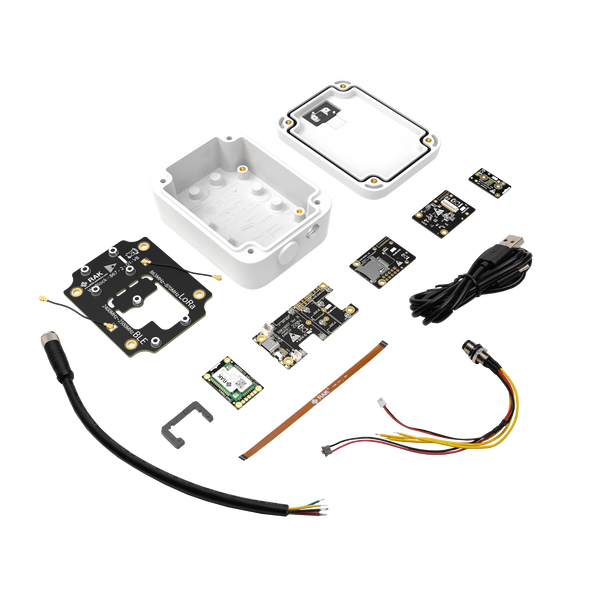

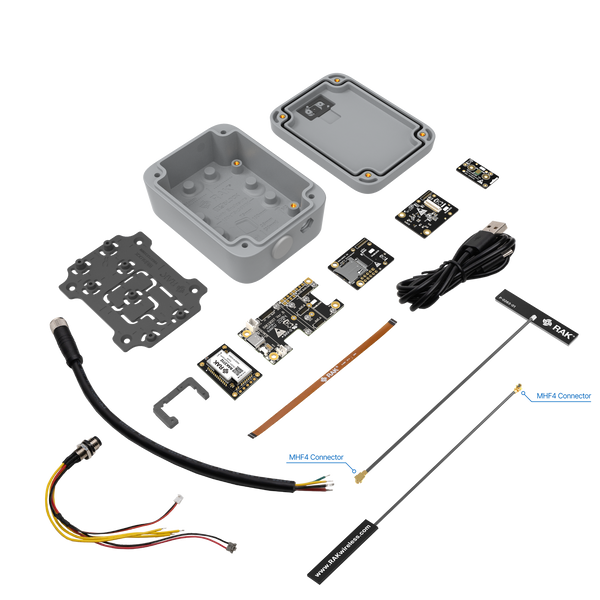

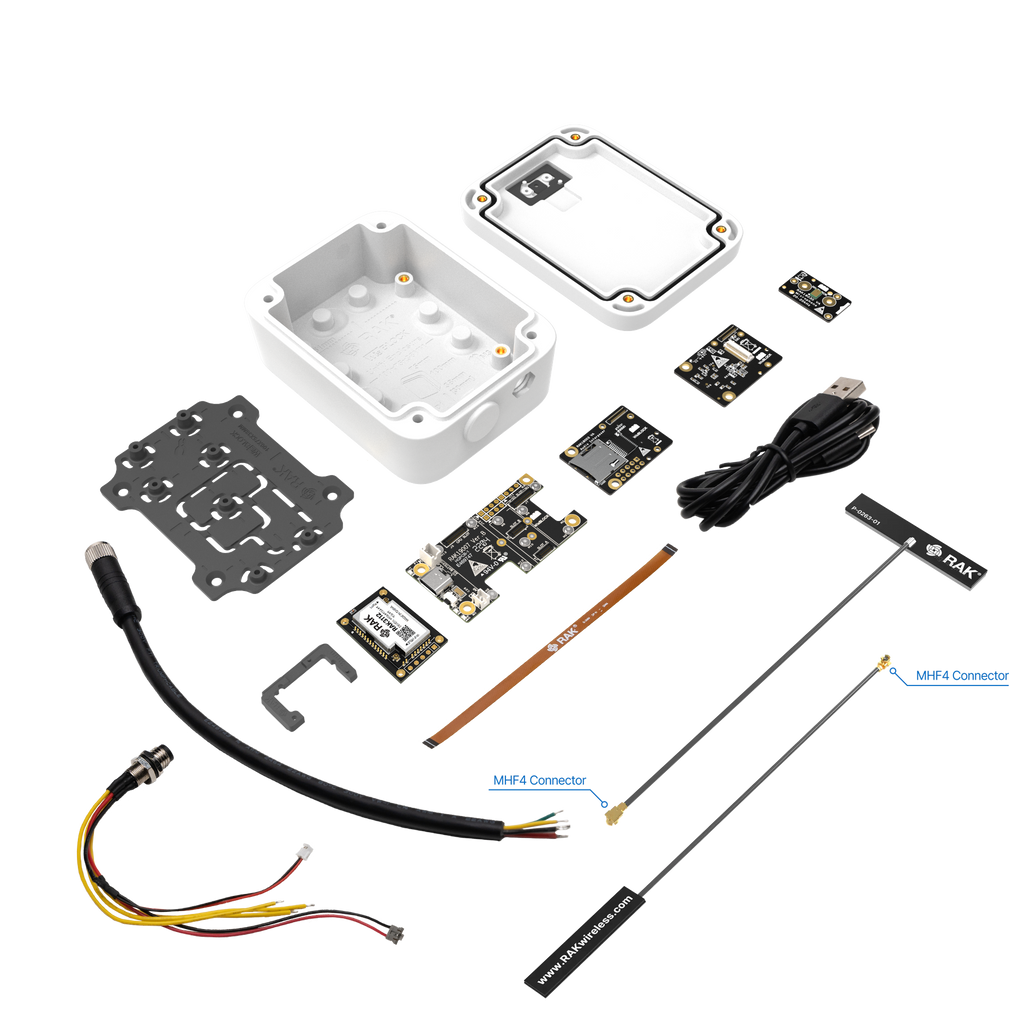

WisBlock Microphone Starter Kit
RAK10711
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Description

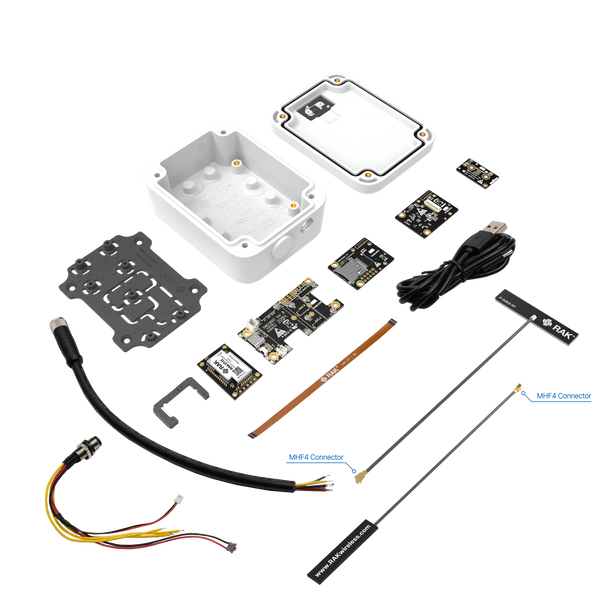

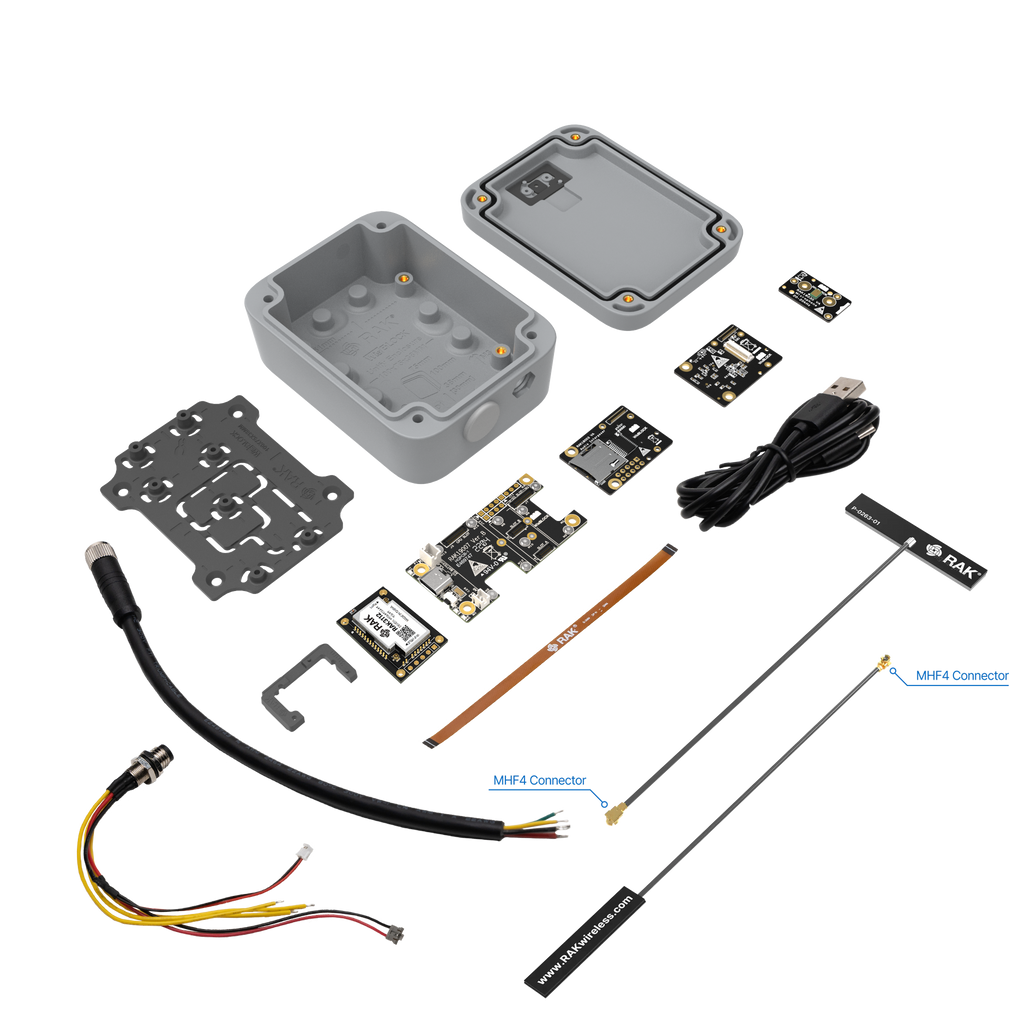

The WisBlock Microphone Starter Kit provides all the elements required to get your WisBlock listening to you!
It includes a WisBlock Audio Core module of your choice and a microphone assembled into a Unify Enclosure. It comes already pre-programmed with an example code to listen to voice and other audio sources.
More tutorials and example codes are available and make it easy to explore the world of voice processing.
Please select a LoRaWAN region according to this table:
| 800 MHz | RU864 |
| IN865 | |
| EU868 | |
| 900 MHz | US915 |
| AU915 | |
| KR920 | |
| AS923 |
Features
- Selection of one WisBlock Core module
- RAK19007 WisBlock Base Board with 4 sensor slots and 1 IO slot
- Audio Interposer module (RAK18003) to stack all the boards on a single IO slot
- RAK18030 Microphone module
- RAK18080 DSP module for the audio processing
- Speaker
- Unify Enclosure prepared for the microphone
- M8 Cable
-
Unify mounting plate
- Variant with RAK4630 -> Mounting plate with built-in LoRa antenna

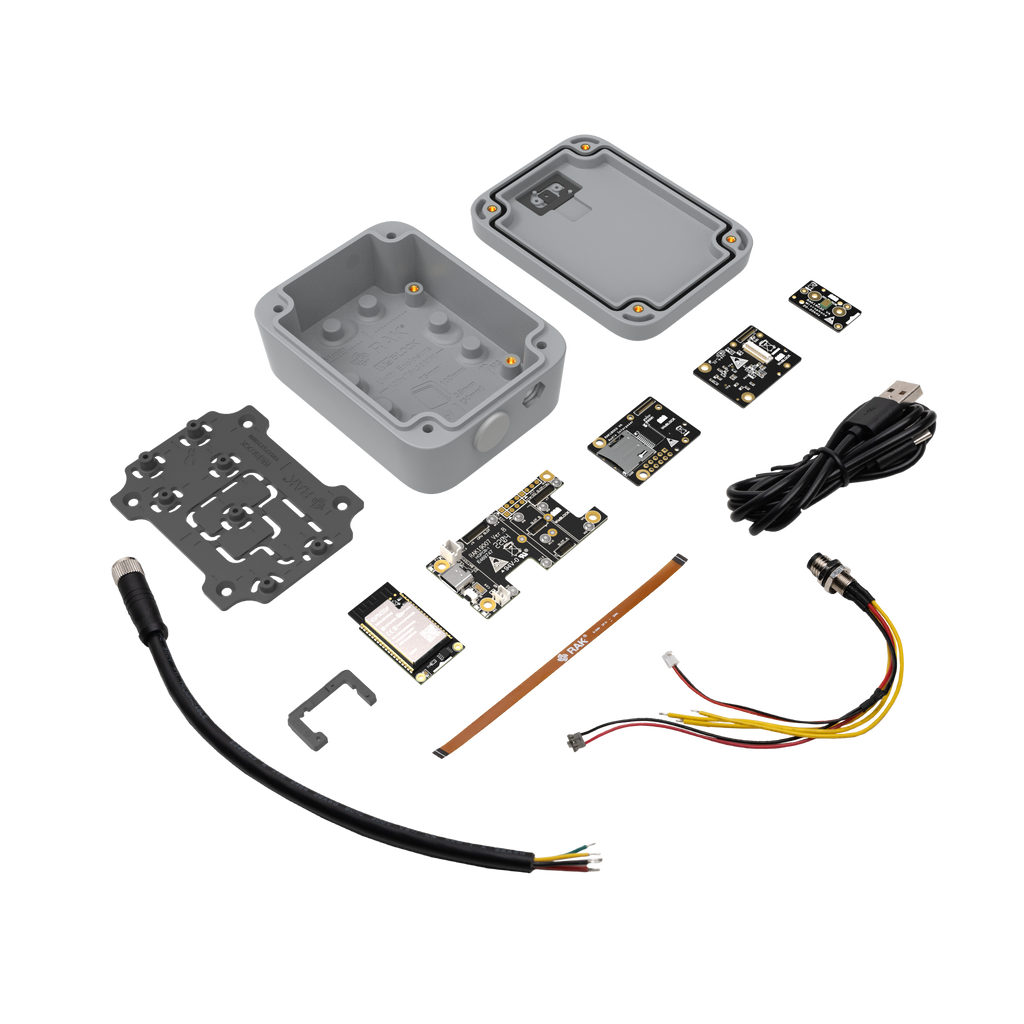

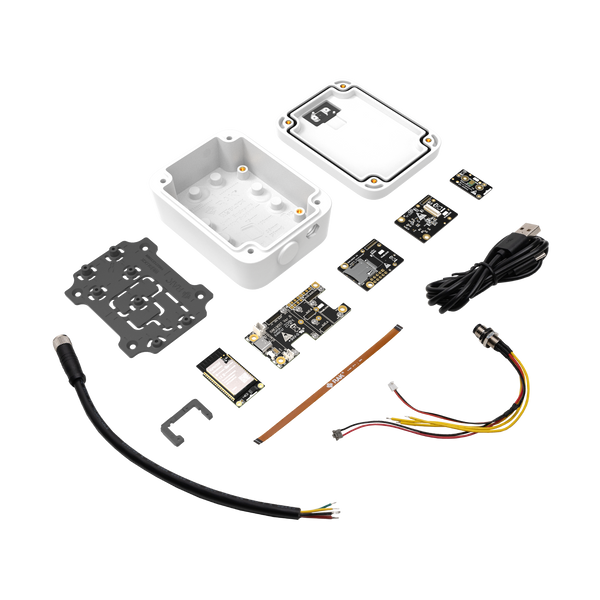

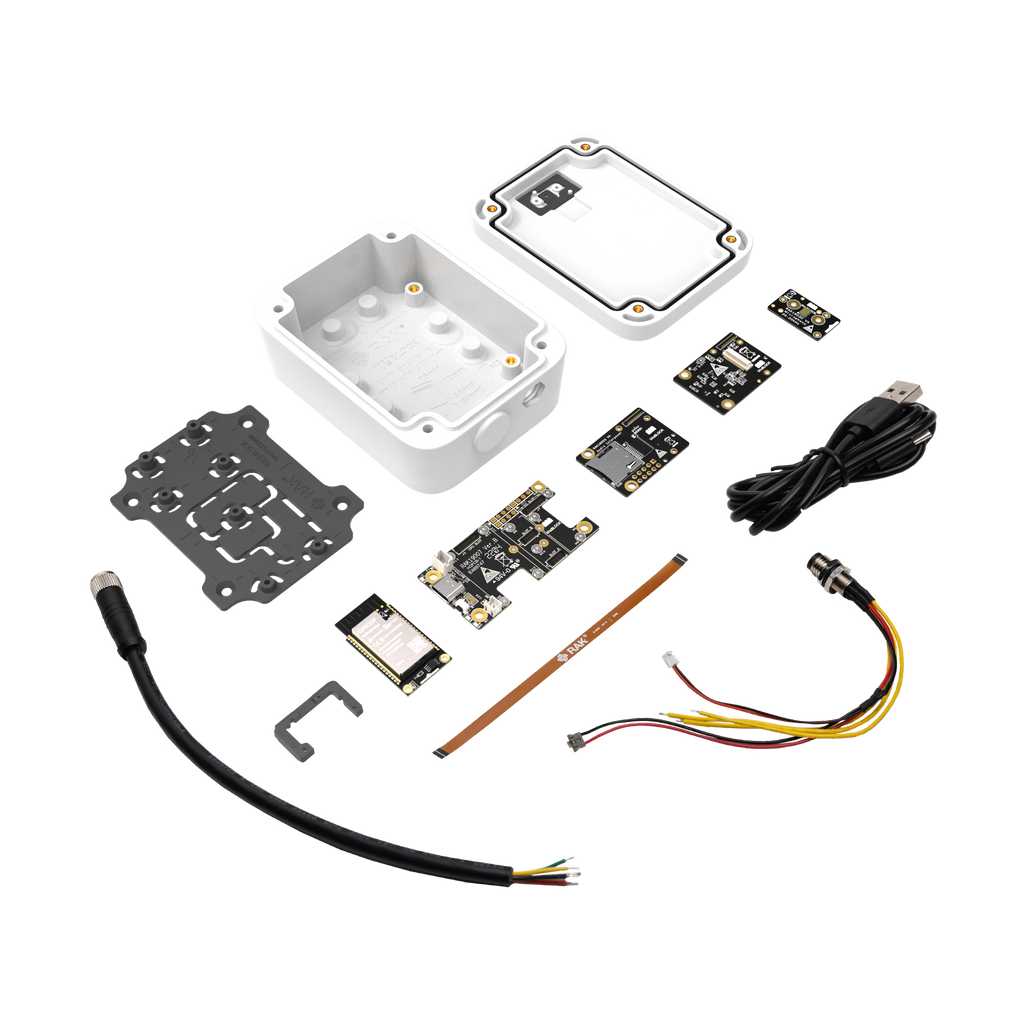

- Variant with RAK11200 -> Standard mounting plate
- All screws and cables required to stack the modules together and mount the WisBlock in the Unify enclosure
