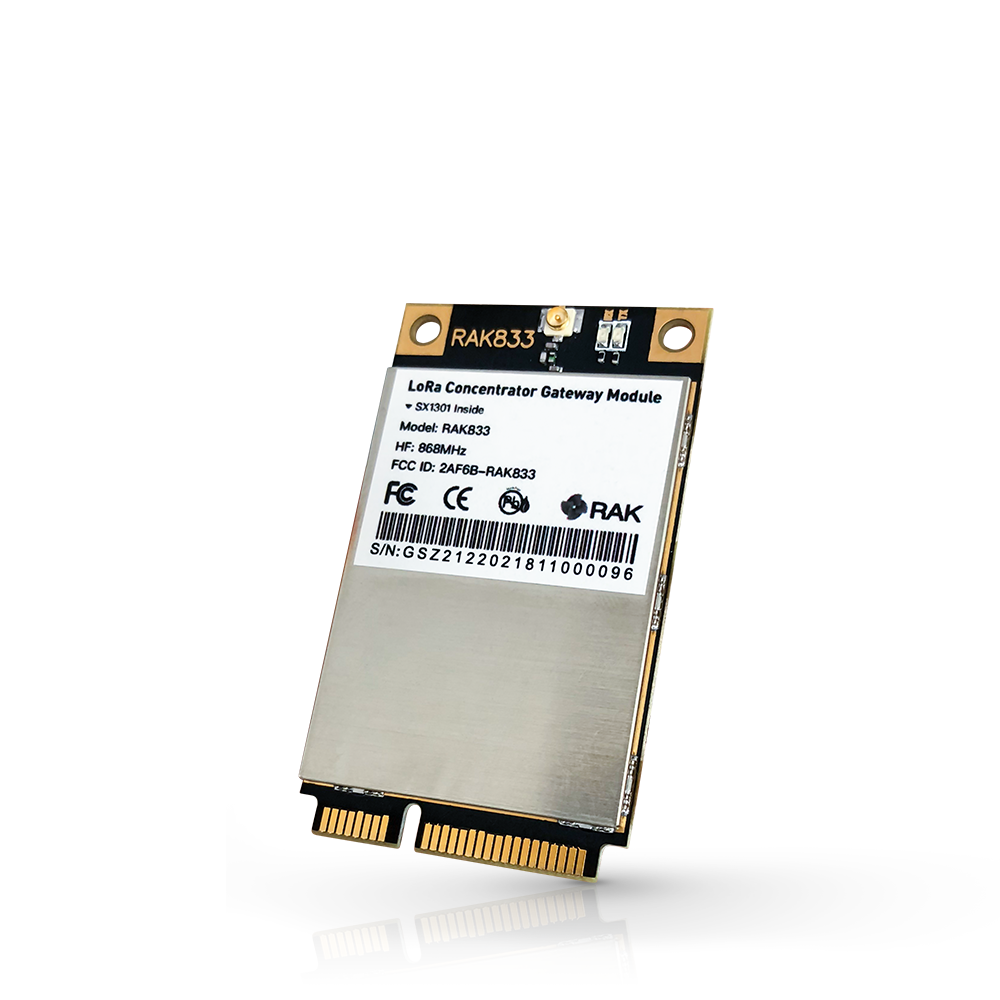

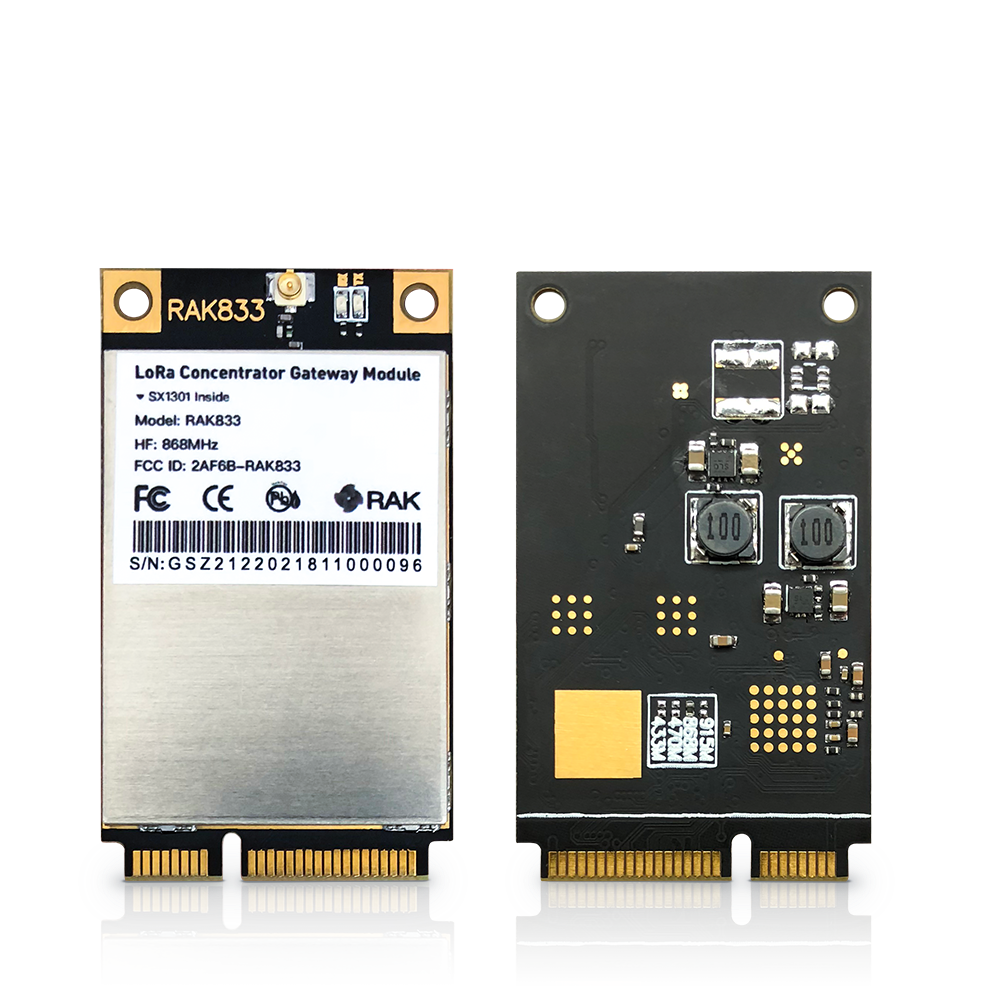

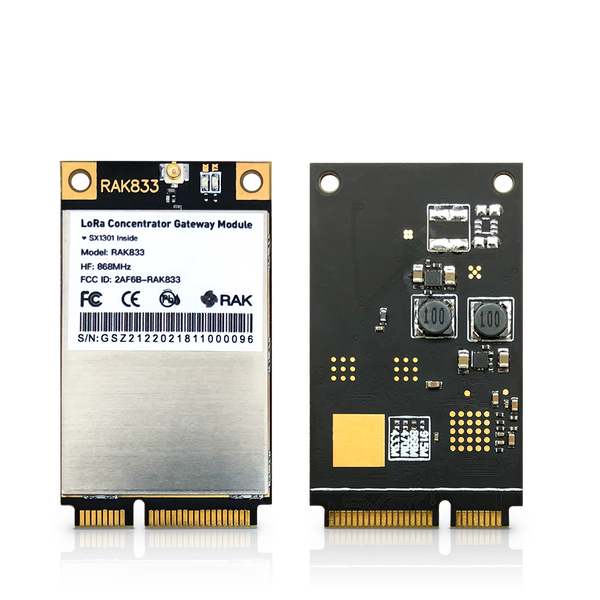

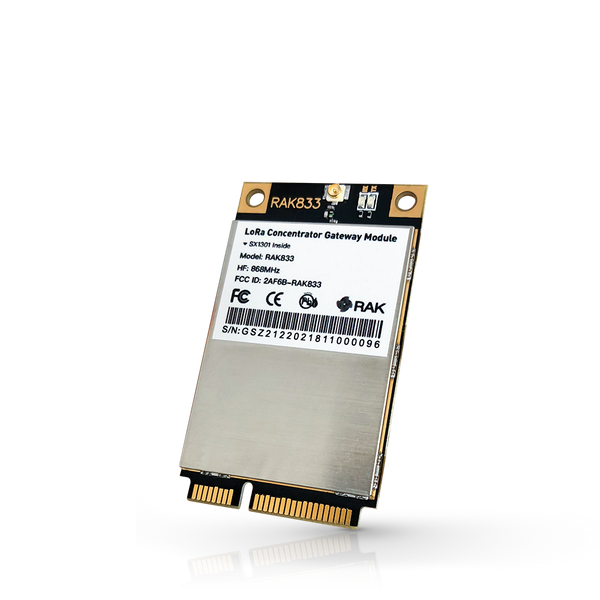

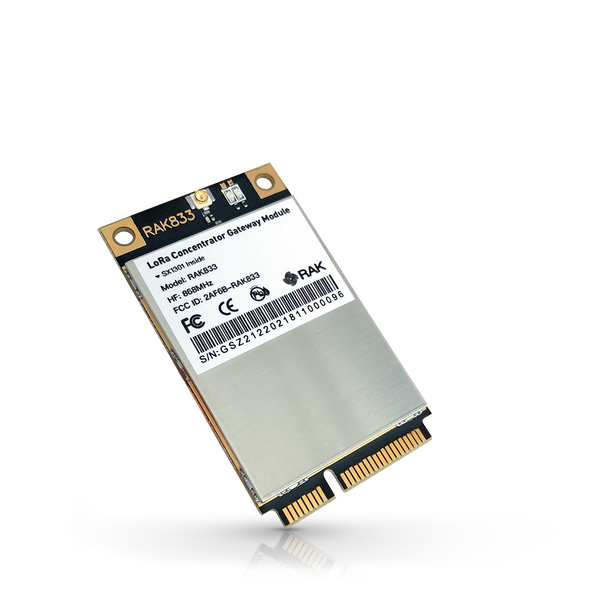

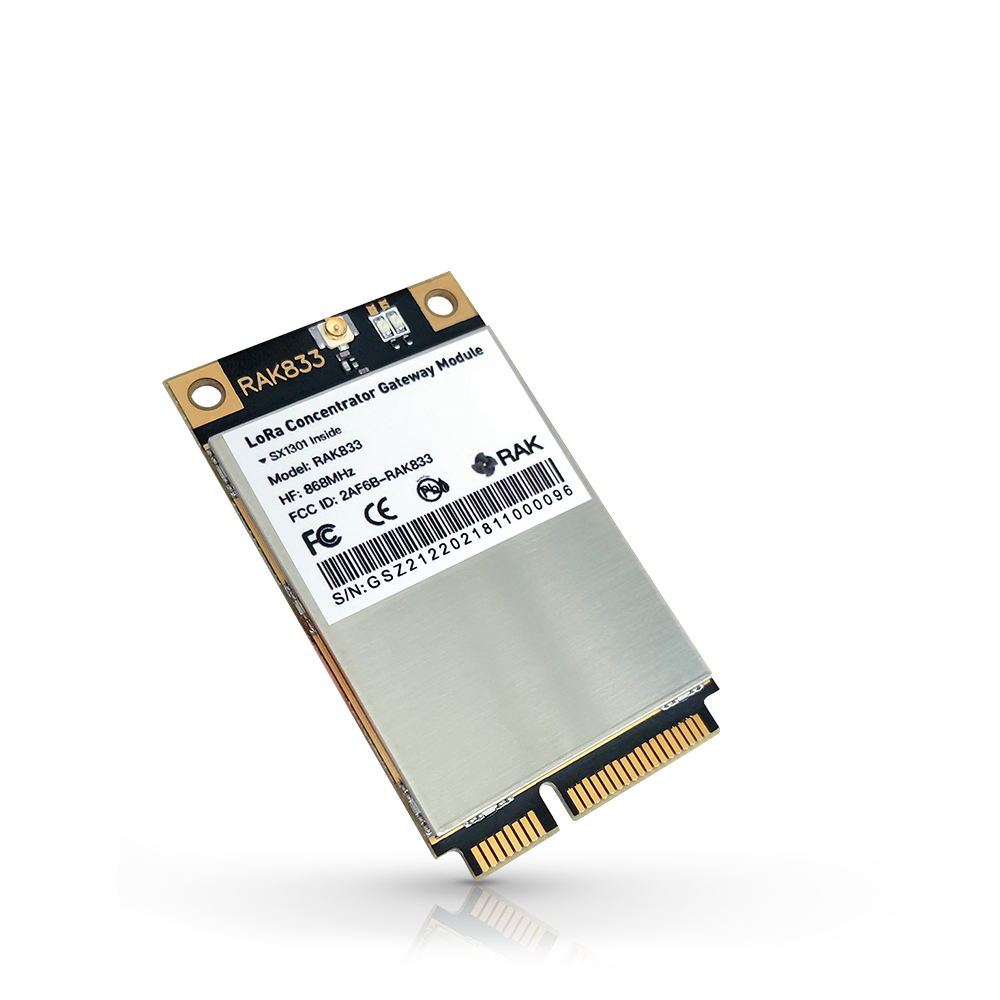

RAK833 LPWAN Gateway Concentrator Module
Prefer another courier for your delivery? Contact us for special shipping arrangements.
RAK833 is a fully-fledged LoRaWAN® concentrator module. It is very similar in function to the larger RAK831 module. However, it has a number of advantages over its bigger brother.
It has a smaller footprint due to the fact it is in the industry-standard PCI Express Mini Card (mPCIe) form factor. This makes it suitable for integration in customer equipment 3rd party routers, development boards. It is perfect for small series testing and integration into measurement equipment (tablets/laptops for drive testing, metering, etc).
Complete documentation of this product can be found on our website documentation page.
Key Features
- SX1301 provides 8 uplink and 1 downlink LoRa demodulation paths
- Max Tx Power of 20dBm
- RX sensitivity of -136dBm
- Full LoRaWAN® 1.0.2 stack support
- Compact size in the form of a mPCIe 52pin form factor card
- Compatible with 3.3V mPCIe type slots, common for 3G/LTE modules
- With an option for SPI interface board or both SPI and USB interfaces
- Perfect for a Plug-and-Play Setup when used together with the mPCIe to USB adapter (check this option above to include the board)
Packaging
- Product Dimensions: 30mm x 50.95mm
- Product Weight: 0.1kg
- Inclusions:
- 1pc RAK833-SPI
- 1pc IPEX Antenna
