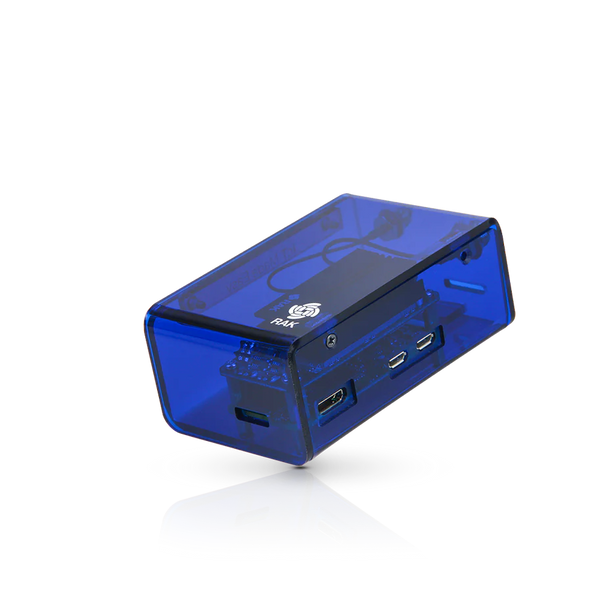

WisGate Developer D0 / D0+
RAK7246 / RAK7246G
Gateway for LoRaWAN
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Please Read: Helium is not accepting these gateways into the blockchain for now as the Alpha Hotspot program has ceased, consult using this Discord channel for details. If you want to actively participate in the Helium network and earn HNT please order our RAK Hotspot V2 instead.
Product Description
#WisGate-Developer-D0+

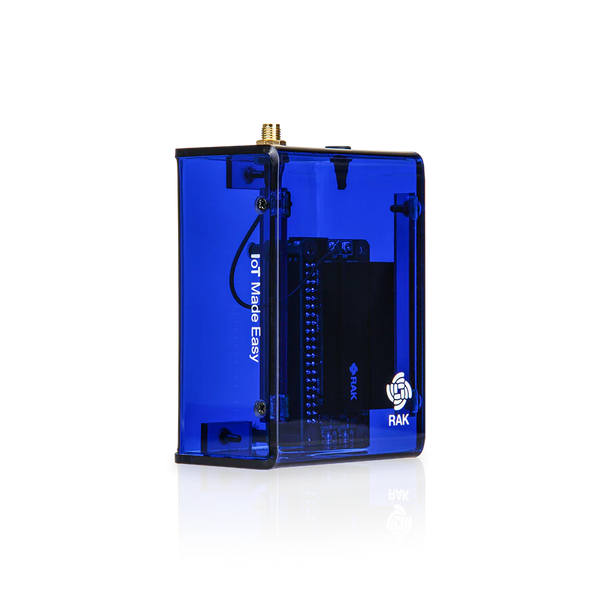

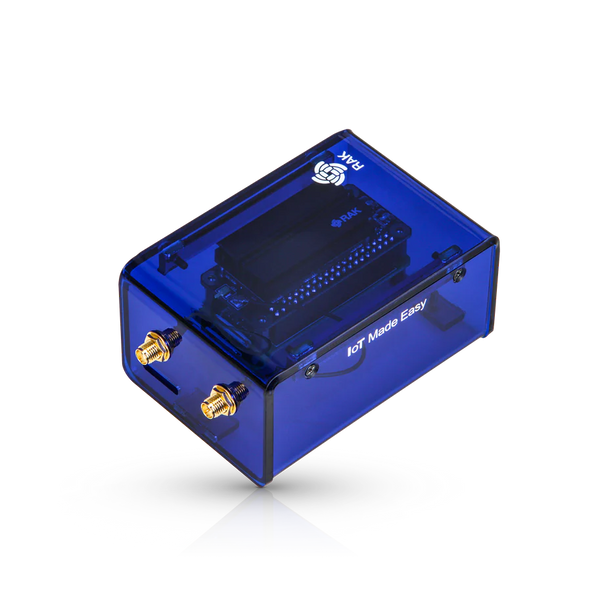

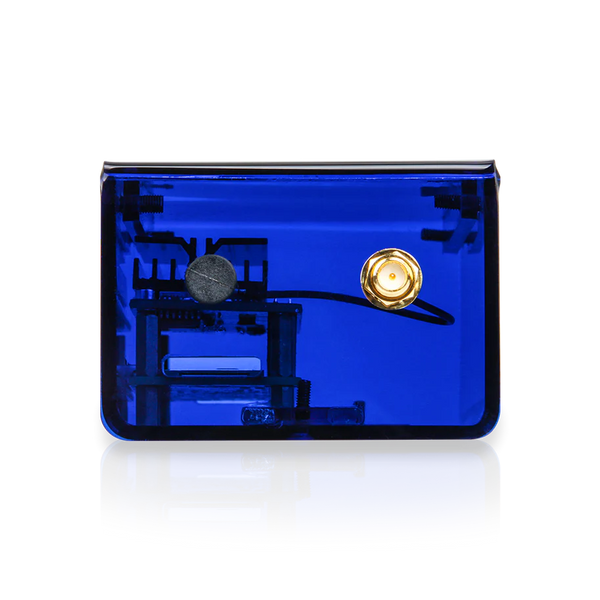

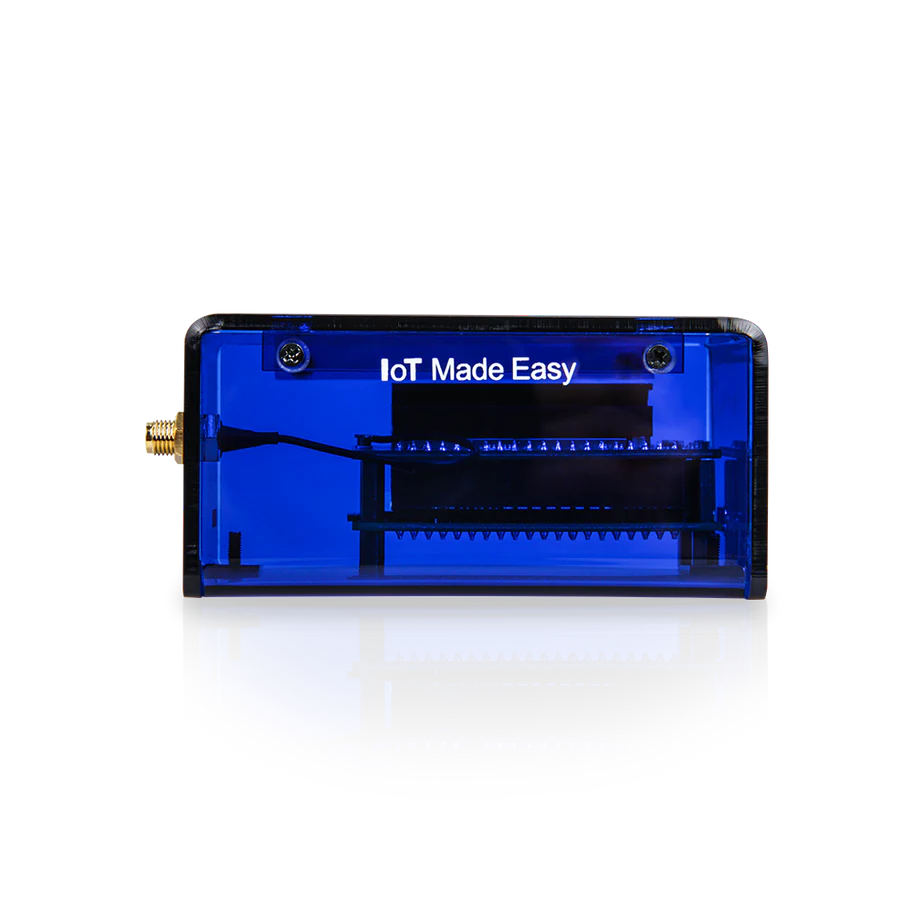

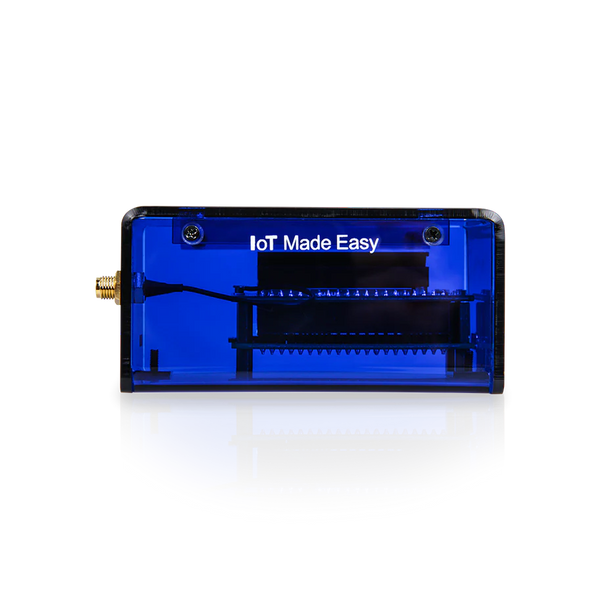

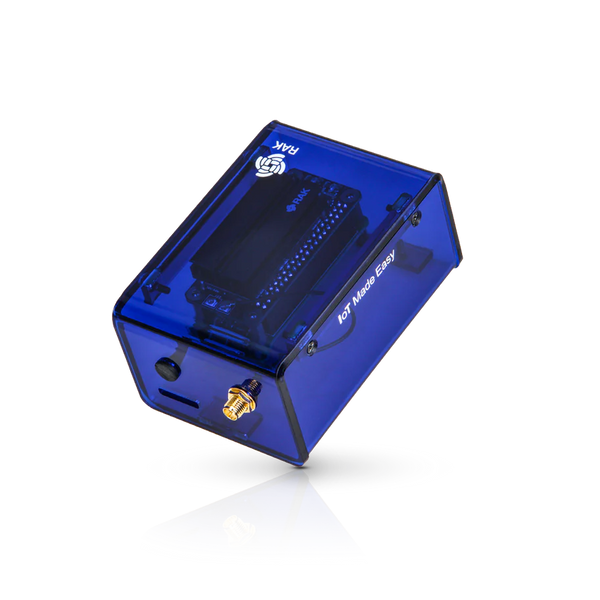

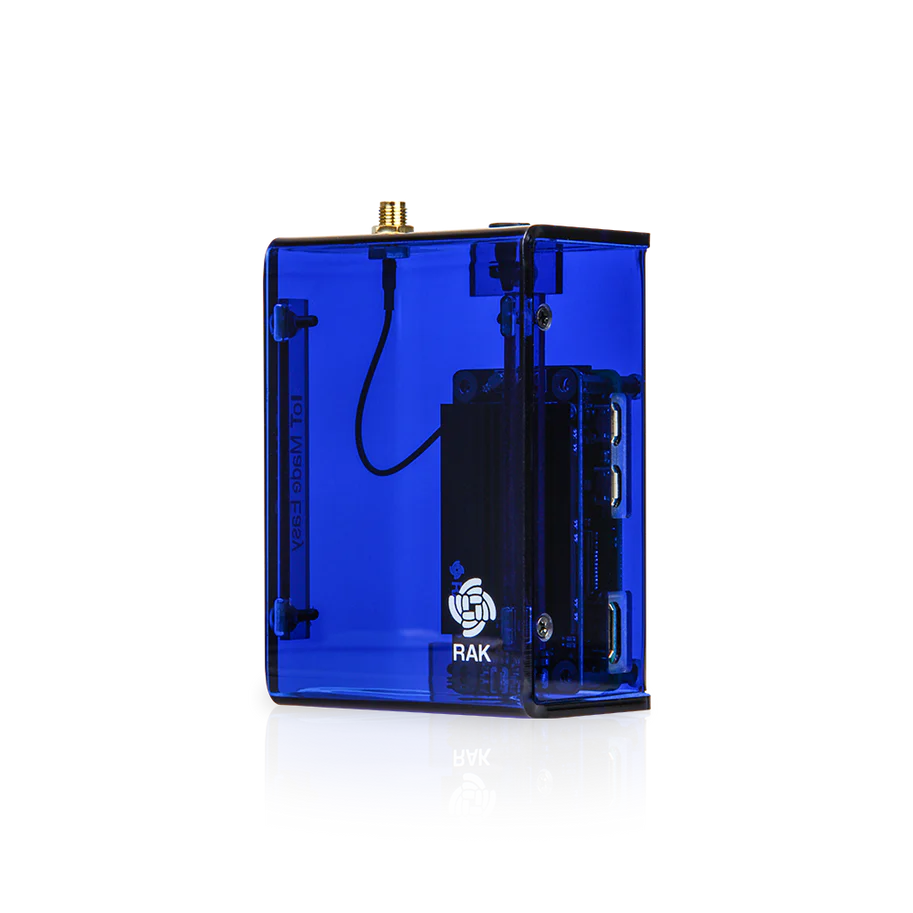

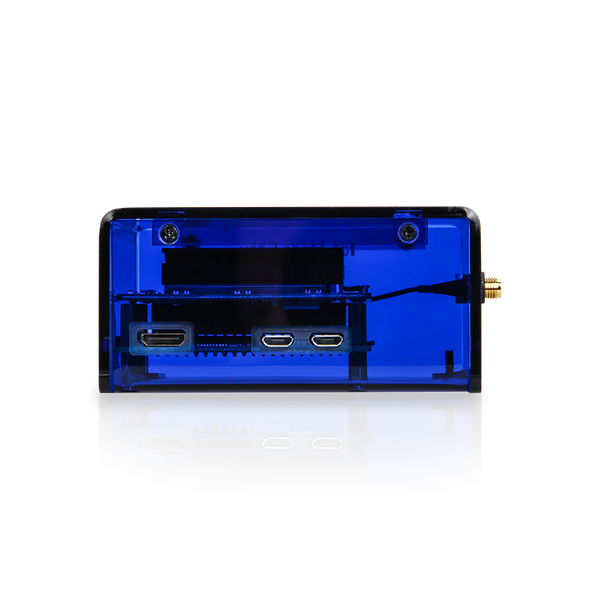

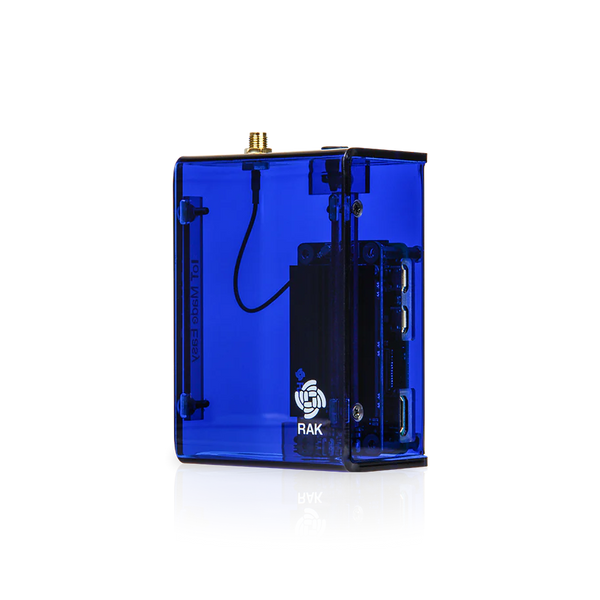

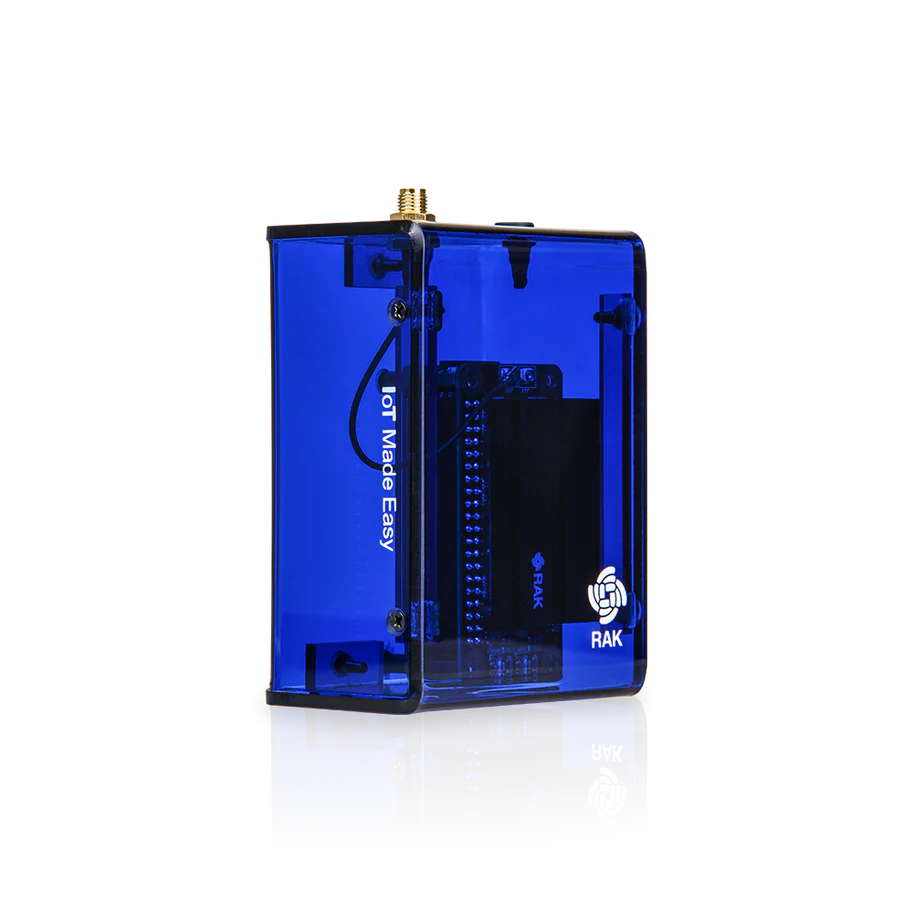

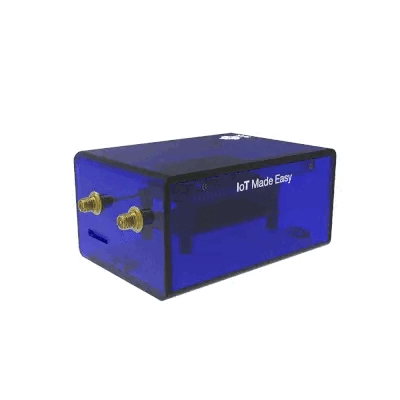

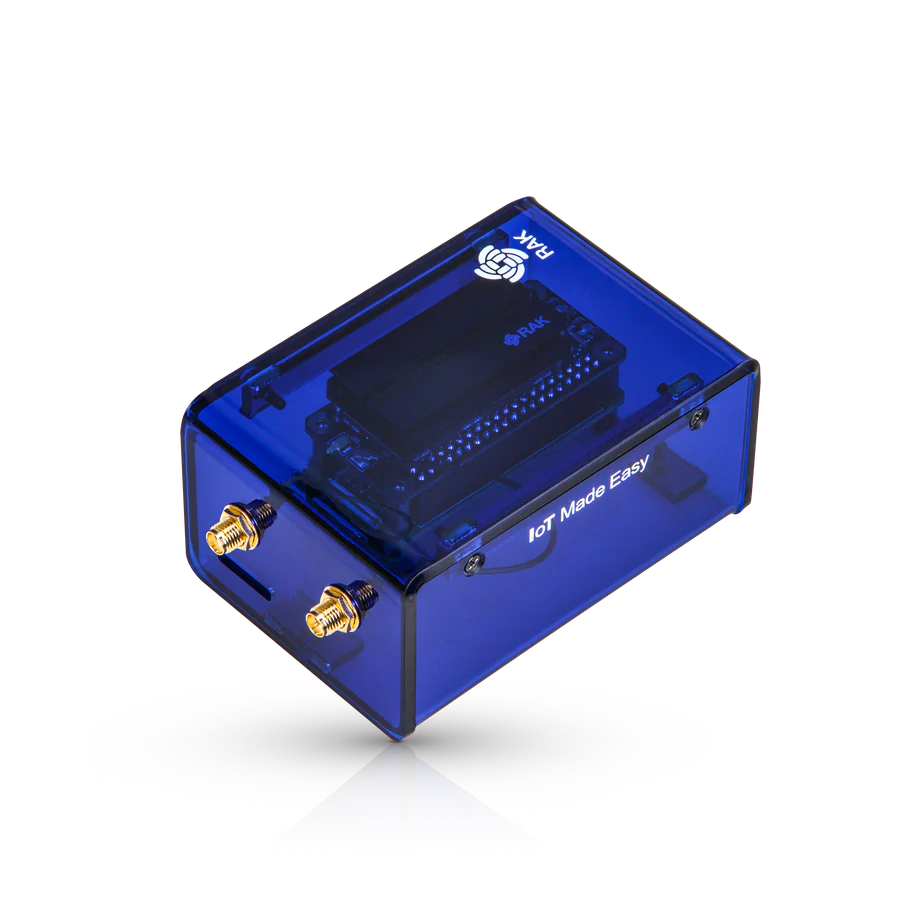

WisGate Developer D0+ is a LoRaWAN® developer gateway with GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
This concentrator module is a Class A and C compliant based on Semtech® SX1308 chip, which allows for simultaneous reception over 8 LoRa channels.
WisGate Developer D0+ is an ideal choice for prototype design, concept verification and demonstrations, development evaluation and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set-up, which makes it a good choice for both experienced and novice LoRa specialists.
#WisGate-Developer-D0

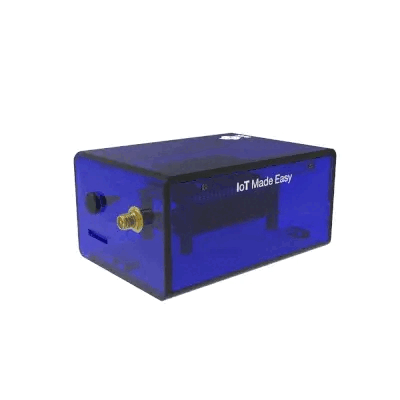

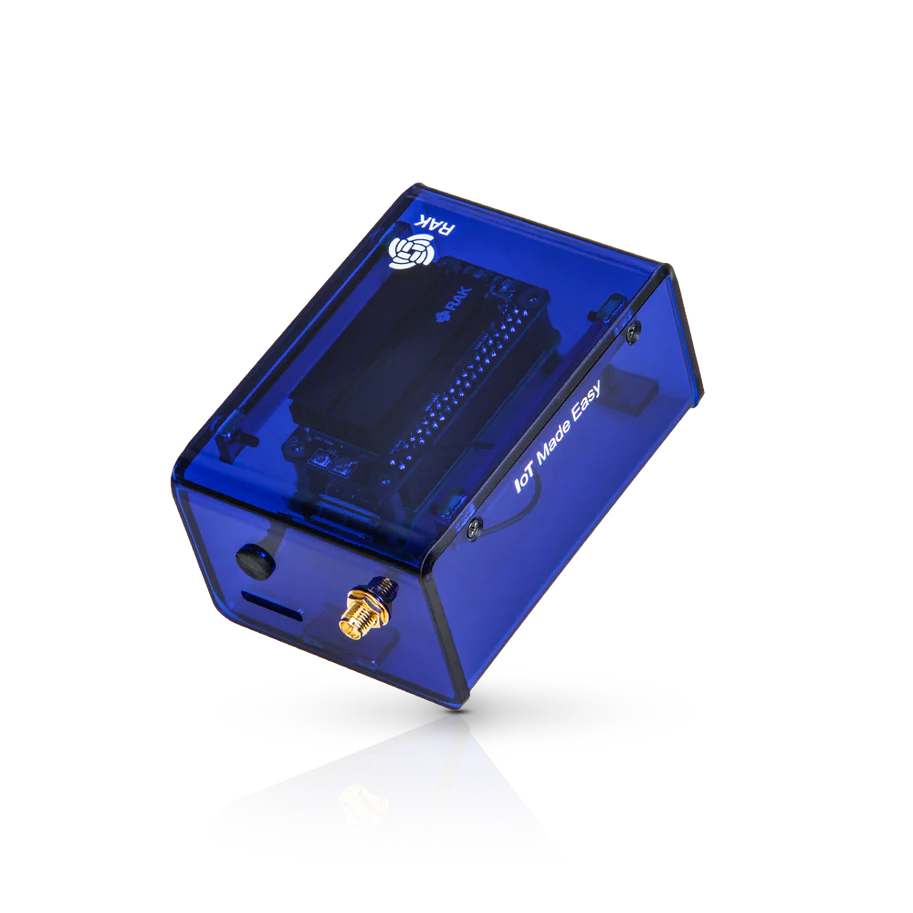

WisGate Developer D0 is a LoRaWAN® developer gateway is the model without the GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
This concentrator module is a Class A and C compliant based on Semtech® SX1308 chip, which allows for simultaneous reception over 8 LoRa channels.
WisGate Developer D0 is an ideal choice for prototype design, concept verification and demonstrations, development evaluation and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set-up, which makes it a good choice for both experienced and novice LoRa specialists.
#all
Product Documentation
You can find our documentation for this product on this link. To download and see instructions for installing the Precompiled Firmware Image to your SD Card, please use this link.
You can find gateway comparsion table of Raspberry Pi Platform here.
#WisGate-Developer-D0+
Key Features
- Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN Gateway;
- Built-in Ublox MAX-7Q GPS module;
- The Pre-installed radiator guarantees stable thermal performance
- Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
- Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;
- Power supply 5V / 2.5A (power adapter sold separately).
#WisGate-Developer-D0
Key Features
- Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® Gateway;
- The Pre-installed radiator guarantees stable thermal performance
- Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
- Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;
- Power supply 5V / 2.5A (power adapter sold separately).
#all
Package Details
- Product Dimensions: 96mm x 66mm x 47mm
- Enclosure Material: Acrylic
- Ingress Protection Rating: IP30
Package Inclusions
#WisGate-Developer-D0

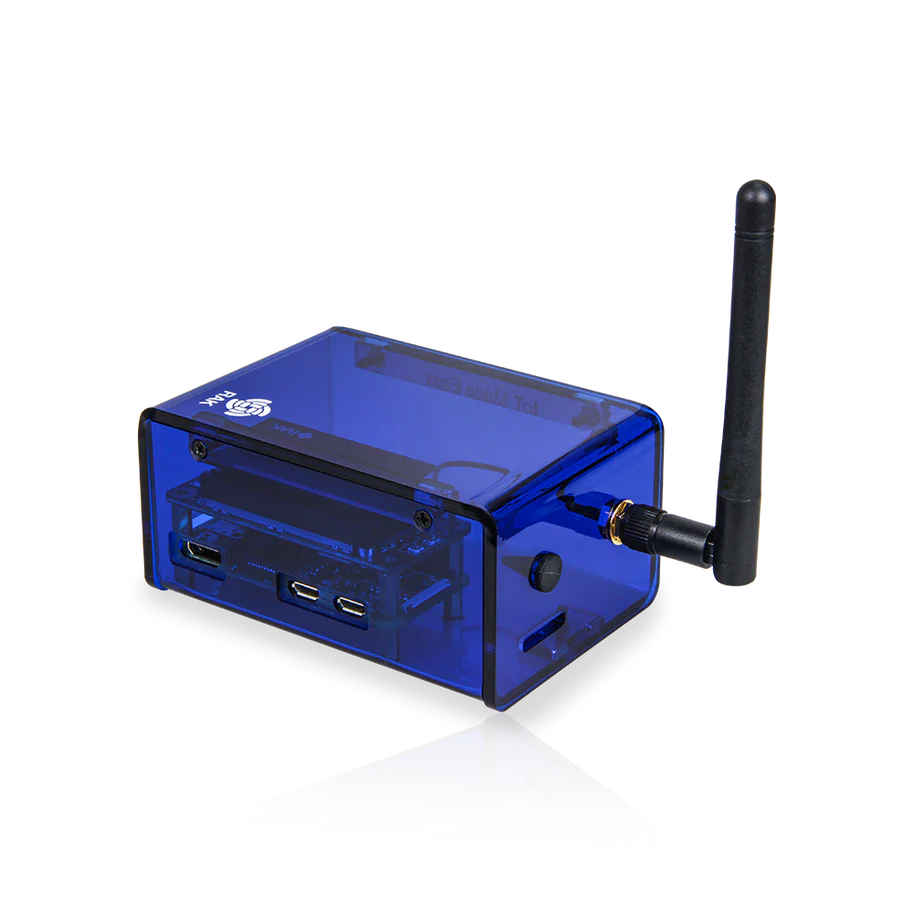

- 1x WisGate Developer D0 (RAK2246 and Raspberry Pi Zero W inside)

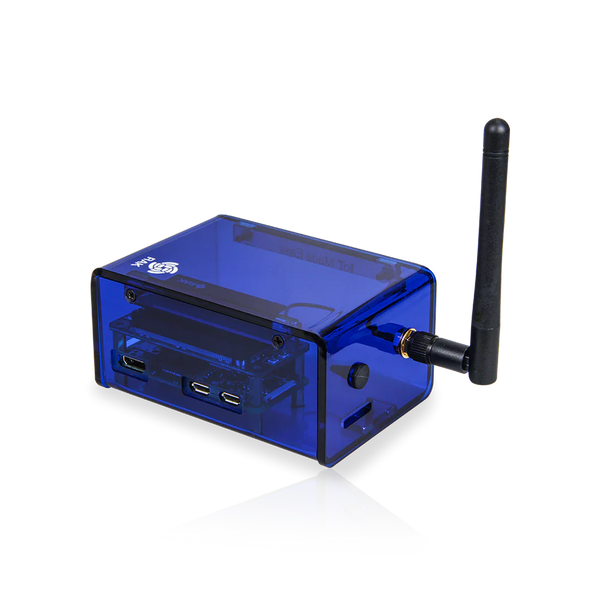

- 1x LoRa Antenna
- 1x 16GB TF Card with pre-installed firmware
- 1x USB Cable (You can use your own power adapter, in case you don't have one you can add this power adapter to your cart)
#WisGate-Developer-D0+

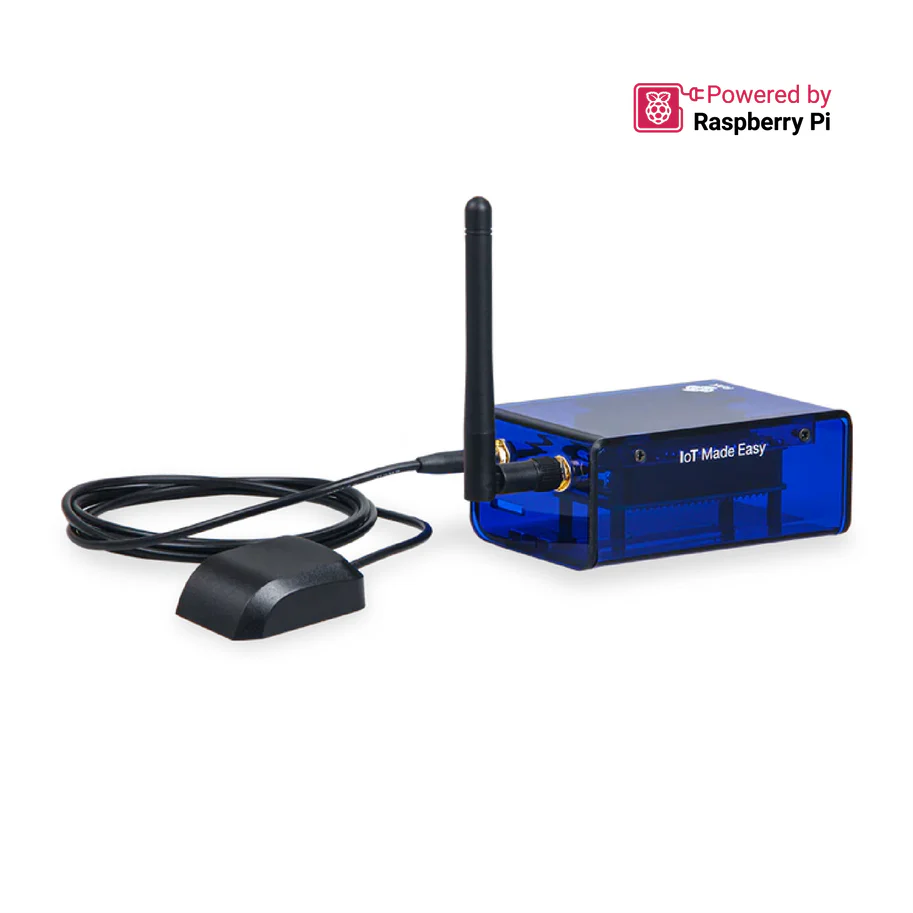

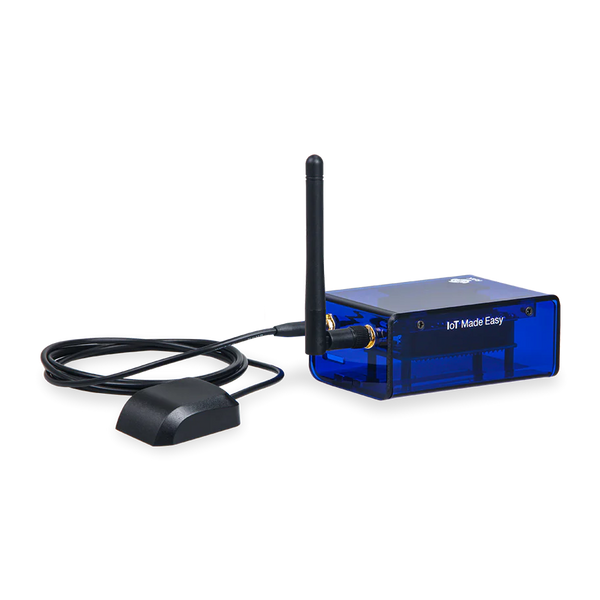

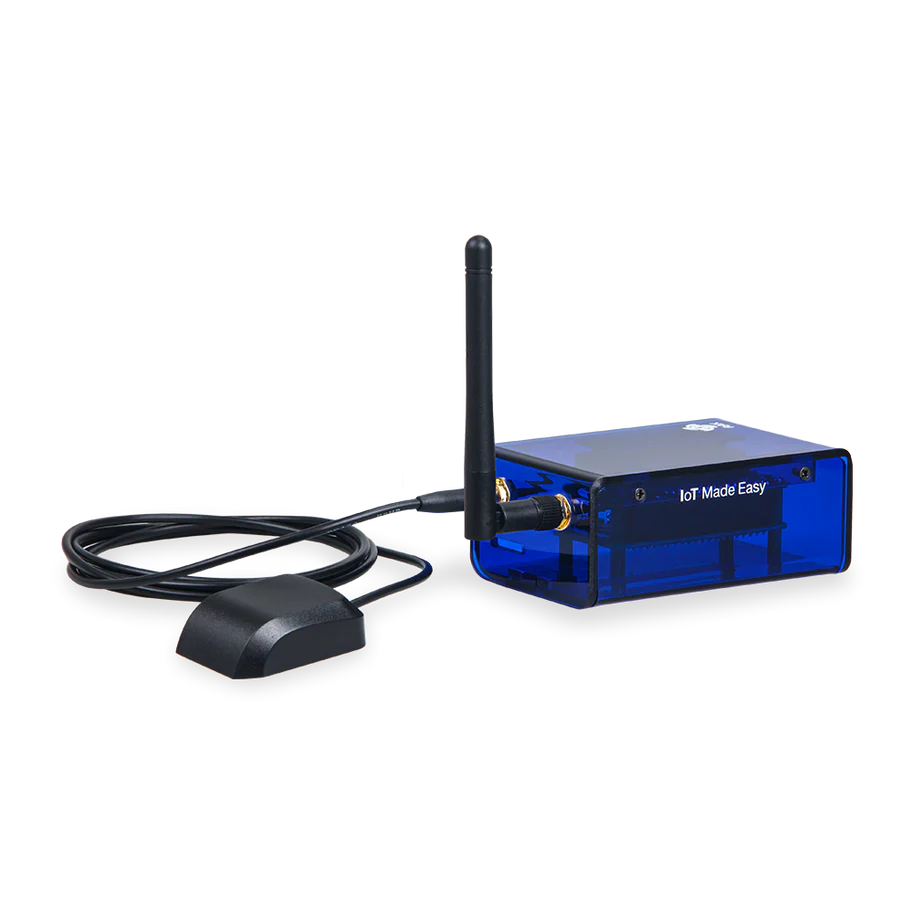

- 1x WisGate Developer D0+ (RAK2246 and Raspberry Pi Zero W inside)
- 1x LoRa Antenna
- 1x GPS Antenna
- 1x 16GB TF Card with pre-installed firmware
- 1x USB Cable (You can use your own power adapter, in case you don't have one you can add this power adapter to your cart)
