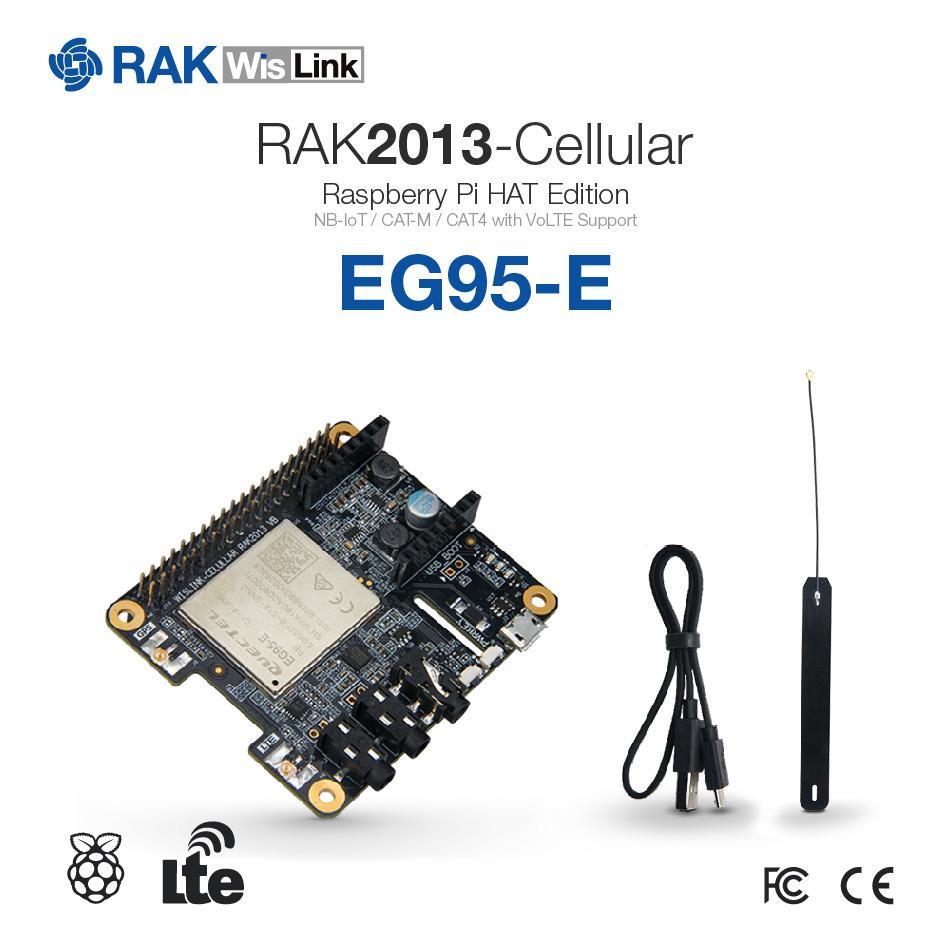

Cellular IoT Pi HAT Quectel BG96/BG95-M3
RAK2013
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

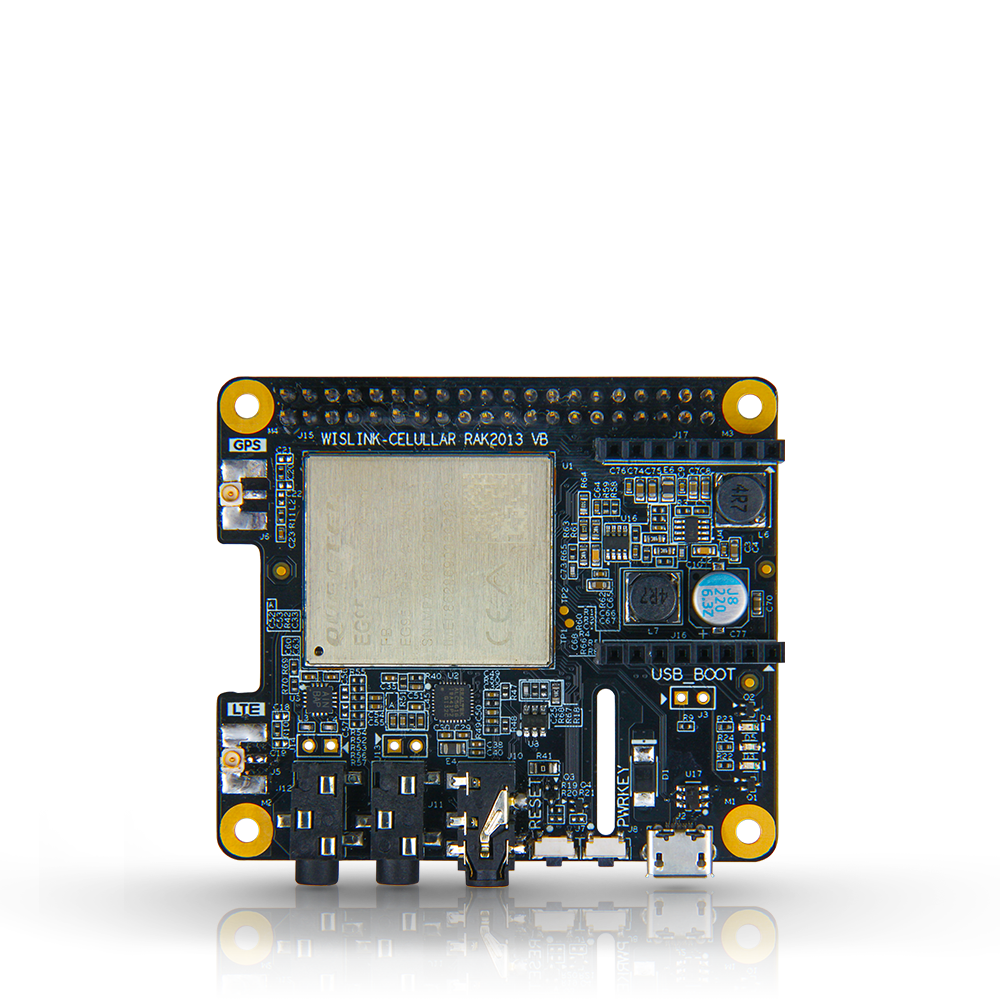

WisLink Cellular Pi Hat (RAK2013) is a Raspberry Pi 3B+ and Raspberry Pi 4 compatible cellular communication module. It is aimed at providing a Low Power Wide Area Network (LPWAN) connectivity to IoT devices. It has several configuration options of its onboard radio including the Quectel BG96/EG95. It supports the following standards: 4G/LTE, Nb-IoT, CAT-M/CAT1/CAT4 Cellular. Because of its integrated audio amp and codec, it is suitable for Voice over LTE (VoLTE) in carrier network scenarios where HD calls are a requirement. The necessary connectors for each type of operation are conveniently placed on one side of the board in order to provide easy access.

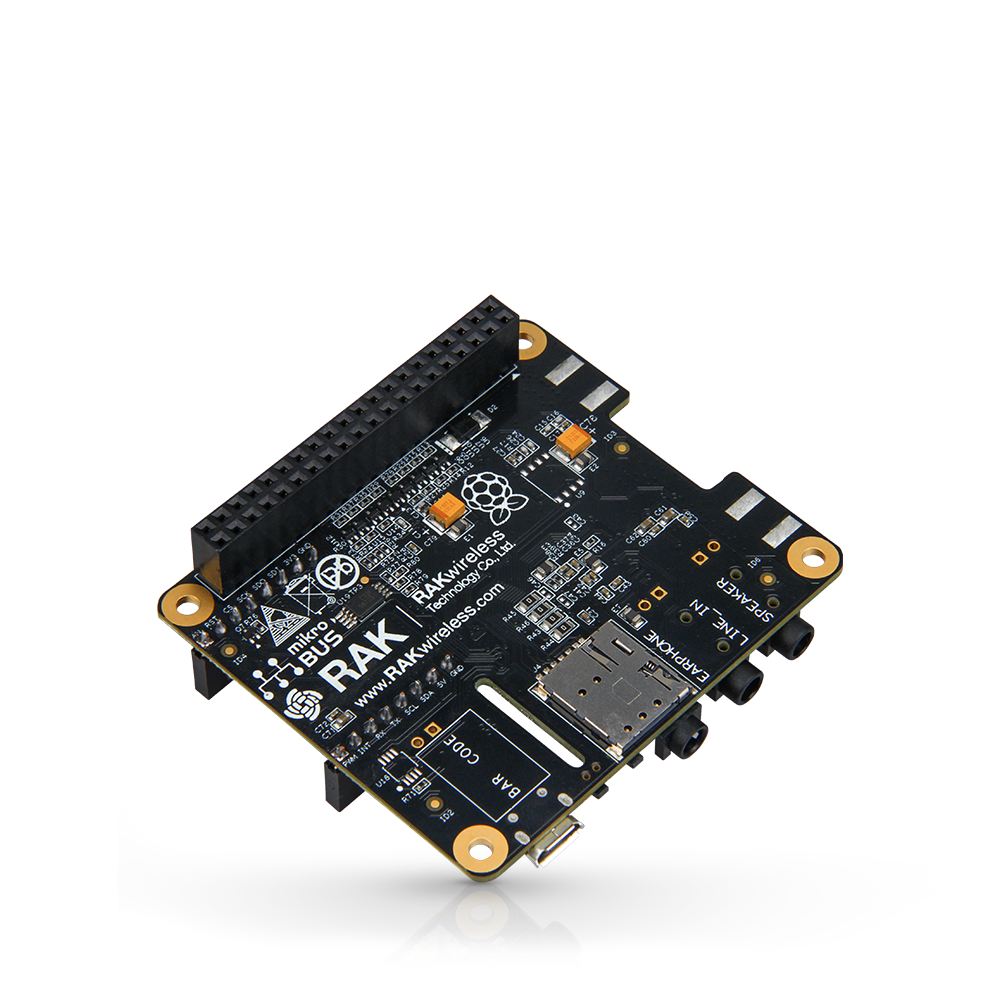

It has a built-in header that adheres to the mikroBus standard. Because of its wide range of supported sensors, it is suitable for applications such as environmental monitoring, presence sensing, etc., that require cellular connectivity.
Note that if you buy WisLink Cellular Pi Hat RAK2013 as an individual pice it will not be compatible with WisLink LPWAN RAK2245 RPi Hat and WisGate Developer RAK7243/44(without Cellular) Gateways and vice versa. RAK2245 LPWAN PiHAT module that we use in our WisGate RAK7243/44C(With Cellular) Developer Gateways is modified.

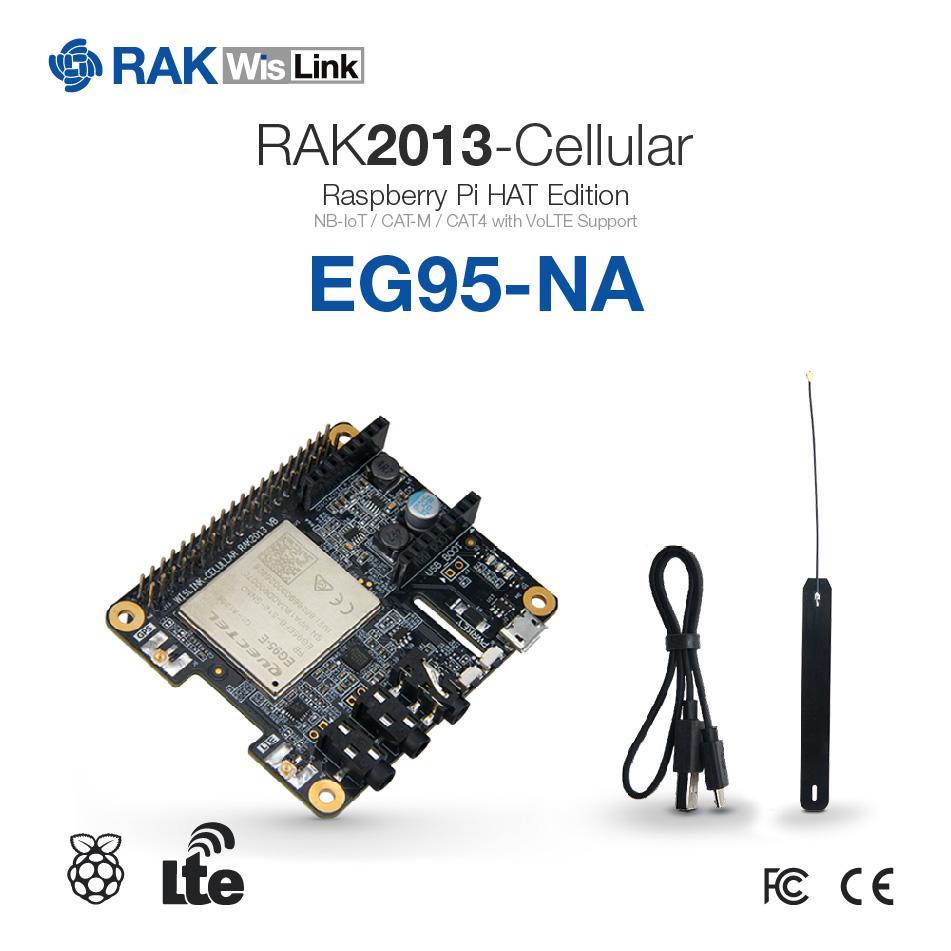

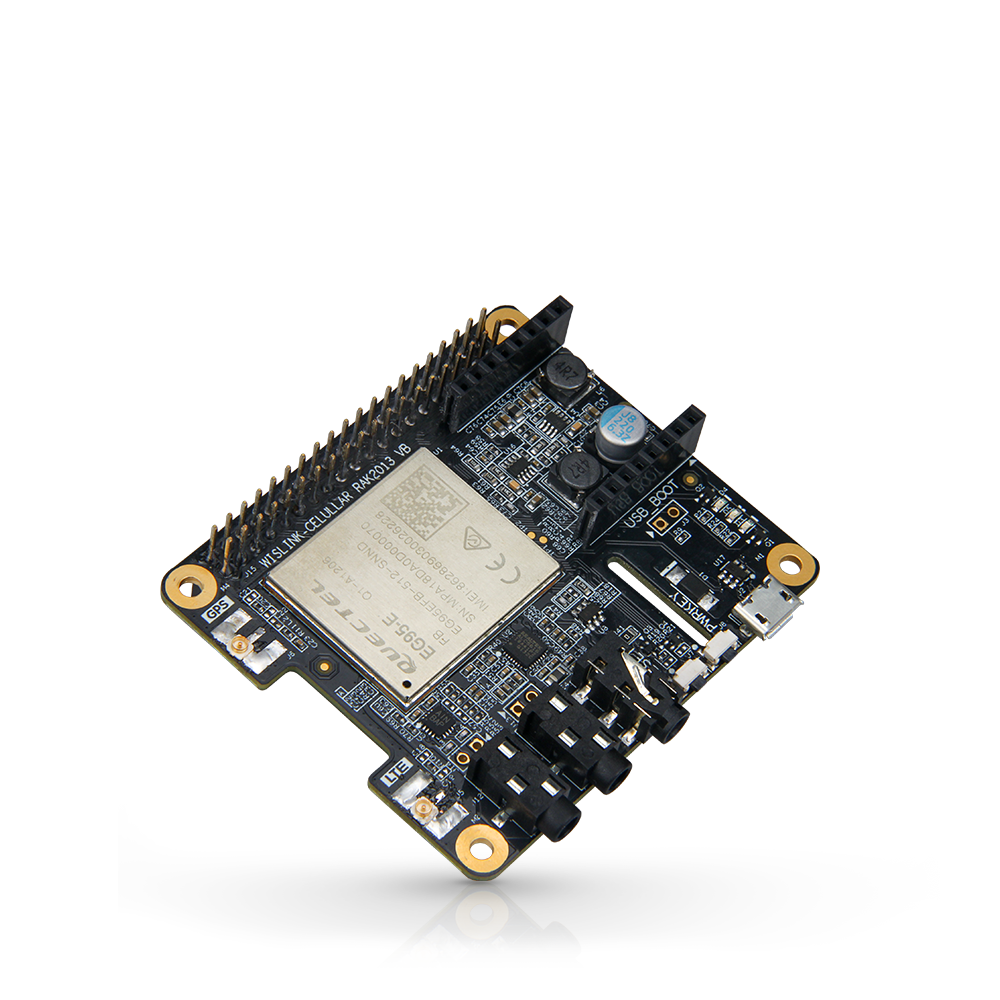

To know the difference between EG95-E and EG95-NA, please refer to the following table:
| Frequency | EG95-E | EG95-NA |
|---|---|---|
| LTE FDD | B1/B3/B7/B8/B20/B28A | B2/B4/B5/B12/B13 |
| WCDMA | B1/B8 | B2/B4/B5 |
| GSM/EDGE | B3/B8 | |
| Region | EMEA | North America |
| Carrier Certification* | Verizon/ AT&T/ T-Mobile/ Telus/ U.S. Cellular/ Rogers |
* Certifications are for the RAK2013 Cellular Pi HAT Module only.
Key Features
- Cellular support
- Nb-IoT
- LTE CAT-M1
- LTE CAT1/CAT4
- Support for both nano and eSIM
- Integrated audio amp and codec for full VoIP support
- Full compatibility with Raspberry Pi 3B+
- Integrated mikroBUS header
- GPS optional support (BG96 only)
- Built-in EEPROM for storing of auto-configuration options
Packaging
- Board Dimensions: 65mm x 56mm x 19.5 mm
- Board Weight: Approximately 28g
- Package Dimensions: 150mm x 90mm x 40mm

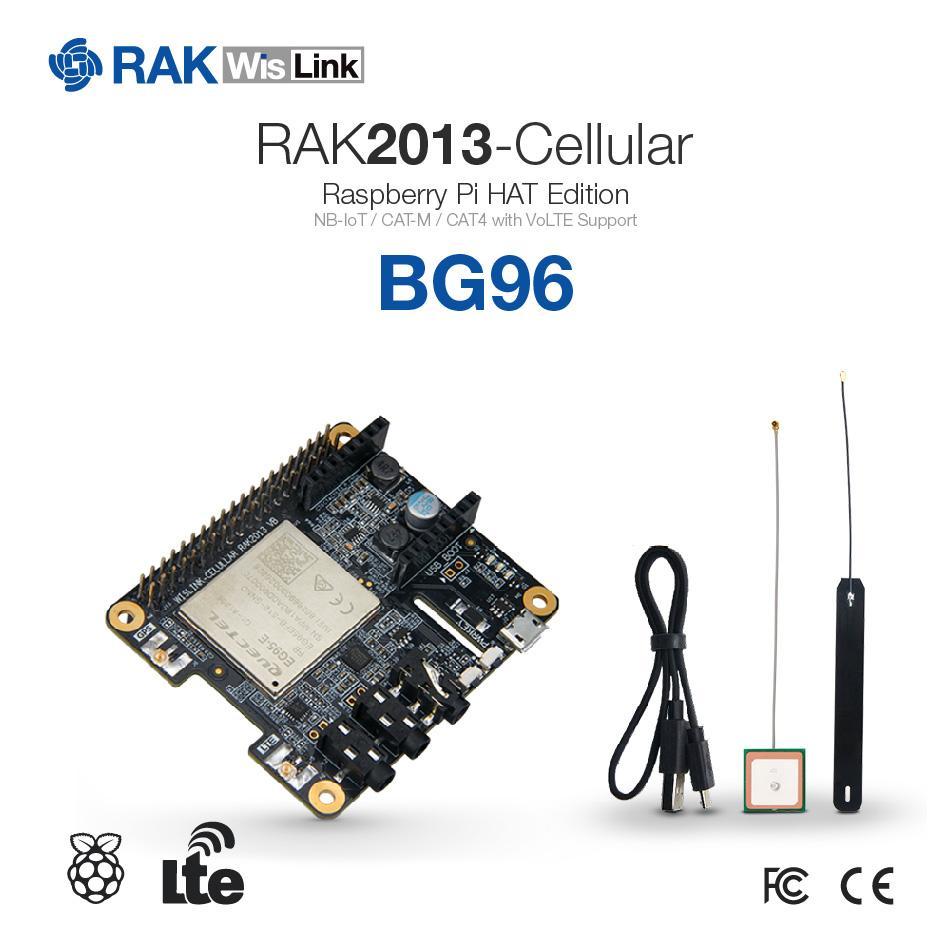

- Inclusions:
- 1pc RAK2013 board
- 1pc LTE Antenna
- 1pc GPS Antenna (for BG96 only)
- 1pc Micro USB cable
