WisDuino Cellular Quectel BG96
RAK2011
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

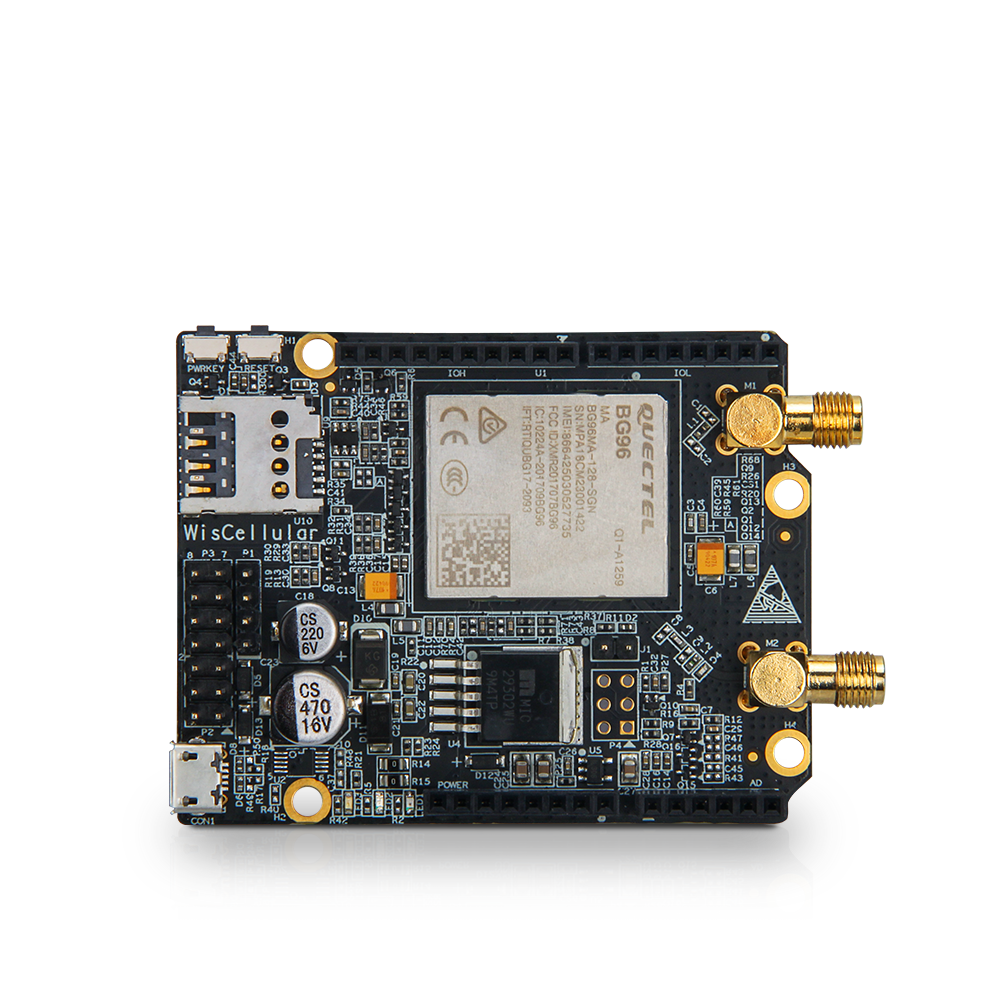

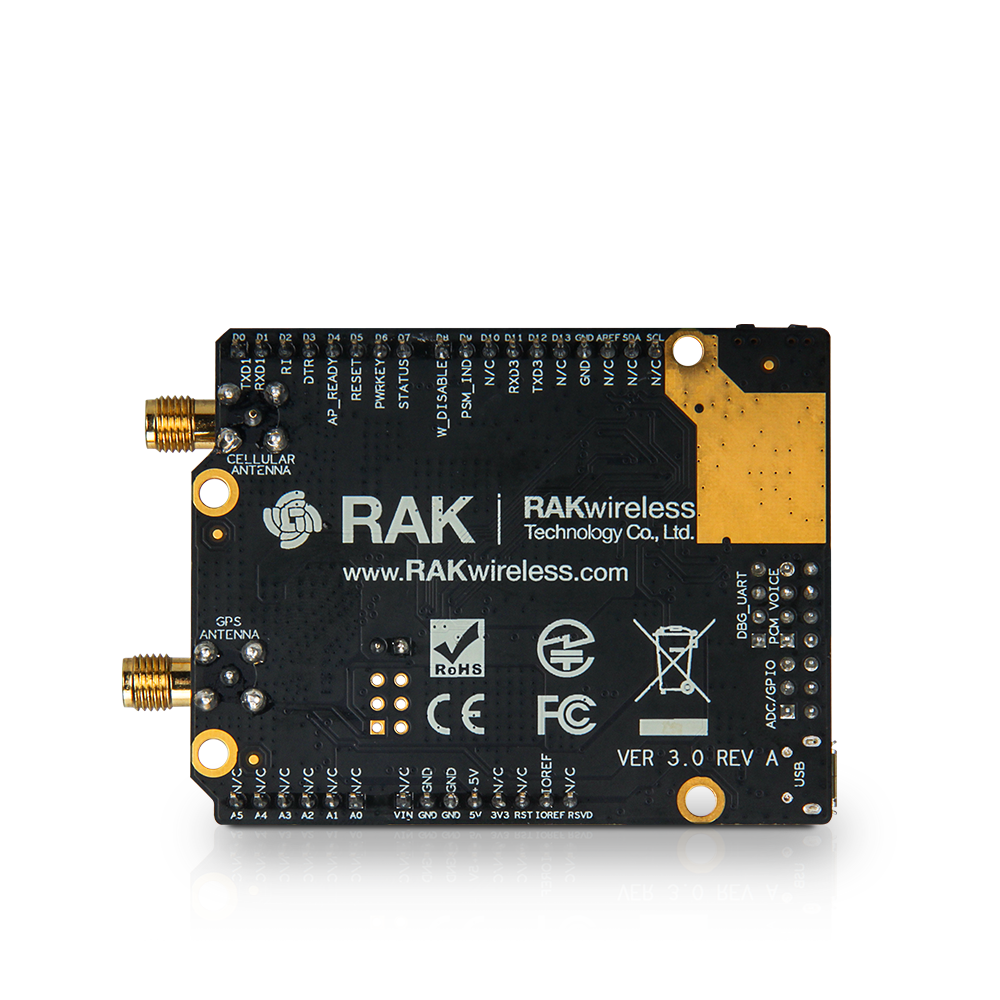

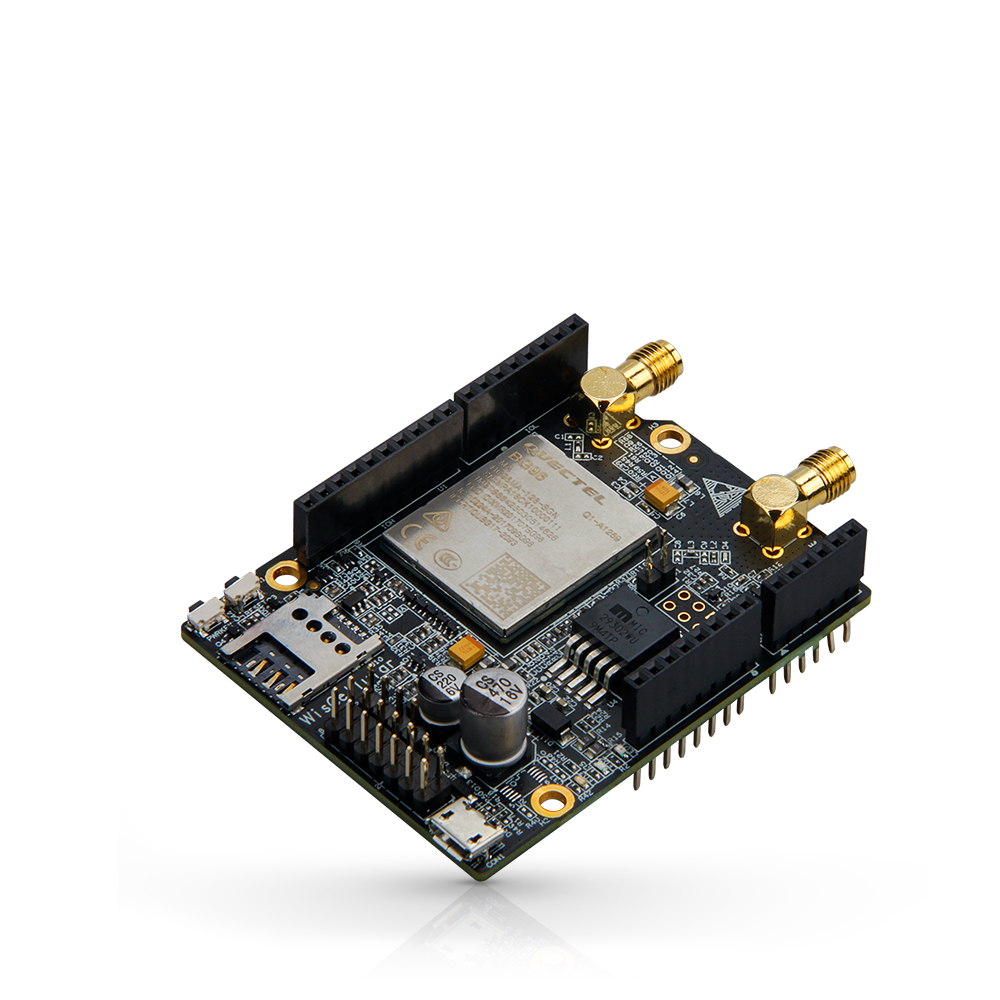

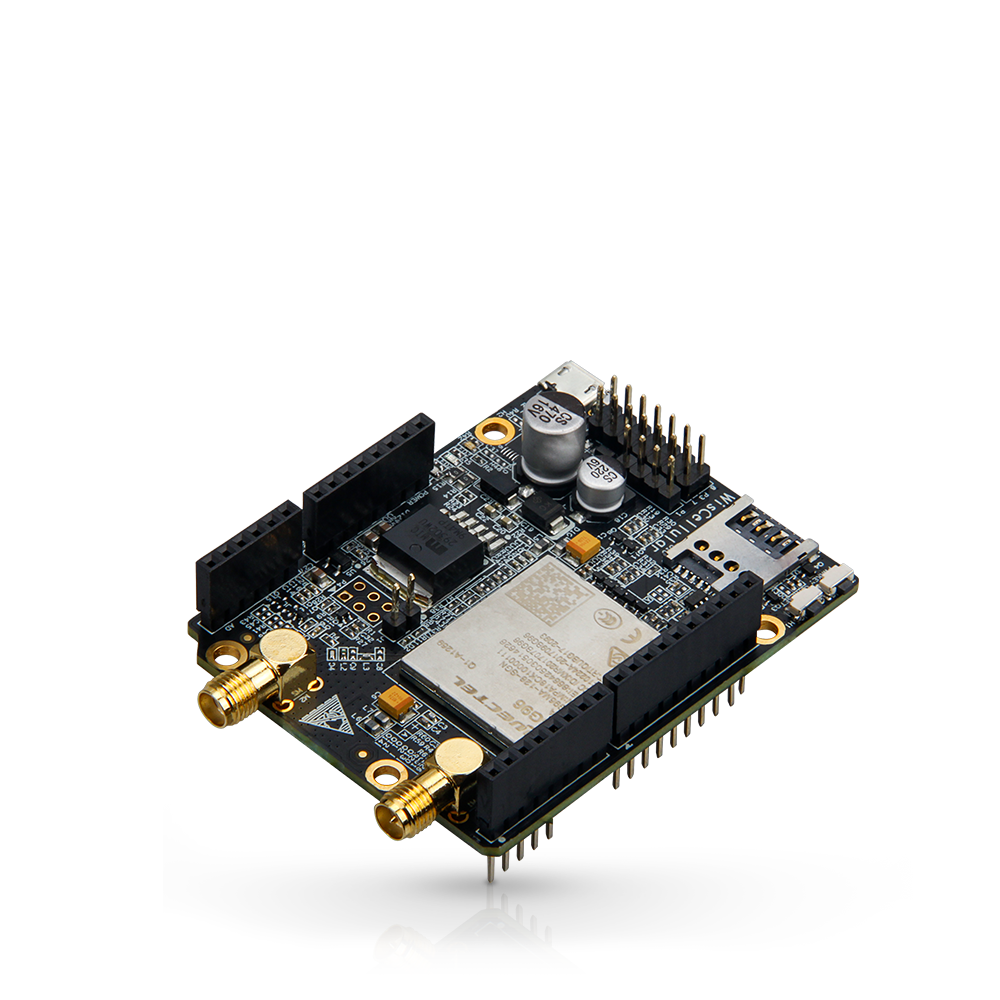

WisDuino Cellular (RAK2011) Arduino Shield is a compact cellular module, powered by the Quectel BG96 modem chipset. It supports 2G/EGPRS, 4G/LTE Cat-M1 (eMTC), Cat-NB1 (Nb-IoT), as well as GPS.
With an Arduino shield form factor, you can take advantage of the well-established system and community. The RAK2011 provides LPWA IoT cellular connectivity for MCU/MPU boards with Arduino headers. Because of the wide range of Arduino form factor solution available, developers are given the freedom to choose the most suitable MCU/MPU for their desired application.
The addition of the built-in Enhanced AT commands stack, built-in core protocol support, and availability of basic drivers for major operating systems (Windows, Linux, and Android) facilitate software developments and system integration into any IoT application.
Complete documentation of this product can be found on our website documentation page.
Key Features
- Cellular Module: Quectel BG96 (based on Qualcomm MDM9206)
- Cellular Networks:
- 4G/LTE Cat-M1 (eMTC)
- 4G/LTE Cat-NB1(NB-IoT)
- 2G/EGPRS
- Voice: VoLTE (Cat-M1 Only)
Packaging
- Board Dimension: 53.4mm x 68.6mm x 21mm (excluding SMA antenna connector)
- Board Weight: Approximately 33g

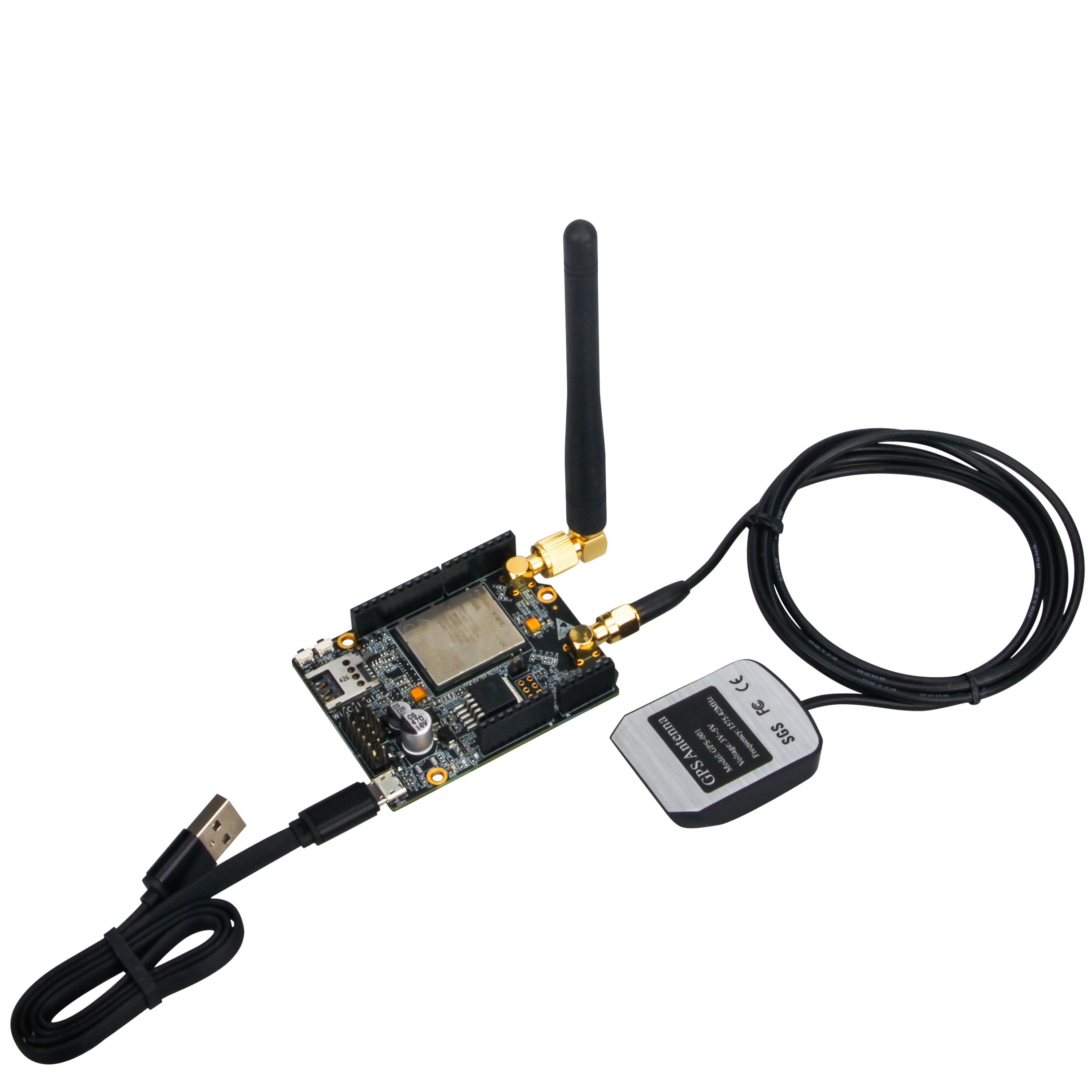

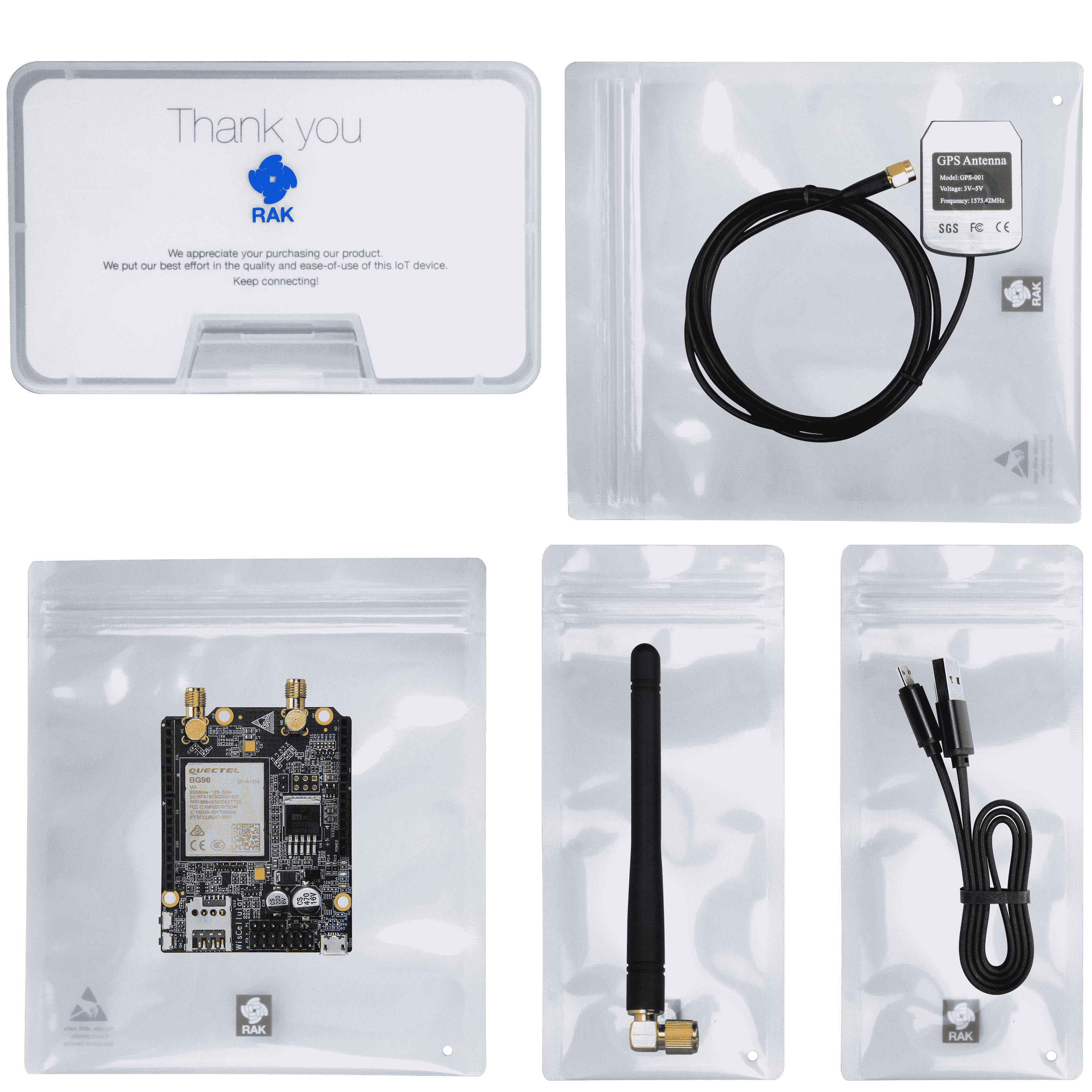

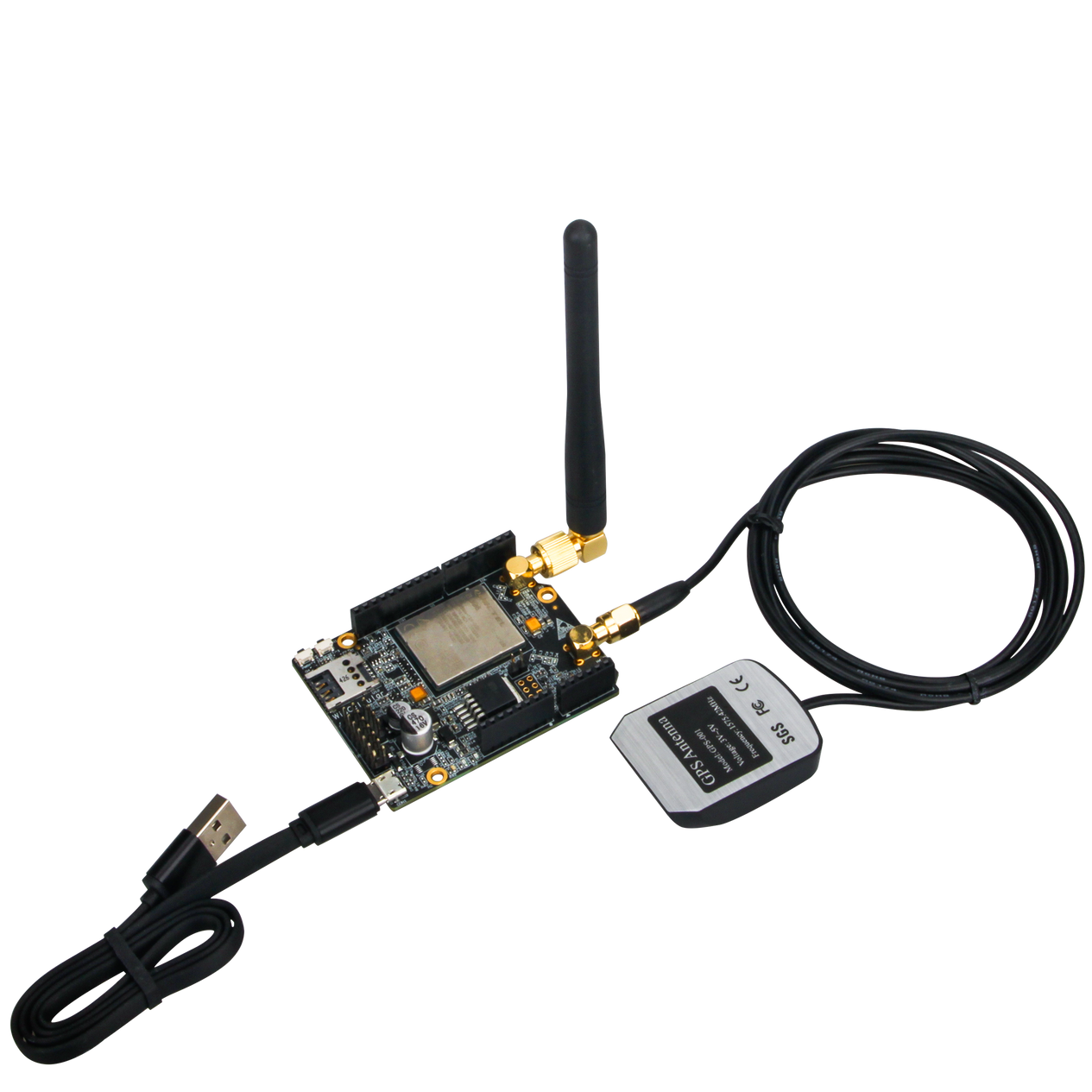

- Inclusion:
- 1pc WisDuino Cellular (RAK2011) Board
- 1pc GPS Antenna
- 1pc Cellular Antenna
- 1pc micro USB Cable (53cm in length)
