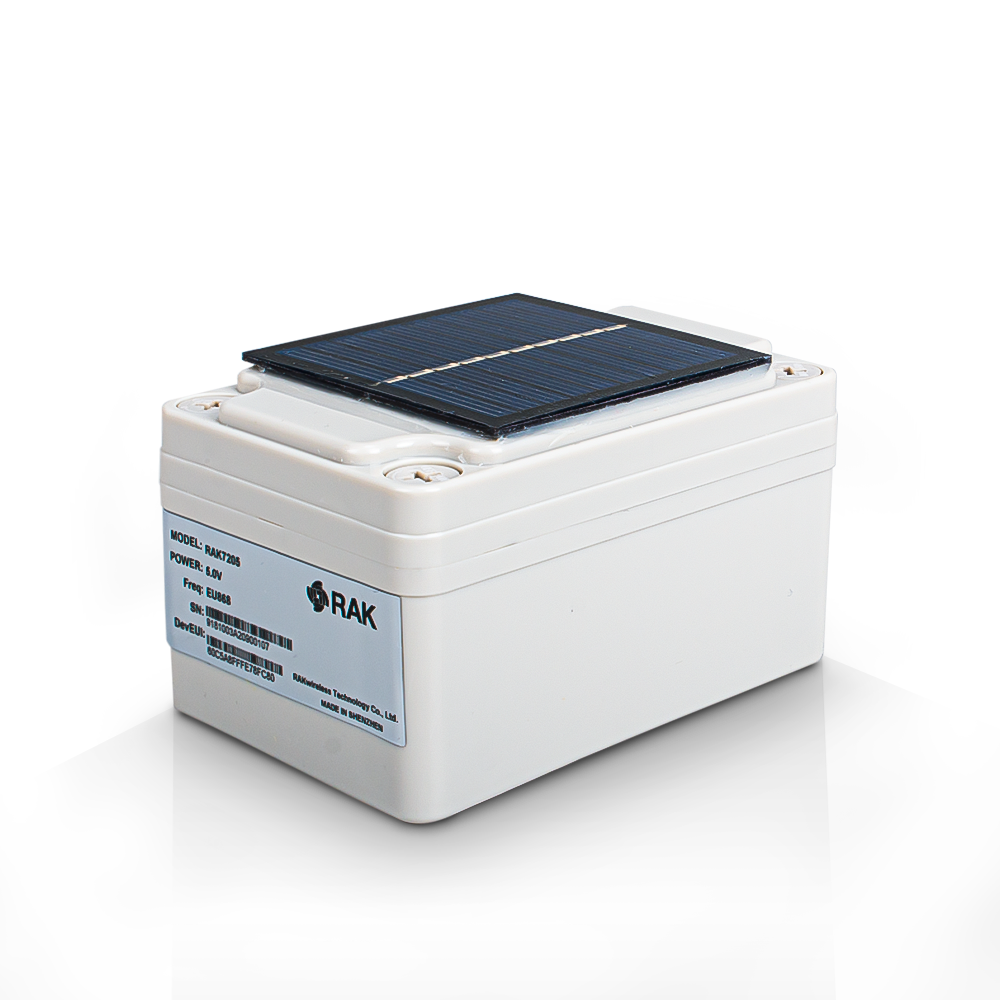

PnP Sensor Box
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

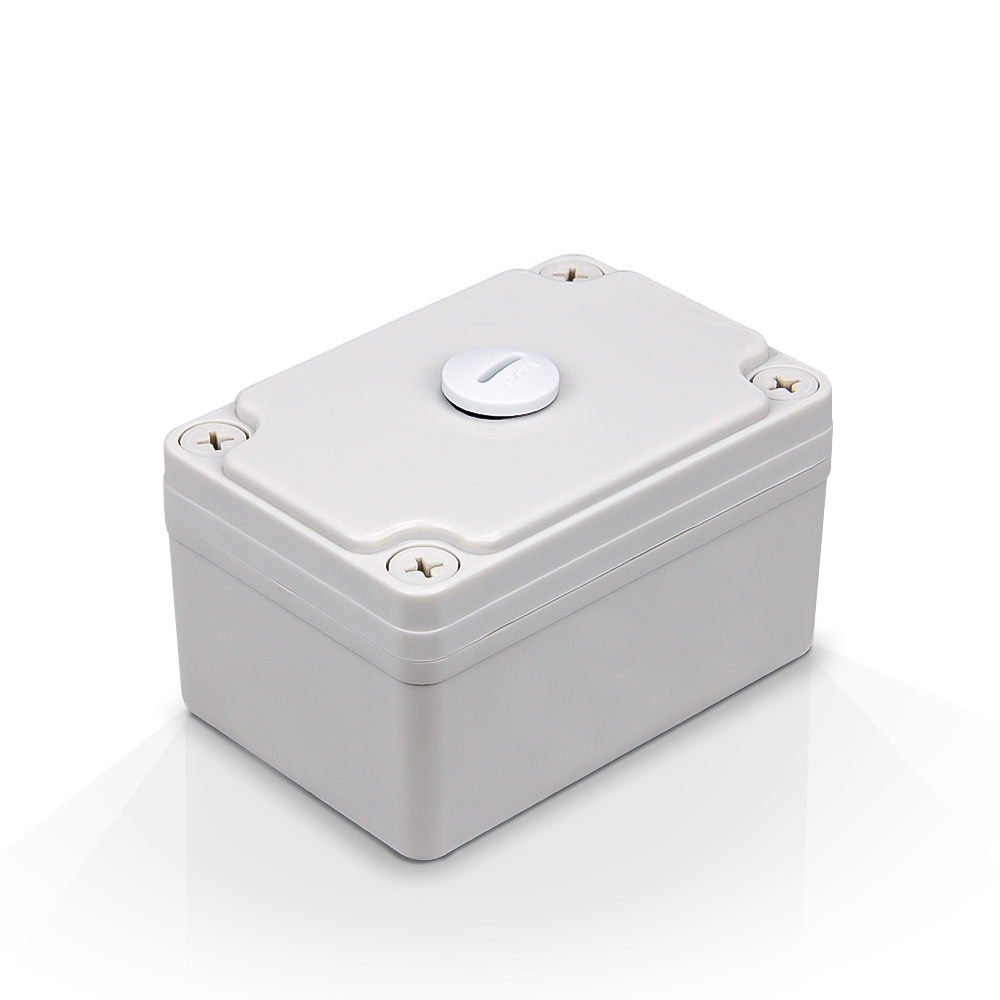

Made up of lightweight plastic, this enclosure is small, solid, and perfect for setups where space is limited. It is rated IP67/NEMA-6, making it completely protected from dust ingress and submersible up to 1m in water.
Board Support
- 96Boards form factor board (e.g. RAK5205)
- iTracker form factor board (e.g. RAK8212)
Key Features
- IP67 / NEMA-6 ingress protection.
- Applicable for pole and wall mounting. The diameter of the pole it can be attached to is between 60mm and 75mm.
- Customizable: We can customize it for you by printing your logo on it, or painting the enclosure in a different color.
- 1 x 16mm ports supporting N-type connectors / circular connector GX16
- Solar Panel Specifications:
- Panel Dimensions: 60mm x 60mm x 2mm
- Voltage at nominal power: 5V (±10%)
- Current at nominal power: 80mA (±5%)
- Cell efficiency: 17.5%
- Working Environment:
- Temperature:-20-65ºC
- Humidity: 45-95%
- UV resistance
- The ZH1.5-2P connector
- Red cable is for positive pole
- Black cable is for negative pole
Packaging
- Enclosure Weight: 0.5kg
- Enclosure Dimensions: 150mm x 90mm x 90mm

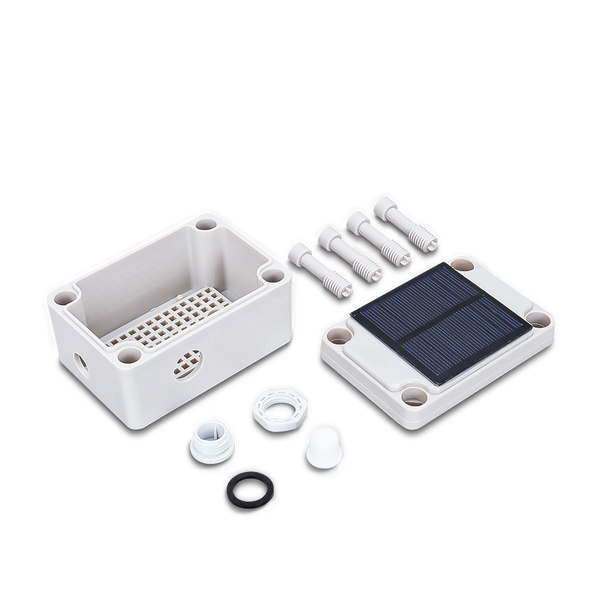

- Inclusions:
- 1pc Sensor Enclosure
- 1sets Port Plugs
Optional Accessories

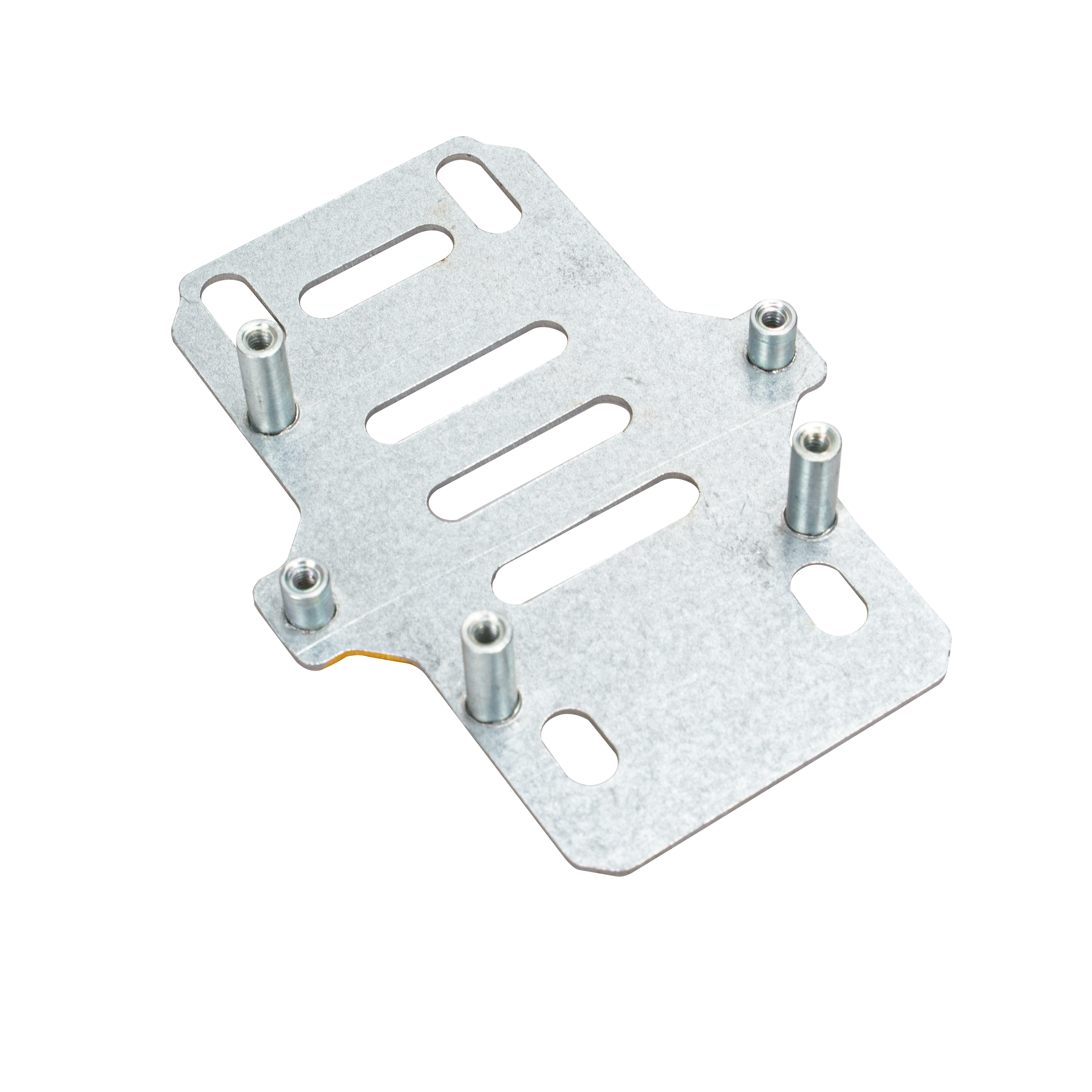

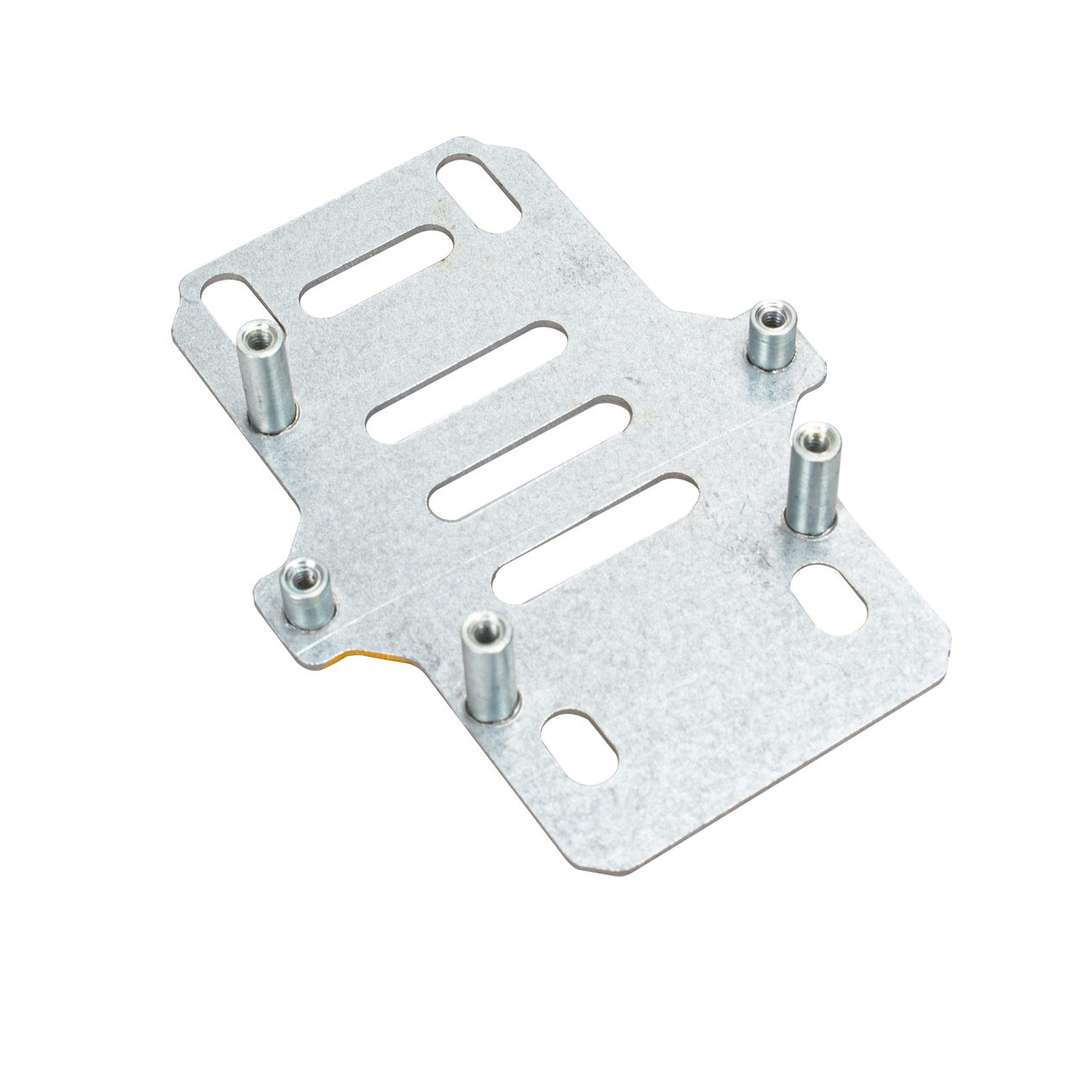

- Supporting plate kits for 96Boards form factor board

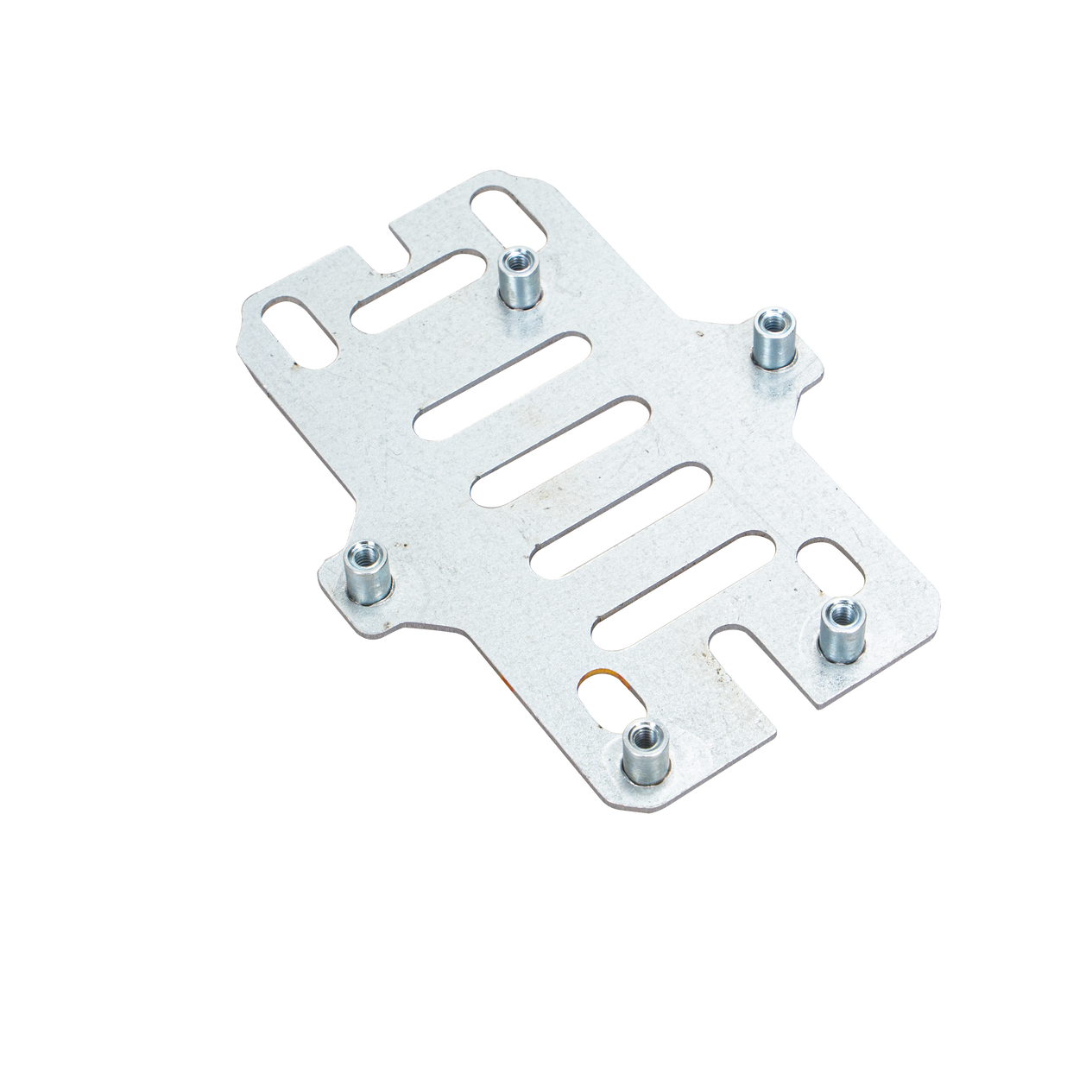

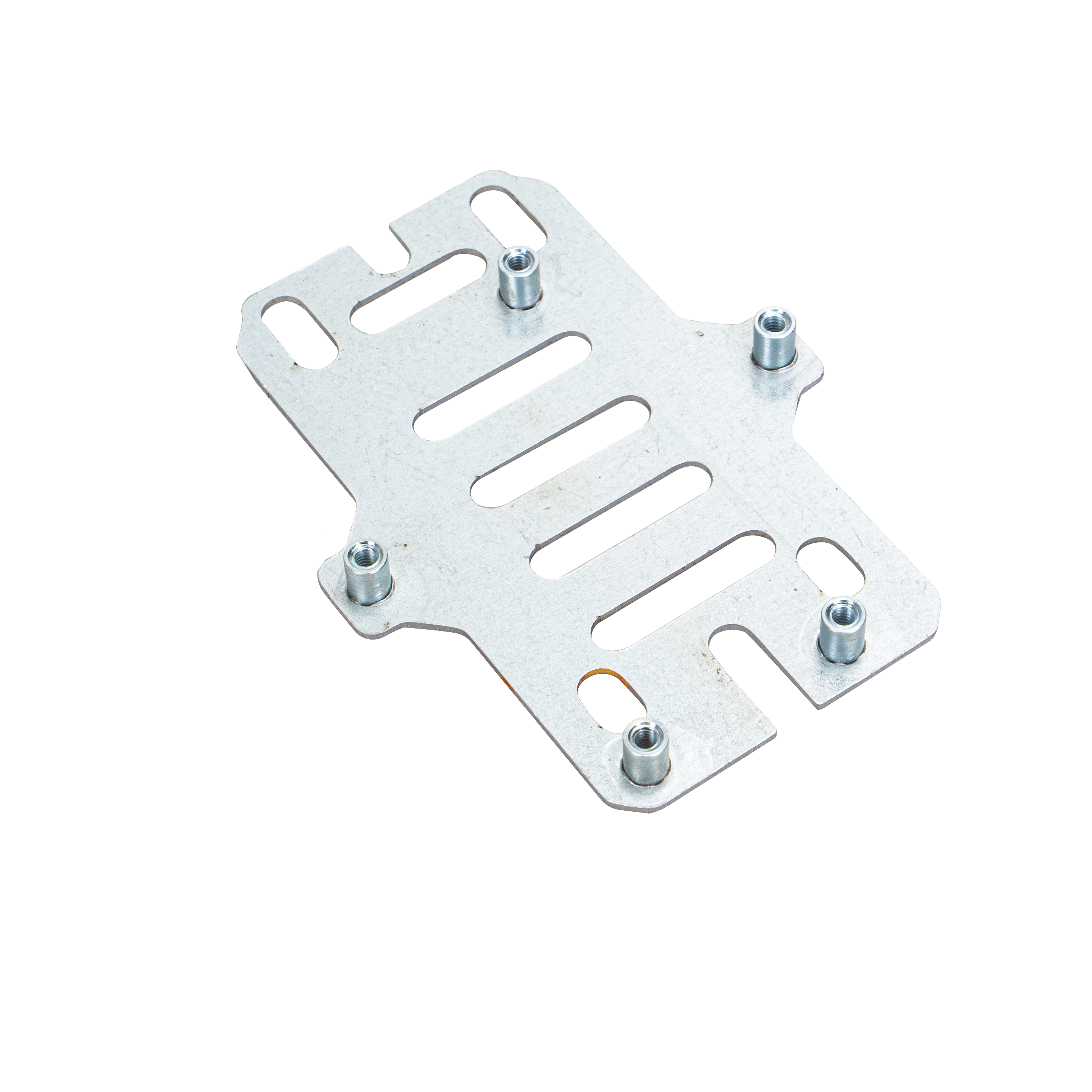

- Supporting plate kits for iTracker form factor board
- Mounting Kit for Wall Mounting or Pole Mounting
